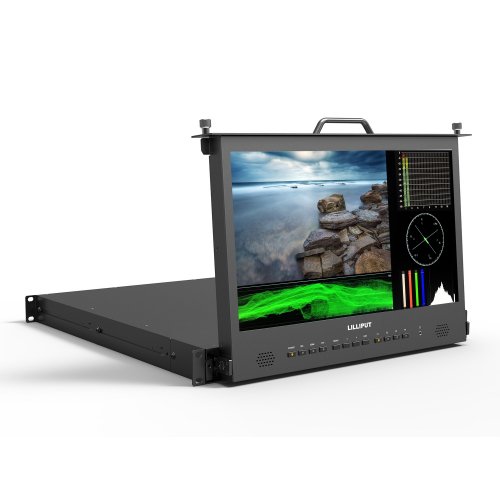

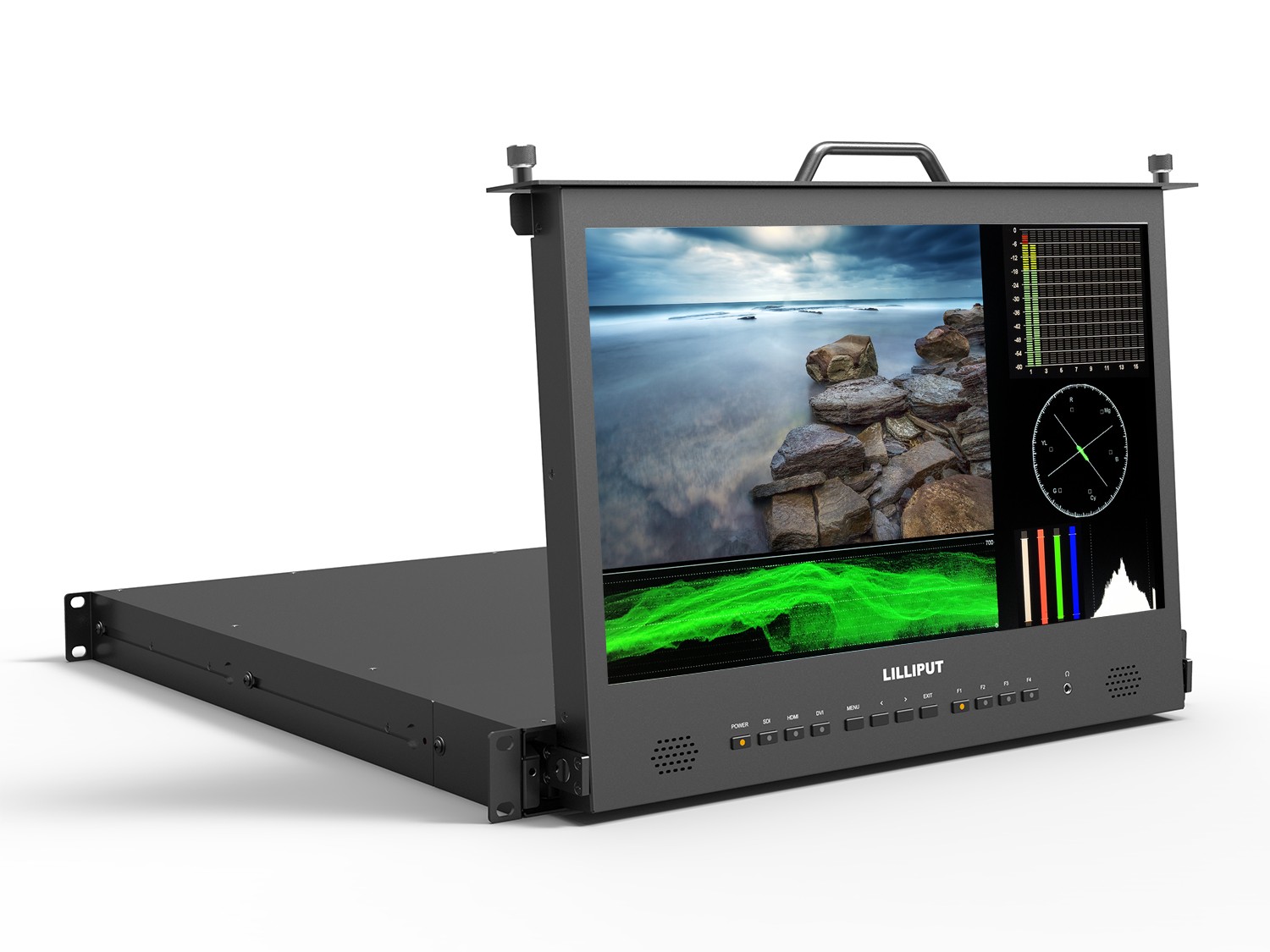

Lilliput RM-1730S 17.3in Full HD Pull-Out 1U Rack Monitor
Model: RM-1730S
About: Lilliput RM-1730S 17.3in Full HD Pull-Out 1U Rack Monitor
The Lilliput RM-1730S is a 17.3" Full HD pull-out Rack monitor with waveform, vector.
- 1920×1080, Full HD resolution,
- 300cd/m² high brightness,
- 700:1 high contrast,
- 1RU pull-out drawer type,
- 3G-SDI, HDMI, DVI, Audio & Tally inputs,
- SDI and HDMI cross conversion,
- Waveform PIP mode, vector,
- Column (YRGB peak), time code.
Excellent Display
The RM-1730S features 17.3" 16:9 IPS panel with 1920x1080 full HD resolution, 700:1 high contrast, 178° wide viewing angles, 300cd/m² high brightness, which combine to deliver a truly outstanding viewing experience.
Durable & Compact
The metal housing with pull-out drawer type design, provides perfect protection for a 17.3" monitor from shock and drop. It's also convenient for portable outdoor use, or applied in rack mount because of its amazing space-saving design. Power will be shut off automatically when screen down and pushed in.
Cross Conversion
The HDMI output connector can actively transmit an HDMI input signal or output an HDMI signal that has been converted from an SDI signal. In short, signal transmits from SDI input to HDMI output and from HDMI input to SDI output.
Additional Features:
- Time code
- Column (YRGB)
- Pixel zom
- Level meter
- Peaking
- False colour
- Histogram
- Exposure
- Check field
- Colour bar
- Image flip
- Pix to pix
|
DISPLAY
|
Display Screen | 17.3" IPS |
|---|---|---|
| Physical Resolution | 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 300cd/m2 | |
| Contrast | 700:1 | |
| Viewing Angle | 178°/178°(H/V) | |
|
INPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
| DVI | 1 | |
| AUDIO | 2 (L/R) | |
| TALLY | 1 | |
|
OUTPUT
|
3G-SDI | 1 |
| HDMI | 1 | |
|
AUDIO
|
Speaker | 2 |
| Ear Phone Slot | 1 | |
|
SDI FORMAT
|
SMPTE-125M | 480i(59.94) 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-292M | 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) | |
| SMPTE-372M | 720p(60/59.94/50) 1080i(29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) |
|
| SMPTE-425M-AB -Level A & Level B |
1080p(60/59.94/50) 1080i(60/59.94/50) 720p(60/59.94/50/30/29.97/25/24/23.98) |
|
| ITU-R BT.656 | 576i(50) | |
|
HDMI FORMAT
|
Full HD ~ HD | 1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
|
POWER
|
Current | 2.8A |
| Input Voltage | DC 10-18V | |
| Power Consumption | ≤32W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ | |
|
DIMENSION
|
Dimension(LWD) | 482.5×44×507.5mm |
| Weight | 8.6Kg |
UPC: 6950821601297
