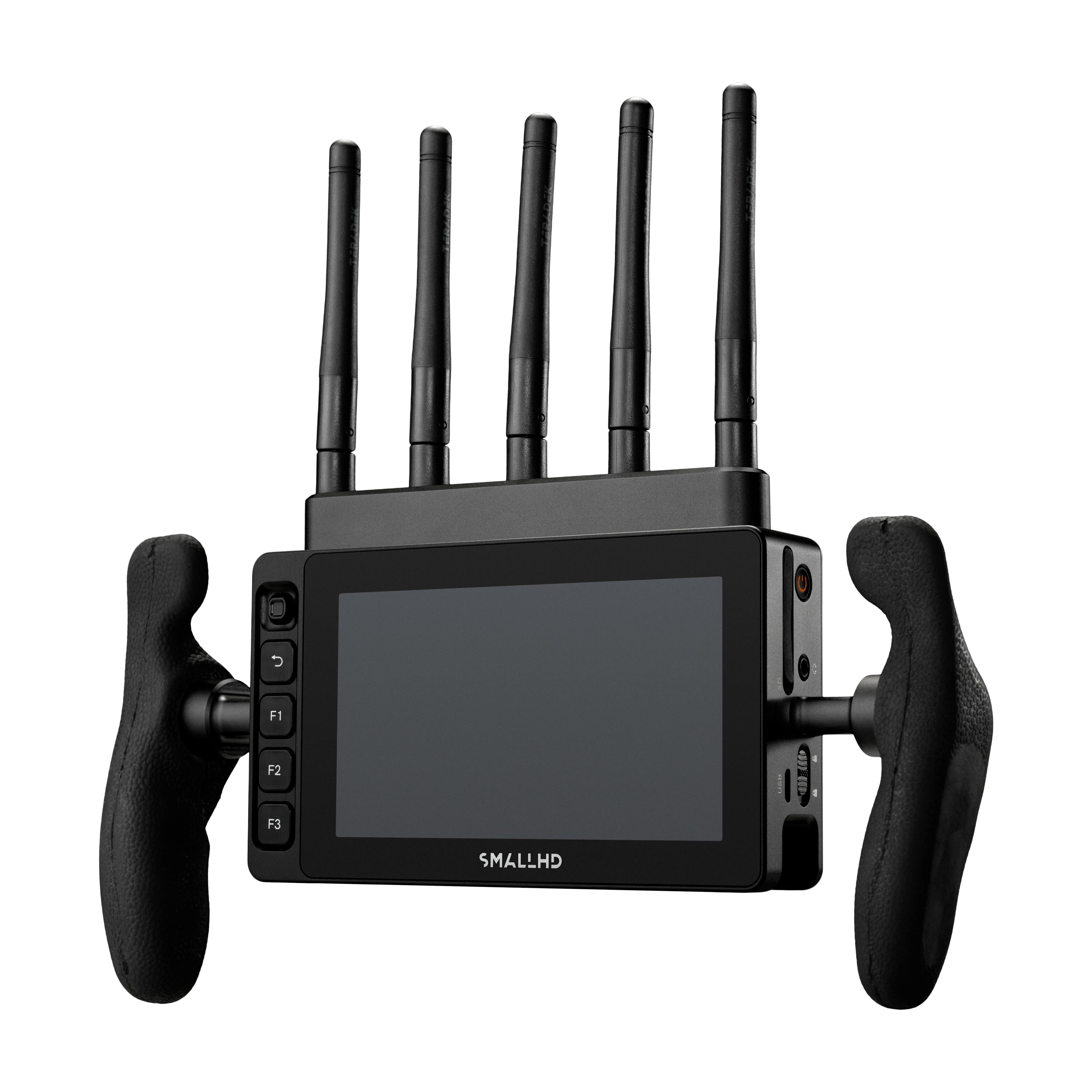

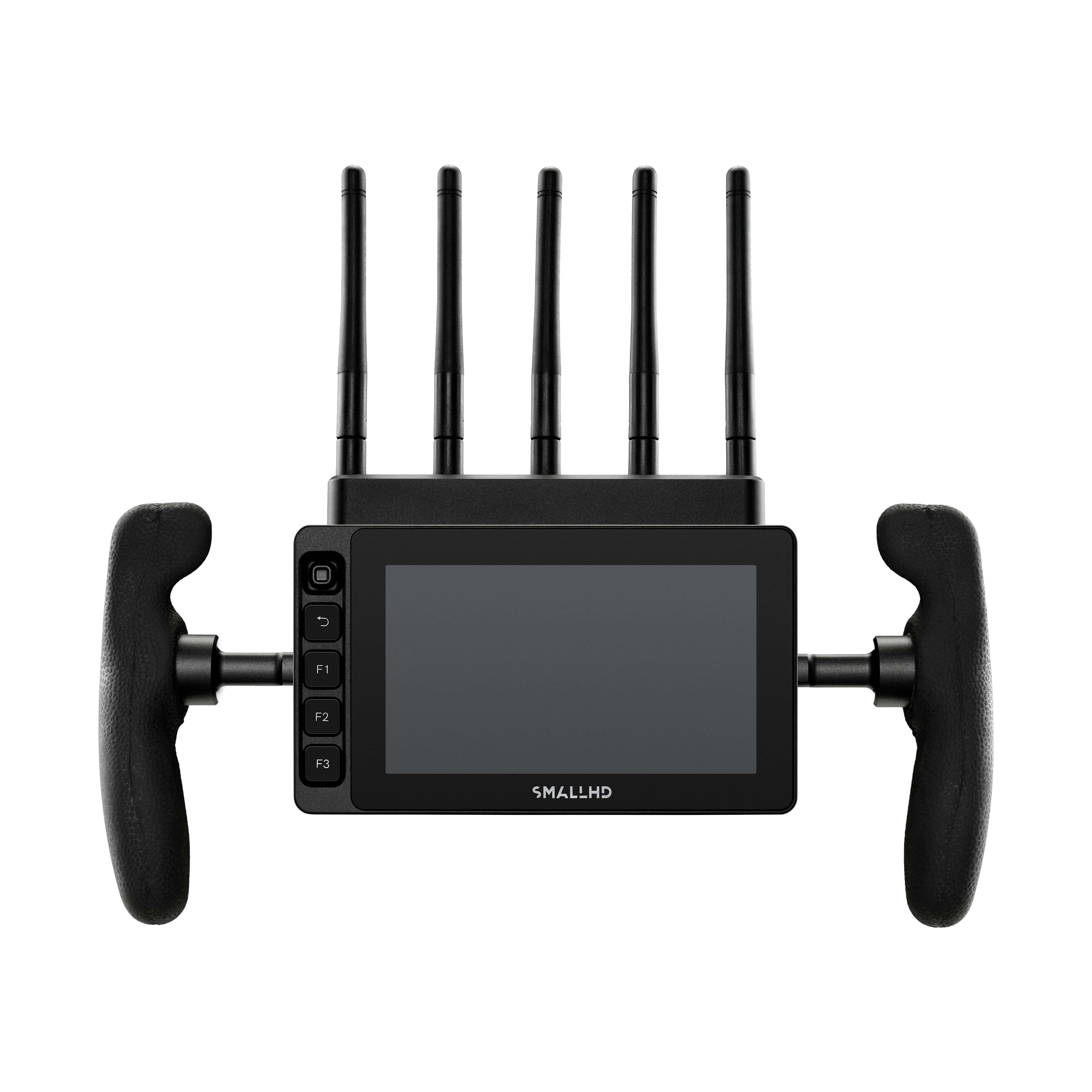

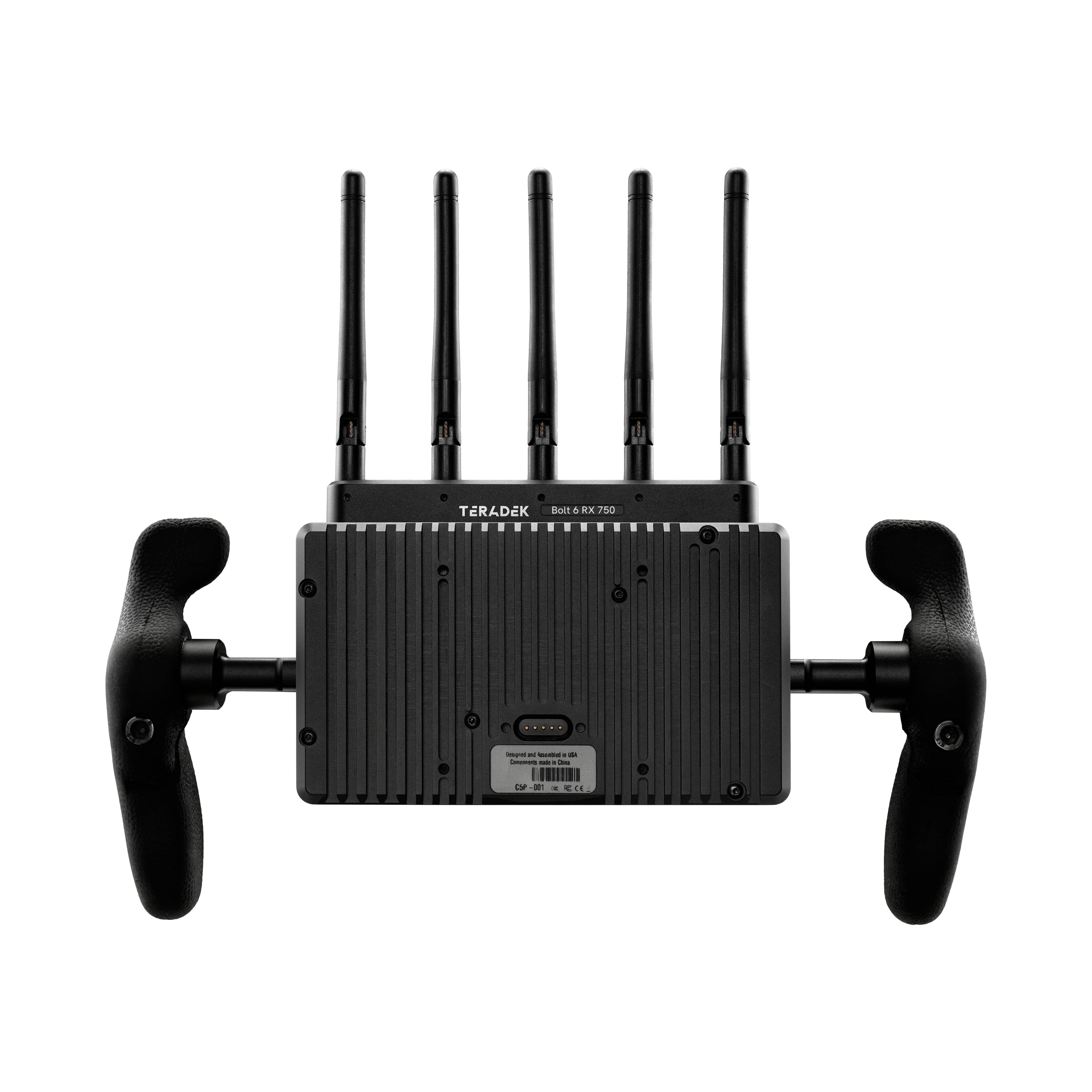

SmallHD Ultra 5 Monitor with Teradek Bolt 6 RX 750 Transmitter (V-Mount)

About: SmallHD Ultra 5 Monitor with Teradek Bolt 6 RX 750 Transmitter (V-Mount)

Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.

Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately).

Camera Control for ARRI, RED, and Sony VENICE

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO, V-RAPTOR, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more.

*Individual Camera Control software licenses are sold separately.

Next-Gen Tools, Customizable Workflow, Premium UX

Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays, and much, much more.

LOOK-AROUND CAMERA CONTROL - Camera Interface On Every Page

View and adjust crucial camera-control functions and PageOS 5 tools at the same time on Smart 5 Series Monitors with a camera-control interface anchored to every page.

TERADEK RT OVERLAYS - Lens Control Overlays

View critical lens, focus, iris, and zoom data on yourmonitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale for extremely precise focal-change sequences.

EL ZONE - Light Metering Evolved

Developed by legendary cinematographer, Ed Lachman, ASC, EL Zone is a stop-based exposure map tool that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.

TOUCH FUNCTION BUTTONS - Customizable On-Screen Shortcuts

Smart 5 has easily accessible on-screen Touch Function Buttons. Assign workflow shortcuts for software tools, input switching, display brightness, and more.

HORIZON INDICATOR - Keep Your Frame on the Level

A built-in digital bubble-level overlay you can apply to the image to precisely gauge camera rotation.

Built-in Wireless Video - Ultra 5 + Teradek Bolt 6

Get the best of both worlds: an Ultra 5 monitor with Teradek Bolt 6 built into the same compact, powerful device. Unlock next-gen 6GHz connectivity, eliminate the need for additional cables or batteries, unlock full wireless camera control, or mount it to your handheld Teradek RT for full wireless FIZ control. Available in transmitter and receiver models with integrated Gold Mount or V-Mount battery options.

Ultra 5 wireless monitors are fully cross-compatible with all Bolt 4K devices over the 5GHz band.

Specifications

• Environmental
  • Mount Points -  6x 1/4-20 Mounting Points
  • User Function Buttons -  Joystick Back-Button 3x Custom-Function Buttons
• Display
  • Panel Type -  Touch-Screen
  • Resolution -  1920 x 1080
  • Aspect Ratio -  16:9
  • Brightness -  3000nits
  • Backlight Type -  Edgelit
• Input Signal
  • 3G-SDI Input Types -  1x 3G-SDI
• Output Signal
  • HDMI Output Types -  1x HDMI 2.0 (4Kp30)

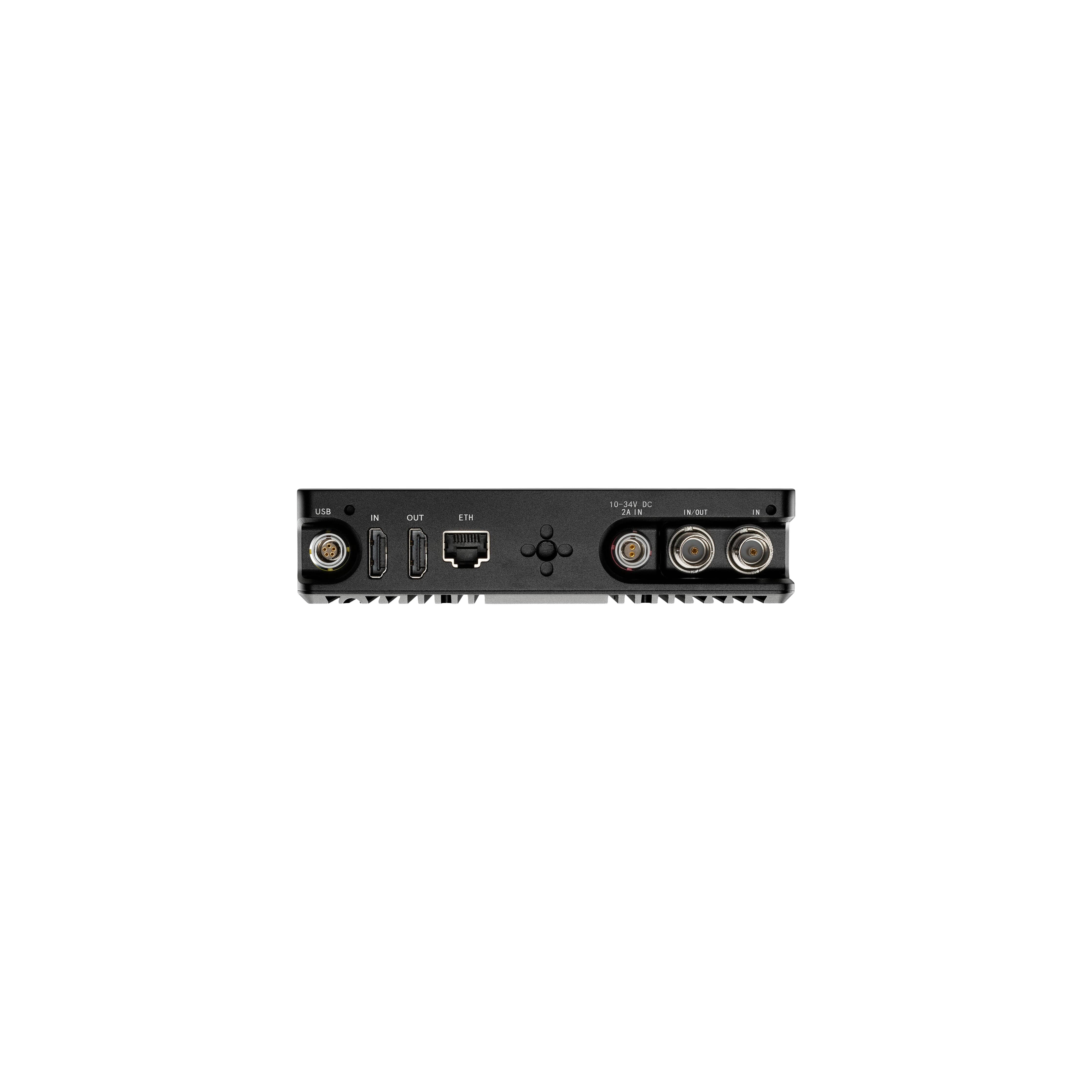

  • Connector Type
  • SDI -  1x 3G-SDI (In), 1x 3G-SDI (In/Out)
  • HDMI -  1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]

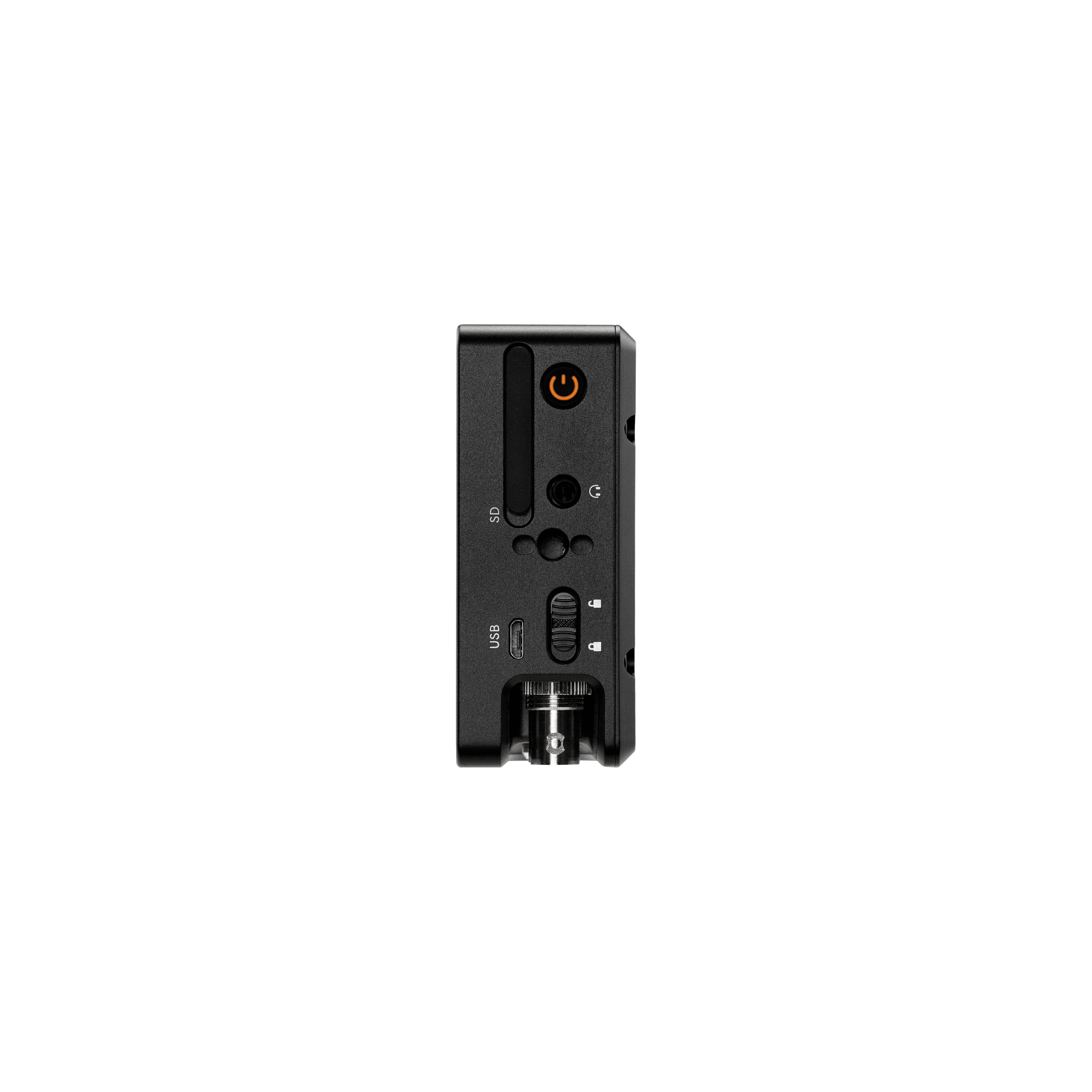

  • Audio -  1x 3.5mm Stereo Headphone Jack
• Data I/O
  • Connector Type -  1x RJ45 Ethernet
  • Storage Media -  1x SD Card Slot
  • USB -  1x Micro USB 1x Locking USB
• Power
  • Input -  2-pin Locking Power Input (10-34V DC, 2.1A)
• Software
  • Pixel Zoom -  Yes
  • Focus Assist -  Yes
  • Peaking -  Yes
  • False Color -  Customizable False Color Overlays
  • Waveform -  Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
  • Custom LUTS -  17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
• Camera Control
  • Camera Control Compatibility -  Camera Control for ARRI Camera Control for Sony VENICE Camera Control for RED DSMC2 Camera Control for RED RCP2 Cameras (KOMODO, DSMC3)
• Compare Chart
  • Resolution -  1920 x 1080
  • Color Depth -  10-Bit Color Intelligence Engine
  • Brightness -  3000nits
  • SDI (1080p60) -  1x 3G-SDI Input 1x 3G-SDI (I/O)
  • HDMI (4Kp30) -  1x HDMI 2.0 Input 1x HDMI 2.0 Output
  • Touchscreen -  YES
  • Joystick Control -  Front Joystick
  • Physical Buttons -  Back-Button 3x Custom-Function
  • Power Input -  2-pin Locking Connector
  • Locking USB Control Port -  YES
  • Ethernet Port -  YES
  • Camera Control Compatibility* -  ARRI, REDⓇ, Sony VENICE

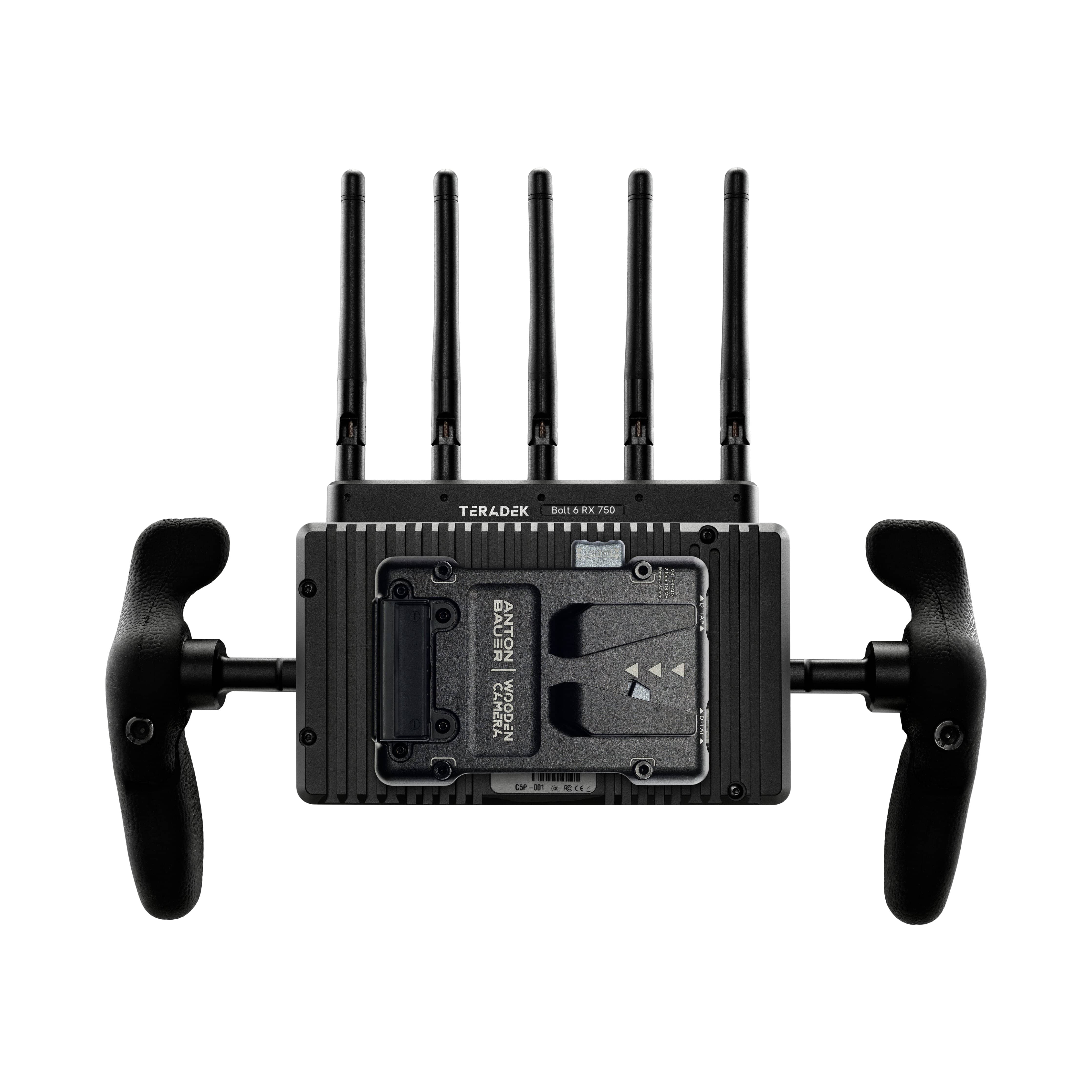

  • Battery Support -  Gold or V-Mount Micro Plates*
  • Touchscreen Lock -  YES
  • Built-in Teradek Bolt 6 -  Ultra 5 Bolt 6 750 Transmitter + Receiver
