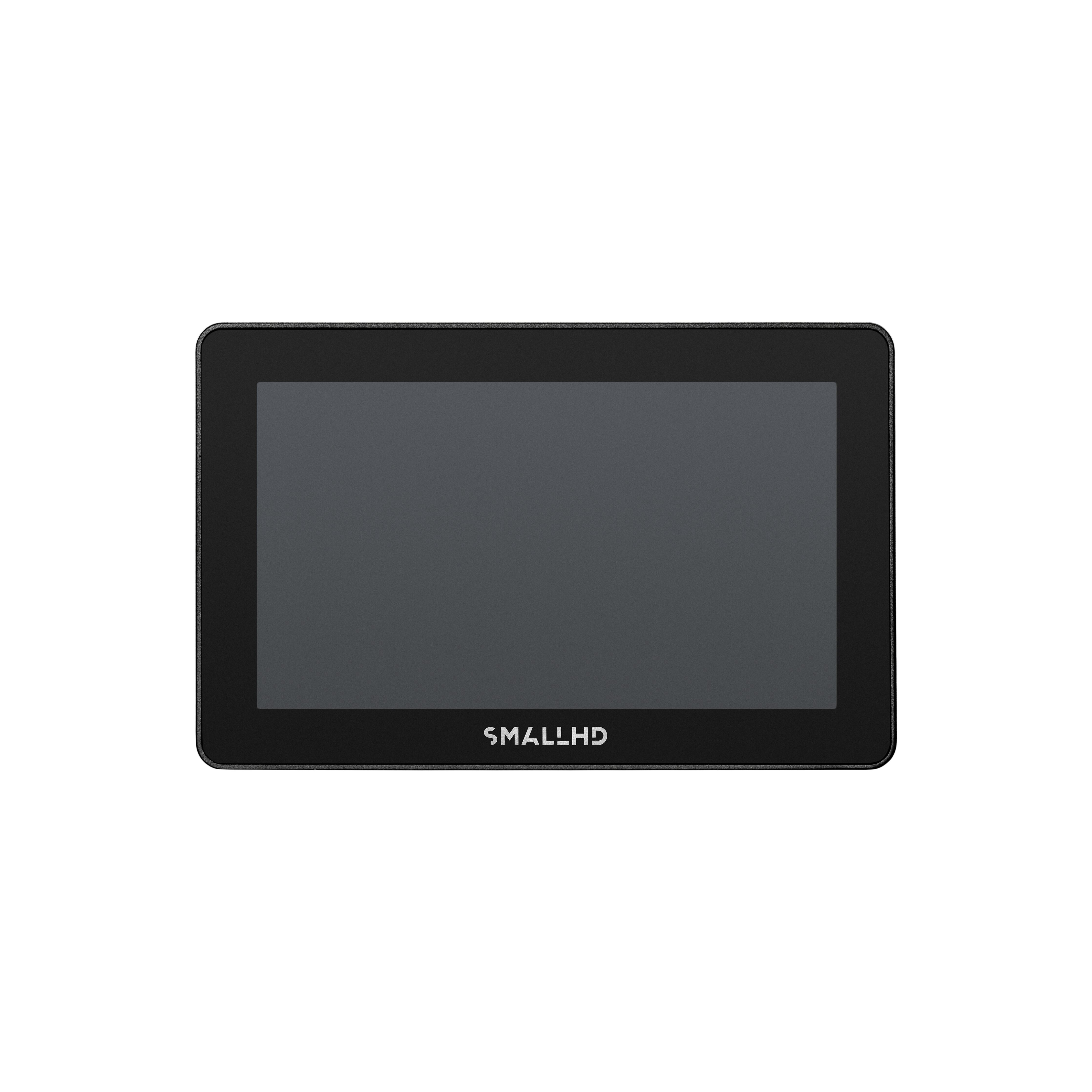

SmallHD Cine 5 Monitor

About: SmallHD Cine 5 Monitor

The Cine 5 monitor is lightweight, compact, and offers 2000nits brightness for full visibility even in direct sunlight. Optional camera-control functionality (software license and cable sold separately) allows users to start, stop, record, and more from the convenience of their Cine 5. Experience all your favorite PageOS 5 tools, functions, and settings pages on this field-ready 5-inch monitor.

1080p resolution ensures a clear look at your production, while 10-bit color processing offers excellent color accuracy. The added joystick and back button allow you to use this smart monitor in nearly all conditions, even on cold days when taking off your gloves is not an option.

Cine 5 is designed for high-end camera use – with bright imagery, optional Camera Control, and 2-pin locking power input – making it ideal for First ACs, Camera Operators, and DPs.

Camera Control for RED DSMC2 & RCP2

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED DSMC2, KOMODO, and V-RAPTOR camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Next-Gen Tools, Customizable Workflow, Premium UX

Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays, and much, much more.

LOOK-AROUND CAMERA CONTROL - Camera Interface On Every Page

View and adjust crucial camera-control functions and PageOS 5 tools at the same time on Smart 5 Series Monitors with a camera-control interface anchored to every page.

TERADEK RT OVERLAYS - Lens Control Overlays

View critical lens, focus, iris, and zoom data on yourmonitor. Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale for extremely precise focal-change sequences.

EL ZONE - Light Metering Evolved

Developed by legendary cinematographer, Ed Lachman, ASC, EL Zone is a stop-based exposure map tool that works like a virtual spot meter, replacing IRE exposure values with stops. Sensor data from the camera provides a reference point, and a false color represents each stop above and below 18% gray, allowing for easier, more intuitive on-set communication.

TOUCH FUNCTION BUTTONS - Customizable On-Screen Shortcuts

Smart 5 has easily accessible on-screen Touch Function Buttons. Assign workflow shortcuts for software tools, input switching, display brightness, and more.

HORIZON INDICATOR - Keep Your Frame on the Level

A built-in digital bubble-level overlay you can apply to the image to precisely gauge camera rotation.

Specifications

• Environmental
  • Mount Points -  6x 1/4-20 Mounting Points
  • User Function Buttons -  Side Joystick Side Back-Button
• Display
  • Panel Type -  Touch-Screen
  • Resolution -  1920 x 1080
  • Aspect Ratio -  16:9
  • Brightness -  2000nits
  • Backlight Type -  Edgelit
• Input Signal
  • 3G-SDI Input Types -  1x 3G-SDI
• Output Signal
  • HDMI Output Types -  1x HDMI 2.0 (4Kp30)
• Connector Type
  • SDI -  1x 3G-SDI (In), 1x 3G-SDI (In/Out)
  • HDMI -  1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
  • Audio -  1x 3.5mm Stereo Headphone Jack
• Data I/O
  • Storage Media -  1x SD Card Slot
  • USB -  1x Micro USB 1x Locking USB
• Power
  • Input -  2-pin Locking Power Input (10-34V DC, 1.6A)
• Software
  • Pixel Zoom -  Yes
  • Focus Assist -  Yes
  • Peaking -  Yes
  • False Color -  Customizable False Color Overlays
  • Waveform -  Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
  • Custom LUTS -  17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
• Camera Control
  • Camera Control Compatibility -  Camera Control for RED DSMC2 Camera Control for RED RCP2 Cameras (KOMODO, DSMC3)
    • *Additional camera control compatibility coming soon
• Compare Chart
  • Resolution -  1920 x 1080
  • Color Depth -  10-Bit Color Intelligence Engine
  • Brightness -  2000nits
  • SDI (1080p60) -  1x 3G-SDI Input 1x 3G-SDI (I/O)
  • HDMI (4Kp30) -  1x HDMI 2.0 Input 1x HDMI 2.0 Output
  • Touchscreen -  YES
  • Joystick Control -  Side Joystick
  • Physical Buttons -  Side Back-Button
  • Power Input -  2-pin Locking Connector
  • Locking USB Control Port -  YES
  • Ethernet Port -  ​NO
  • Camera Control Compatibility* -  REDⓇ
  • Battery Support -  Integrated Sony L-Series
  • Touchscreen Lock -  YES
  • Built-in Teradek Bolt 6 -  NO
