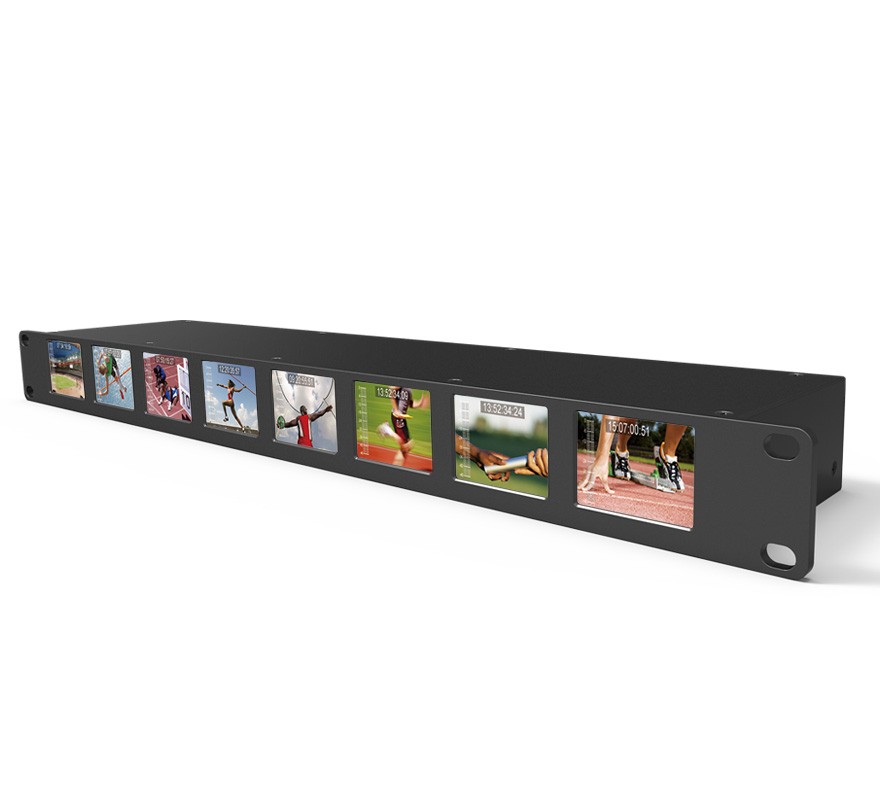

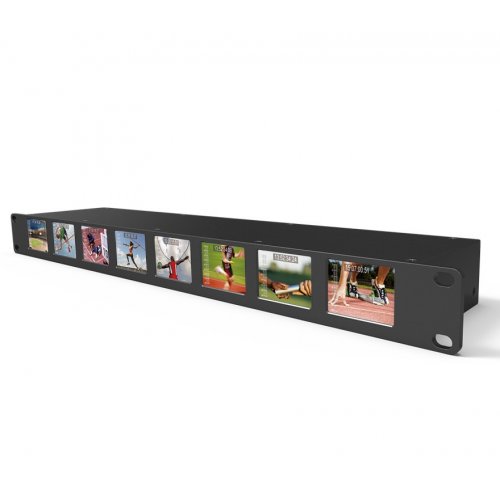

Lilliput RM-0208S 8×2in 1U Rackmount Monitors w/ SDI
Model: RM-0208S
About: Lilliput RM-0208S 8×2in 1U Rackmount Monitors w/ SDI
The Lilliput RM-0208S is an 8×2" 1RU Rackmount Monitors with SDI equalization and re-clocking. Connect to a PC or Mac using RS422 for control over each channel's display functions: UMD, Audio Level Meter, and Time Code.
- 8×2" 8bit TFT LCD, 640×240 resolution
- SDI equalization and re-clocking
- 300:1 high contrast
- 8×3G-SDI in & 8×3G-SDI loopout
- 32 half-width characters UMD
- Audio level meter & time code
- 1Rack Unit standard
- RS422 for remote control
|
DISPLAY
|
Display Screen | 8×2" 8bit TFT LCD |
|---|---|---|
| Physical Resolution | 640×240,supports up to 1920×1080 | |
| Aspect Ratio | 4:3 | |
| Brightness | 250cd/m2 | |
| Contrast | 300:1 | |
| Viewing Angle | 80°/70°(H / V) | |
|
INPUT
|
3G-SDI | 8 |
| RS422 | 1 | |
|
OUTPUT
|
3G-SDI | 8 |
|
SDI FORMAT
|
SMPTE-125M | 480i(59.94) 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE-292M | 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) | |
| SMPTE-372M | 720p(60/59.94/50) 1080i(29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) |
|
| SMPTE-425M-AB | 1080p(60/59.94/50) | |
| -Level A & Level B | 720p(60/59.94/50/30/29.97/25/24/23.98) | |
| Level B 2x | 1080i(60/59.94/50) | |
| ITU-R BT.656 | 576i(50) | |
|
HDMI FORMAT
|
Full HD ~ HD | 1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
|
POWER
|
Current | 1500mA/15V |
| Input Voltage | DC 12-24V | |
| Power Consumption | ≤23W | |
|
ENVIRONMENT
|
Operating Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ | |
|
DIMENSION
|
Dimension(LWD) | 482.5×105×44mm |
| Weight | 1555g |
UPC: 6950821601372
