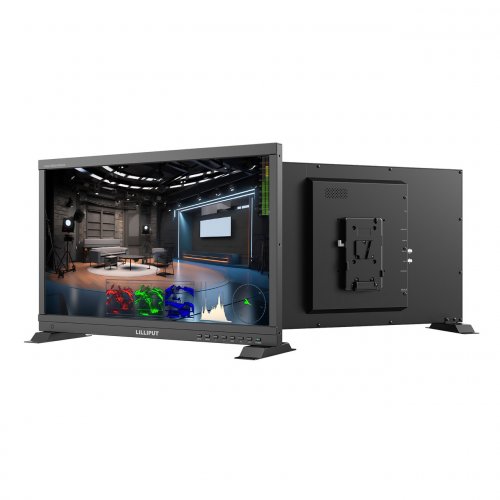

Lilliput PVM220S-H 21.5" High Brightness Broadcast Monitor (V-Mount)

About: Lilliput PVM220S-H 21.5" High Brightness Broadcast Monitor (V-Mount)

The LILLIPUT PVM220S-H is a professional high-brightness broadcast monitor designed to meet the needs of photographers, videographers, and cinematographers. It features a variety of input options, including the option for 3G SDI and HDMI 2.0 connections, ensuring compatibility with a wide range of devices for broadcast-quality monitoring. This cost-effective monitor is packed with advanced features, including accurate waveform and vector functions, providing robust support for precise color grading and picture quality analysis. With its high brightness display and extensive input compatibility, the PVM220S-H is an essential tool for professional video production and monitoring.

Specifications

• Display
  • Aspect Ratio - 16:9
  • Contrast Ratio - 1000:1
  • Look Up Table Support - 3D LUT (.cube format)
  • Resolution - 1920 x 1080
  • Technology - Calibration to Rec.709 with optional calibration unit
  • Viewing Angle - 178°/178°（H/V)
  • HDR - ST2084 300/1000/10000/HLG
  • Screen Size - 21.5"
  • Supported Log Formats - SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
• Supported Formats
  • HDMI Formats Supported - 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
  • SDI Formats Supported - 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
• Monitor Specification
  • Video Inputs - SDI 1×3G, 1X HDMI 2.0
  • Video Outputs - SDI 1×3G, 1X HDMI 2.0
• Audio In / Out (48 kHz PCM Audio)
  • Built In Speakers - 1
  • Ear Jack - 1x 3.5mm
  • HDMI Audio Frequency - 8ch 24-bit
  • SDI Audio Frequency - 2ch 48kHz 24-bit
• Size
  • Dimensions - 20 x 12.64 x 1.85 in (508 × 321 × 47 mm)
  • Weight - 10.36 lbs (4.7 kg)
• Power
  • Compatible Batteries - V-Lock
  • Input Voltage - DC 9-24V
  • Power Consumption - ≤53W (15V)
• Environment
  • Operating Temperature - 0℃~50℃
  • Storage Temperature - -20℃~60℃
