Lilliput TK1019 10.1 Inch 1500 Nits Monitor (Touchscreen)

About: Lilliput TK1019 10.1 Inch 1500 Nits Monitor (Touchscreen)

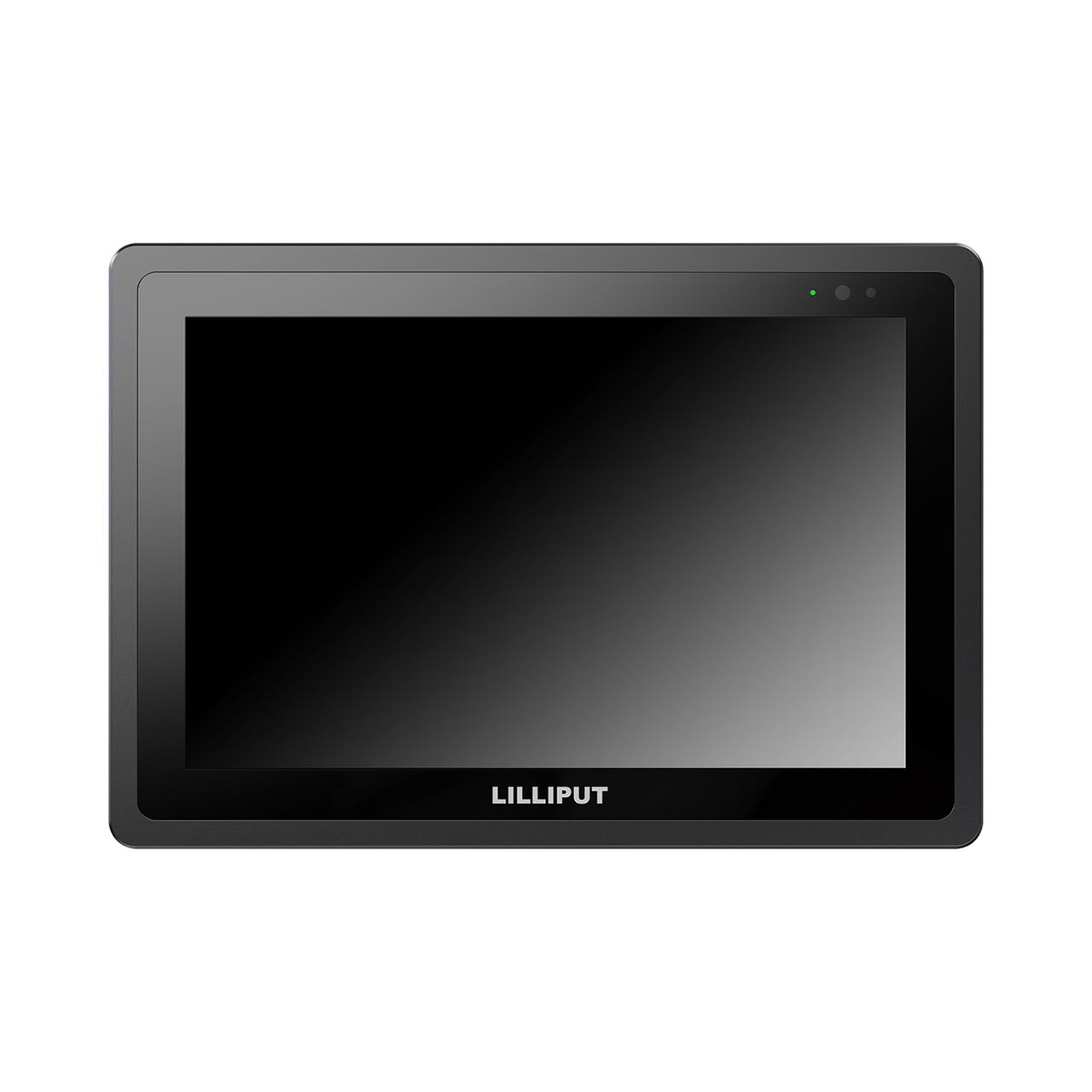

The Lilliput TK1019/T is a 10.1″ 1920×1200 resolution with our best-in-range 1500cdm² high brightness screen,

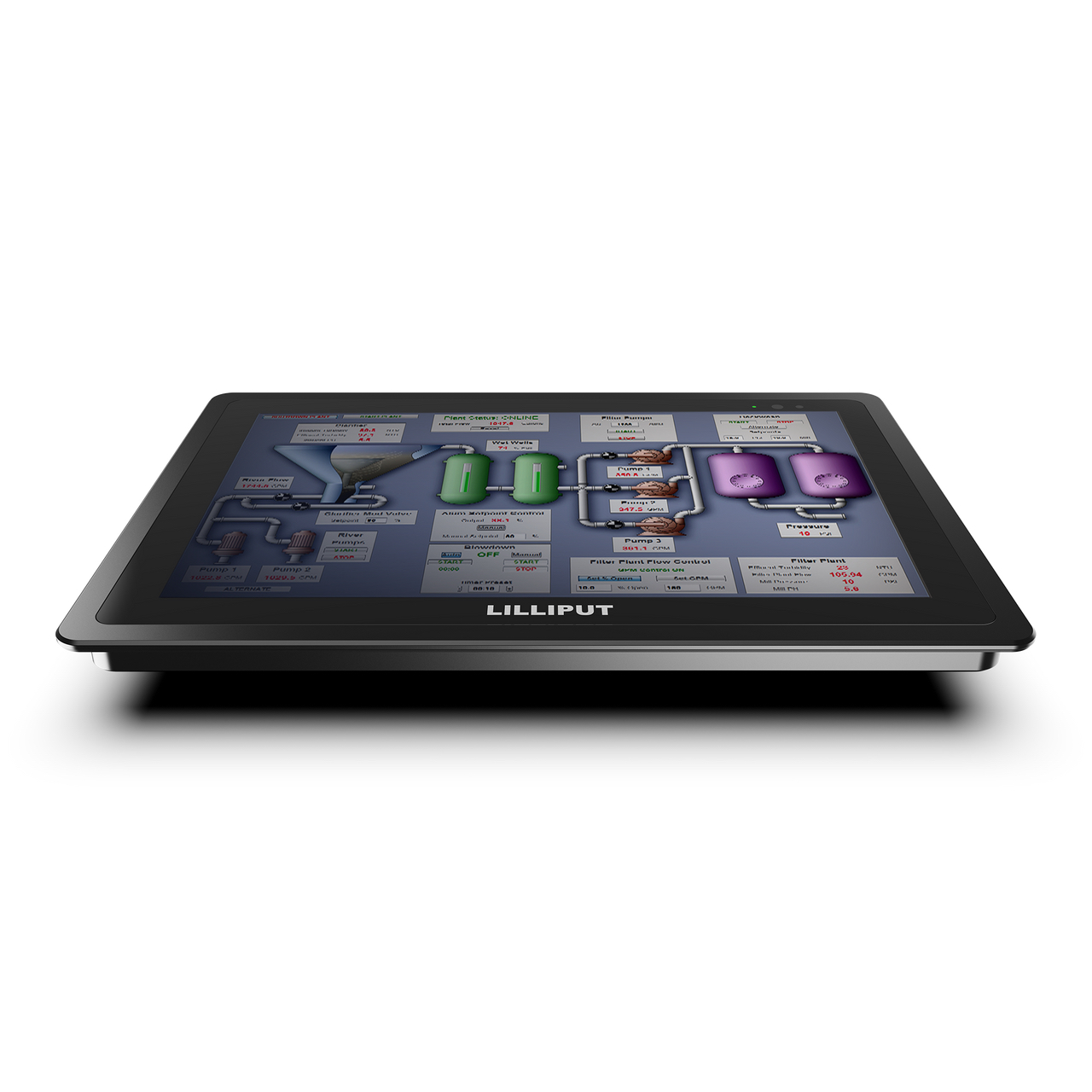

Suitable for a wide range of outdoor industrial and commercial applications, this specific model TK1019/T is ideal for use in a POI/POS, Kiosk, HMI or other industrial field-equipment setup. It can also be installed as either a desktop device for control centers, or as a second panel for a home PC system.

In a vast improvement on previous models, the 1019/T has a 10 point PCAP Capacitive touch screen through a USB-C port, giving it all the touch versatility of the modern Tablet, allowing connection natively to Windows 10/ 11 and most common operating systems

Meeting latest connectivity standards, it will connect by USB-C, as well as by HDMI - and in both of these modes it can accept up to a 4K 60Hz input. Need a legacy input? We have you covered with a VGA port, which will accept up to a 1080p signal.

For outdoor / rugged installation environments it can also be purchased with an IP65 frame and cable set, meaning it will stand up better in the more rough-and-tumble of environments.

Specifications

• Display
  • Touch Screen - Non-touch
  • Panel - 10.1” LCD
  • Physical Resolution - 1920×1200
  • Aspect Ratio - 16:10
  • Brightness - 1500 nits
  • Contrast - 1000:1
  • Viewing Angle - 170° / 170° (H/V)
  • LED Panel Life Time - 50000h

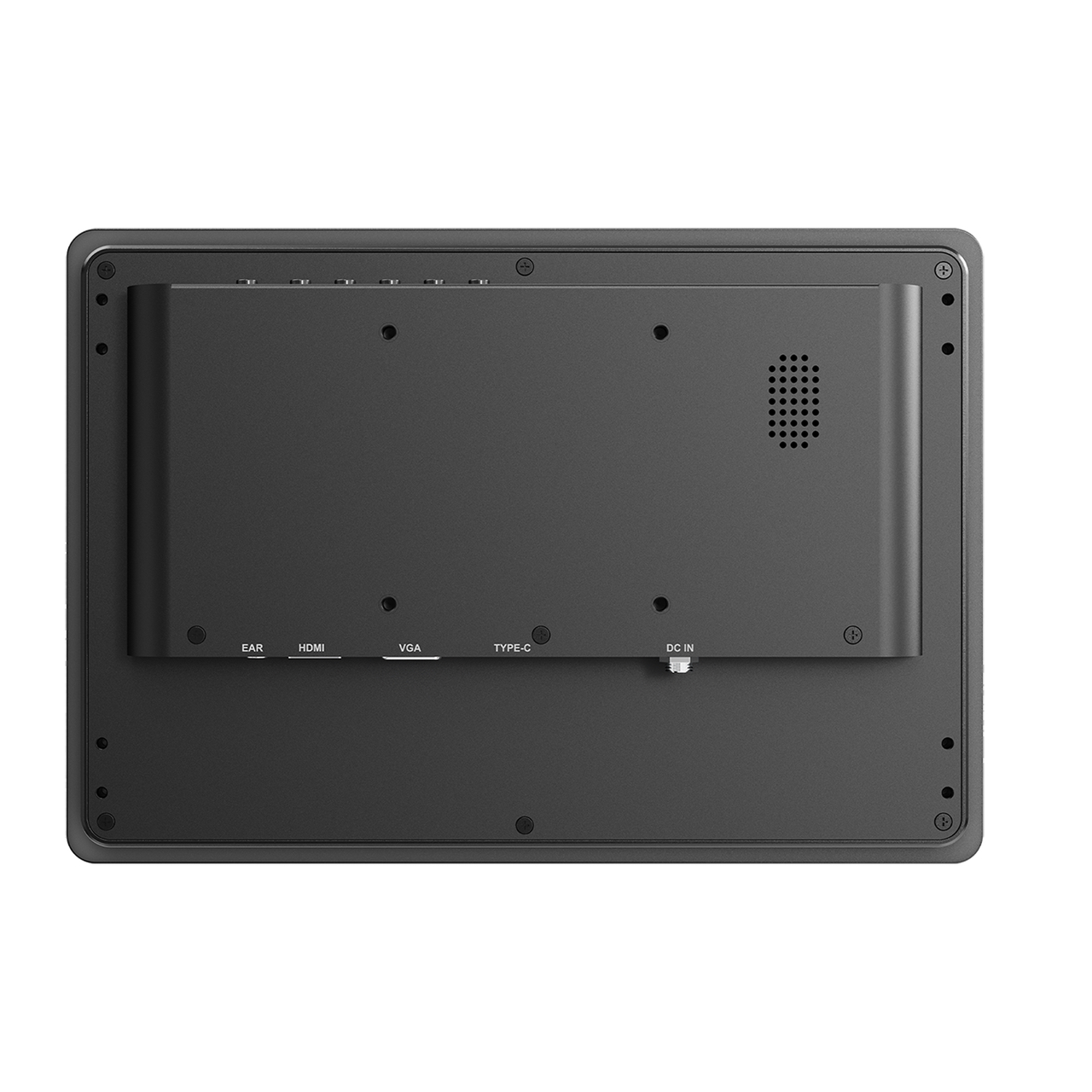

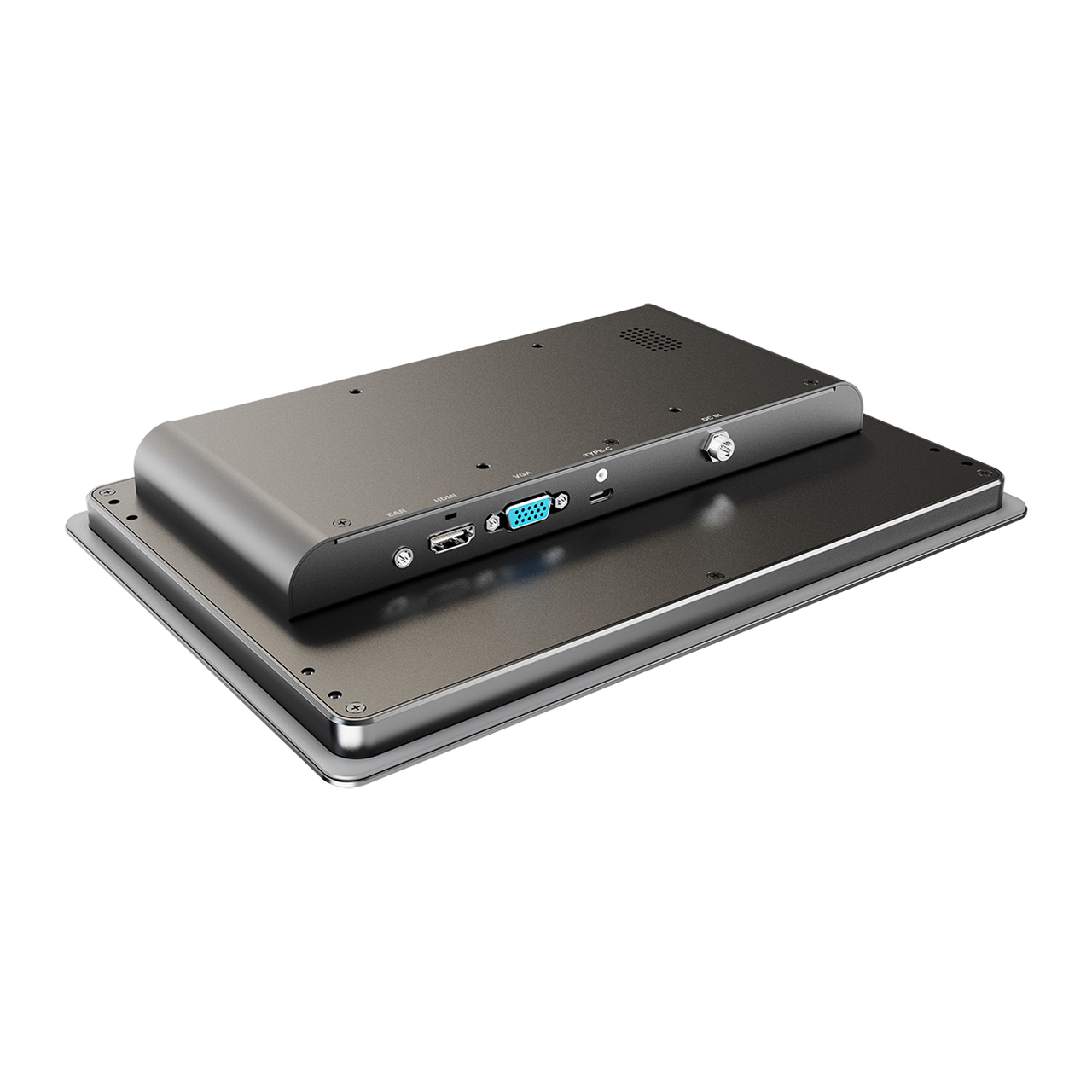

• Input
  • HDMI - 1x
  • VGA - 1x
  • USB - 1× USB-C (For touch, video signal or power)
• Supported Formats
  • HDMI - 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
  • VGA - 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
  • USB Type-C - 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
• Audio In/Out
  • Speaker - 1
  • HDMI - Available
  • Ear Jack - 3.5mm – 2ch 48kHz 24-bit
• Power
  • Input Voltage - DC 12-24V
  • Power Consumption - ≤19W (12V)
• Environment
  • IP Rating - IP65 Front Panel
  • Operating Temperature - -20°C~70°C
  • Storage Temperature - -30°C~80°C
• Size
  • Dimension(LxWxD) - 264mm × 183mm × 35.6mm
  • Weight - 1.31kg
