Feelworld ATEM156 4K 15.6in Monitor w/ 4x HDMI Inputs

About: Feelworld ATEM156 4K 15.6in Monitor w/ 4x HDMI Inputs

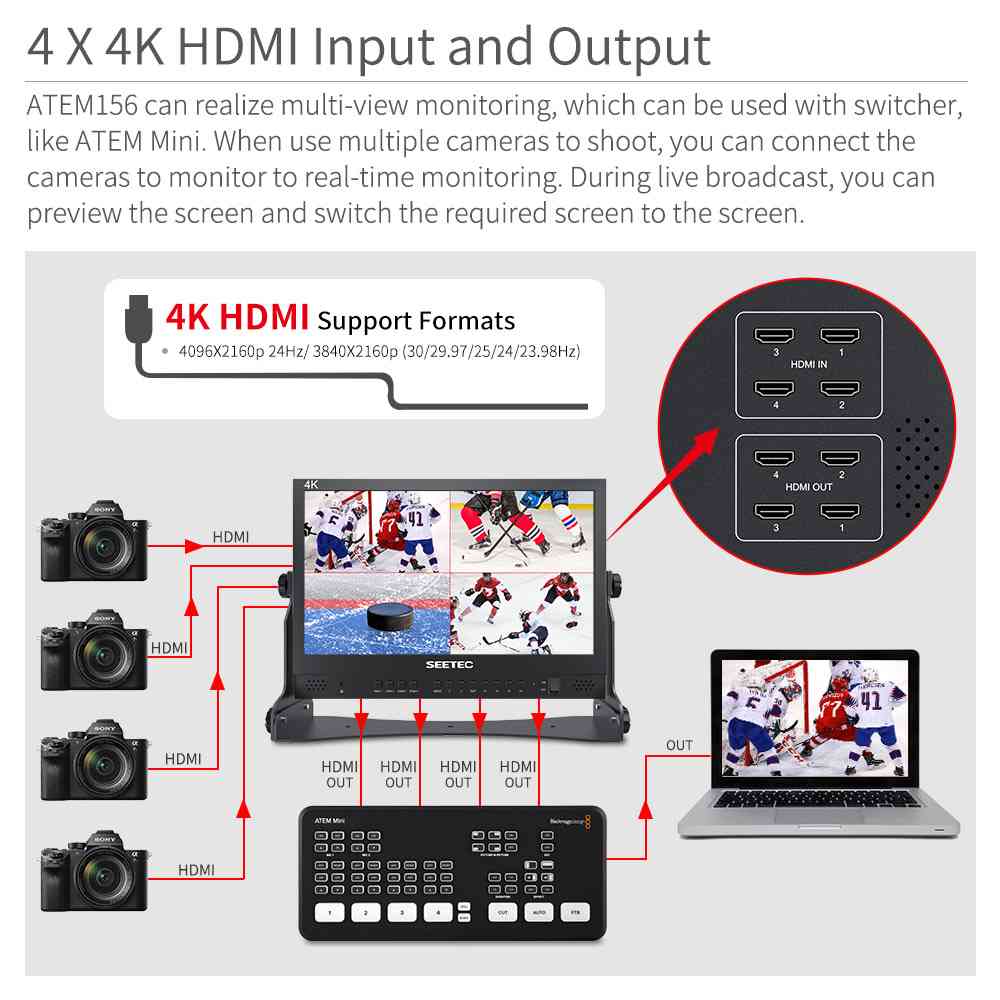

When you’re creating a live program from multiple cameras, it’s important to be able to see more video sources at the same time. ATEM156 has four 4K HDMI inputs and outputs, supports quad view, dual view, single view monitoring functions, allowing you to get perfect multi camera monitoring in any location!

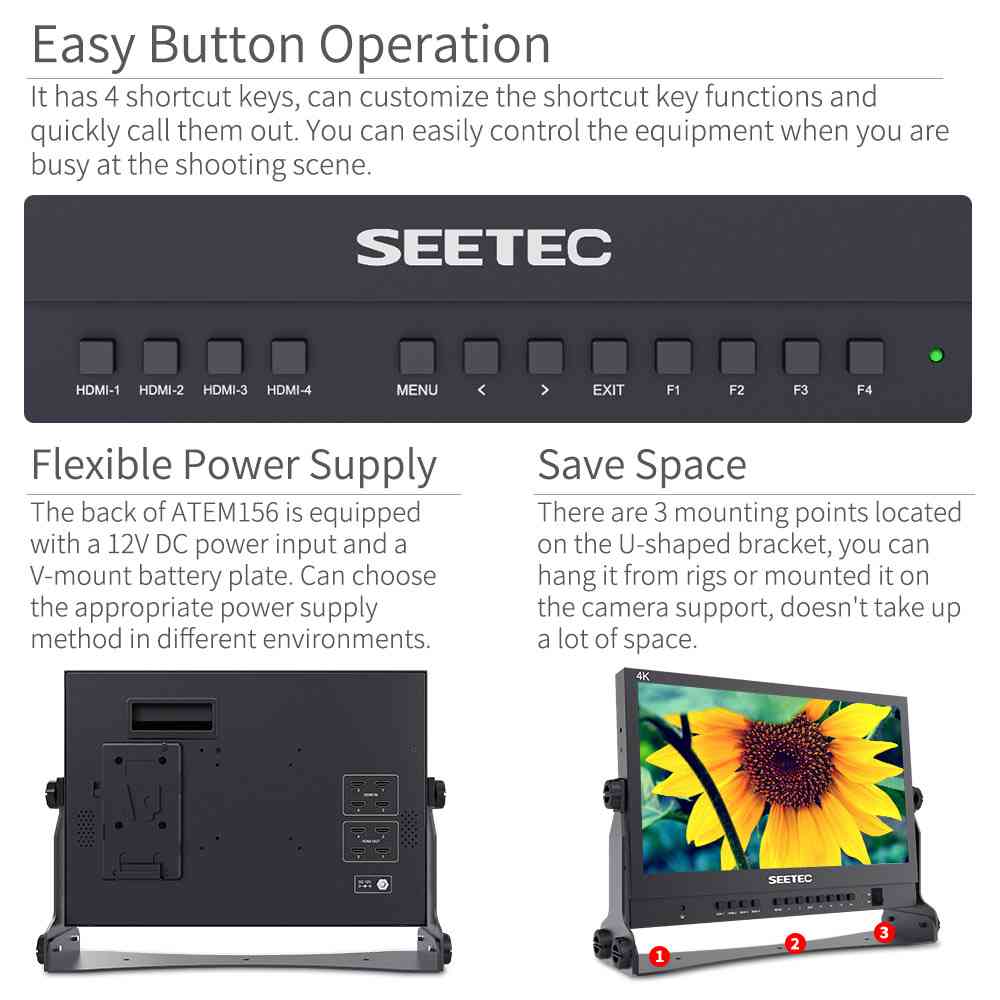

VESA Mount Points
The included VESA mount points mean you don’t have to rack mount ATEM156, as you can use a wide range of computer monitor mounting hardware if you want to mount your broadcast monitor in cubicles, on walls or anywhere you need!

Aluminum Metal Frame
The frame of ATEM156 is made from extremely durable and lightweight aircraft grade aluminum, the weight of the ATEM156 is as low as 1.57kg (without bracket), and this metal material has very sturdy and durable characteristics, suitable for high-intensity production such as mobile shooting, location shooting or live broadcast.

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

Pixel to Pixel

Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

Specifications:

• Screen Size: 15.6" IPS
• Color Depth: 16.7M colors (8-bits)
• Resolution: 1920×1080 pixels
• Pixel Pitch: 0.17925 (H) X 0.17925 (V) mm
• Aspect Ratio: 16:9
• Brightness: 250cd/m²
• Contrast Ratio: 800:1
• Backlight: LED
• Viewing Angle: 85°/85°(L/R) 85°/85°(U/D)

Input / Output

• Input: 4 X HDMI(Support 4K 30Hz)
• Output: 4 X HDMI (Support 4K 30Hz)
• Audio Out: 3.5mm Stereo Headphone
• HDMI Support Format:
  • 480p/576p
  • 720p (60/59.94/50/30/29.97/25/24/23.98)
  • 1080p (60/59.94/50/30/29.97/25/24/23.98)
  • 3840×2160p (30/25/24), 4096×2160p (24)

General

• Input Voltage: DC12～24V
• Power Consumption: ≤12W
• Working Temperature: -10°C~50°C
• Storage Temperature: -20°C~60°C
• Unit Size (mm): 372L×262H×28.4D (mm) (Without Bracket)
• Unit Weight: 1.57kg (Without Bracket)

Package Includes:

• 1x Mini/ Micro HDMI to HDMI Cable
• 1x V-mount Battery Plate
• 1x 3A 3A Power Adapter
• 1x U-shaped Bracket
• 1× Operation Manual
