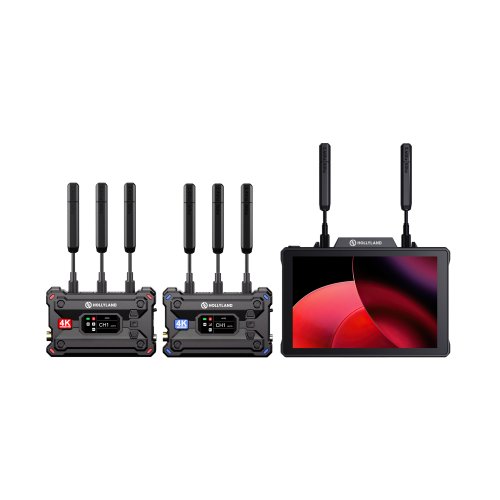

Hollyland Pyro 7 + Pyro S 7-inch Video Transmission & Monitoring Kit

About: Hollyland Pyro 7 + Pyro S 7-inch Video Transmission & Monitoring Kit

Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.

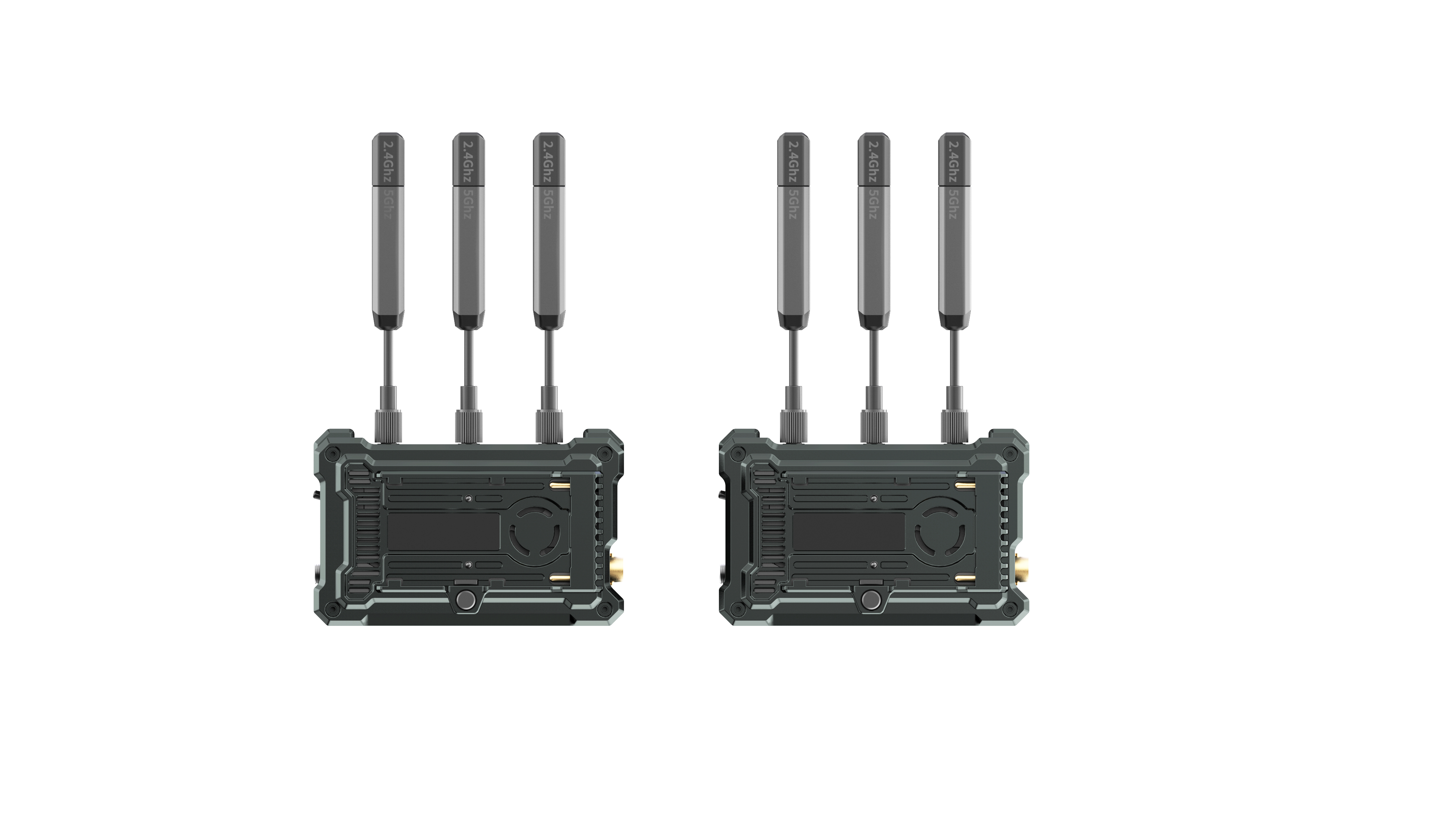

Pyro S is a groundbreaking addition to the Hollyland Pyro series lineup, which redefines wireless video transmission. Pyro S supports HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms. Pyro S uses advanced Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for your real-world shooting needs. Lighter and more durable than traditional models, Pyro S’s magnesium alloy shell makes it easier to carry and handle. It’s ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications.

Features

• Pyro 7 Wireless Monitor
  • 1TX & 4RX - Offers more flexibility when additional monitoring needs emerge on set.
  • 1300ft (400m) & 0.06s Latency - Ultra-long range wireless transmission capability.
  • 2.4 GHz & 5 GHz Dual Band - Provides better signal transmission performance and efficiency.
  • Auto Frequency Hopping - Guarantees reliable and uninterrupted wireless video transmission.
  • TX, RX, and Monitor – All in One - One device to meet your diverse needs
  • Dual-View Quick Monitoring Switch - Conveniently switch to the desired view.
  • 7-Inch & 1200 nits - 7-inch, better monitoring experience. 1200 nits, clear and visible even in outdoor or strong lighting conditions.
  • Precise Image Analysis - More precise and advanced image analysis features for you.
  • SDI & HDMI Loopout - Satisfies the diverse requirements of different user groups.
  • RTMP Streaming - Convenient for live streaming and video conferencing.
• Pyro S Wireless Video Transmission System
  • ​1 Transmitter & 4 Receivers - Offers more flexibility when additional monitoring needs emerge on set.
  • 1,300ft (400m) LOS Range - Ultra-long-range wireless transmission capability.
  • 0.05s Low Latency - Excels with increased transmission distance while preserving video quality and minimizing latency.
  • 2.4GHz & 5GHz Dual Band - Provides better signal transmission performance and efficiency.
  • Auto Frequency Hopping - Guarantees reliable and uninterrupted wireless video transmission.
  • HDMI & SDI - Supports both HDMI and SDI ports for maximum compatibility.
  • Multiple Power Supply Options - Offers versatility, reliability, and convenience.
  • UVC & RTMP Streaming - Suitable for streaming live content from local sites to global audiences.
  • 4K30 Transmission - Presents images with superior clarity, detail, and realism.
  • Ready Out of the Box - Preset grouping eliminates the need for tedious setup.

Specifications

• Pyro 7
  • Input Port - HDMI 1.4b + 3G SDI
  • Output Port - HDMI 1.4b + 3G SDI
  • Antenna - RP-SMA Male*2
  • Power Input - DC Input (2.0mm core socket)
  • Headphone Jack - 3.5mm
  • Upgrade Port
    • USB-C (USB 2.0 OTG)
    • SD Card Slot
  • Screen Size - 7" Touchscreen
  • Screen Resolution - 1920 × 1200 pixels
  • Pixel Density - 323 PPI
  • Aspect Ratio - 16:9
  • Screen Brightness - 1200 nits
  • Contrast Ratio - 1000:1
  • Power Input Voltage - 10 – 18V/2.5A DC Input (nominal 12V)
  • Power Consumption - < 22W
  • Net Weight - 545g (19.2oz)
    • with battery plate included and external antennas excluded
  • Dimensions (LxWxH) - 180 × 127 × 31.8mm (7.1″ × 5″ × 1.25″)
    • with battery plate and external antennas excluded
  • Operating Frequency - 5.1 – 5.8 GHz; 2.412 – 2.484 GHz
  • Transmit Power - ≤ 23 dBm
  • Receiver Sensitivity - -80 dBm
  • Display Latency - < 50ms
  • Transmission Latency - ≈ 60ms (test data when 1080p60 signals are transmitted in a laboratory)
  • LOS Range
    • 1,300ft (400m) (Connection to the monitoring app may affect the range);
    • 650ft (200m) (in Broadcast mode)
  • Bandwidth - 20 MHz; 40 MHz (in Broadcast mode)
  • Audio Format - HDMI 1.4b 8-Channel
  • Operating Temperature - – 10℃ – 45℃
  • Storage Temperature - – 40℃ – 60℃
  • HDMI Input
    • 720p50/59.94/60
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080p50/59.94/60
    • 3840*2160 23.98/24/25/29.97/30
      • HDMI Loopout
        • 720p50/59.94/60
        • 1080i50/59.94/60
        • 1080p23.98/24/25/29.97/30
        • 1080p50/59.94/60
        • 3840*2160 23.98/24/25/29.97/30
      • SDI Loopout
        • 720p50/60
        • 1080i50/60
        • 1080p24/25/30
        • 1080p 50/60
        • 1920*1080 24/25/30
      • HDMI/SDI Output
        • 720p50/60
        • 1080i50/60
        • 1080p24/25/30
        • 1080p 50/60
        • 1920*1080 24/25/30
• SDI Input
  • 1080p50/59.94/60 (Level A)
  • 1080p50/59.94/60 (Level B)
  • 1080i50/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 1080psf23.98/24
  • 1080psf25/29.97/30
  • 720p50/59.94/60
    • HDMI/SDI Loopout
      • 1080p50/59.94/60 (Level A)
      • 1080i50/59.94/60
      • 1080p23.98/24/25/29.97/30
      • 1080p23.98/24
      • 1080i50/59.94/60
      • 720p50/59.94/60
    • HDMI/SDI Output
      • 1080p50/59.94/60 (Level A)
      • 1080i50/59.94/60
      • 1080p23.98/24/25/29.97/30
      • 1080p23.98/24
      • 1080i50/59.94/60
      • 720p50/59.94/60
• Pyro S
  • Transmitter
    • Port
      • DC Input: 2.0mm Core Socket
      • HDMI Input: HDMI 1.4b
      • SDI Input: 3G SDI
      • USB-C: USB 2.0 OTG
      • Antenna: SMA Male
    • Power Supply
      • Battery Voltage Range: 6.8 – 8.4V
      • DC Voltage Range: 6 – 16V
    • Power Consumption - < 11W
    • Net Weight - 207g
    • Dimensions (LxWxH) - 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
    • Input/Output Format
      • HDMI Input
        • 720p50/59.94/60
        • 1080i50/59.94/60
        • 1080p23.98/24/25/29.97/30
        • 1080p50/59.94/60
        • 3840*2160 30/25/24/29.97/23.98
      • SDI Input
        • 1080p60/59.94/50
        • 1080i60/59.94/50
        • 1080p30/29.97/25/24/23.98
        • 720p60/59.94/50
        • 1080psf23.98/24
        • 1080psf25/29.97/30
    • Operating Frequency
      • 5 GHz Frequency Band
        • 5.150 – 5.250 GHz
        • 5.250 – 5.350 GHz
        • 5.470 – 5.725 GHz
        • 5.725 – 5.850 GHz
      • 2.4 GHz Frequency Band
        • 2.412 – 2.484 GHz
    • Transmit Power - < 23 dBm
    • Receiver Sensitivity - /
    • Latency - as low as 50ms
    • Bandwidth - 20 MHz (Broadcast: 40 MHz)
    • Temperature
      • -10 – 45℃ (working)
      • -40 – 60℃ (storage)
  • Receiver
    • Port
      • DC Input: 2.0mm Core Socket
      • HDMI Output: HDMI 1.4b
      • SDI Output: 3G SDI
      • USB-C: USB 2.0 OTG
      • Antenna: SMA Male
    • Power Supply
      • Battery Voltage Range: 6.8 – 8.4V
      • DC Voltage Range: 6 – 16V
    • Power Consumption - < 8W
    • Net Weight - 207g
    • Dimensions (LxWxH) - 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
    • Input/Output Format
      • HDMI Output
        • 720p50/59.94/60
        • 1080i50/59.94/60
        • 1080p23.98/24/25/29.97/30
        • 1080p50/59.94/60
        • 3840*2160 30/25/24/29.97/23.98
      • SDI Output
        • 1080p50/59.94/60
        • 1080i50/59.94/60
        • 1080p23.98/24/25/29.97/30
        • 720p50/59.94/60
        • 1080p23.98/24
        • 1080i50/59.94/60
    • Operating Frequency
      • 5 GHz Frequency Band
        • 5.150 – 5.250 GHz
        • 5.250 – 5.350 GHz
        • 5.470 – 5.725 GHz
        • 5.725 – 5.850 GHz
      • 2.4 GHz Frequency Band
        • 2.412 – 2.484 GHz
    • Transmit Power - /
    • Receiver Sensitivity - -85 dBm (Broadcast: -80 dBm)
    • Latency - as low as 50ms
    • Port
      • DC Input: 2.0mm Core Socket
      • HDMI Input: HDMI 1.4b
      • SDI Input: 3G SDI
      • USB-C: USB 2.0 OTG
      • Antenna: SMA Male
    • Bandwidth - 20 MHz (Broadcast: 40 MHz)
    • Temperature
      • -10 – 45℃ (working)
      • -40 – 60℃ (storage)

What's in the Box

• 1x Pyro S Wireless Video Transmitter
• 1x Pyro S Wireless Video Receiver
• 1x Pyro 7 Wireless Transceiving Monitor
• 9x Paddle Antenna (2.4 GHz & 5 GHz)
• 2x Side & Bottom Mounted Aluminum Handle
• 1x Monitor Hood (7-Inch)
• 1x Secure Digital Memory Card (32G)
• 1x Shoulder Strap 01
• 1x Rotatable Cold Shoe Mount
• 1x USB-C OTG Adapter
• 1x 12V 2A DC 2.1 Power Adapter
• 1x Pyro S User Manual
• 1x Pyro 7 User Manual
• 1x Warranty Card
• 1x Hollyland Ecosystem Leaflet
• 1x D-Tap to Locking DC Power Adapter Cable
• 1x Pyro Ecosystem Hard-Shell Case
