Lilliput Q17 - 17.3" 12G-SDI Broadcast/Production Monitor

About: Lilliput Q17 - 17.3" 12G-SDI Broadcast/Production Monitor

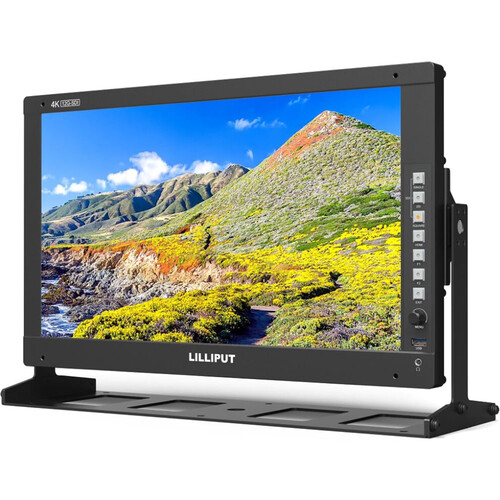

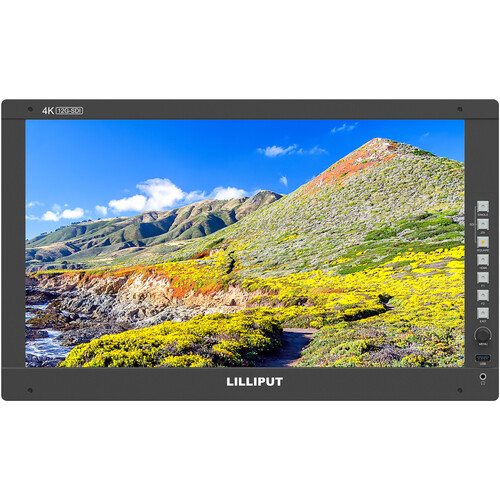

The Lilliput Q17 is a 17.3 inch production monitor with 1920x1080 resolution, 12G-SDI , 3G-SDI, HDMI 2.0 and SFP. The Q17 pro 12G-SDI broadcast production monitor is perfect for camcorder and DSLR applications for taking photos and movies. The 12G-SDI, 12G SFP+, 4K HDMI and other signal transmission methods are integrated into this display to avoid being lost in the choice question for video signals. Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096x2160 (60p, 50p, 30p, 25p, 24p) & 3840x2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+interface, which allows to transmit 12G-SDI signal via SFP optical module, is suitable for most broadcast field. The color calibration of Q17 model are including color spaces (SMPTE_C, Rec709 and EBU) and color temperature (3200K, 5500K, 6500K, 7500K,9300K) and gammas (value from 1.8 to 2.8). It can support remote control application. To connect your computer to control the monitor via applications the interfaces of RS422 in and RS422 out can realize synchronization control of multiple monitors like picture, source, marker, audio, function, UMD. It can support Audio Vector, HDR and 3DLUT function.

12G-SDI / 4K HDMI Signal
12G-SDI, 4K HDMI, 12G SFP+ and other signal transmission methods are integrated into this display, to avoid being lost in the choice question for video signals. Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096x2160 (60p, 50p, 30p, 25p,24p) & 3840x2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+ interface, which allows to transmit 12-SDI signal via SFP optical module, is suitable for most broadcast field.

Color Spaces
It is different from the old single color space "Native" mode used to match the colors of its screen, there are also three modes to choose, including "SMPTE_C", "Rec709" and "EBU". Aim to restore the original color in different color spaces picture.

Color Temperature
According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures.The default is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.

Gammas
Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from 1.8 to 2.8, more bits would be left to describe the dark tones where the camera is relatively less sensitive.

Features

• Support standard 12G-SDI input interface (x2), 3G-SDI input interface (x2), and support Single-Link, Dual-Link and Quad-Link signals
• Support HDMI 2.0/1.4 inputs and loop outputs
• Support SFP optical Connector input, optical module for optional
• Loop output signals support up to 3840x2160 23.98/24/25/29.97/30/50/59.94/60p and 4096x2160 23.98/24/25/29.97/30/47.95/48/50/59.94/60p
• Monitor control via LAN, GPI, RS422
• Customized Menu Knob
• Support customized various waveform mode: Waveform/Vector/Histogram/4 Bar Display/Audio
• Vector/Level Meter
• HDR (High Dynamic Range) display supporting ST 2084 and Hybrid Log Gamma
• Gamma selection: 1.8-2.8
• Custom 3D LUT file load through USB

Specifications

• Display
  • Size: 17.3"
  • Resolution: 1920 x 1080
  • Brightness: 300cd/m²
  • Aspect ratio: 16:9
  • Viewing Angle: 178°/178°(H/V)
  • Anamorphic de-squeeze: 2x, 1.5x, 1.33x
  • HDR: ST2084 300/1000/10000/HLG
  • Supported Log formats: Sony SLog / SLog2 / SLog3
  • Look up table (LUT) support: 3D LUT (.cube format)
  • Technology: Calibration to Rec.709 with optional calibration unit
• Video Input

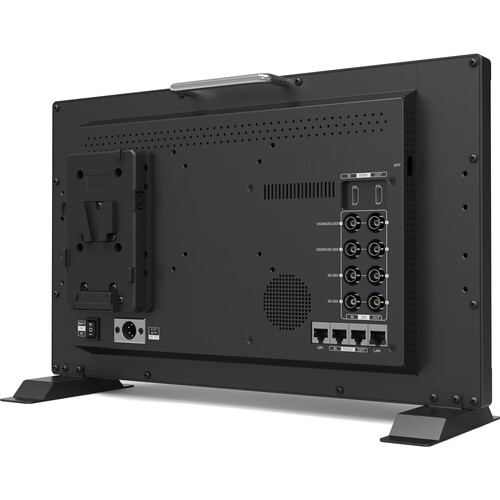

  • SDI: 2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
  • HDMI: 1xHDMI 2.0
  • Video Loop Output (Uncompressed true 10-bit or 8-bit 422)
  • SDI: 2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
  • HDMI: 1xHDMI 2.0
  • Supported In / Out Formats
  • SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
  • HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
• Audio In/Out (48kHz PCM Audio)
  • SDI: 12ch 48kHz 24-bit
  • HDMI: 2ch 24-bit
  • Ear Jack: 3.5mm - 2ch 48kHz 24-bit
  • Built-in Speakers: 2
  • Remote Control
  • RS422: In / out
  • GPI: 1
  • LAN: 1
• Power
  • Operating power: =32W
  • DC In: DC 12-24V
  • Compatible batteries: V-Lock or Anton Bauer Mount
  • Input voltage (battery): 14.4V nominal
  • Environment
  • Operating Temperature: 0°C~50°C
  • Storage Temperature: -20°C~60°C
• Other
  • Dimension(LWD): 434x263x54mm
  • Weight: 3.2kg

Item Includes

• 1x Lilliput Q17 17.3 Inch 12G-SDI / 4K HDMI 2.0 Signal Production Monitor - 1920x1080 Resolution
• 1x 15V/4A DC Adapter
• 1x VESA Mount Plate Bracket
• 1x V-mount (or Anton Bauer Mount)
• 1x Base Bracket (pair)
• 1x Gimbal Bracket
• 1x Suitcase
• 1x Acrylic Screen Protector
• 1x 8GB USB flash drive (User guide and software included)
