Lilliput PVM220S 21.5” Live Stream Quad Split Multiview Monitor

About: Lilliput PVM220S 21.5” Live Stream Quad Split Multiview Monitor

The PVM 220S is a 21.5 inch live stream multiview monitor which can be used with Android mobile phones, DSLR cameras and camcorders and is particularly designed to work with streaming & multi camera systems. The live monitor can be switched between 4x 1080P high quality video signal inputs, making it easy to create professional multi-camera events for live streaming.

Sources can be set up as Preview and Finished Program, and you can quickly switch your source for live streaming to video capture via a number of shortcuts, and then finally output the completed video to Youtube, Skype, Zoom and any more social media platforms.

Features

• 21.5" Live Stream Quad Split Multiview Monitor
• Can be switched live up to 4 1080P high quality video signal inputs
• PGM ports for switching camera video from SDI, HDMI and USB Type-C signals
• Unique phone mode, adapts to vertical image output from phone camera
• Camera Auxiliary Functions

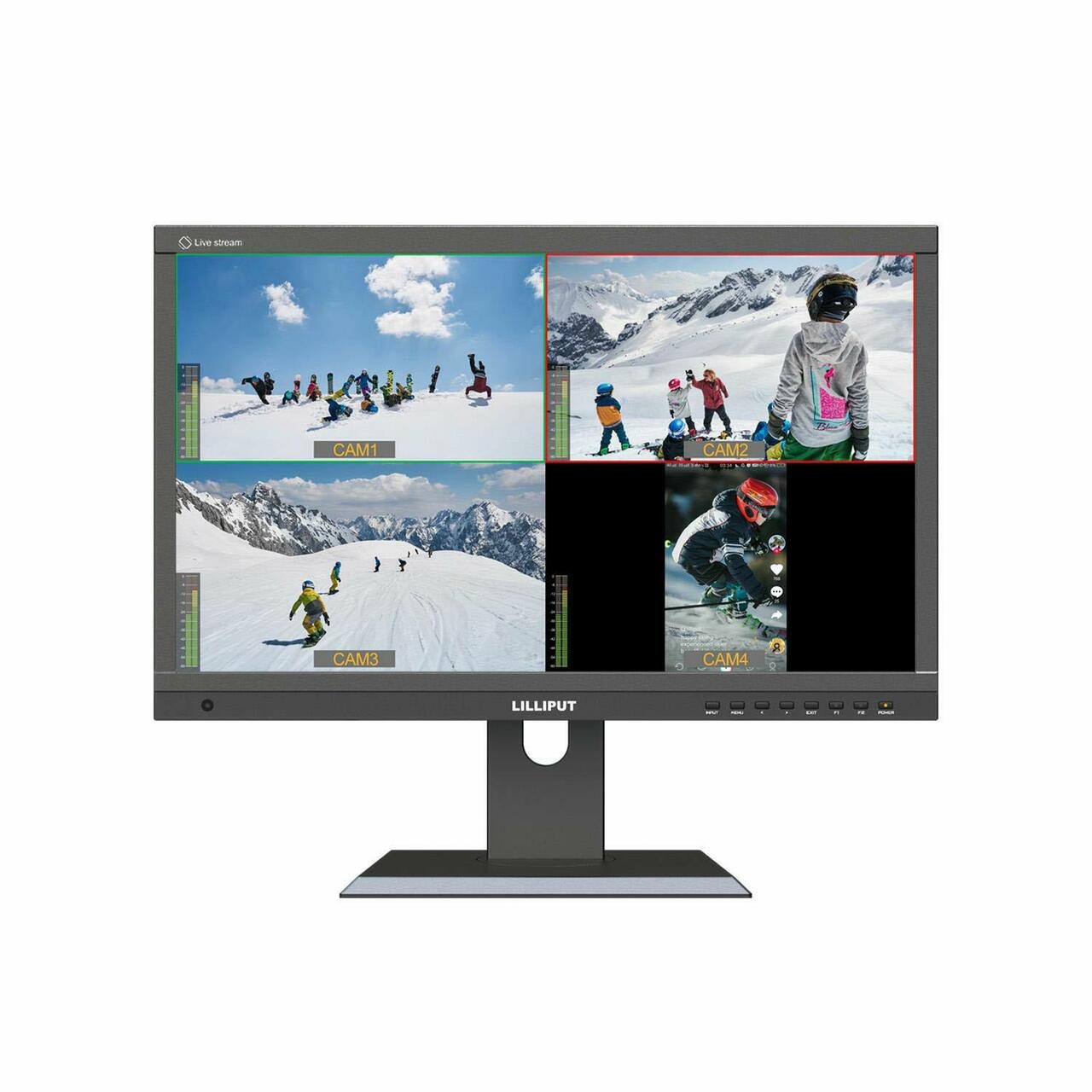

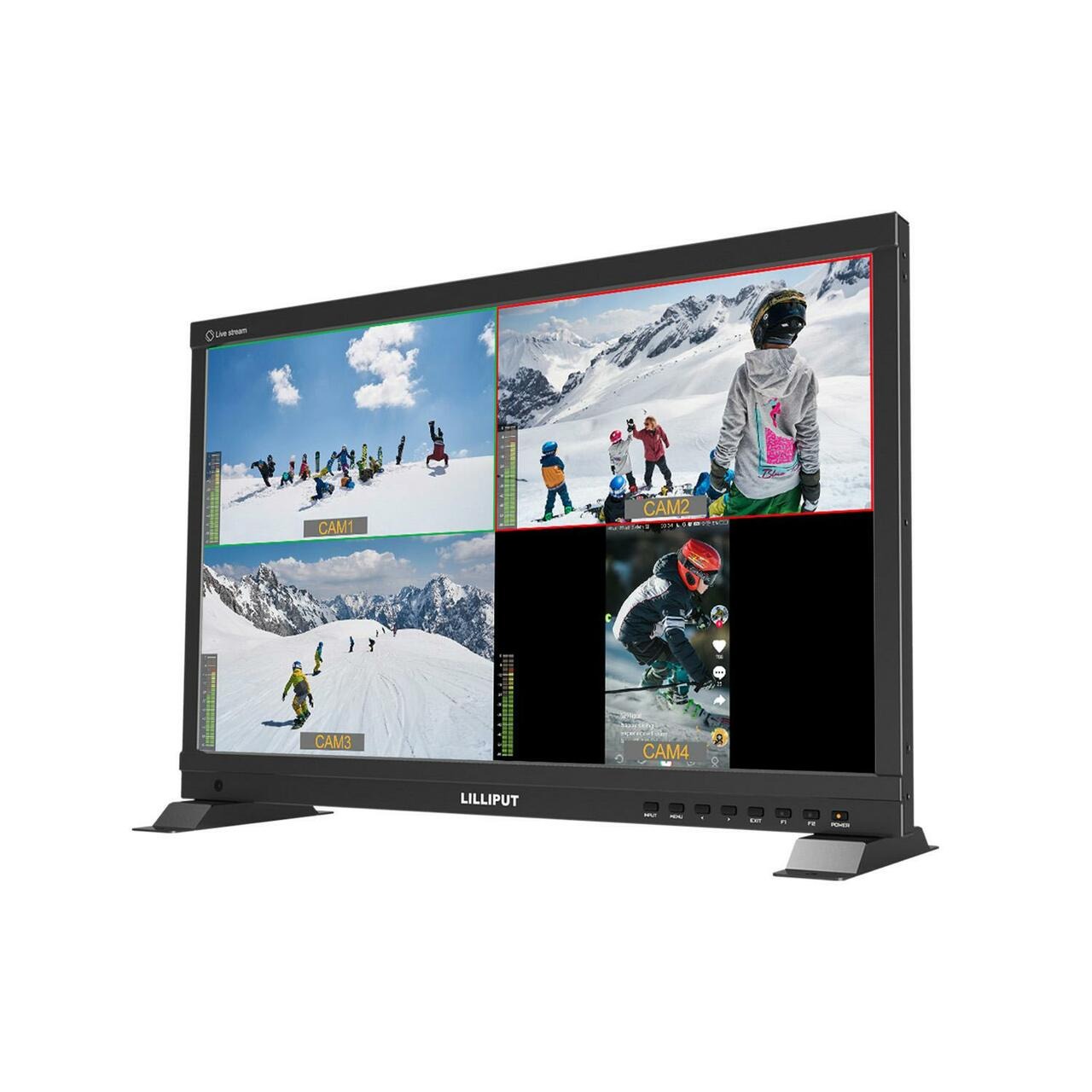

Multi Camera Multiview Switch

Monitor can be switched live up to 4 1080P high quality video signal inputs, which make it easy to create professional multi camera events for live streaming. At a time when live stream in mobile phone is popular, monitor innovatively built in phone mode so as to directly display a vertical video in multi camera. All-in-one capability greatly reduces the cost of productions.

PVW / PGM Video SDI, HDMI Output Simultaneously

PGM ports for switching camera video from SDI, HDMI and USB Type-C signals. The Multi camera video sources can be set up as Preview source and finished Program source for quick switching source of live streaming to video capture via shortcuts, and finally to Youtube, Skype, Zoom and any more social media platforms.

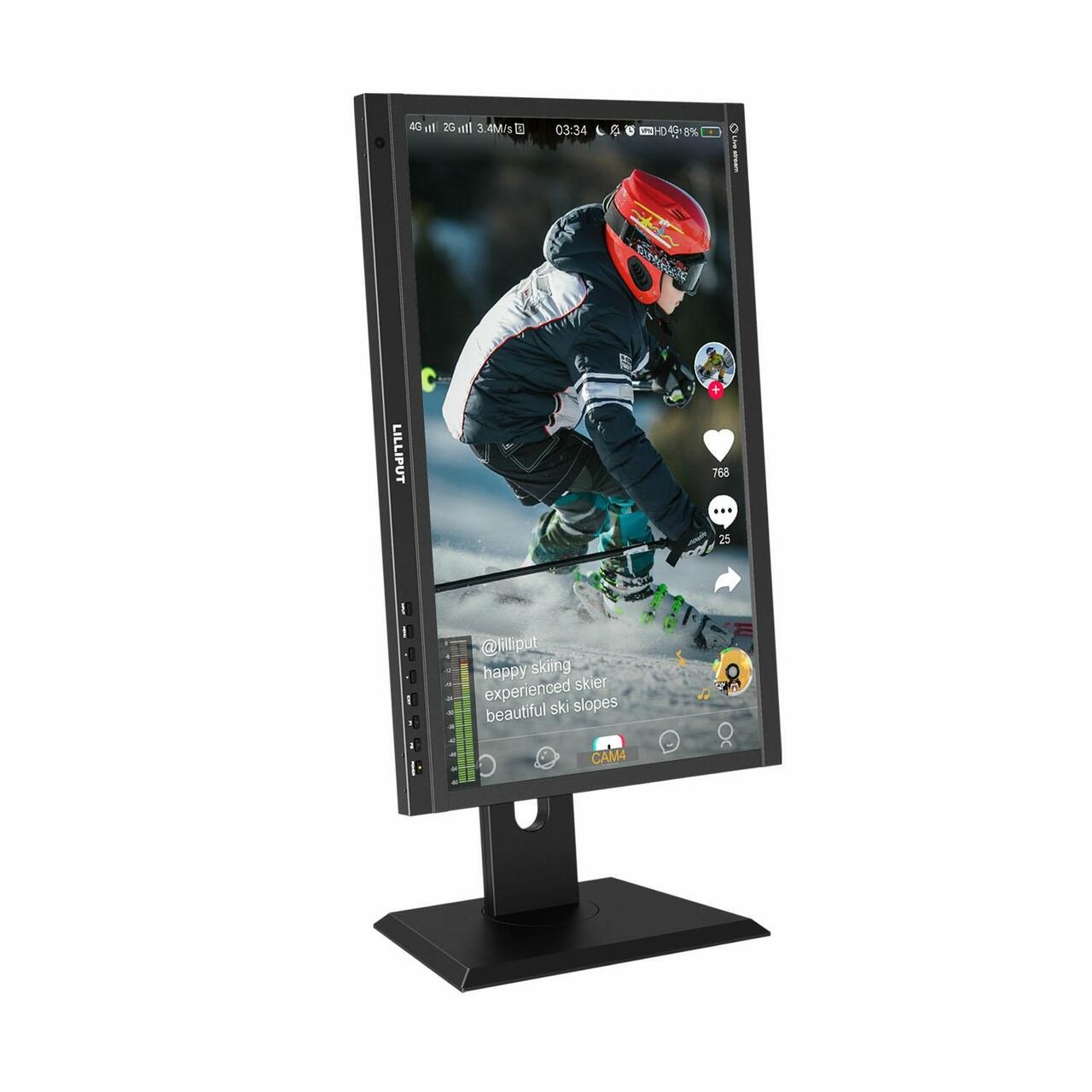

USB Type-C Input, Vertical Full Screen For Phone

The Unique phone mode, adapts to vertical image output from phone camera. Unlike the regular video camera, some phone's video sources are displayed as vertical images. Multiview mode is innovatively blend of horizontal and vertical images layout, making live production more efficient.

Camera Auxiliary Functions

Plenty of auxiliary functions for live streaming and multi camera productions, that assist user grasp the scene details in front of camera more thoroughly, such as light, color, layout and so on.

Workflows

Supports up to 4 live video signals, that can use HDMI or SDI outputs for program video. All the live events can also be cut between PVW and PGM, incredibly doing the work as a video switcher.

Specifications

• Display
  • Panel: 21.5"
  • Physical Resolution: 1920x1080
  • Aepect Ratio: 16:9
  • Brightness: 500 nit
  • Contrast: 1500:1
  • Viewing Angle: 170°/170° (H/V)
• Video Input
  • SDI x2: 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 and more
  • HDMI x2: 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 and more
  • USB Type-C x1: 1080p 60/59.94/50/30/29.97/25/24/23.98; 1080i 60/59.94/50; 720p 60/59.94/50 and more
• Video Output
  • SDI x2: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50 and more
  • PGM HDMI/SDI x1: PGM HDMI/SDI, x1 1080p 60/50/30/25/24
• Audio In/Out
  • SDI: 2ch 48kHz 24-bit
  • HDMI: 2ch 24-bit
  • Ear Jack: 3.5mm
  • Bulit-in Speaker: 1
• Includes
  • 1x Lilliput PVM220S 21.5 inch Live Stream Quad Split Multi View Monitor
