Delvcam 7in On-Camera 3G-SDI/HDMI Monitor w/ Video Waveform

About: Delvcam 7in On-Camera 3G-SDI/HDMI Monitor w/ Video Waveform

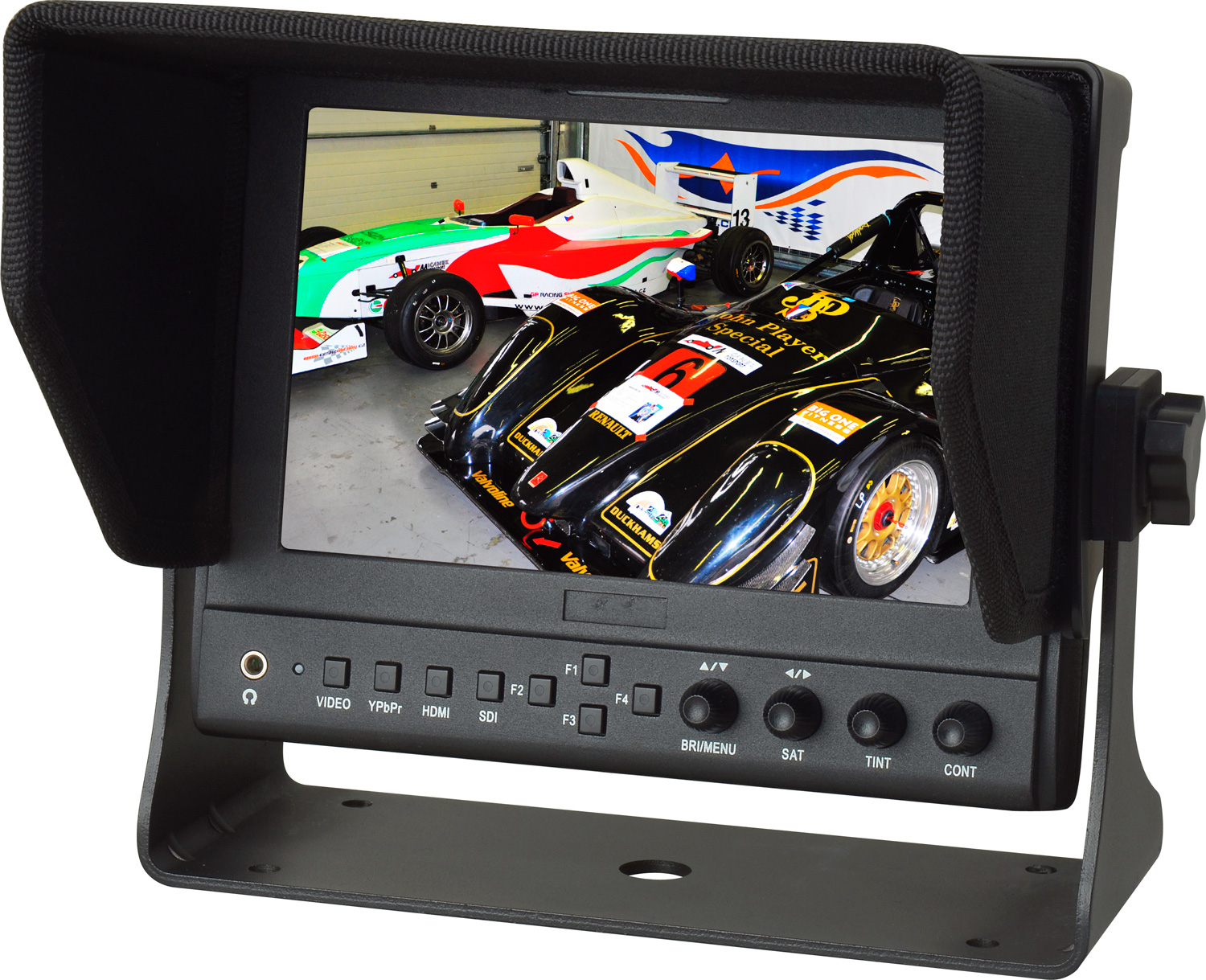

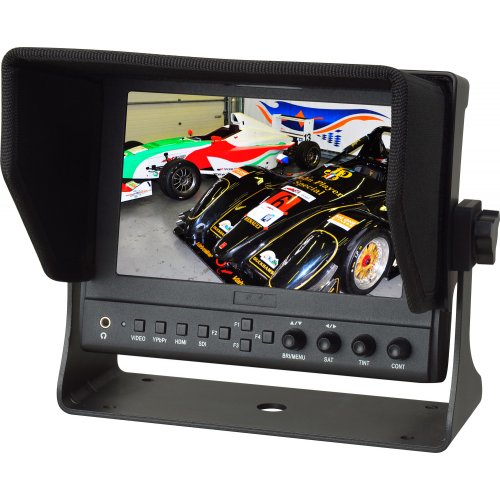

DELV-WFORM-7SDI is a 7 inch 16:9 metal framed LED field monitor with 3G-SDI, HDMI, YPbPr (via BNC), Composite video and a collapsible sun hood. It is optimized for full HD camcorders and provides advanced camera auxiliary functions: Color/RGB Histogram, Waveform, Vector Scope, Audio Level Meter, Peaking, False Color, Histogram & Exposure.

Delvcam field monitors are great at displaying accurate images and the DELV-WFORM-7SDI makes shooting and recording even easier with its functionality.

Features:

• Color/RGB histogram, waveform, vector scope & audio level meter
• IPS panel 178° wide viewing angles
• High contrast: 800:1
• 3G-SDI input
• Metal housing
• POP-UP shortcut menu.3G-SDI, HDMI, and component and composite, via BNC Connectors
• Foldable sunhood and smart screen protector helps prevent screen scratches, and saves space in camera bags
• HDMI video output - no splitters needed
• LED-backlit display panel features higher physical resolution, and higher levels of detail and image accuracy
• 800:1 contrast ratio
• 4 programmable function buttons for shortcut operations
• 178 degrees viewing angle both vertically and horizontally

Specifications:

• Display:
  • Panel 7" IPS
  • Physical Resolution 1280x800, support up to 1920x1080
  • Aspect Ratio 16:9
  • Brightness 400cd/m2
  • Contrast 800:1
  • Viewing Angle 178°/178°(H/V)
• Input:
  • 3G-SDI 1
  • HDMI 1
  • YPbPr 3(BNC)
  • VIDEO 1
  • AUDIO 2(L/R)
• Output:
  • 3G-SDI 1
  • HDMI 1
• Audio:
  • Speaker 1 (built-in)
  • Ear Phone Slot 1
• Power:
  • Current 900mA
  • Input Voltage DC 7-24V(XLR)
  • Battery Plate Compatibility: LPE6, F970, DU21, QM91D
  • V-mount / Anton Bauer mount /
  • Power Consumption =11W
• Environment:
  • Operating Temperature -20?~60?
  • Storage Temperature -30?~70?
• Dimensions:
  • (LWD) 7.54 x 5.98 x 1.22 inch
  • Weight 1.68 lbs/ 2.07 lbs w cover/ 4.77 lbs w case

Item Includes:

• Battery Plates: LPE6 & F970
