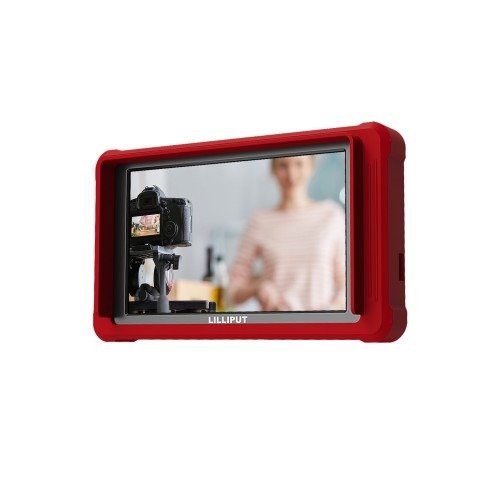

Lilliput FS5 5.4in HDMI 2.0 & 3G-SDI On-Camera Monitor

About: Lilliput FS5 5.4in HDMI 2.0 & 3G-SDI On-Camera Monitor

The Lilliput FS5 is a top of the range 5" monitor unit, designed to suit the needs of the portable 4K video shooter. With a built in 1920 x 1200 screen and with the capability to show a 4K 60Hz input (via HDMI 2.0), the FS5 suits most needs for a portable, reliable 5" monitoring solution.

Features

• Full Screen Waveform
• Level Meter
• Histogram
• False Color
• Peaking Focus
• Exposure
• Check Field
• Aspect Ratio

Excellent Display
The Lilliput FS5 5.4" 16:10 LTPS panel with 1920x1200 full HD resolution, 1100:1 high contrast, 160° wide viewing angles, 600cd/m² high brightness, 88% DCI-P3 color space, which offers outstanding viewing experience.

HDR
When HDR is activated, the display reproduces a greater dynamic of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support ST 2084 300 / 1000 / 10000 and HLG.

3D-LUT
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 17 default logs and 6 user logs.

3G-SDI Input / Output
SDI supports up to 1920x1080 60p/50p/30p/25p/24p(3G-SDI signal), and downward compatible with HD-SDI and SD-SDI.

4K 60HZ HDMI 2.0
HDMI 2.0 supports up to 4096x2160 60p/50p/30p/25p/24p and 3840x2160 60p/50p/ 30p/25p/24p.

Specifications

• Panel: 5.4" LTPS
• Physical Resolution: 1920 x 1200
• Aspect Ratio: 16:10
• Brightness: 600cd/m
• Contrast: 1100:1
• Viewing Angle: 160°/ 160° (H/V)
• HDR: ST 2084 300/1000/10000 / HLG
• Supported Log Formats: Slog2 / Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User
• LUT Support: 3D-LUT (.cube format)
• 3G-SDI: 1
• HDMI: 1 (HDMI 2.0, supports up to 4K 60Hz)
• SDI: 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50
• HDMI: 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
• Speaker: 1
• Ear Phone Slot: 1
• Current: 0.75A (12V)
• Input Voltage: DC 7-24V
• Battery Plate: NP-F / LP-E6
• Power Consumption: =9W
• Operating Temperature: -20°C~50°C
• Storage Temperature: -30°C~70°C

Includes

• 12V 2A DC Power Adapter
• 28" HDMI A - C Cable
• NP-F & LP-E6 Battery Plates
• Silicone Case
• Sunshade
• Hot Shoe Mount
