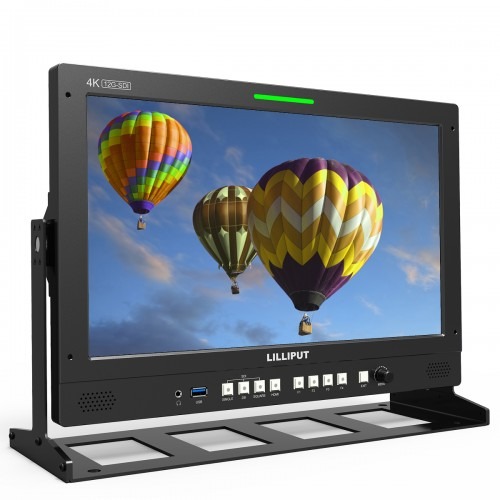

Lilliput Q15 15.6" Broadcast Production Studio Monitor (Gold Mount)

About: Lilliput Q15 15.6" Broadcast Production Studio Monitor (Gold Mount)

The Lilliput Q15-ABBP Is a 15.6 Inch Broadcast Production Studio Monitor with a Gold Mount Battery Plate for professional camcorder & DSLR Application.

12G-SDI / 4K HDMI Signal

12G-SDI, 4K HDMI, 12G SFP+ and other signal transmission methods are integrated into this display, to avoid being lost in the choice question for video signals. Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096 x 2160 (60p, 50p, 30p, 25p, 24p) & 3840 x 2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+ interface, which allows to transmit 12-SDI signal via SFP optical module, is suitable for most broadcast field.

Color Temperature

According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures. The default is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.

Gammas

Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from 1.8 to 2.8, more bits would be left to describe the dark tones where the camera is relatively less sensitive.

Remote Control Application

Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.

Audio Vector (Lissajous)

The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis. It is used to test the phase of mono audio signal and phase relationships depends on its wavelength. Complex audio frequency content will make the shape look like a complete mess so it is usually used in post production.

HDR

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support ST2084 300 / ST2084 1000 / ST2084 10000 / HLG.

Features:

• 12G-SDI / 4K HDMI Signal
• Color Temperature
• Gammas
• Remote Control Application
• Audio Vector
• Camera Auxiliary Functions
• HDR
• 3D LUT

Specifications:

• Display
  • Panel: 15.6"
  • Physical Resolution: 3840x2160
  • Aspect Ratio: 16:09
  • Brightness: 330cd/m2
  • Contrast: 1000:1
  • Viewing Angle: 176°7 176°(H/V)
  • HDR: ST2084 300/1000/10000/HLG
  • Supported Log formats: SLog2 / SLog3 / CLog / NLog / Arri Log / JLog or User...
  • Look up table (LUT) support: 3D LUT (.cube format)
  • Technology: Calibration to Rec.709 with optional calibration unit
• Video Input
  • SDI: 2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
  • SFP: 1x12G SFP+(Fiber module for optional)
  • HDMI: 1xHDMI 2.0
• Video Loop Output
  • SDI: 2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
  • HDMI: 1xHDMI 2.0
• Supported Formats
  • SDI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
  • SFP: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60...
  • HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
• Audio In/Out (48kHz PCM Audio)
  • SDI: 16ch 48kHz 24-bit
  • HDMI: 8ch 24-bit
  • Ear Jack: 3.5mm
  • Built-in Speakers: 2
• Remote Control
  • RS422: In/out
  • GPI: 1
  • LAN: 1
• Power
  • Input Voltage: DC 12-24V
  • Power Consumption: .5.32.5W (15V)
  • Compatible batteries: V-Lock or Anton Bauer Mount
  • Input voltage (battery): 14.8V nominal
• Environment
  • Operating Temperature: 0°C-40°C
  • Storage Temperature: -20°C~60°C
• Other
  • Dimension(LxWxD): 393mm x 267mm x 51.4mm
  • Weight: 2.9kg

Item Includes

• 1x Q15 15.6 Monitor
• 1x 15V DC Adapter
• 1x VESA Mount Plate
• 1x Gold Mount Battery Plate
• 1x Base Bracket
• 1x Acrylic Screen Protector
• 1x USB Flash Disk
