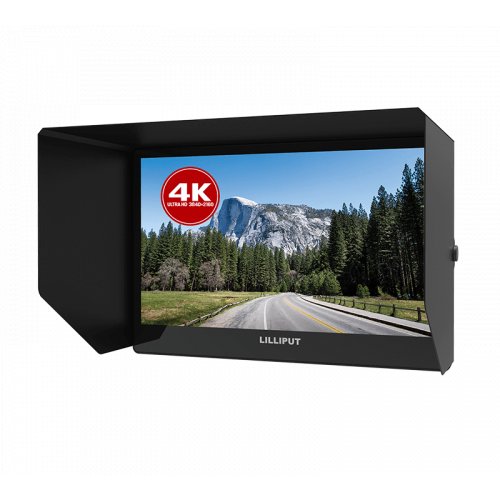

Lilliput A12 12.5in 4K Broadcast Monitor
Model: A12
About: Lilliput A12 12.5in 4K Broadcast Monitor

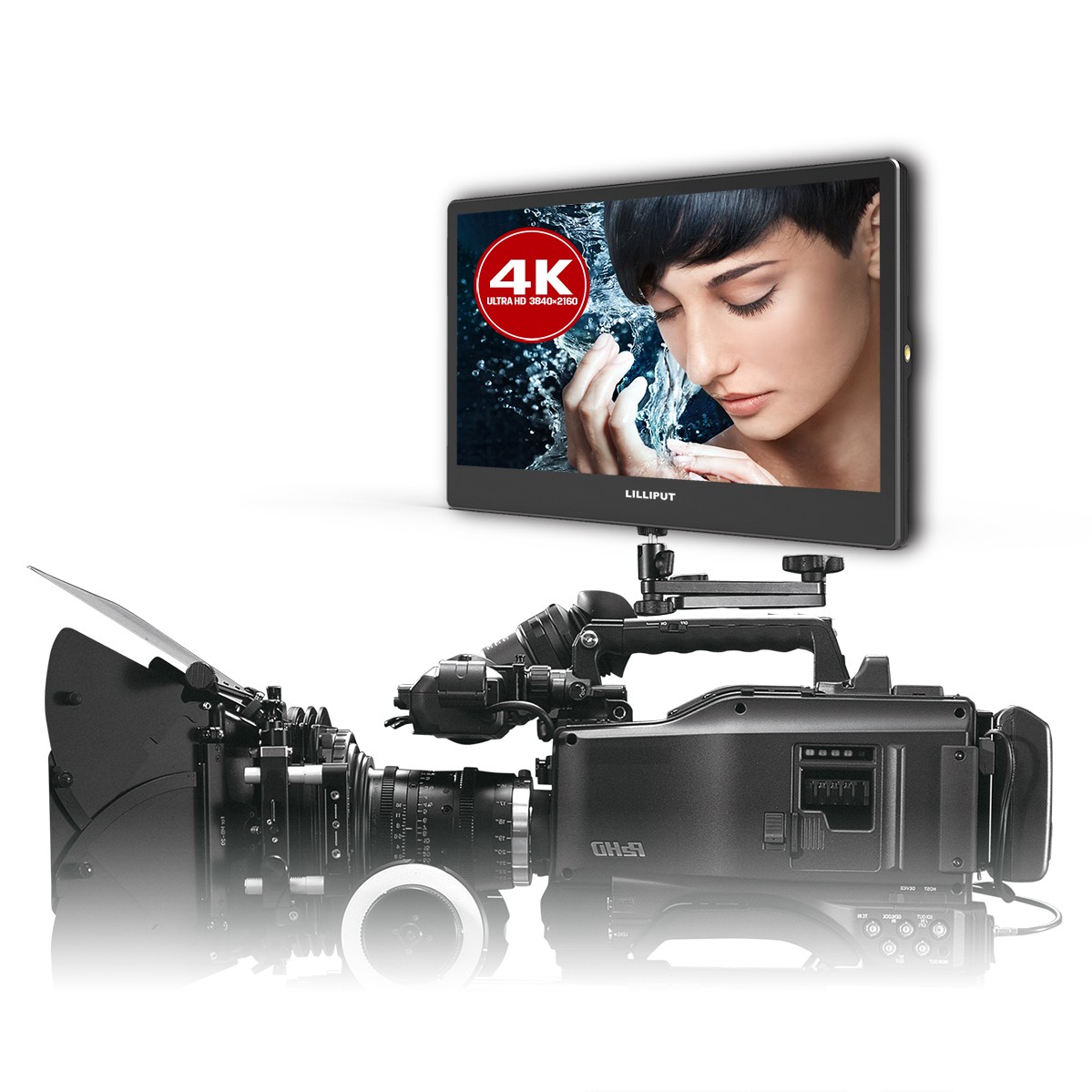

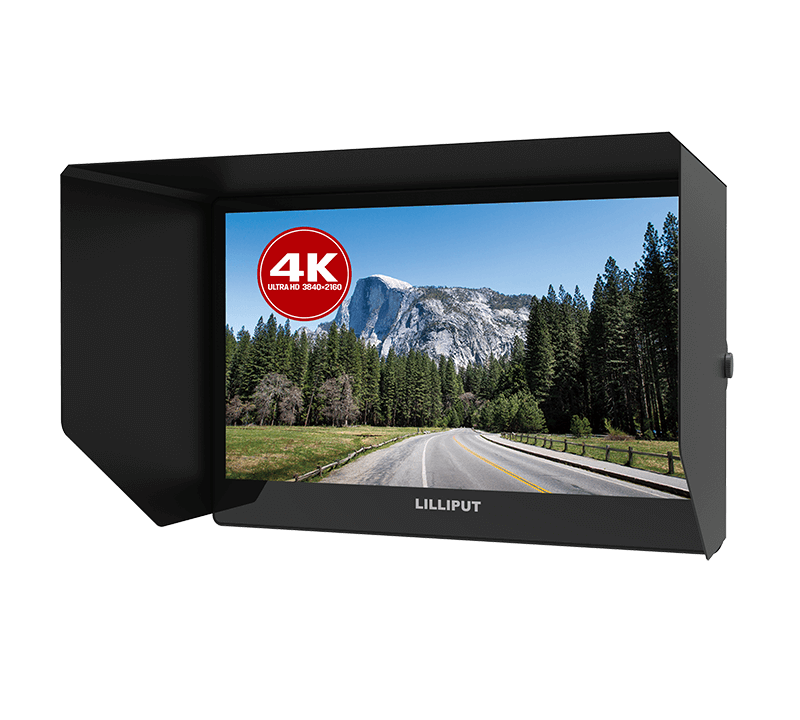

The Lilliput A12 is the World's First 12.5" 4K Broadcast Monitor.
- Display Screen 12.5" 8bit IPS
- Physical Resolution 3840 x 2160
- Aspect Ratio 16:9
- Brightness 400cd/m²
- Contrast 1500:1
- Viewing Angle 170°/ 170° (H/V)

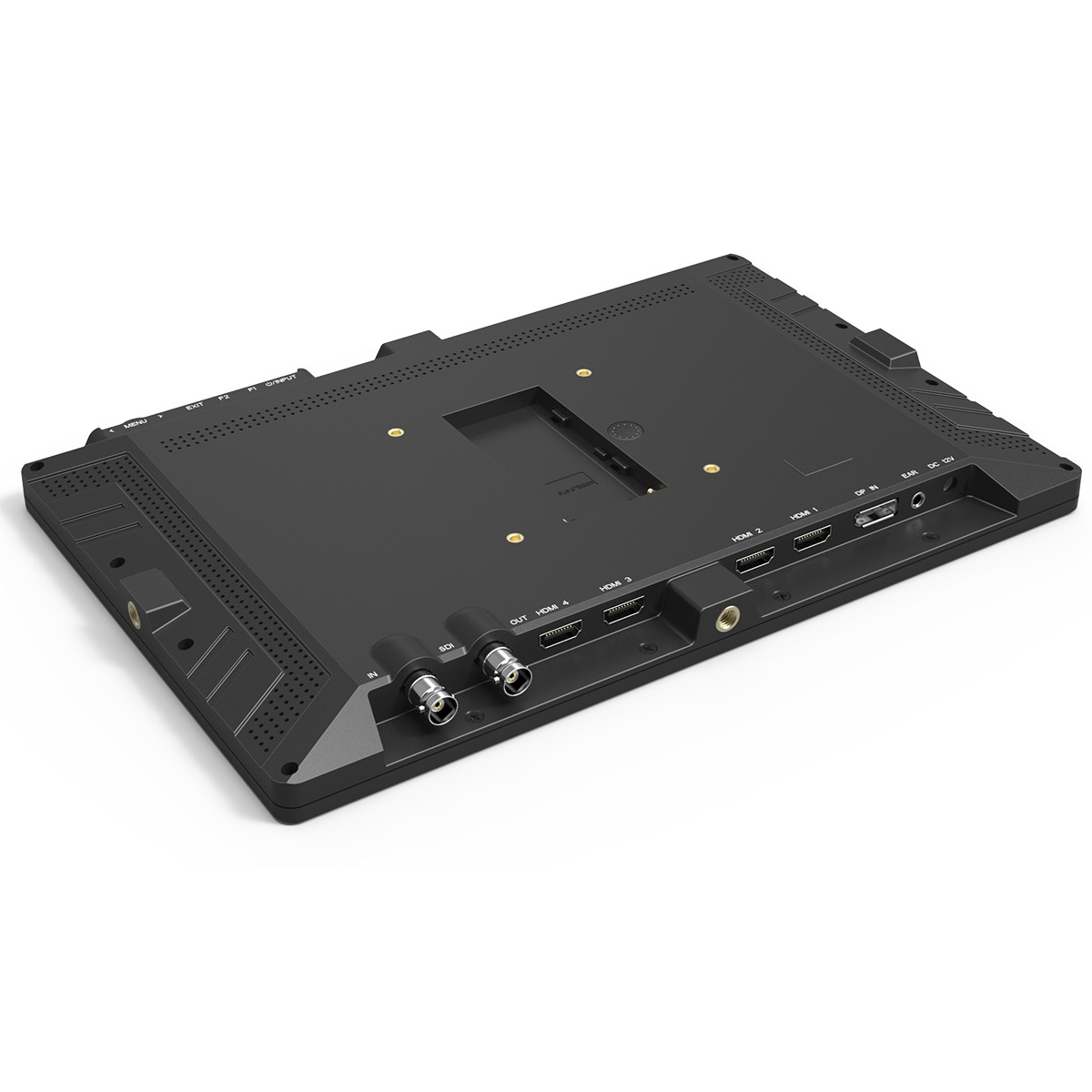

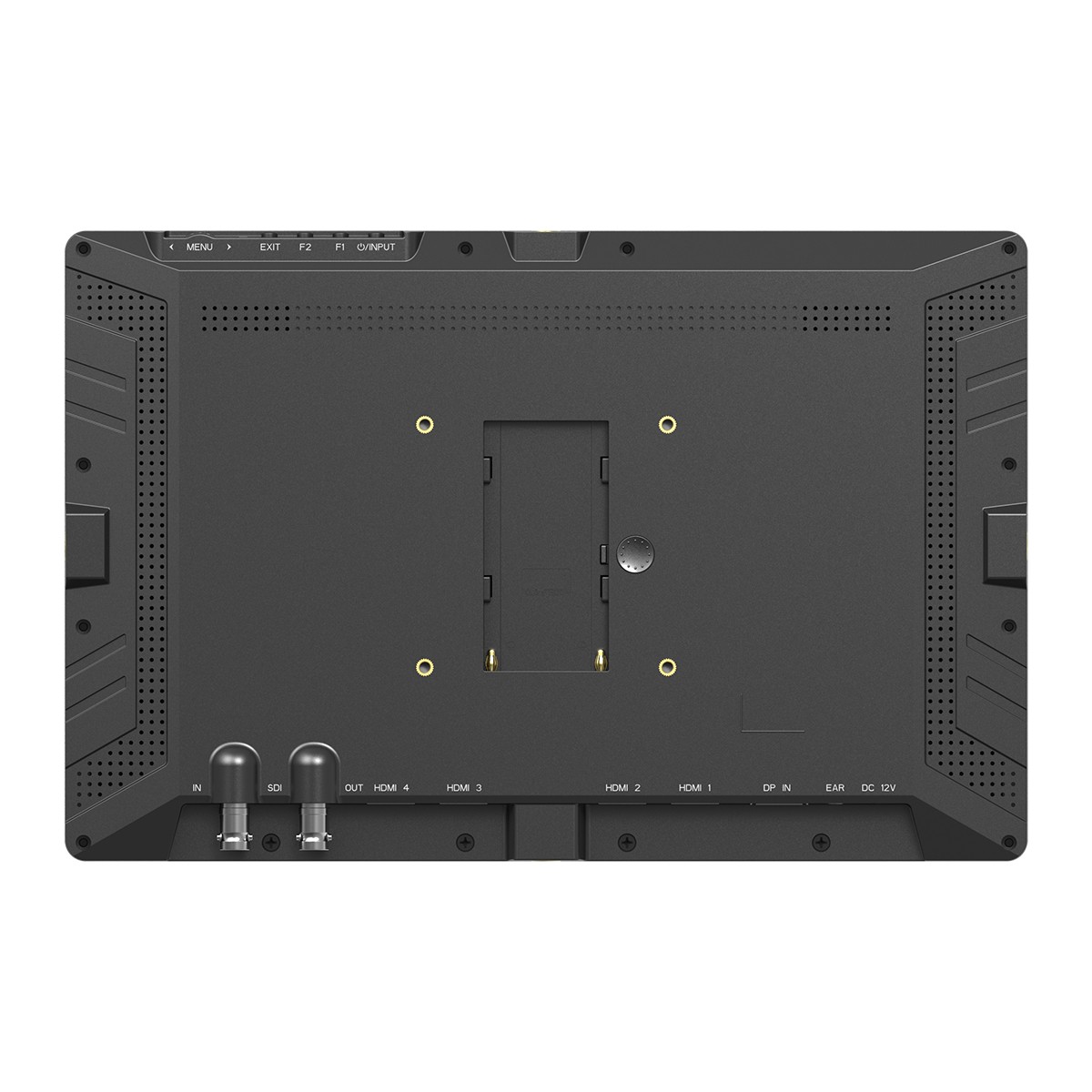

- 3G-SDI, HDMI 2.0 x1 / HDMI 1.4 x3 , Displayport 1.2

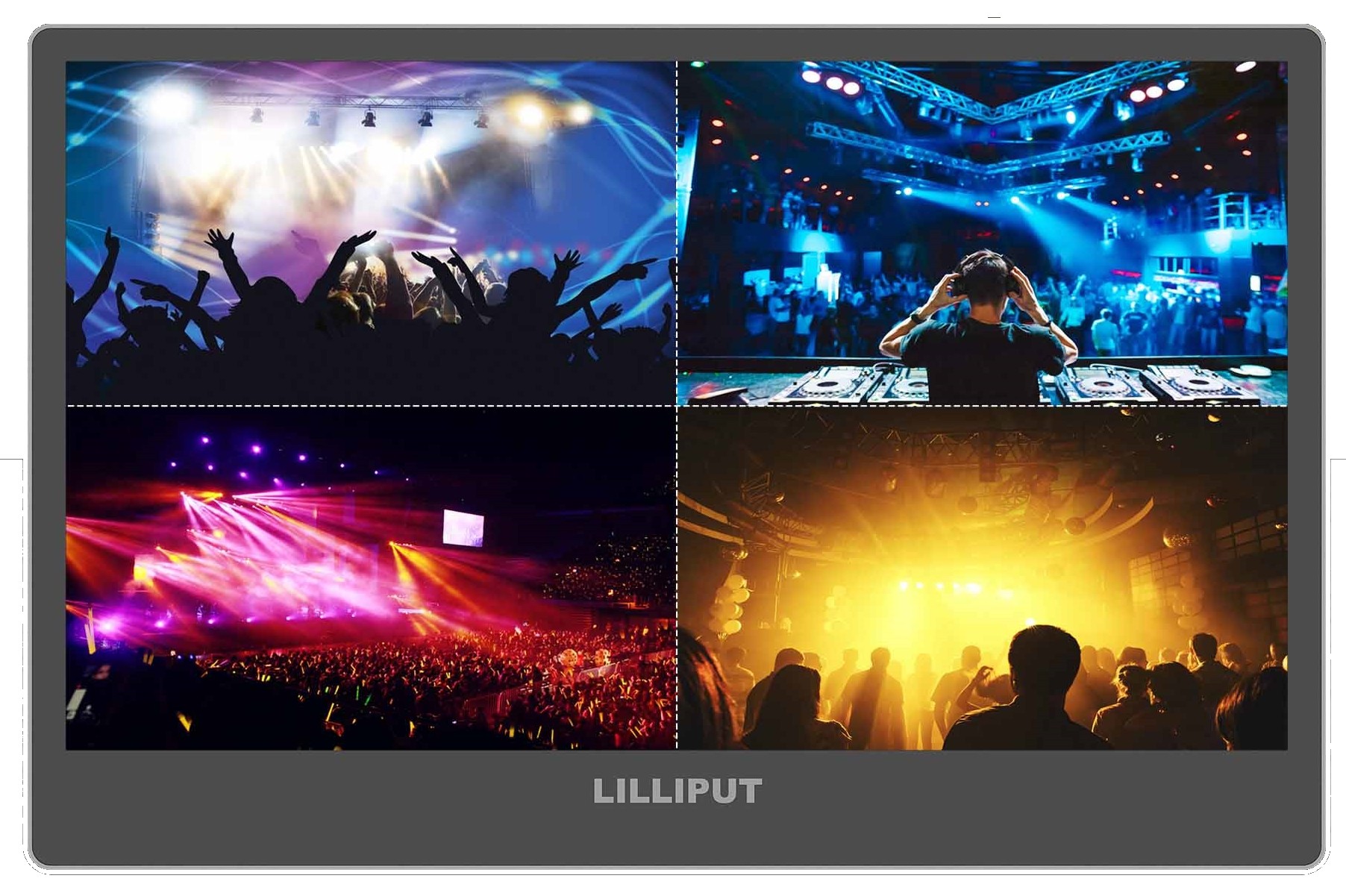

- Quad view, false color, peaking, image flip

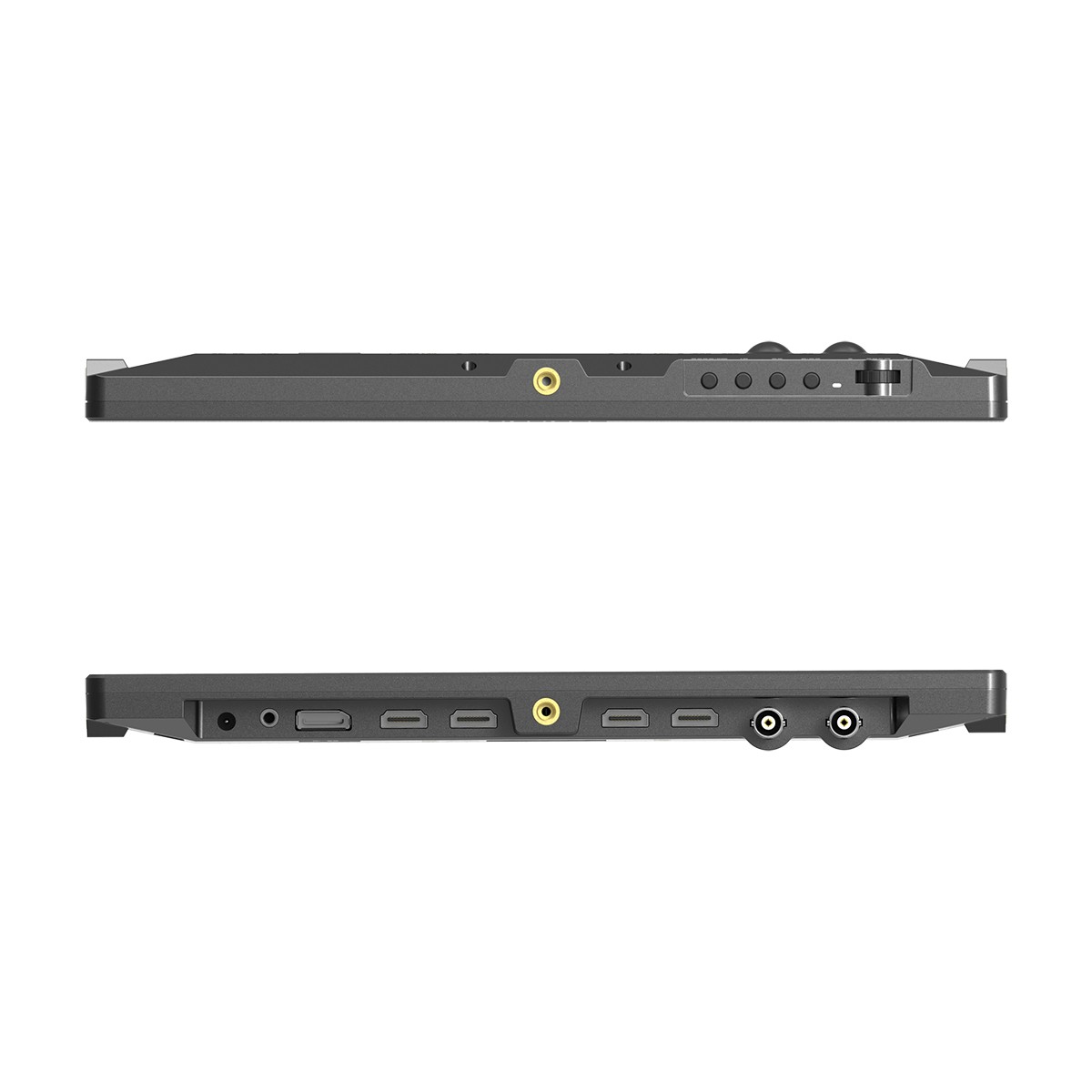

- Lightweight and slim 21mm.
| Display | Display Screen | 12.5" 8bit IPS |
| Physical Resolution | 3840 x 2160 | |
| Aspect Ratio | 16:9 | |
| Brightness | 400cd/m² | |
| Contrast | 1500:1 | |
| Viewing Angle | 170°/ 170° (H/V) | |
| Input | 3G-SDI | 1 |
| HDMI | HDMI 2.0x1 (support 4K 60Hz) | |
| HDMI 1.4x3 (support 4K 30Hz) | ||
| Display-port | Display-port 1.2x1 (support 4K 60Hz) | |
| Output | 3G-SDI loop | 1 |
| Audio | Speaker | 2 |
| Earphone Slot | 1 | |
| Power | Current | 1.3A/12V |
| Input Voltage | DC 7-20V | |
| Battery Plate | V-mount/Anton Bauer mount | |
| Environment | Operating Temperature | -20°C~60°C |
| Storage Temperature | -30°C~70°C | |
| Dimension | Dimension (LWD) | 297.6 x 195 x 21.8mm |
| Weight | 960g |
UPC: 6950821601402
Reviews: Lilliput A12 12.5in 4K Broadcast Monitor
There are currently no product reviews.
Warranty: Lilliput A12 12.5in 4K Broadcast Monitor
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
1 Year Limited Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Lilliput do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
