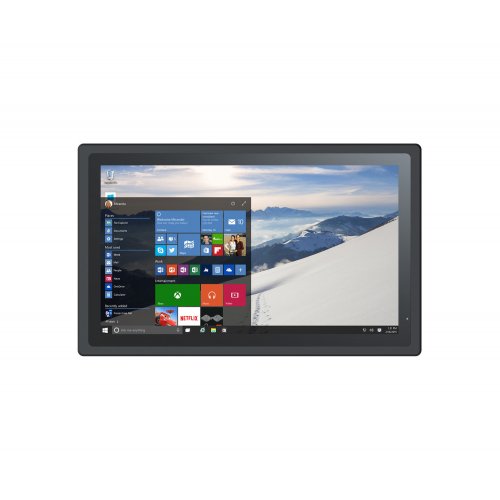

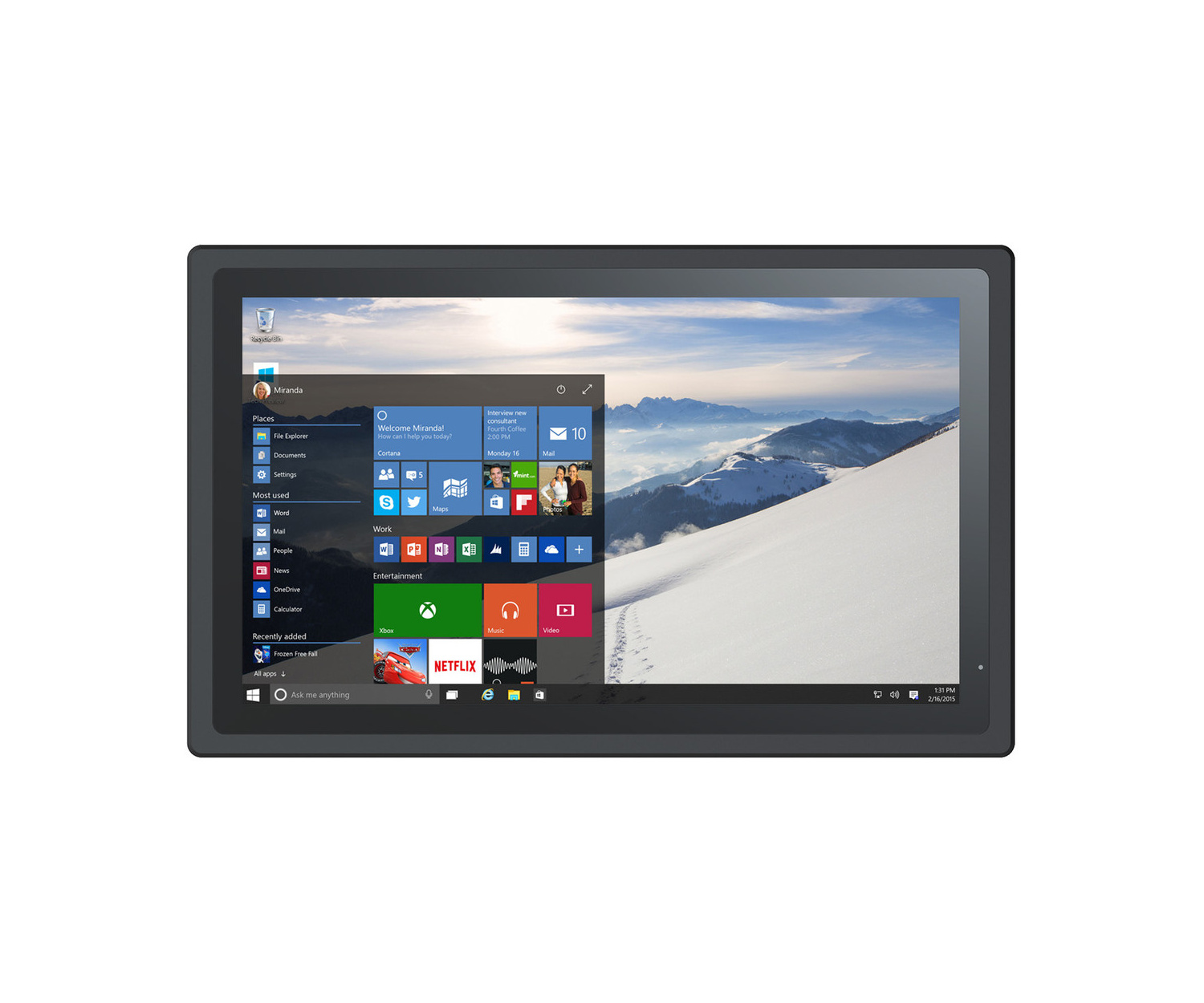

Lilliput TK2150/T 21.5in 1000nit Touchscreen Monitor

About: Lilliput TK2150/T 21.5in 1000nit Touchscreen Monitor

The Lilliput TK2150/T touchscreen monitor is solid size LED screen with a 10-point touch screen and 1000 nits high brightness screen panel.

Ideal for use in information points, or point of sale terminals he interfaces support a wide range of customization options in addition to the existing types such as HDMI, VGA, AV, etc. Its IP65 front panel design is a great convenience for installation methods and application.

• 1000 nits brightness
• 10-Point Touch
• 1920x1080 resolution
• IP65 Rating
• Metal Housing
• Auto Dimming

21.5" Touch Screen Monitor

The monitor comes with a 10-point touch screen and 1000nits high brightness screen panel. The interfaces support a wide range of customisation options in addition to the existing types such as HDMI, VGA, AV, etc. Its IP65 front panel design is a great convenience for installation methods and applications.

1000 nits & 10-Point Capacitive Touch

Selection of high-quality industrial-grade screen on the market, which not only has prominent color representation, but also high brightness of 1000 nits screen makes it suitable for outdoor sunlight environment.

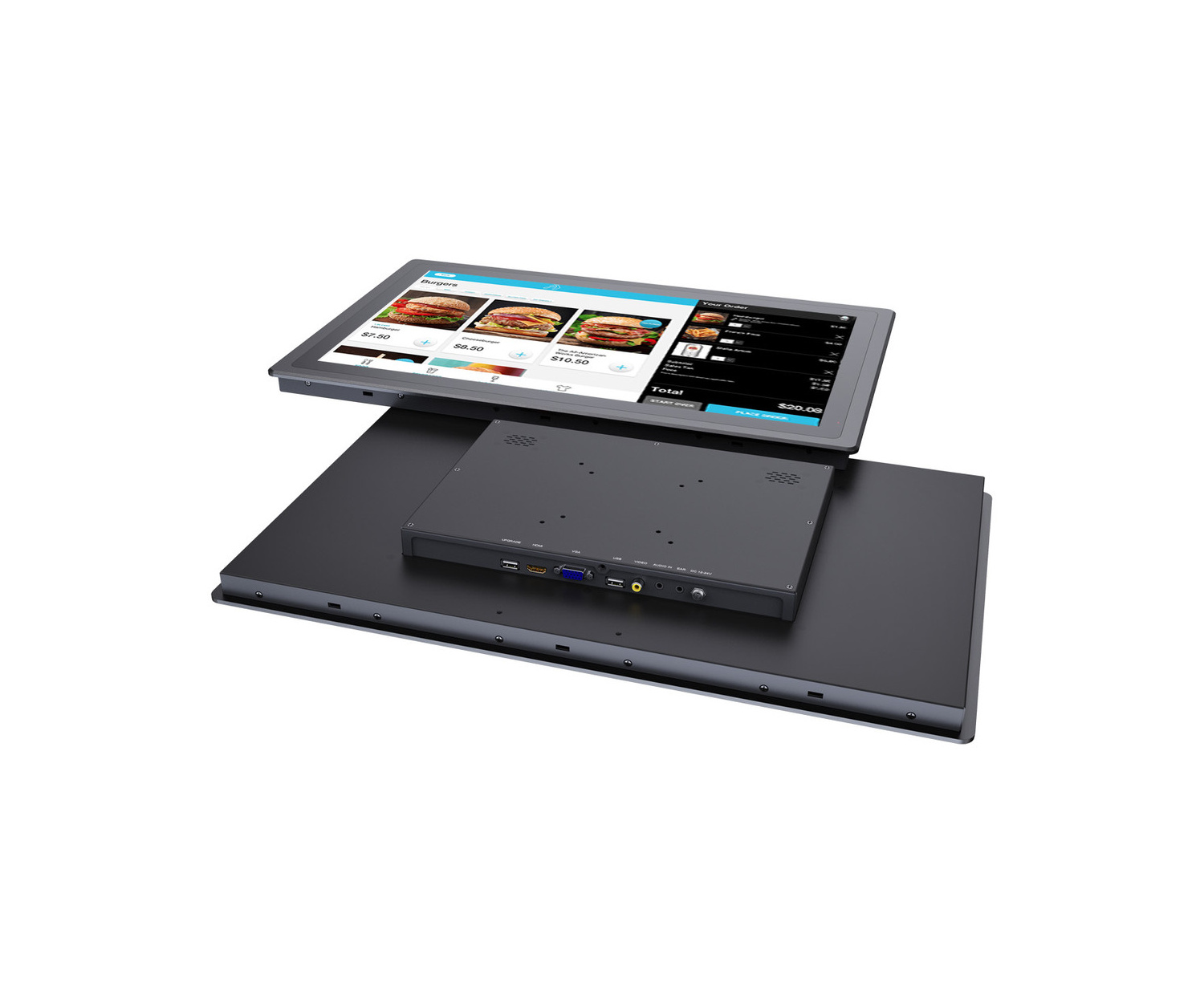

Rich Interfaces

In addition to the interfaces shown, the engineers have creatively reserved a number of expansion ports on the mainboard that can be uniquely customized for different requests. The readily replaceable sheet metal also provides a great deal of ease in modifying the interfaces.

IP65 Rating Screen Panel

The front panel is designed to carry IP65 degree of protection which offer complete protection against particles, and a good level of protection against water, up to water projected by a nozzle against front panel from any direction.

Metal Housing

The aluminium case, with its fine workmanship and close fit with the screen, achieves front panel IP65.

Input Voltage 12-24V

Wide range of input voltages, which is a choice for different application environments.

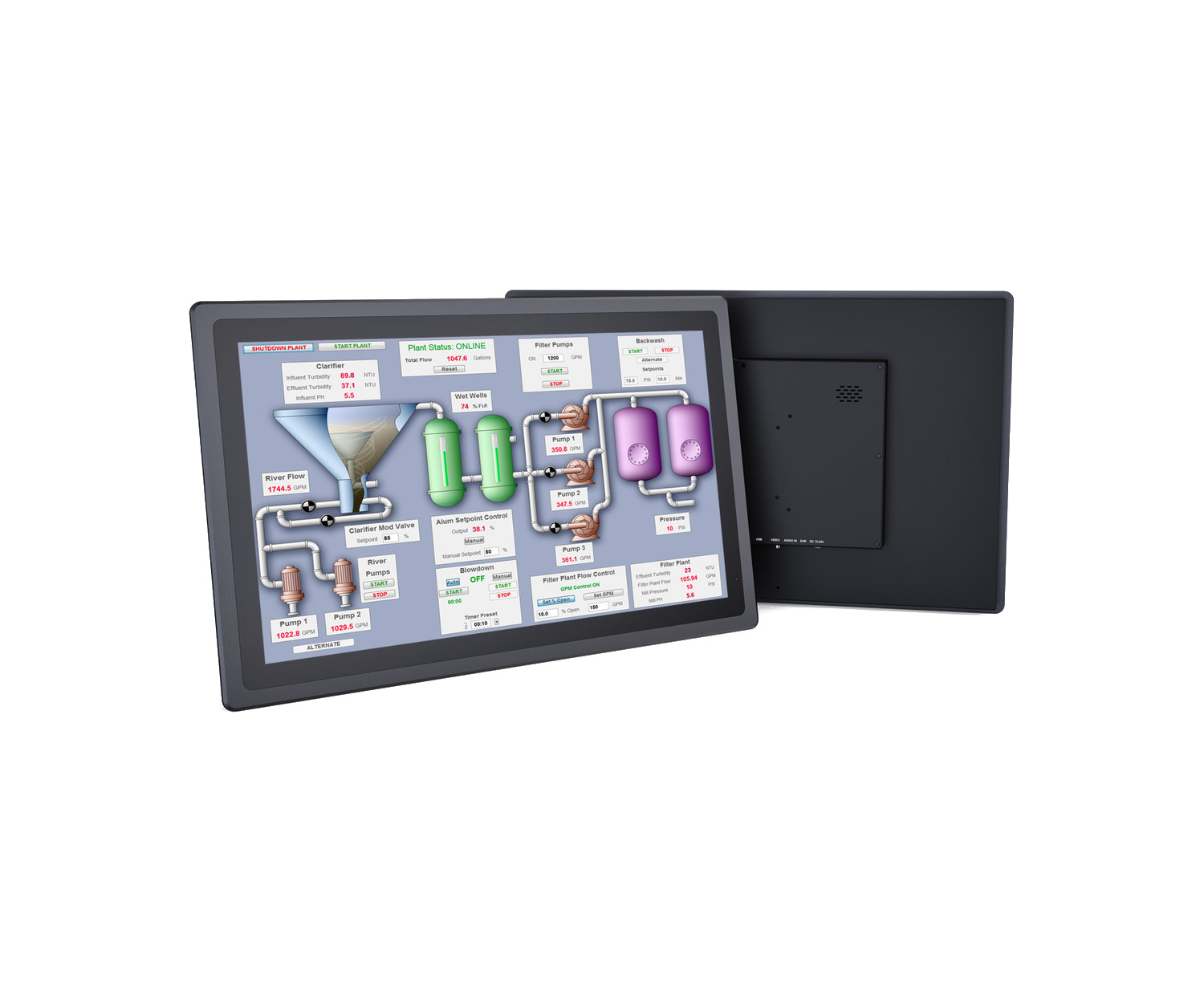

Industrial HMI Applications

Due to the increasingly developed world of industrial automation, HMIs are used in a wide range of applications. As the controlling and monitoring core of automated processes, stability, efficiency, and environmental adaptability are particularly important. Therefore, it is adapted to different scenarios.

• Smart Locker
• Intelligent Production
• Medical
• Self Service

Specifications

• Display
  • Touch Screen: 10-points capacitive touch
  • Panel: 21.5” LCD
  • Physical Resolution: 1920×1080
  • Aspect Ratio: 16:09
  • Brightness: 1000 nits
  • Contrast: 1000:01:00
  • Viewing Angle: 178°/ 178°(H/V)
• Input
  • HDMI: 1x HDMI 1.4b
  • VGA: 1x
  • AV: 1x
• Supported Formats
  • HDMI
    • 2160p 24/25/30, 1080p 24/25/30/50/60
    • 1080i 50/60, 720p 50/60
• Audio In/Out
  • Speaker: 2
  • HDMI: 2ch
  • Ear Jack: 3.5mm – 2ch 48kHz 24-bit
• Power
  • Input Voltage: DC 12-24V
  • Power Consumption: ≤37W (15V)
• Environment
  • Operating Temperature: 0°C~50°C
  • Storage Temperature: -20°C~60°C
  • Water-proof: Front Panel IP x5
  • Dust-proof: Front Panel IP 6x
• Physical
  • Dimension(LxWxD): 21.89 x 13.56 x 1.9 in (556 x 344.5 x 48.2mm)
  • Weight: 13.21 lbs (5.99kg)
