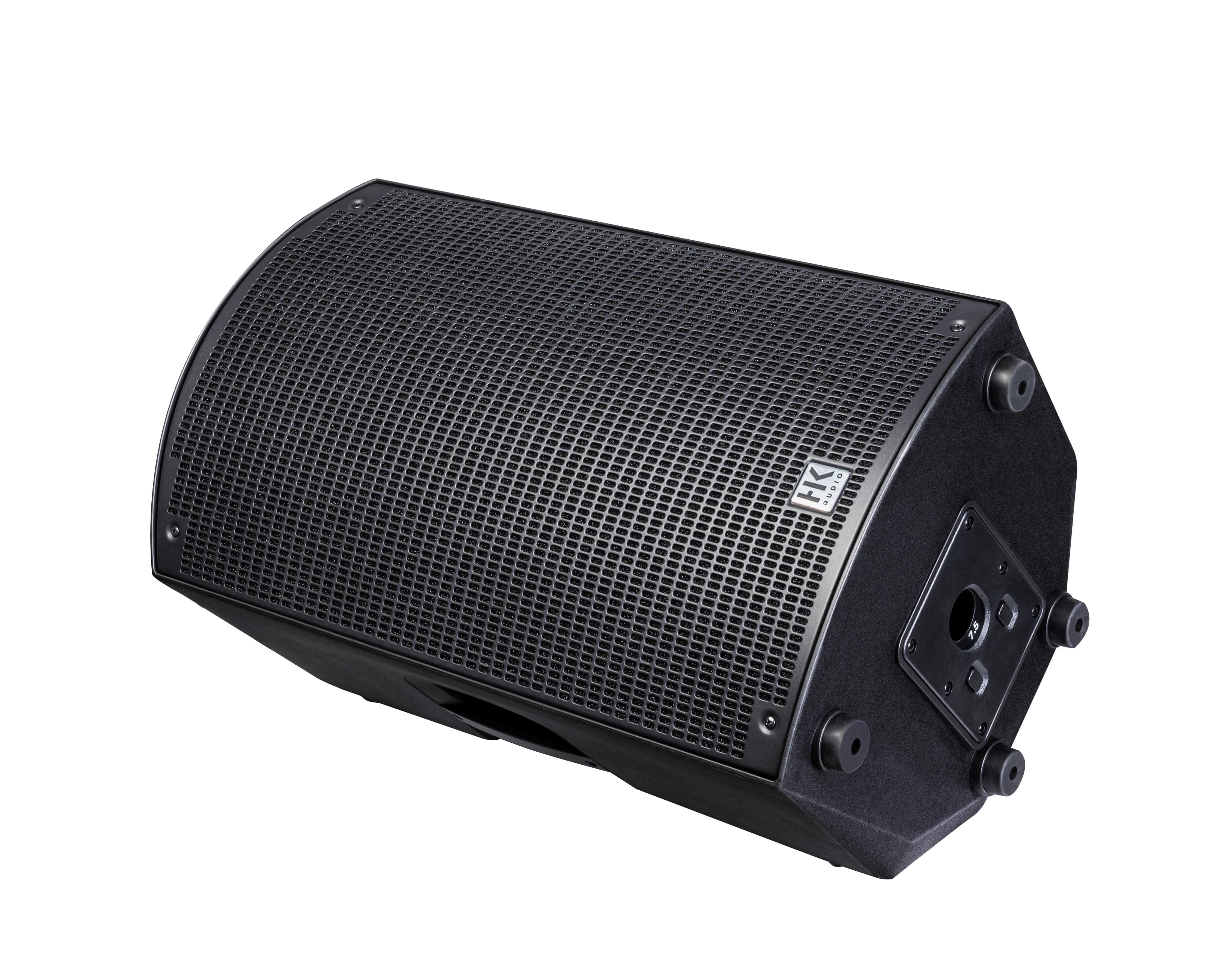

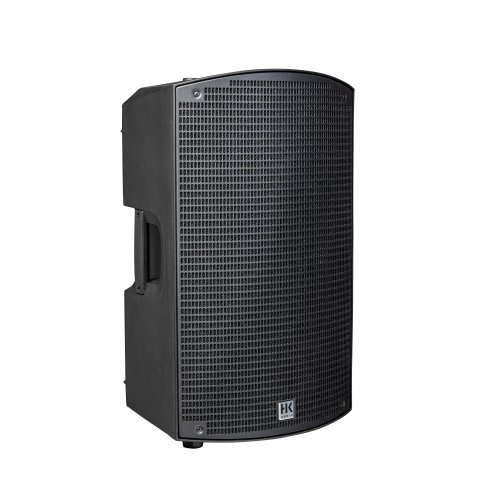

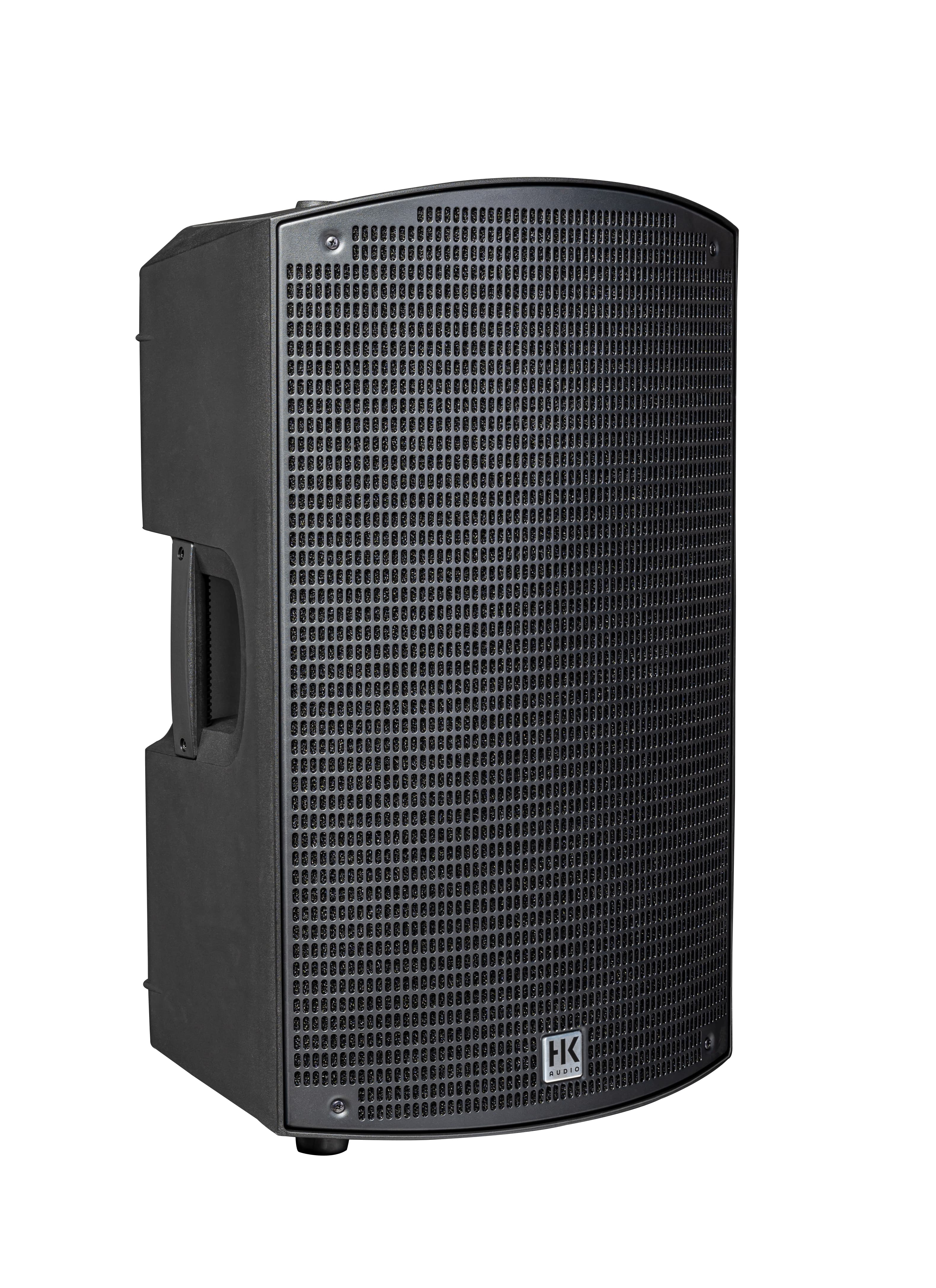

HK Audio SONAR 112 Xi 12in Powered Speaker

About: HK Audio SONAR 112 Xi 12in Powered Speaker

SONAR 112 XI is an active, state-of-the-art loudspeaker for medium-sized sound reinforcement scenarios such as speech applications or musical performances.

The intuitive app control of the input channels simplifies operation and eliminates the need for an external mixing console in many applications.

With the SONAR 115 Sub D subwoofer, you can build the setup into a large PA system and easily adapt it to your requirements.

The SONAR 112 Xi is an active, state-of-the-art speaker that provides top sound, whether as a full-range speaker, as a stage monitor or in combination with a subwoofer. Powerful components and meticulous HK Audio acoustic engineering guarantee an impressive sound experience with a strong bass.

SONAR 112 Xi offers three input channels: two for microphone or line signals plus one AUX channel, which receives analogue signals as well as via Bluetooth 5.0. Music can be streamed in stereo to two SONAR Xi speakers via Bluetooth TWS (True Wireless Stereo). The volume and 3-band EQ for each channel can be adjusted intuitively using the rotary control and colour display. Thanks to the free SONAR REMOTE app (for iOS and Android), all functions can also be controlled remotely for added convenience.

Specifications:

• Cabinet principle: Bass reflex
• Max. SPL peak: 127 dB
• Max. SPL calculated: 130 dB
• Frequency range -6 dB: 58 Hz - 18 kHz
• Frequency range -10 dB: 54 Hz - 20 kHz
• Dispersion angle -6 dB (horizontal x vertical): 90° x 60°

Components

• Mid/high frequency: 1 x 12" cone speaker
• High frequency: 1 x 1" compression driver
• Horn: Constant directivity horn

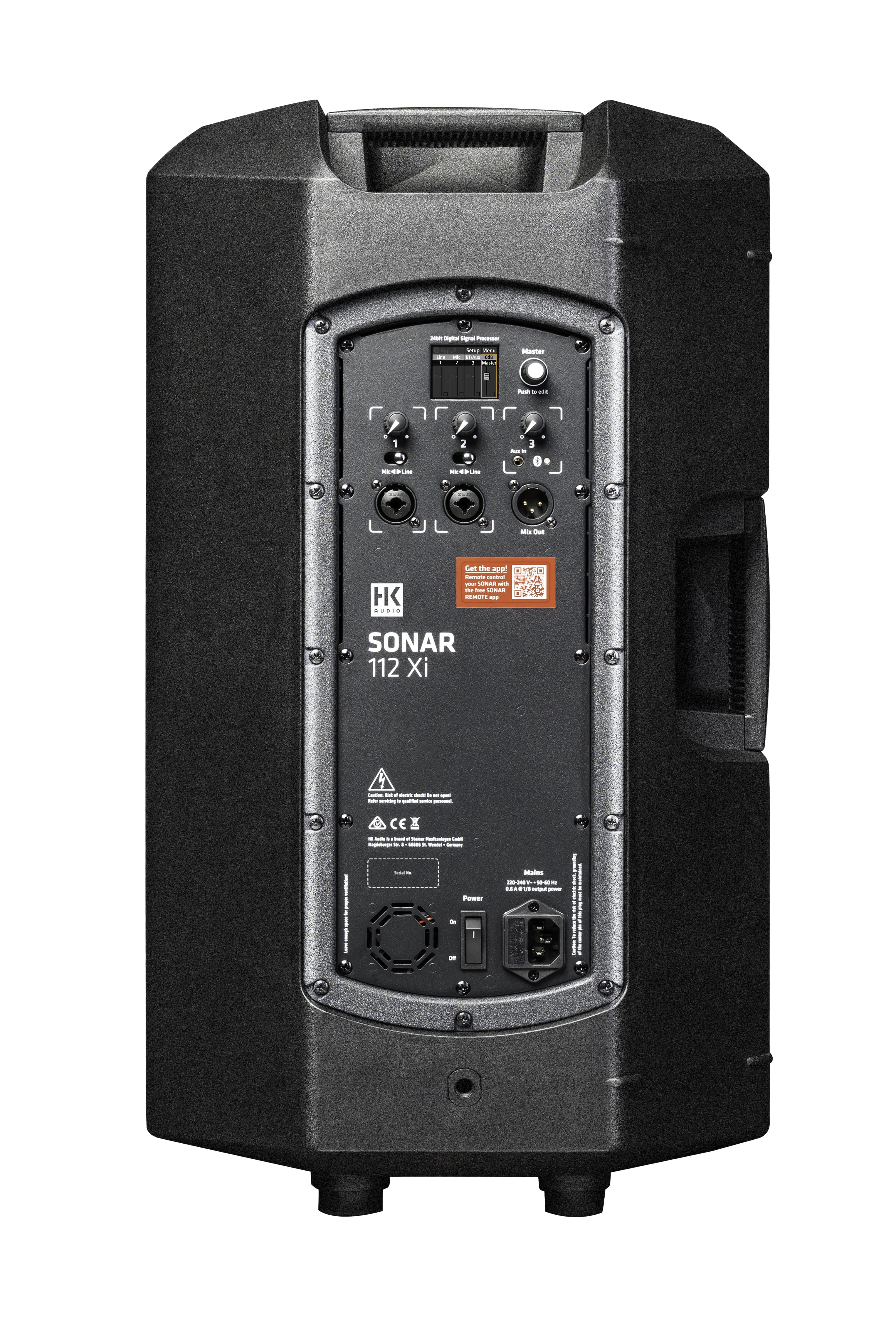

Connections

• Analog input: 2 x XLR/jack combo symm. (Mic/Line), 1 x 3.5 mm (1/8") stereo mini jack
• Mix output: 1 x Mix Out XLR symm.

Electronical data

• Power amplifier: Class AB + D
• Power amplifier output peak: 1200 W
• Power consumption: 0.6 A / 220-240 V AC 1.2 A / 100-120 V AC
• Speaker protection: Thermo-Protection, Overload-Protection, Subsonic Filter, Peak and RMS Limiter
• Display: 1.83" color display
• DSP functions: Master Volume, Level Metering, 3-Band-EQ, Low-Cut-Filter, Front LED, Screensaver, BT Auto Pairing, Delay, Output Pre/Post Master
• Remote app: HK Audio SONAR REMOTE (iOS, Android)
• Filter presets: Live/DJ/Monitor
• Bluetooth: Yes (5.0), TWS

Mechanical data

• Cabinet features/rigging: pole mount 35 mm, tiltable (0°/-7.5°), 3 x M10, monitor angle 35°
• Carrying handles: 2 x SingleGrip
• Cabinet material: plastic
• Color: Jet black (RAL 9005)
• Front grille: Steel front grille with anticorrosive coating and backed acoustic foam
• Dimensions (W x H x D), metric: 36.5 x 62.9 x 35.5 cm
• Dimensions (W x H x D), imperial: 14-3/8 x 24-3/4 x 13-31/32 inch
• Weight, metric: 15.9 kg
• Weight, imperial: 35.a lbs
