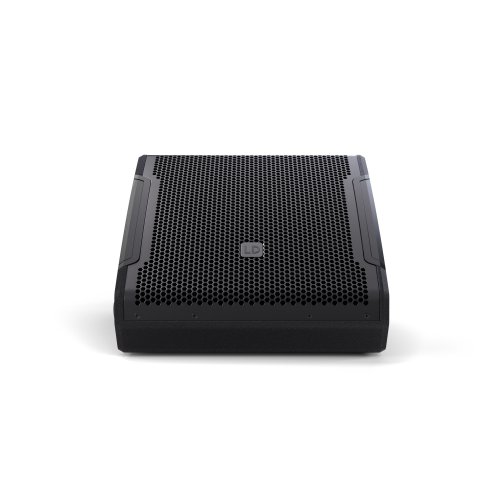

LD Systems MON 12 A G3 12-Inch Powered Coaxial Stage Monitor

About: LD Systems MON 12 A G3 12-Inch Powered Coaxial Stage Monitor

The MON 12 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

• Compact high-performance stage monitor with top-of-the-range technologies
• Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL
• Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
• 12" woofer with 2.5" voice coil
• Optimised, practical radiation pattern due to 50° x 90° CD horn
• DynX DSP (Gen.2) for distortion-free sound even at maximum volume
• 3-band EQ, Notch filter, 4 application presets and delay function
• PowerCON compatible loop-through professional power connection
• 35 mm speaker stand flange for FOH applications
• Durable Polyurea coating and heavy-duty front grille

For decades, 12"/1" stage monitors have been the golden mean when it comes to sonority, sound pressure and portability. With coaxial design, smart electronics and a professional look, the MON 12 A G3 brings this concept into the "modern age". The ideal dispersion geometry of 50° x 90° for monitor use or 90° x 50° for FOH use make it a multi-talent that offers the right solution for a wealth of different tasks.

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

POWERFUL DIGITAL CONTROLLER

• DYNX DSP (GEN. 2) - The latest generation of LD Systems’ proprietary DynX DSP guarantees a dynamic, high-resolution sound image across the entire frequency response.
• 4 SOUND PRESETS & 3-BAND EQ - The four intuitively operated sound presets and the 3-band EQ enable quick, user-friendly sound adjustment
• TUNABLE NOTCH FILTER - With the tunable notch filter, feedback frequencies can be quickly eliminated.
• DELAY LINE FUNCTION - The delay line function allows you to compensate for distances of up to 10 m / 33 ft. This is very useful when operating multiple loudspeakers in FOH mode, for example at a town festival.
• HIGH-EFFICIENCY POWER AMPLIFIER - The highly efficient Class D power amp delivers 300 watts RMS. The peak power of 1200 watts, which can be called up at short notice, guarantees a dynamic, assertive sound image.
• PROFESSIONAL CONNECTORS - Our engineering team put great care in creating an intuitive user-panel with just the controls and inputs you really need.
  • Features two XLR/Jack Combo input channels for parallel connection of multiple audio devices.
  • Pass-through connector allowing direct signal transmission to other devices or monitors, maintaining uniform sound across your setup.
  • Enables daisy-chaining of multiple MON G3 units for efficient power management on stage.
  • A secure, PowerCon compatible port that ensures a reliable power connection for your performance.
• EASY DAISY CHAINING - The next monitor can be supplied with power via a second PowerCon compatible connection. Thanks to the two XLR outputs, you can also daisy chain the audio signal to a neighbouring stage monitor.

ROBUST CONSTRUCTION AND COATING

• HEAVY-DUTY BIRCH PLYWOOD - The enclosures are made of heavy-duty 15 mm birch plywood and coated with particularly resistant polyurea. Thus, they reliably withstand many years of hard use "on the road“.
• STEEL FRONT GRILLE - The extra-strong, torsion-resistant steel grilles effectively protect the speakers.
• TWO DIE-CAST ALUMINIUM HANDLES - The two cast aluminum handles, homogeneously integrated into the overall appearance, enable the best possible handling on stage.
• RECESSED CONNECTIONS - The connections and controllers are recessed in steel trays and are thus optimally protected against damage.
• NOISELESS HEAT SINK - An elegantly designed heat sink on the back of the monitor provides fanless and thus noiseless cooling of the power electronics

HIGH-QUALITY PRODUCT DESIGN

• HIGH-QUALITY APPEARANCE - The MON G3 stage monitors combine sophisticated functionality and professional aesthetics to create an exceptionally high-quality appearance.
• SMALL FOOTPRINT - The low silhouette and the compact dimensions ensure best integrability even on small stages.
• DISCREET BRAND LOGO - Details desired by our users, such as the rotatable, discreet, and understated brand logo, have also been considered.

Specifications

• General
  • Product type -  Stage monitors
  • Type -  Powered
  • Color -  Black
  • System output (RMS) -  300 W
  • System output (Peak) -  1200 W
  • Max. SPL Average (Sine burst) -  120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
  • Max. SPL Peak (Sine burst) -  127 dB (fullspace @1m, 10% THD)
  • Frequency response (-3 dB) -  68 - 18000 HZ
  • Frequency response (-10 dB) -  55 - 20000 Hz
  • Crossover frequency -  1400 Hz
  • Monitor angle -  33°
  • Dispersion (HxV) -  50° x 90°
  • Features -  3-band EQ (High, Mid, Low), Delay line, Notch filter
  • Dimensions (WxDxH) -  16.73 x 17.83 x 12.4 Inch (425 x 453 x 315 mm)
  • Weight -  38.36 lbs (17.4 kg)
• Low/mid woofer
  • Low/mid Woofer dimensions -  12" (304.8 mm)
  • Woofer magnet -  Ferrite
  • Woofer brand -  Custom-made
  • Woofer type -  Coaxial loudspeaker
  • Woofer voice coil -  2.5" (65 mm)
  • Cabinet construction -  Bass Reflex
  • Cabinet material -  15 mm Birch Plywood, 15 mm MDF
• HF
  • Horn -  CD Horn
  • Tweeter dimensions -  1" (25.4 mm)
  • Tweeter magnet -  Ferrite
  • Tweeter brand -  Custom-made
  • Tweeter voice coil -  1.75" (44.45 mm)
• Amplifier module (integrated)
  • ​Amplifier -  Class D
  • Protection circuits -  Multiband limiter, over voltage, over-current, thermal overload
  • Operating Temperature -  0 - 40 °C
  • Humidity Range -  < 80 % ( non-condensing )
  • Fuse -  T4AL 250 V
  • Controls -  On / off switch, Rotary/push encoder
  • Indicators -  LC display
  • Operating voltage -  SMPS
  • Operating voltage -  100 V AC - 240 V AC, 50 - 60 Hz
  • Power consumption -  150 W
  • Power in / out -  PowerCON compatible
  • Line inputs -  2
  • Line input connectors -  6.3 mm jack, XLR - combo
  • Line thru -  2
  • Line through connector -  XLR
