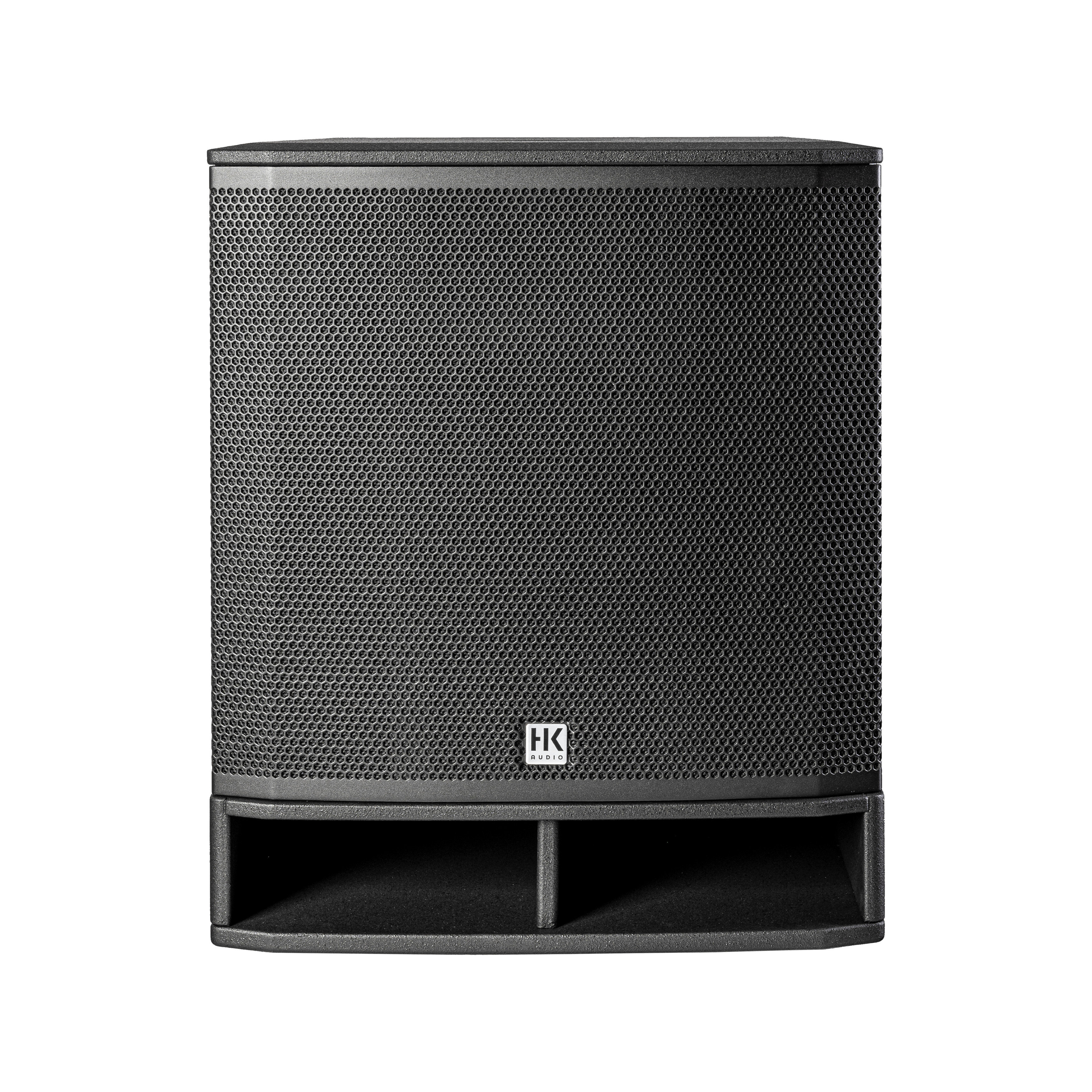

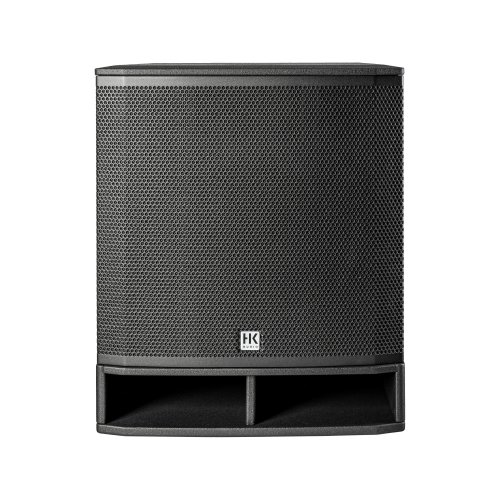

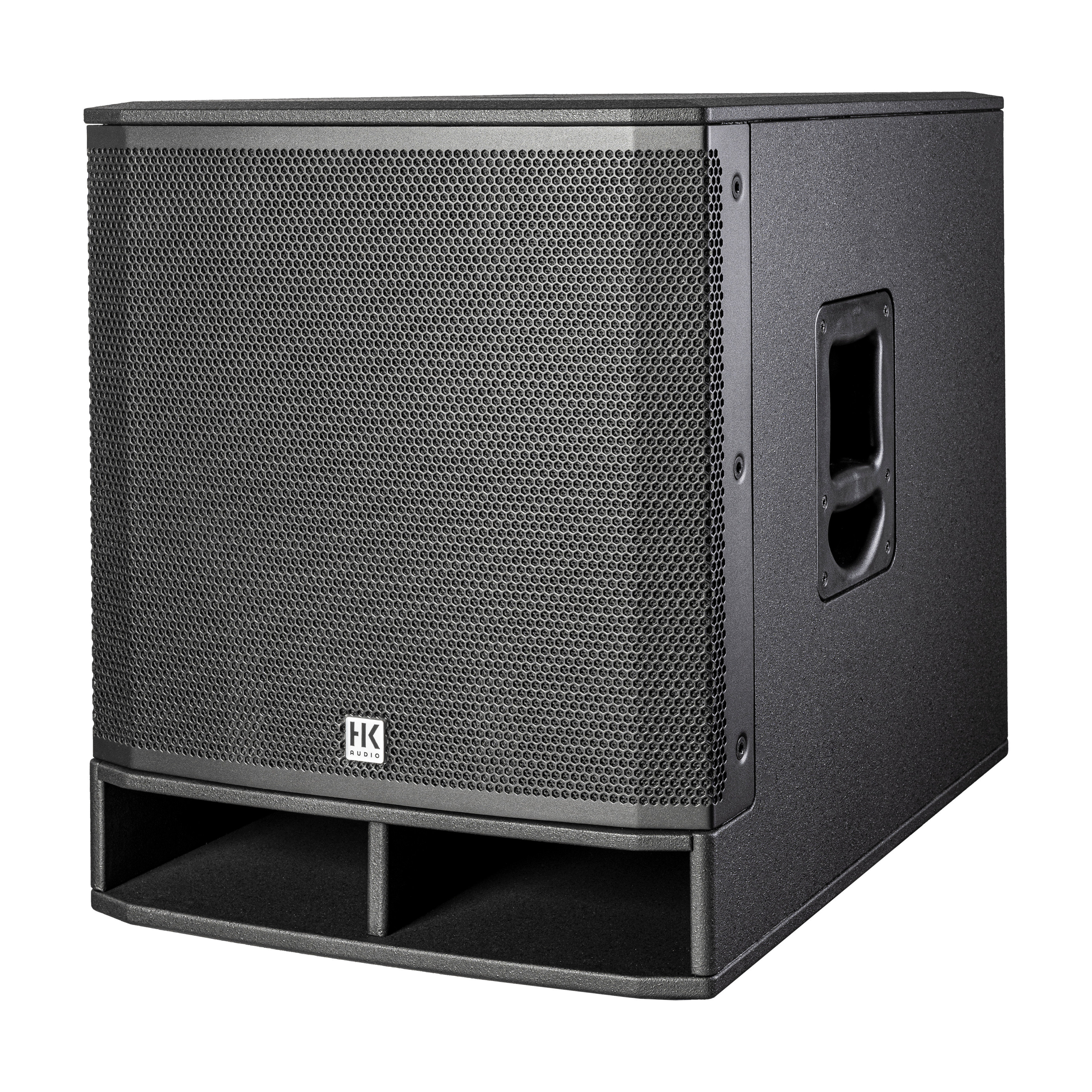

HK Audio PORTABLE SUB 118 A 18in Active Subwoofer

About: HK Audio PORTABLE SUB 118 A 18in Active Subwoofer

With more depth and maximum performance, the PORTABLE SUB 118 A is a powerful solution delivering extended depth and noticeably more impact in the lower bass range. With its 18″ woofer, it is ideal for applications where maximum bass performance is required.

• Preset-based system adjustment for optimal integration
• Perfect extension for LUNAR, POLAR and SONAR systems
• 1,400 W peak power, max. sound pressure level: 131 dB
• 18″ woofer for precise and powerful bass reproduction
• 24-bit DSP for optimised performance and impulse response
• Integrated stereo preamp for 2.1 systems
• Input/Thru connections for flexible signal routing
• Gain control and polarity switch
• Robust wooden cabinet in a professional design
• Ergonomic MultiGrip carrying handles
• Made in Germany
• 5-year manufacturer’s warranty (upon registration)

PORTABLE SUB – Maximum compatibility and controlled bass at the touch of a button

The PORTABLE SUB series stands for powerful, precise bass and a thoroughly thought-out system concept. Designed as the perfect complement to the HK Audio LUNAR, POLAR and SONAR series, it excels wherever flexible integration, rapid deployment and reliable performance are required. By selecting a preset, the subwoofer adapts perfectly to different setups and ensures perfectly coordinated interaction – without any additional configuration effort.

Specifications

• Technical
  • Concept: Active subwoofer
  • Cabinet principle: Bass reflex
  • Max. SPL peak: 131 dB
  • Crossover frequency: 100 Hz / 80 Hz -> depends on Preset
  • Frequency range -6 dB: 35 Hz - X-Over
  • Frequency range -10 dB: 31 Hz - X-Over
  • Index: 1 x Subwoofer @ 1 m, 10 % THD, half space
• Components
  • Low frequency: 1x 18" with 3" voice coil
  • Crossover: X-Over with 24 dB/oct.

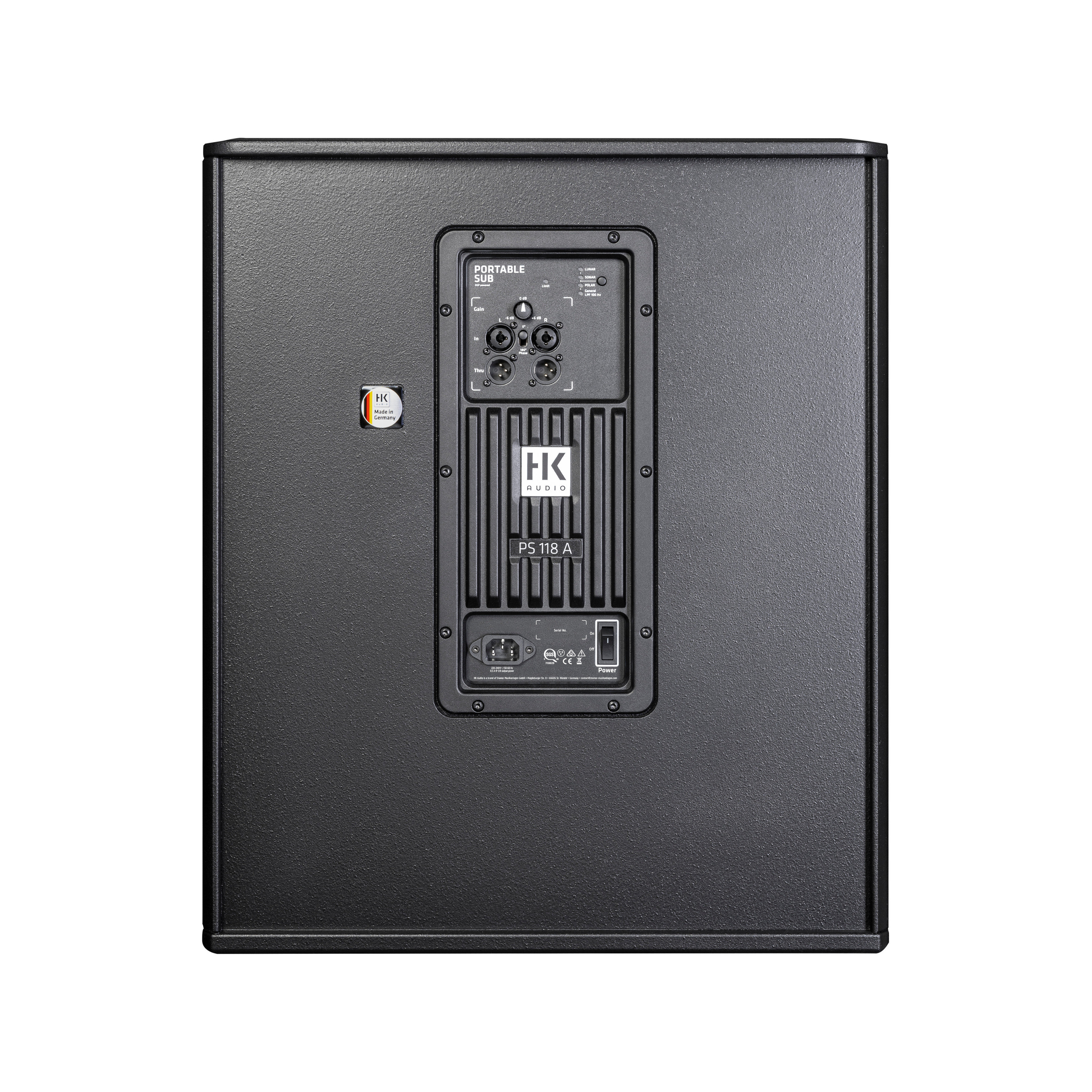

  Connections
  • Power supply: 1 x IEC connector
  • Analog input: 2 x XLR/jack combo symm.
  • Analog output: 2 x XLR Thru symm.
• Electronic data
  • Preamplifier: Stereo preamp
  • Power amplifier: Class D - Biamped
  • Power amplifier output RMS: 700 W
  • Power amplifier output peak: 1400 W
  • Power consumption: 0.5 A / 220-240 V AC @ 1/8 output power 0.9 A / 100-120 V AC @ 1/8 output power
  • Maximum input level: 20 dBu
  • Speaker protection: Subsonic Filter, Peak and RMS Limiter
  • Sample rate: 48 kHz
  • Latency: 2ms - 3.3ms - depends on Preset
  • Filter presets: LUNAR, SONAR, POLAR, General LPF 100 Hz
• Mechanical data

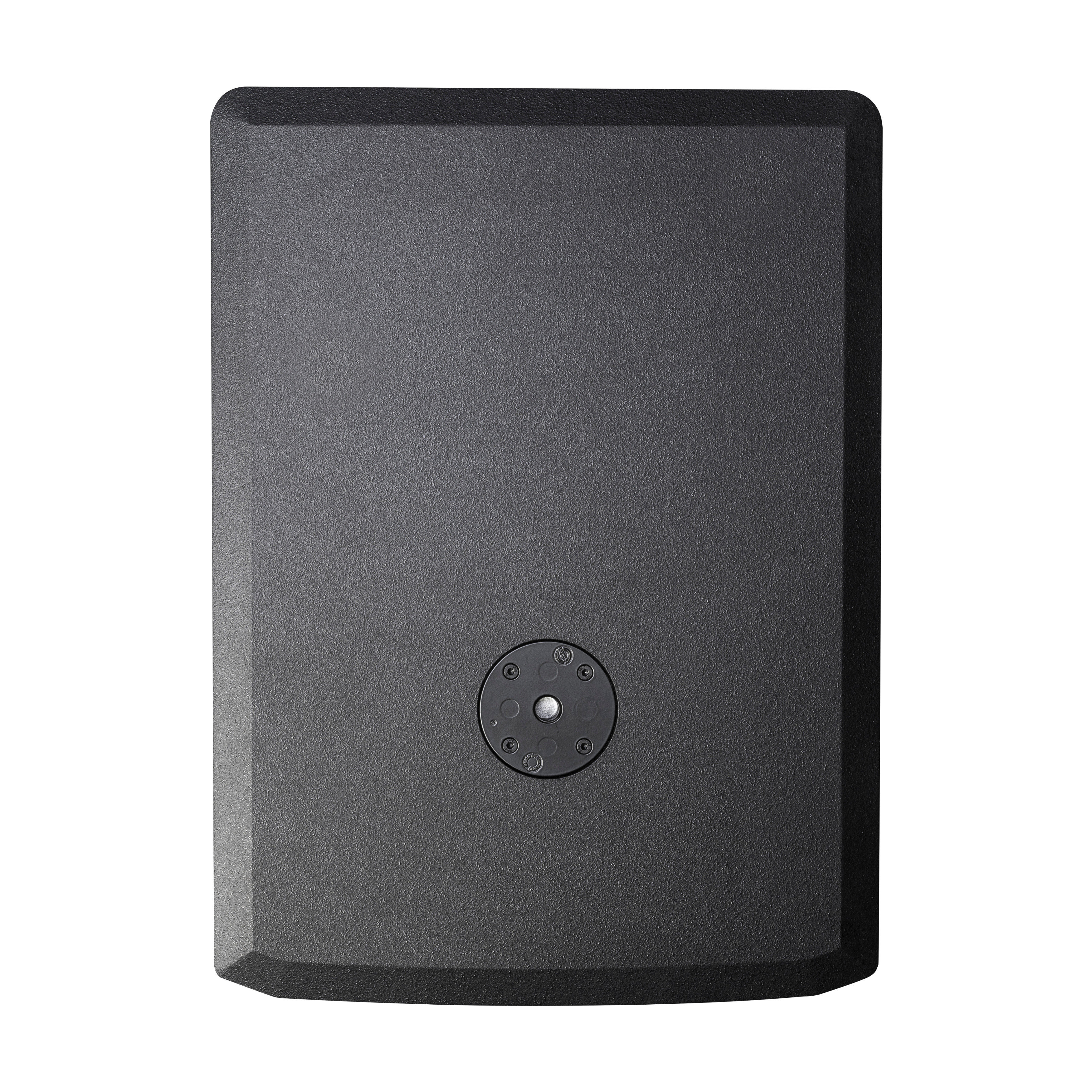

  • Cabinet features/rigging: 1 x M20 pole mount

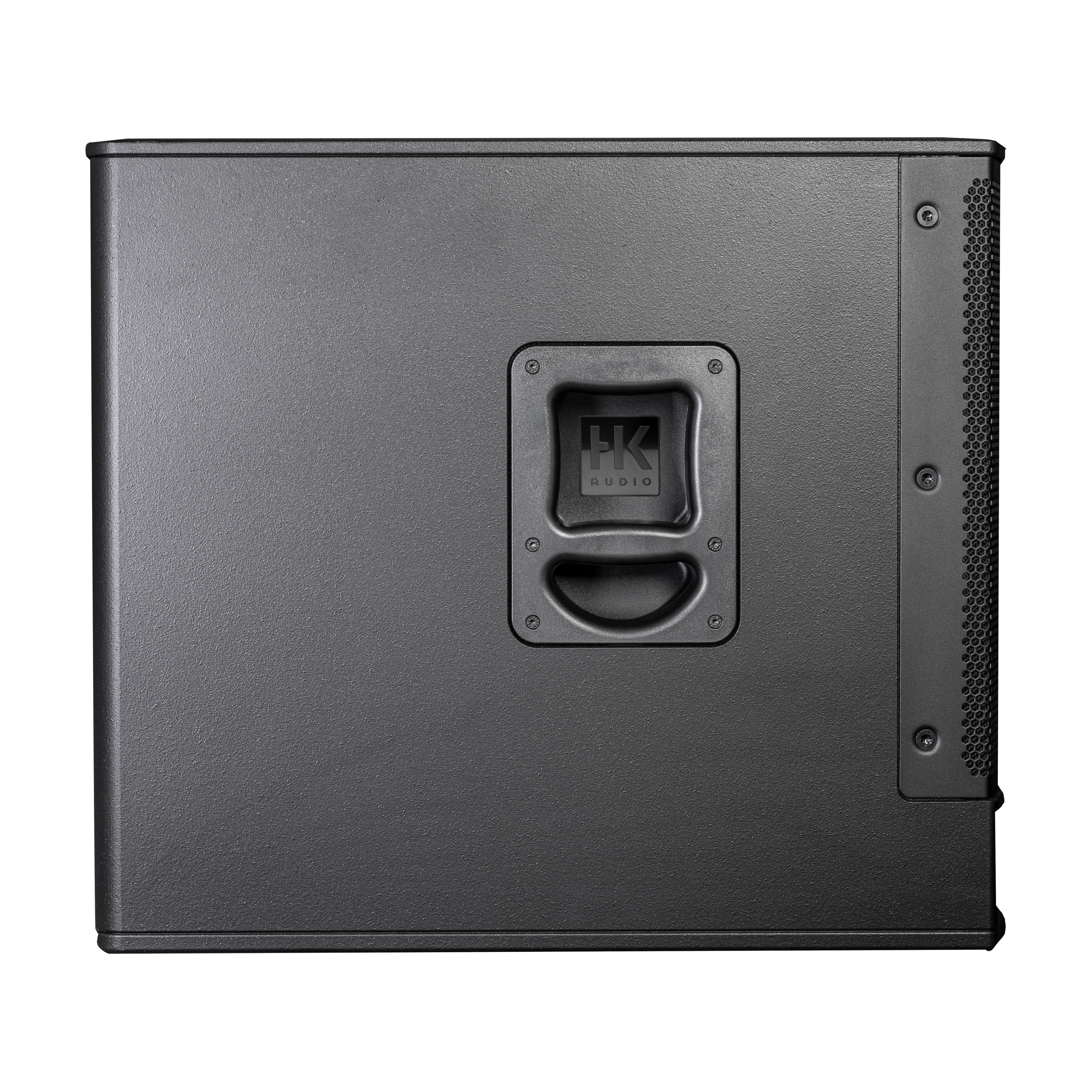

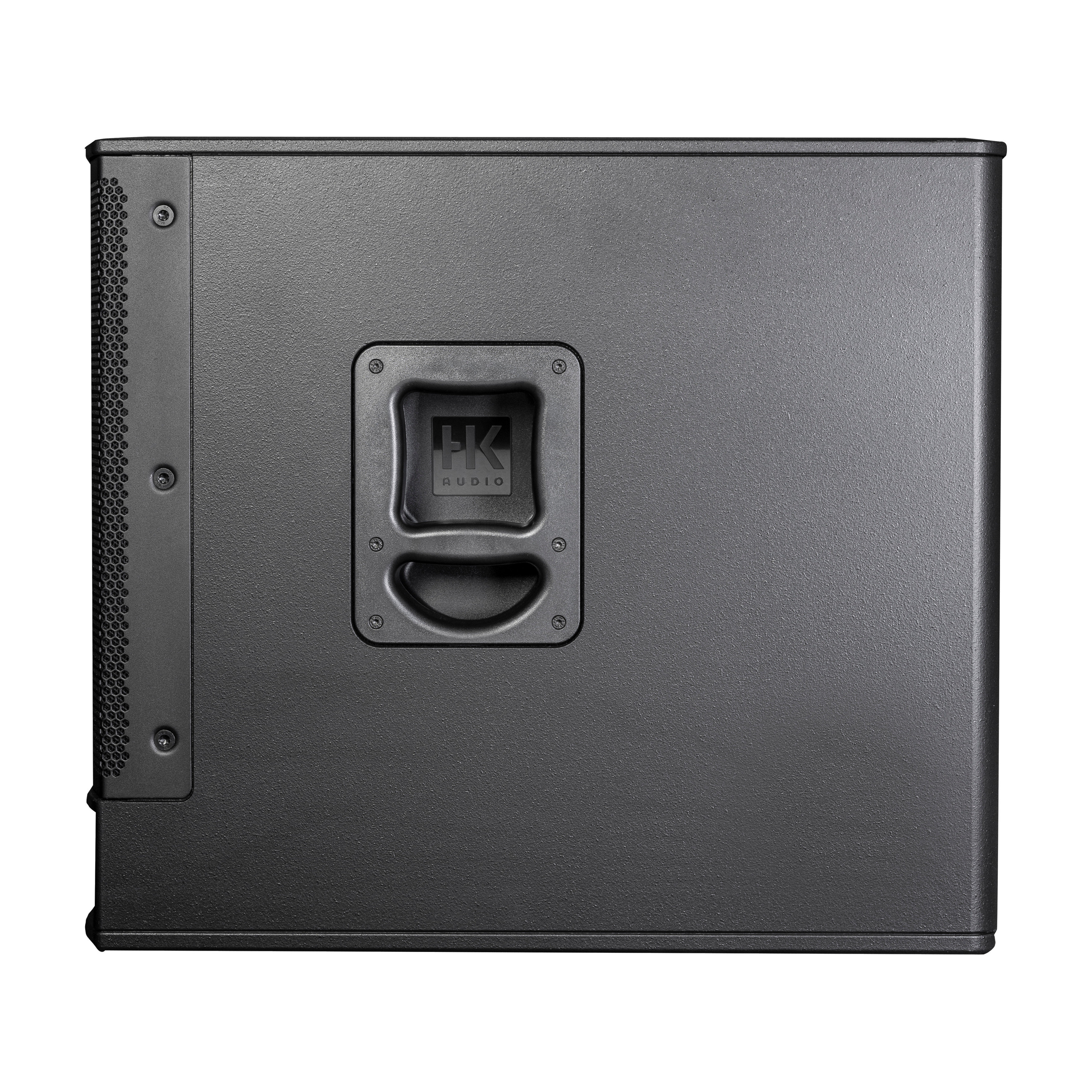

  • Carrying handles: 2, MultiGrip
  • Cabinet material: MDF
  • Cabinet surface: acrylic enamel
  • Color: Jet black (RAL 9005)
  • Front grille: Steel front grille, backed with acoustic foam
• Dimensions (WxHxD): 20.08 x 24.21 x 27.68 inch (51 x 61.5 x 70.3 cm)
• Weight: 86.64 lbs (39.3 kg)
