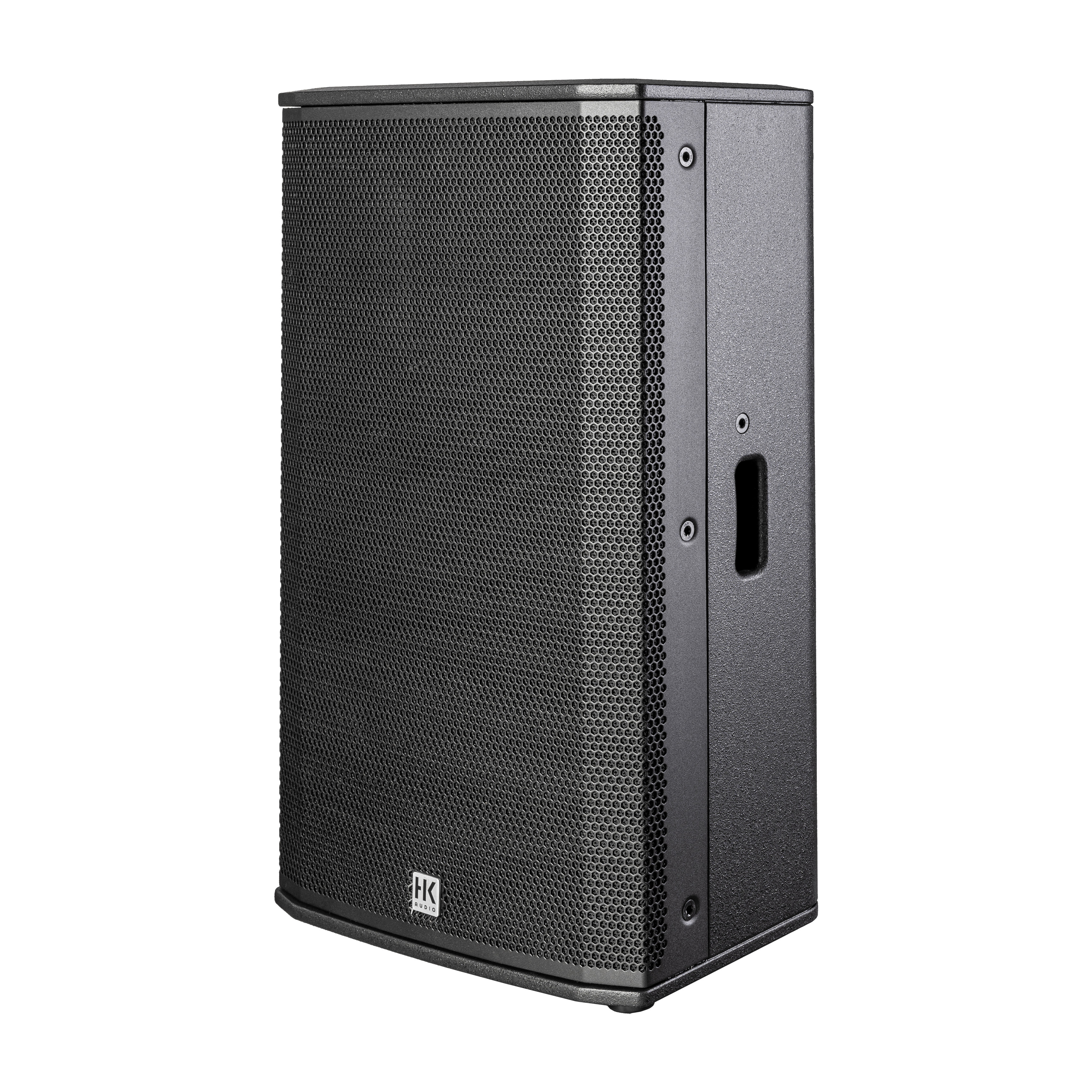

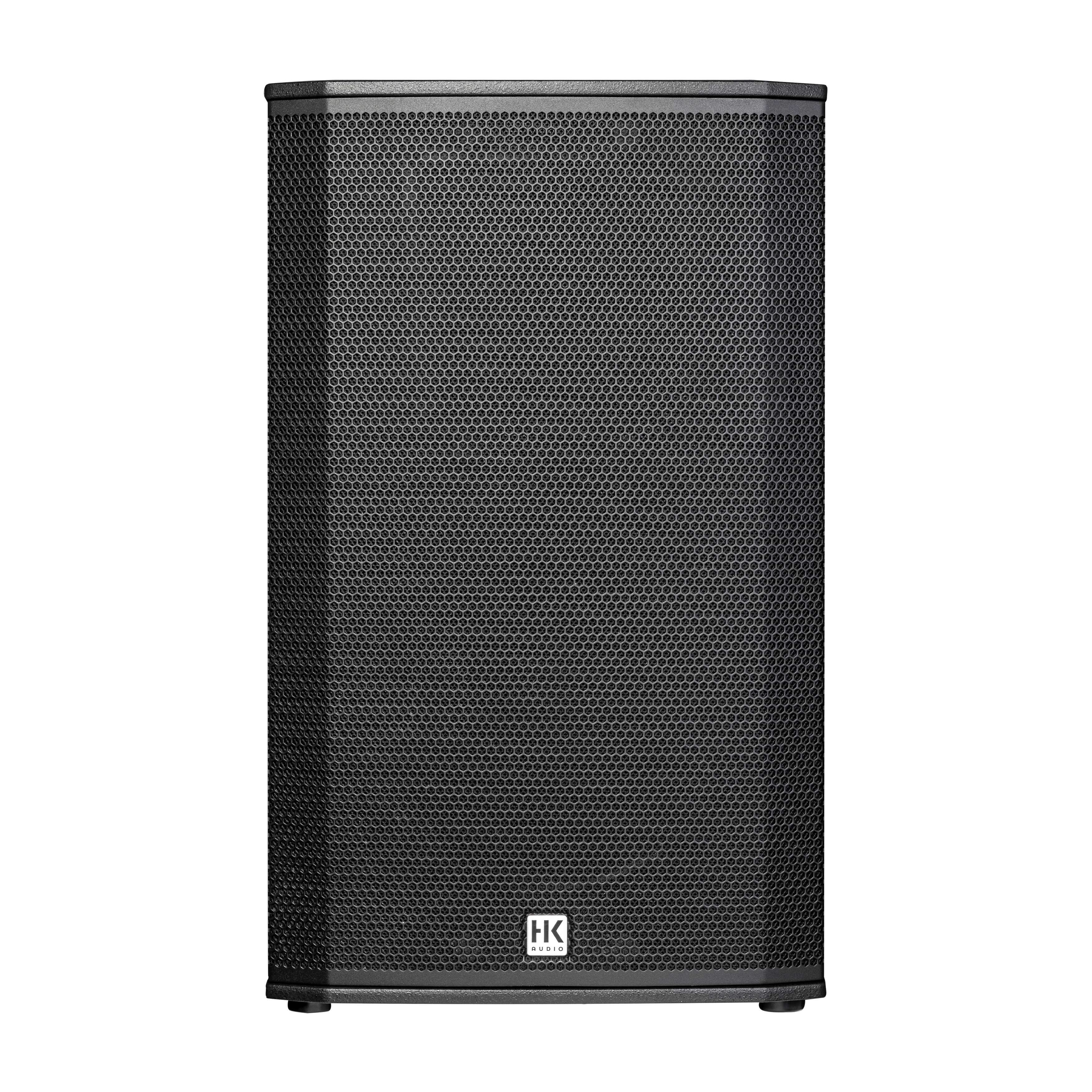

HK Audio LUNAR 115 XA 15in Active Loudspeaker

About: HK Audio LUNAR 115 XA 15in Active Loudspeaker

The LUNAR series delivers instant, professional sound without complicated technology. Designed for demanding live situations, it delivers impressive results at the touch of a button.​

The LUNAR 115 XA is the ideal choice for anyone who needs plenty of punch without an additional subwoofer. It delivers powerful bass and pronounced deep mids, making it an excellent choice as a full-range system or a top unit.

• Integrated presets: Music, Monitor, Voice, Subwoofer
• Intuitive operation without complex menu navigation
• Combined mic/line input
• Bluetooth audio streaming with True Wireless Stereo
• 32-bit DSP with FIR filter and phase correction
• Clear, dynamic and balanced sound reproduction
• Flexible applications: full-range, monitor, or as a top with a subwoofer
• Robust wooden cabinet in a professional design
• Made in Germany
• 5-year manufacturer’s warranty (upon registration)

Specifications

• Technical
  • Concept: Active 2-way loudspeaker
  • Cabinet principle: Bass reflex
  • Max. SPL peak: 130 dB
  • Crossover frequency: 1.9 kHz FIR X-Over with 60 dB/oct.
  • Frequency range -6 dB: 60 Hz - 21 kHz
  • Frequency range -10 dB: 56 Hz - 22 kHz
  • Dispersion angle -6 dB (horizontal x vertical): 90° x 55°
  • Index: 1 x unit @ 1 m, 10 % THD, half space
• Components
  • Mid/high frequency: 1 x 15" cone speaker with 2.5" voice coil
  • High frequency: 1 x 1" compression driver with 1.4" voice coil
  • Crossover: 1.9 kHz FIR X-Over with 60 dB/oct.
  • Horn: Constant directivity horn

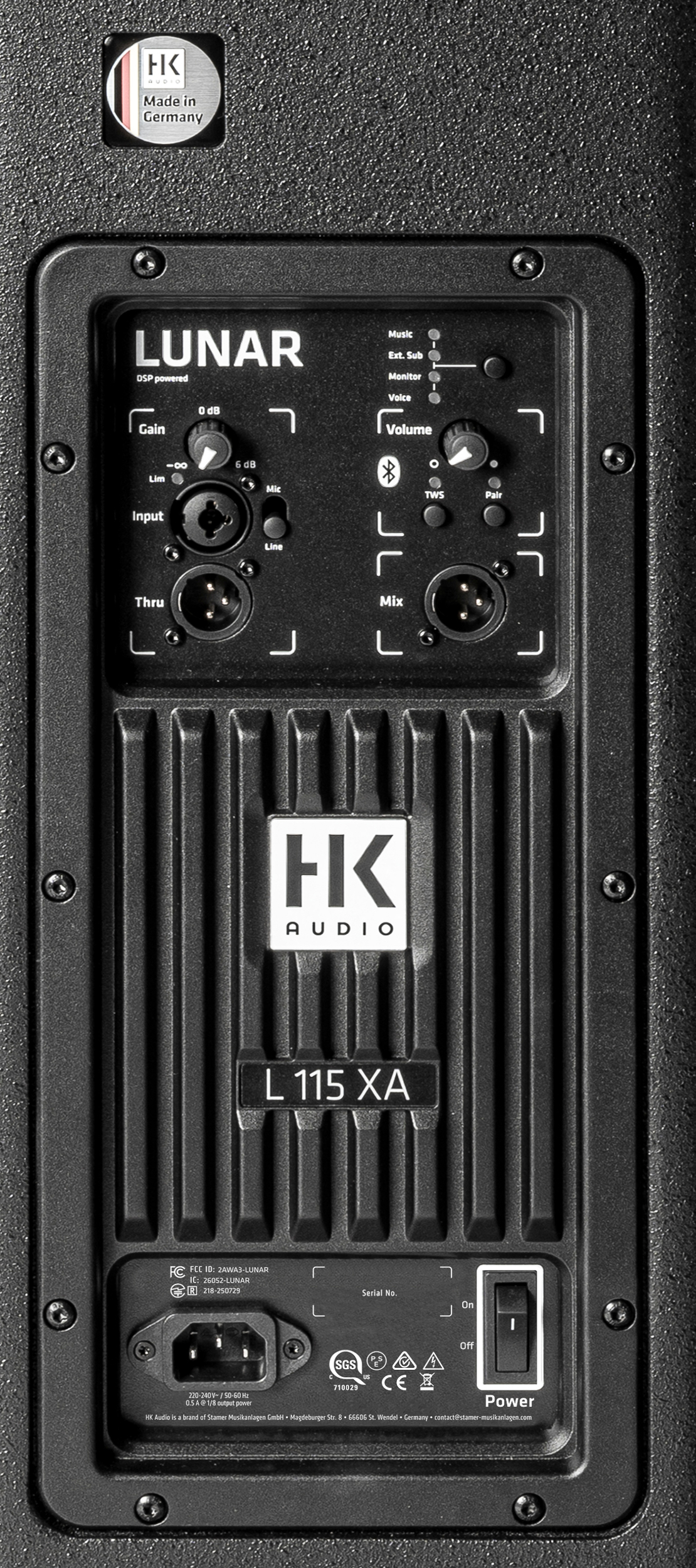

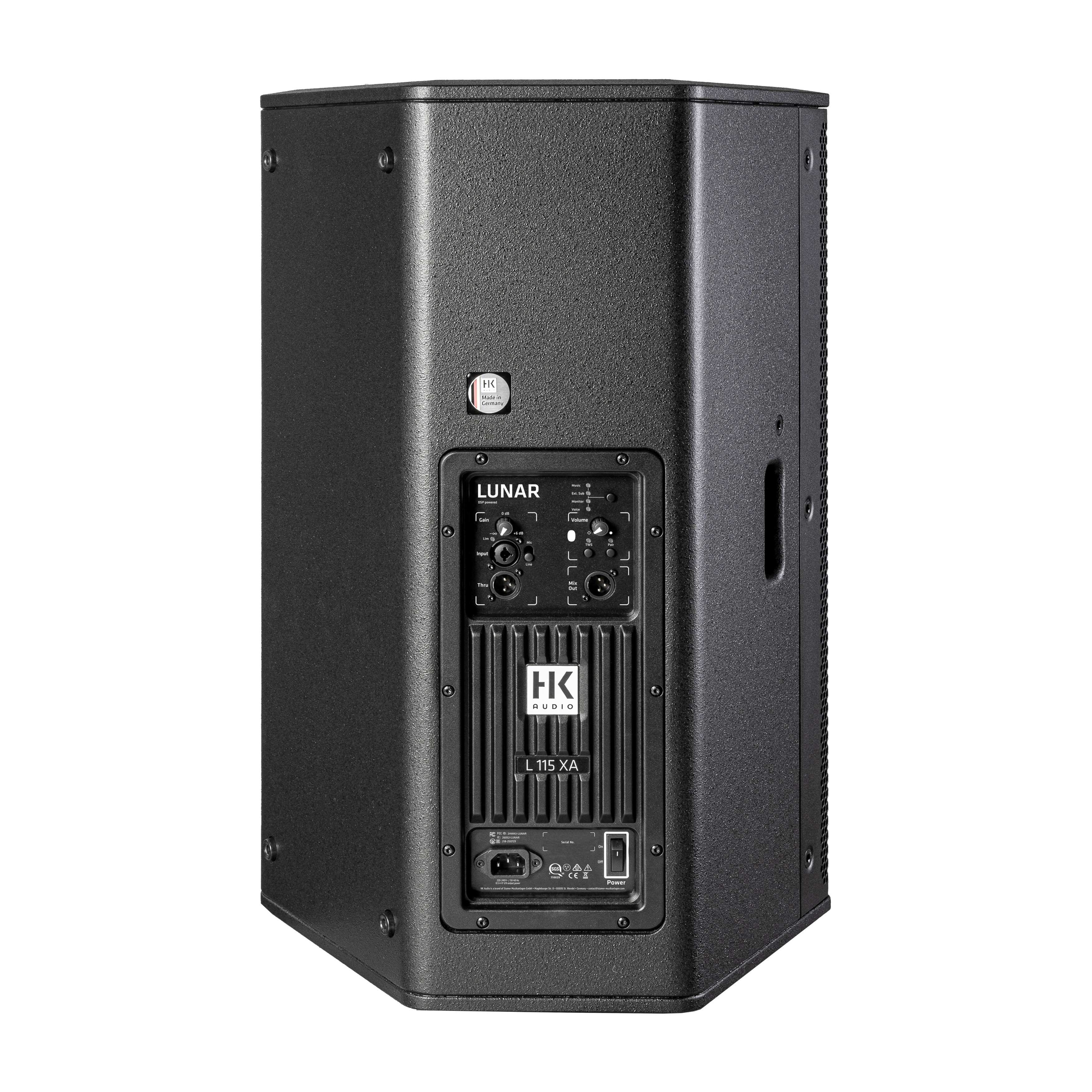

  Connections
  • Power supply: 1 x IEC connector
  • Analog input: 2 x XLR/jack combo symm. (Mic/Line)
  • Analog output: 1 x XLR-Thru symm.
  • Mix output: 1 x Mix Out XLR symm.
• Electronic data
  • Preamplifier: DSP preamp
  • Power amplifier: Class D - Biamped
  • Power amplifier output RMS: 600 W
  • Power amplifier output peak: 1200 W
  • Power consumption: 0.5 A / 220-240 V AC @ 1/8 output power 0.9 A / 100-120 V AC @ 1/8 output power
  • Maximum input level: 20 dBu
  • Speaker protection: Subsonic Filter, Peak and RMS Limiter, Multiband-Limiter
  • Sample rate: 48 kHz
  • Latency: 3ms
  • Filter presets: Music/Ext. Sub/Monitor/Voice
  • Bluetooth: Yes (5.4), TWS
• Mechanical data

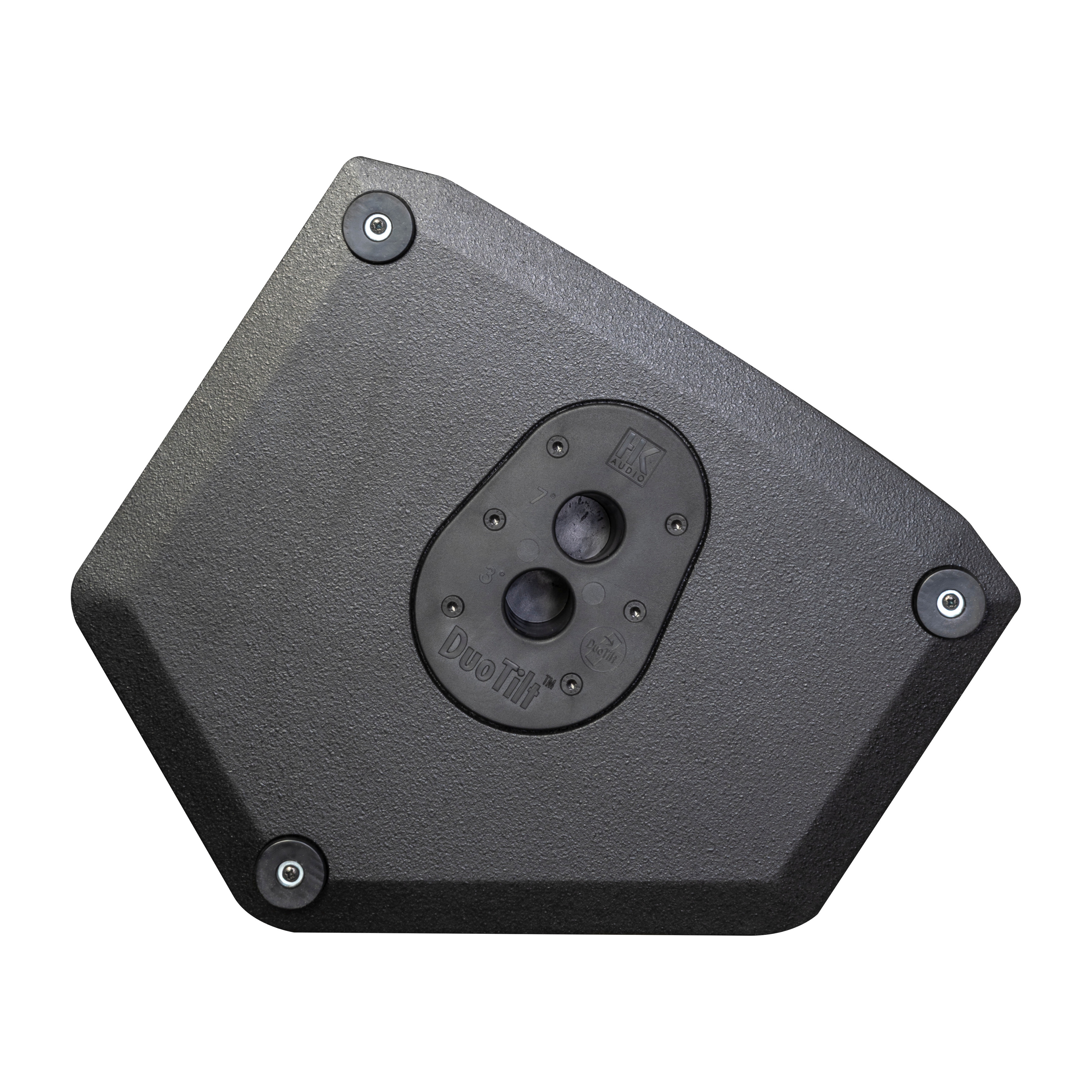

  • Cabinet features/rigging: DuoTilt 3/7, 4 x M8 mounting point for AP-8, monitor angle 33°

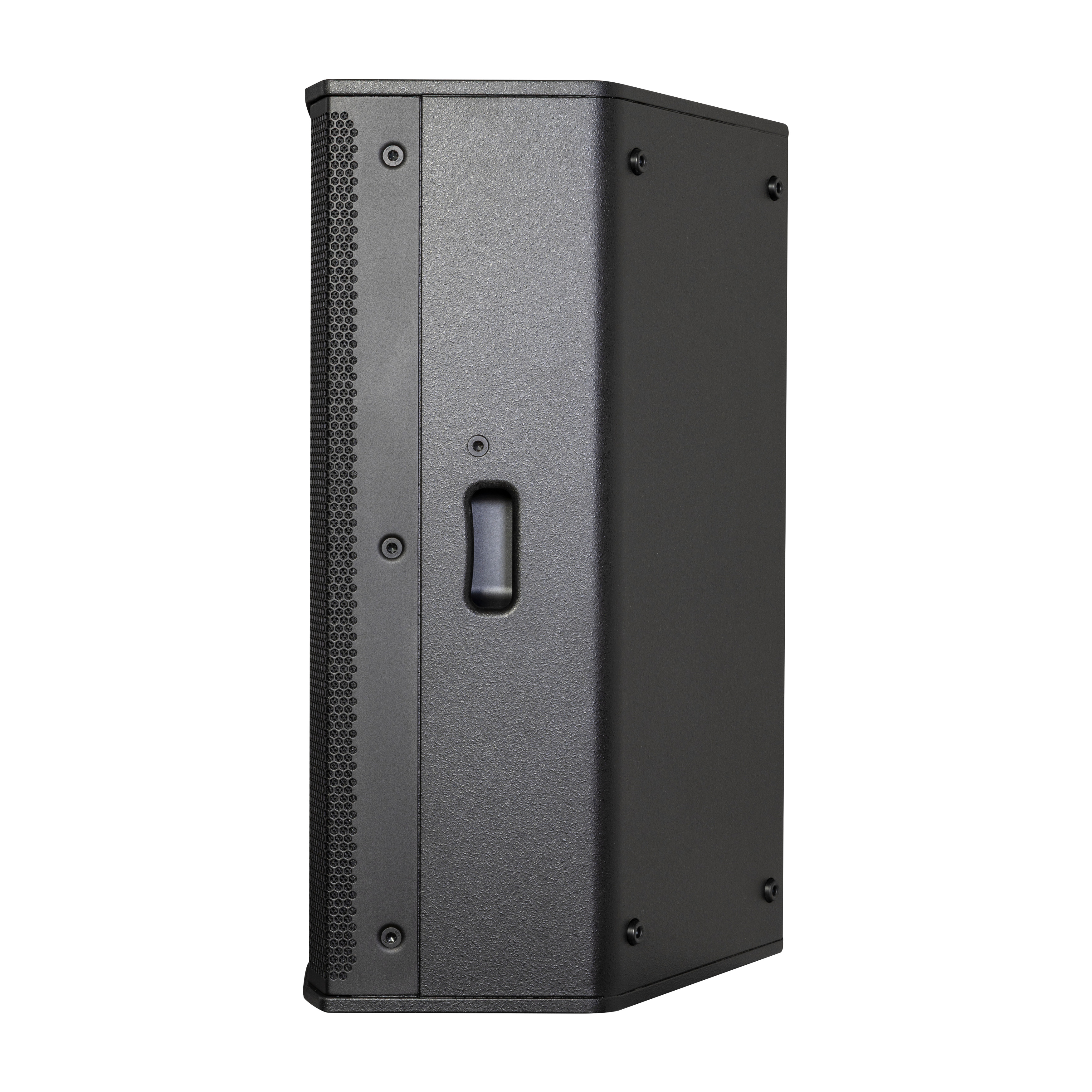

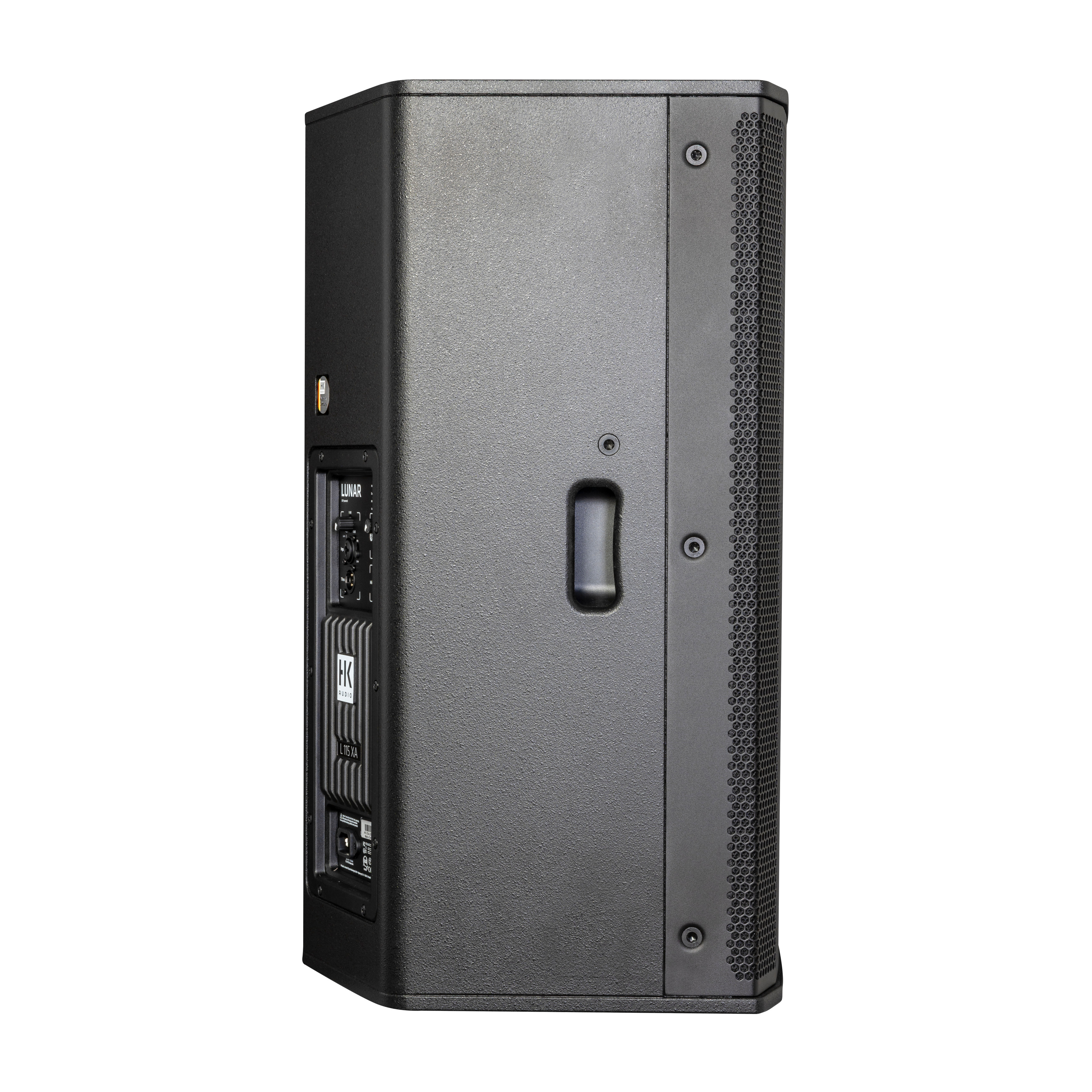

  • Carrying handles: 2 x SingleGrip
  • Cabinet material: MDF
  • Cabinet surface: acrylic enamel
  • Color: Jet black (RAL 9005)

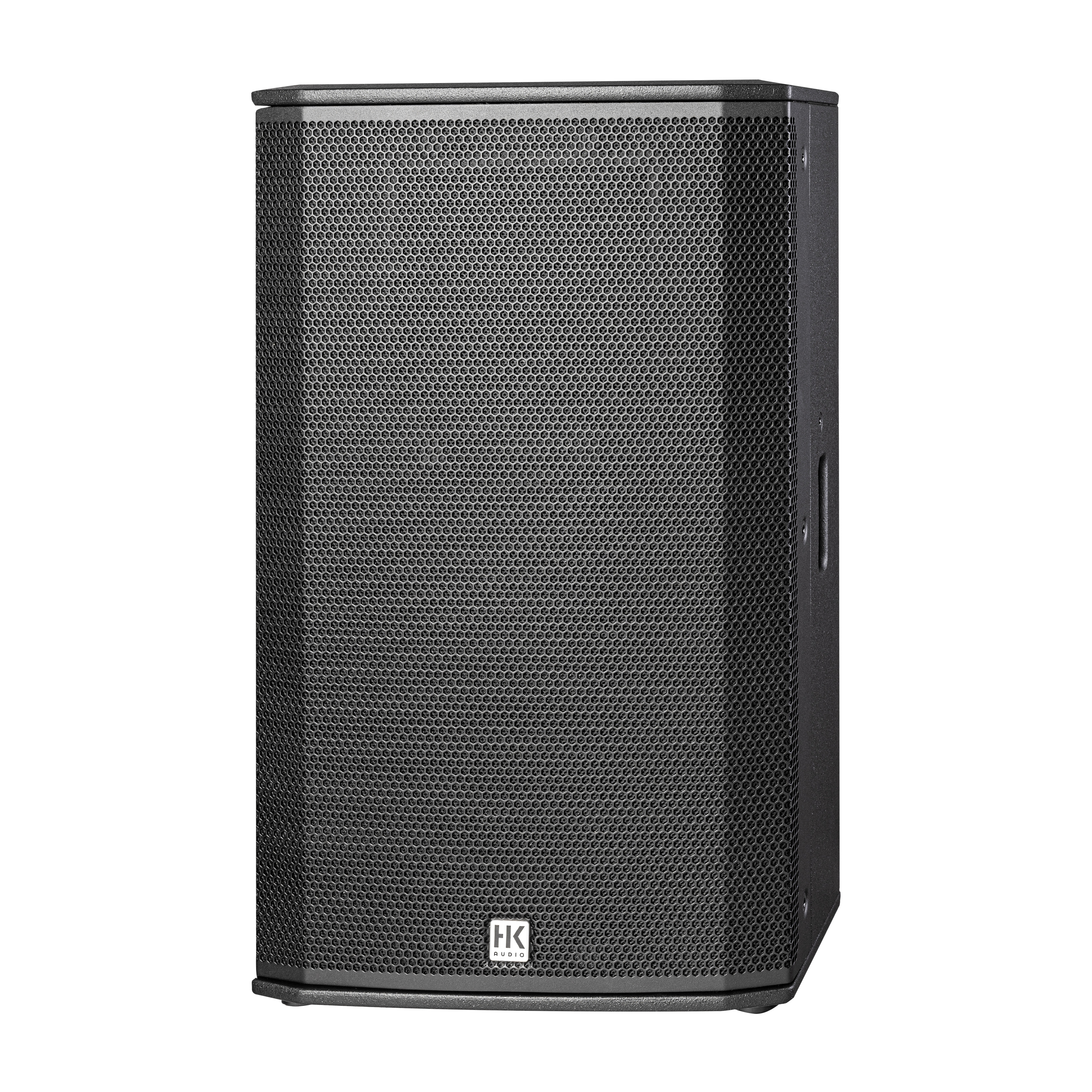

  • Front grille: Steel front grille, backed with acoustic foam
• Dimensions (WxHxD): 16.93 x 28.07 x 15.55 inch (43 x 71.3 x 39.5 cm)
• Weight: 55.78 lbs (25.3 kg)
