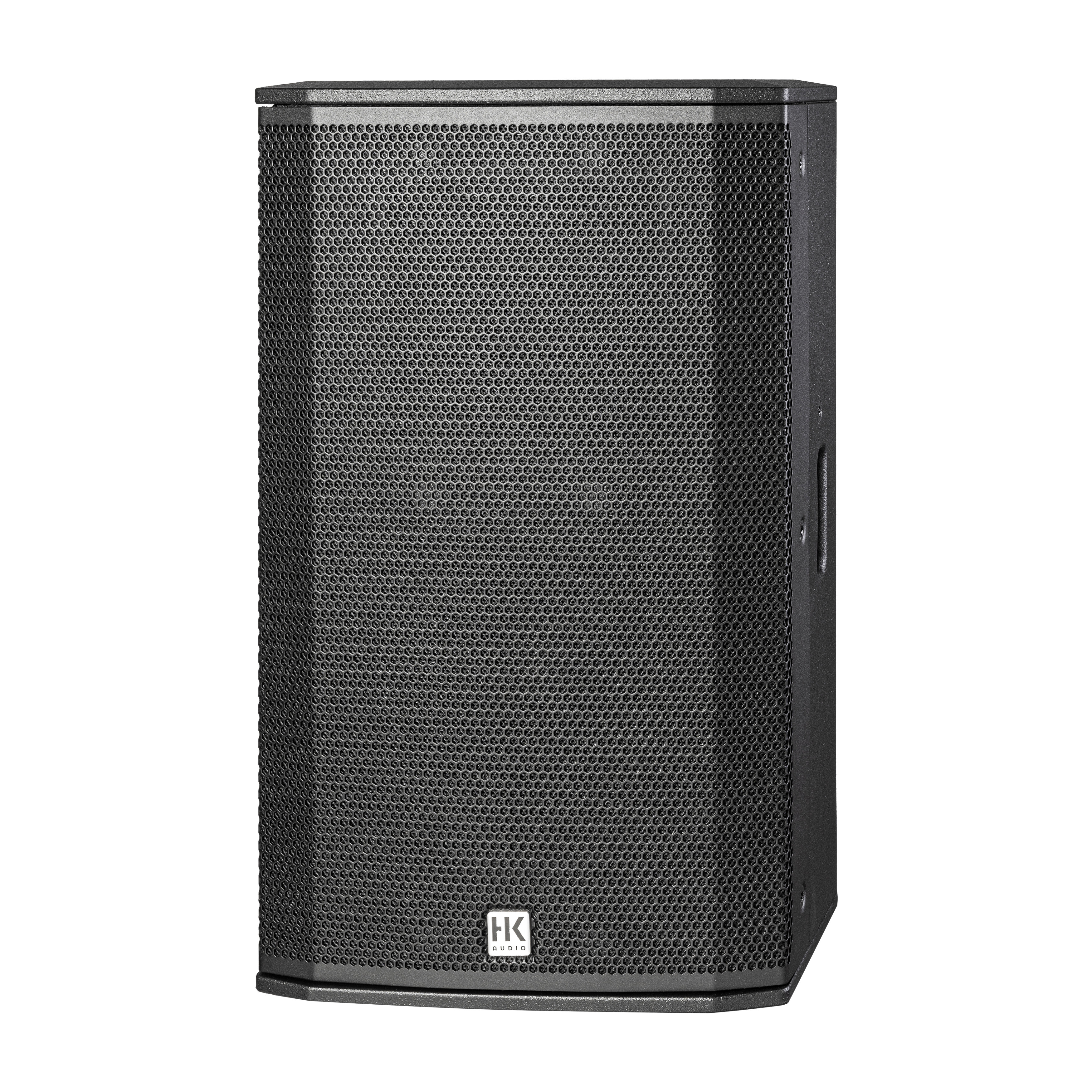

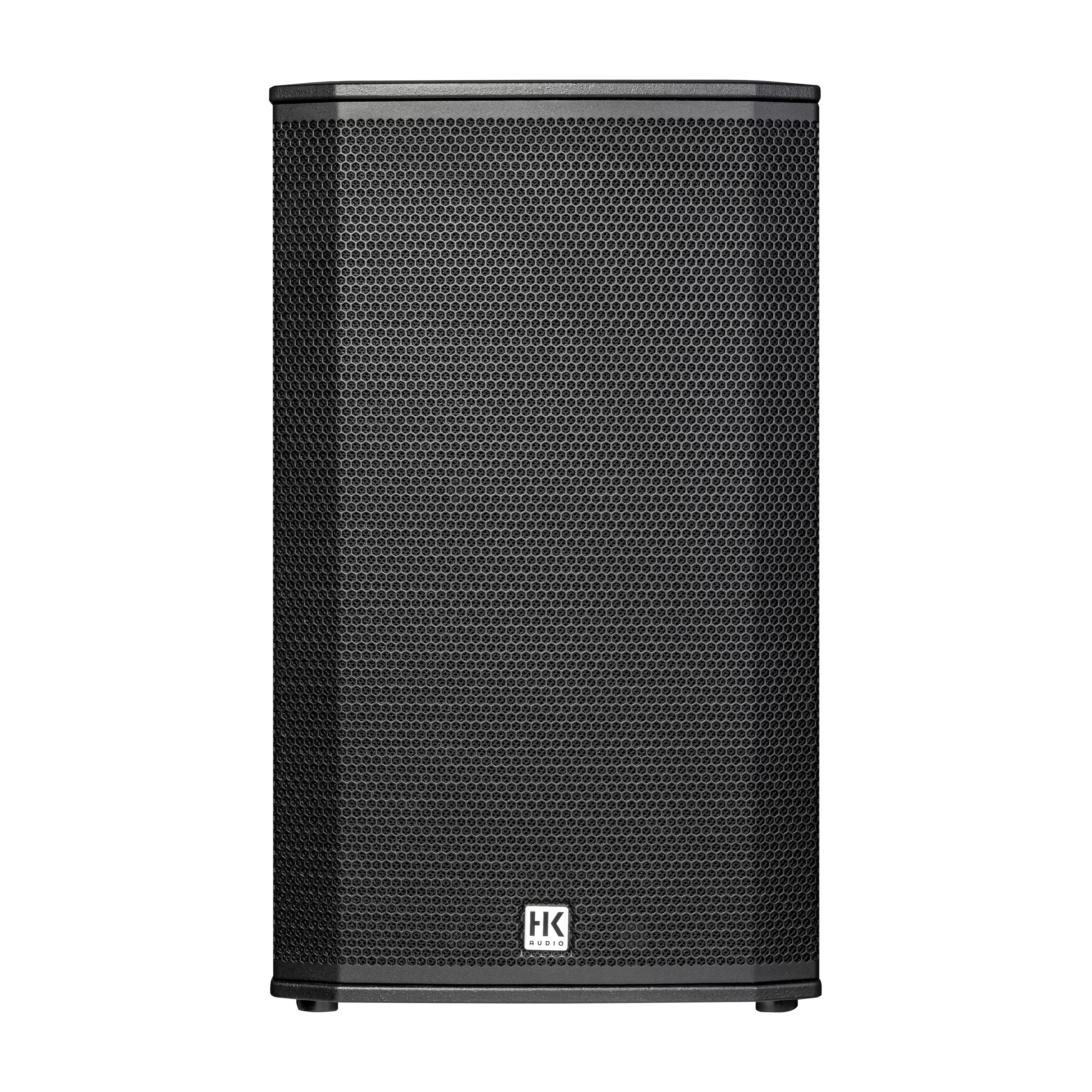

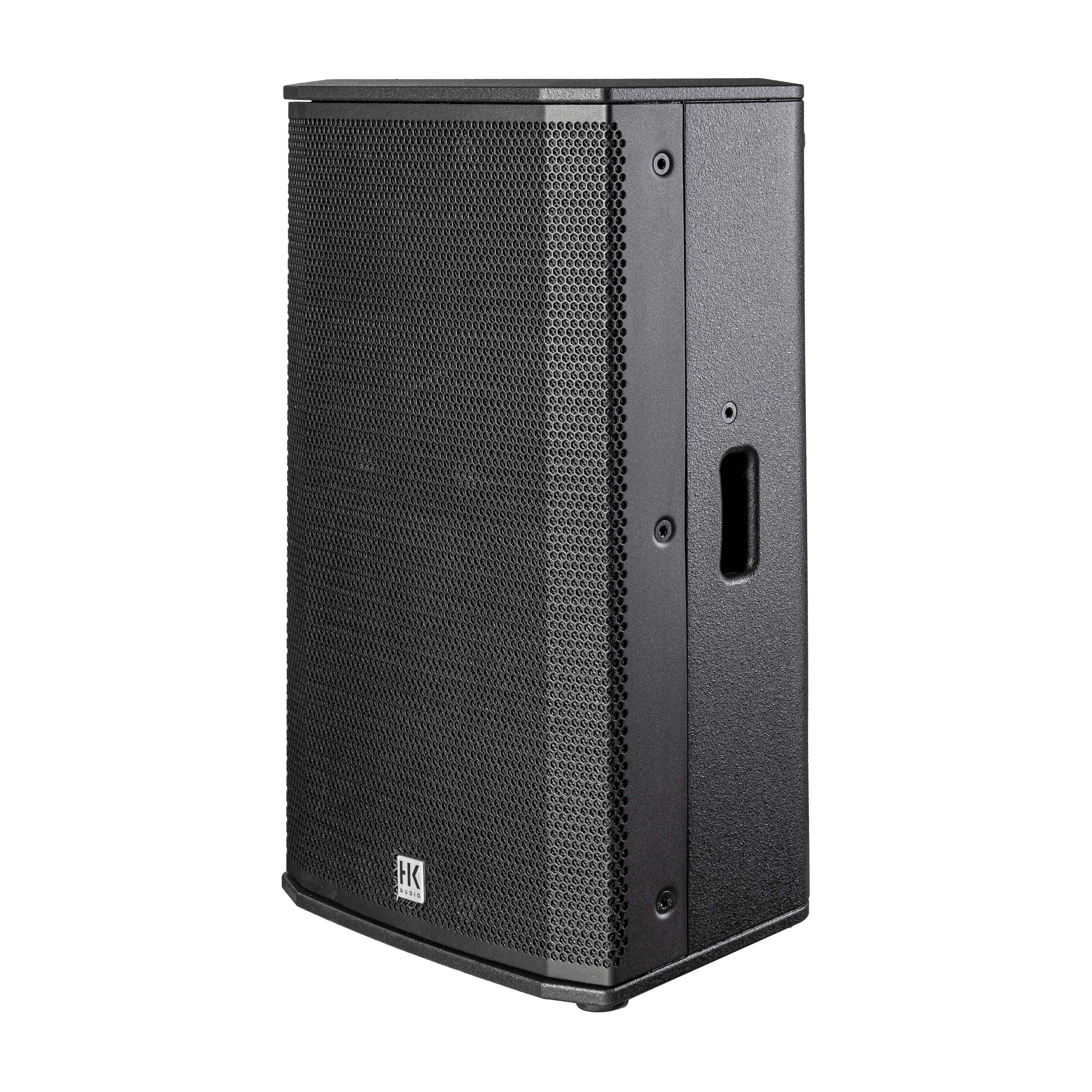

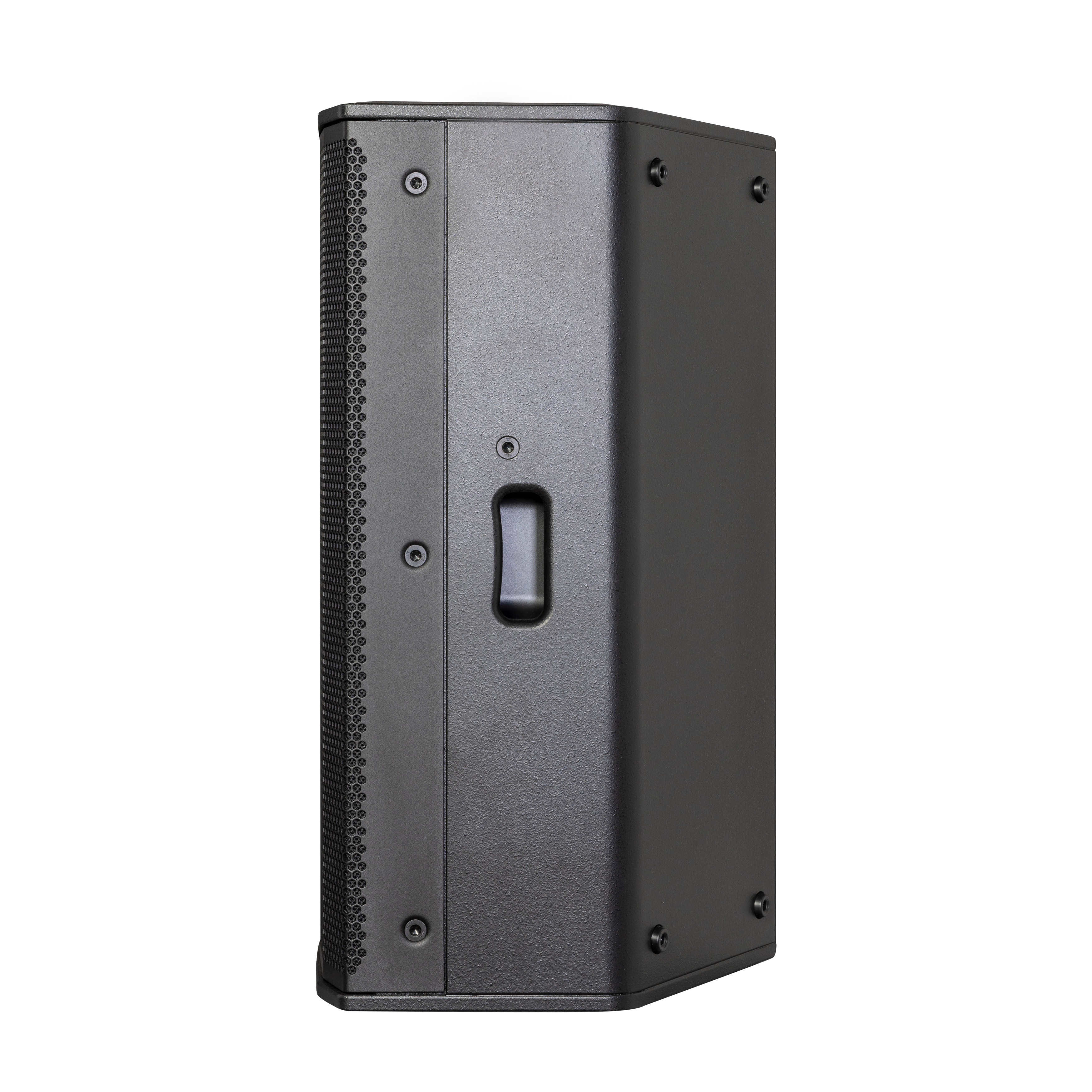

HK Audio LUNAR 112 XA 12in Active Loudspeaker

About: HK Audio LUNAR 112 XA 12in Active Loudspeaker

The LUNAR series delivers powerful sound and maximum user-friendliness for professional applications. Thanks to instantly accessible presets, the perfect sound is ready straight away – ideal for live performances with little time for setup.

LUNAR 112 XA is the tried-and-tested all-rounder for system and standalone applications. As a classic 12” speaker with modern features, LUNAR 112 XA offers a balanced sound character with noticeable punch and high impact – ideal for DJs, bands and medium-sized events.

• Integrated presets: Music, Monitor, Voice, Subwoofer
• Intuitive operation without complex menu navigation
• Combined mic/line input
• Bluetooth audio streaming with True Wireless Stereo
• 32-bit DSP with FIR filter and phase correction
• Clear, dynamic and balanced sound reproduction
• Flexible applications: full-range, monitor, or as a top with a subwoofer
• Robust wooden cabinet in a professional design
• Made in Germany
• 5-year manufacturer’s warranty (upon registration)

Specifications

• Technical
  • Concept: Active 2-way loudspeaker
  • Cabinet principle: Bass reflex
  • Max. SPL peak: 130 dB
  • Crossover frequency: 1.9 kHz FIR X-Over with 60 dB/oct.
  • Frequency range -6 dB: 62 Hz - 21 kHz
  • Frequency range -10 dB: 56 Hz - 22 kHz
  • Dispersion angle -6 dB (horizontal x vertical): 90° x 55°
  • Index: 1 x unit @ 1 m, 10 % THD, half space
• Components
  • Mid/high frequency: 1 x 12" cone speaker with 2.5" voice coil
  • High frequency: 1 x 1" compression driver with 1.4" voice coil
  • Crossover: 1.9 kHz FIR X-Over with 60 dB/oct.
  • Horn: Constant directivity horn

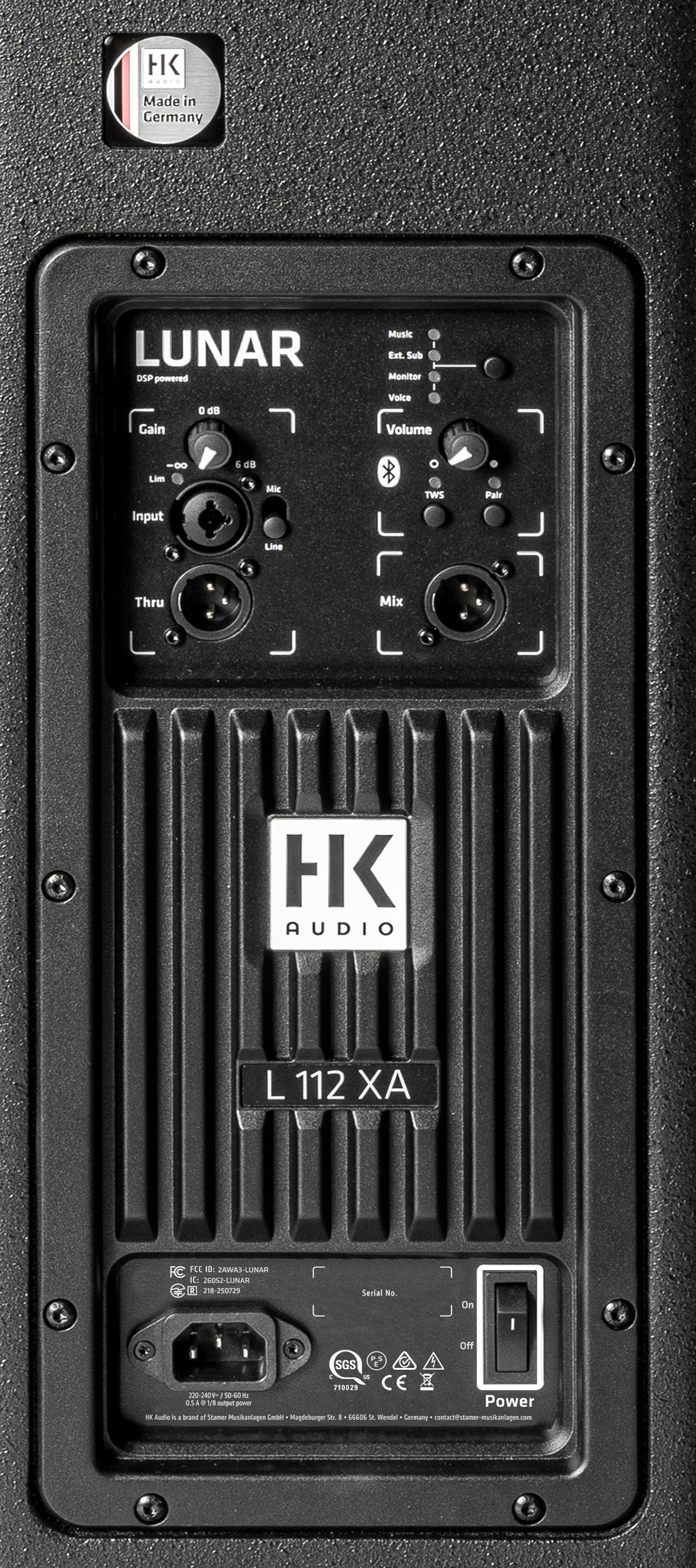

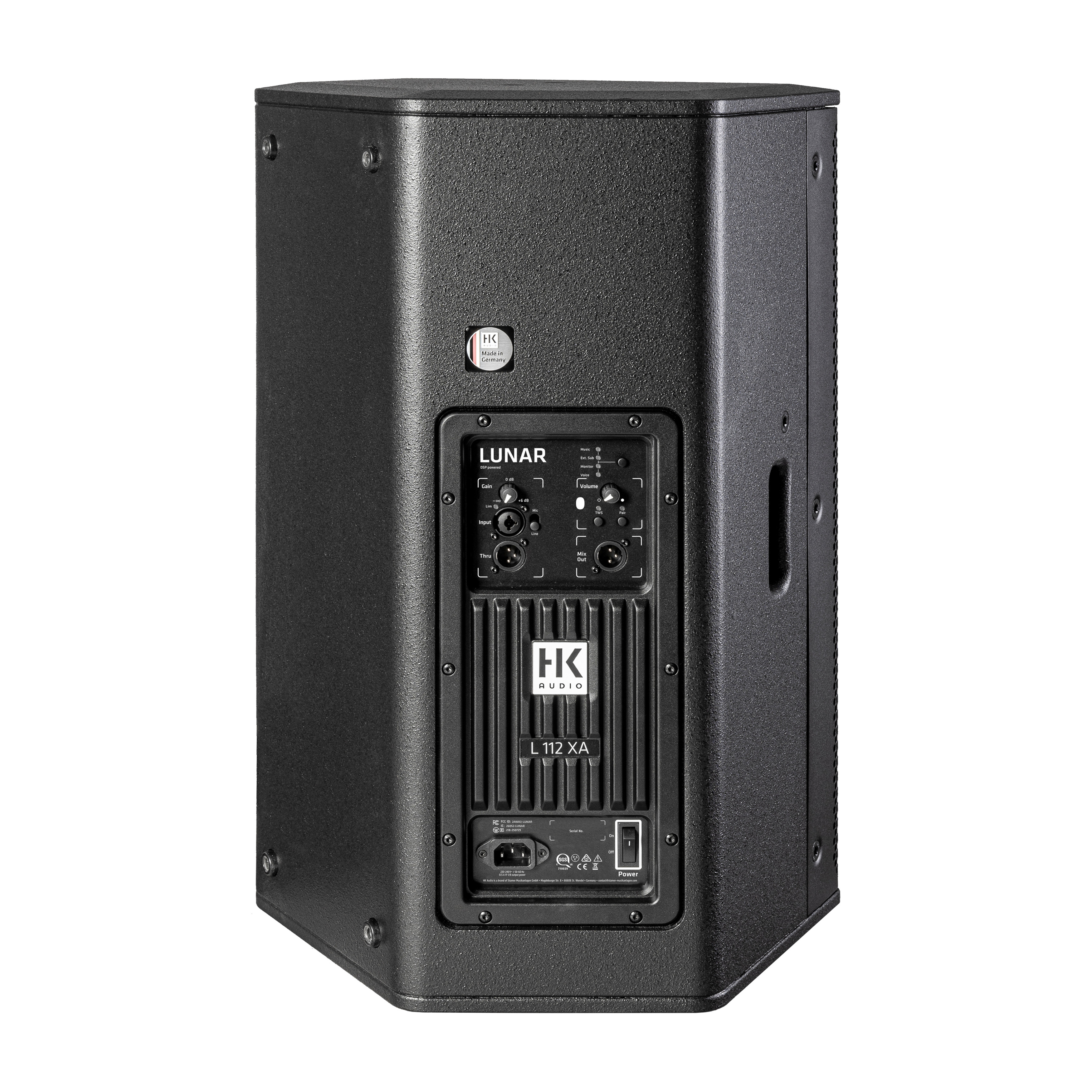

  Connections
  • Power supply: 1 x IEC connector
  • Analog input: 1 x XLR/jack combo symm. (Mic/Line)
  • Analog output: 1 x XLR-Thru symm.
  • Mix output: 1 x Mix Out XLR symm.
• Electronic data
  • Preamplifier: DSP preamp
  • Power amplifier: Class D - Biamped
  • Power amplifier output RMS: 600 W
  • Power amplifier output peak: 1200 W
  • Power consumption: 0.5 A / 220-240 V AC @ 1/8 output power 0.9 A / 100-120 V AC @ 1/8 output power
  • Maximum input level: 20 dBu
  • Speaker protection: Subsonic Filter, Peak and RMS Limiter, Multiband-Limiter
  • Sample rate: 48 kHz
  • Latency: 3ms
  • Filter presets: Music/Ext. Sub/Monitor/Voice
  • Bluetooth: Yes (5.4), TWS
• Mechanical data

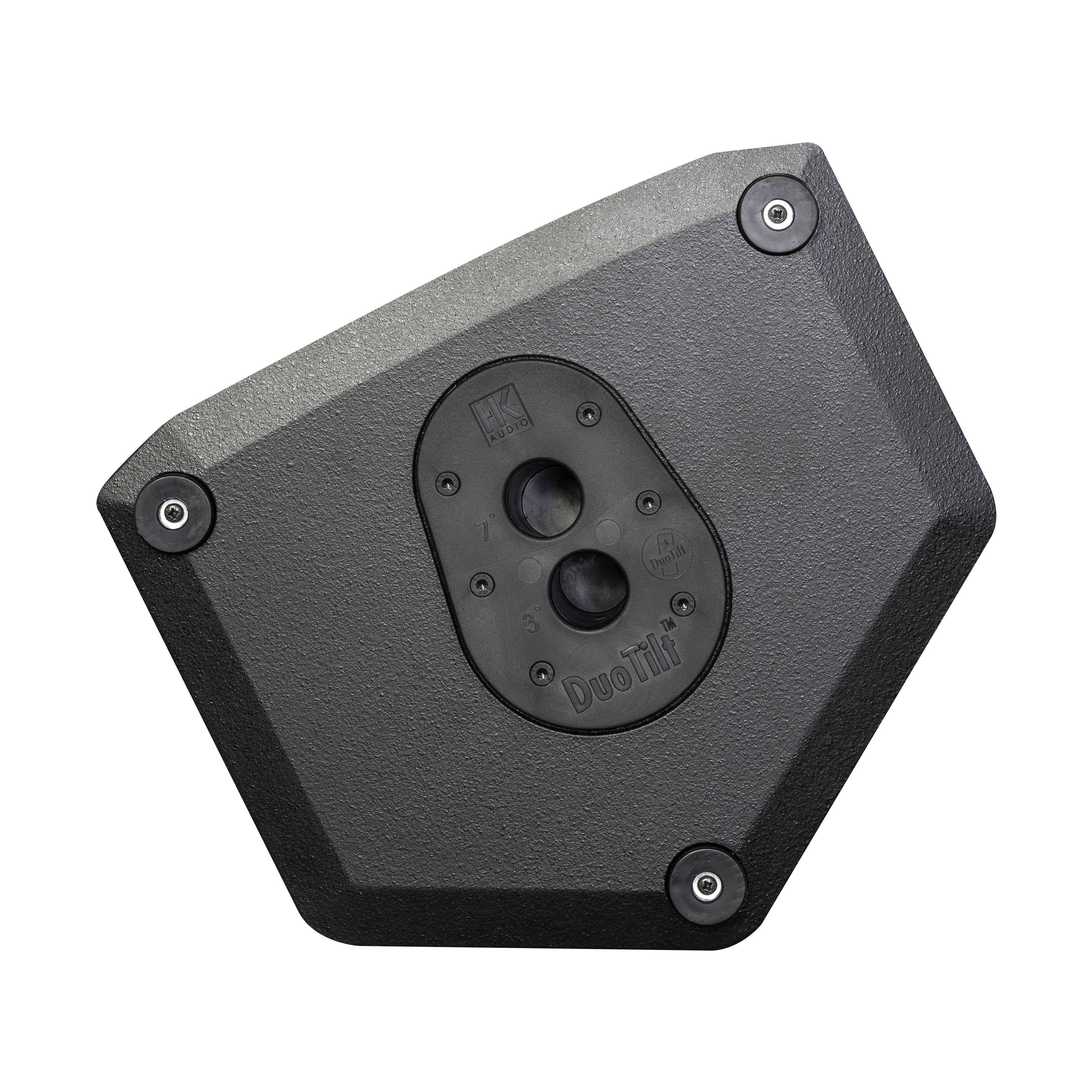

  • Cabinet features/rigging: DuoTilt 3/7, 4 x M8 mounting point for AP-8, monitor angle 33°

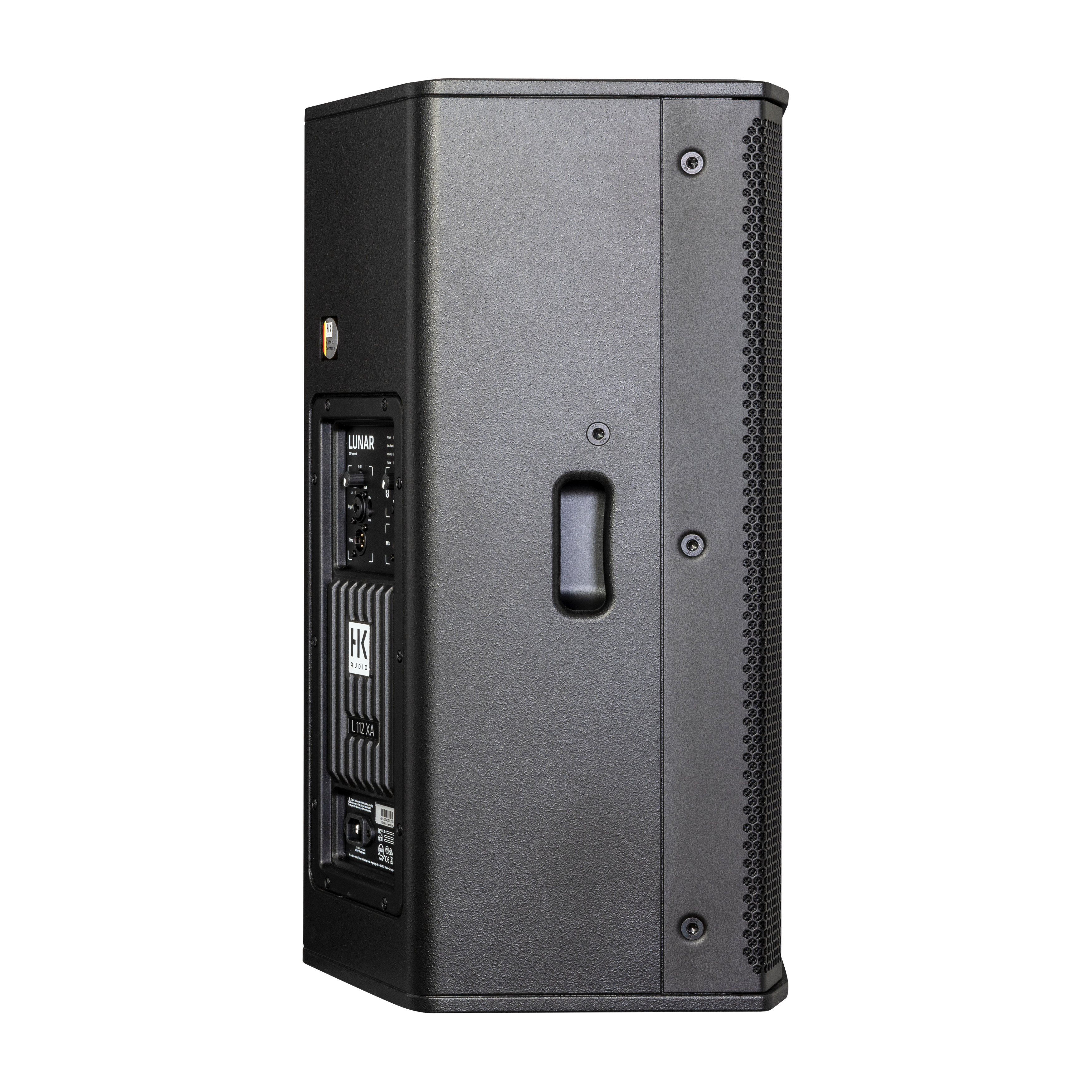

  • Carrying handles: 2 x SingleGrip
  • Cabinet material: MDF
  • Cabinet surface: acrylic enamel
  • Color: Jet black (RAL 9005)
  • Front grille: Steel front grille, backed with acoustic foam
• Dimensions (WxHxD): 15.35 x 25.75 x 13.98 inch (39 x 65.4 x 35.5 cm)
• Weight: 45.2 lbs (20.5 kg)
