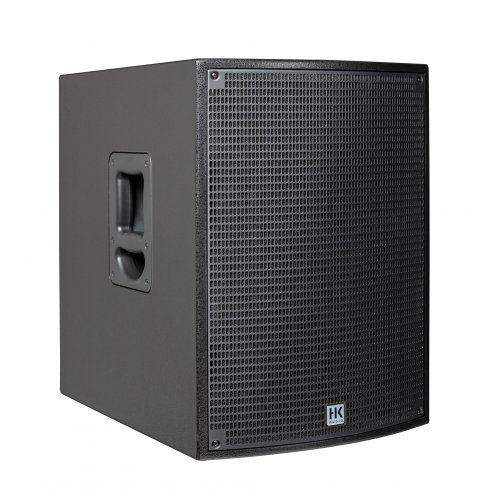

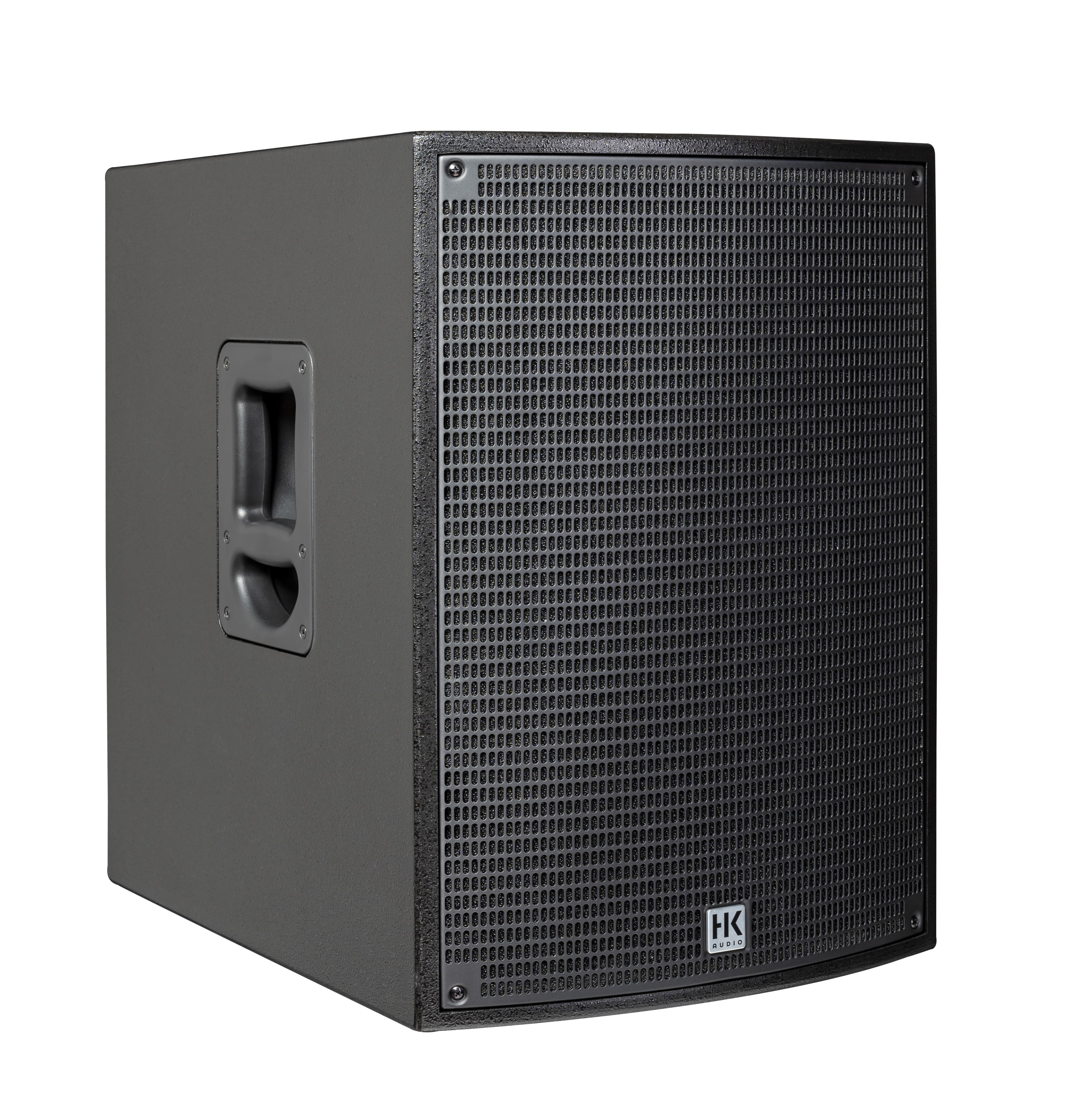

HK Audio SONAR 115 Sub D 15in Powered Subwoofer
Model: SONAR-115-SUB-D
About: HK Audio SONAR 115 Sub D 15in Powered Subwoofer
SONAR 115 Sub D is a handy and crisp active 15” subwoofer for extending the bass response of SONAR mid/high units, POLAR 10/12 systems and many other speaker types.
Specifications
- Concept: Active subwoofer
- Cabinet principle: Bass reflex
- Max. SPL peak: 125 dB
- Max. SPL calculated: 128 dB
- Crossover frequency: 60 - 150 Hz, variable
- Frequency range -6 dB: 40 Hz - X-Over
- Frequency range -10 dB: 36 Hz - X-Over
- Low frequency: 1 x 15" cone speaker

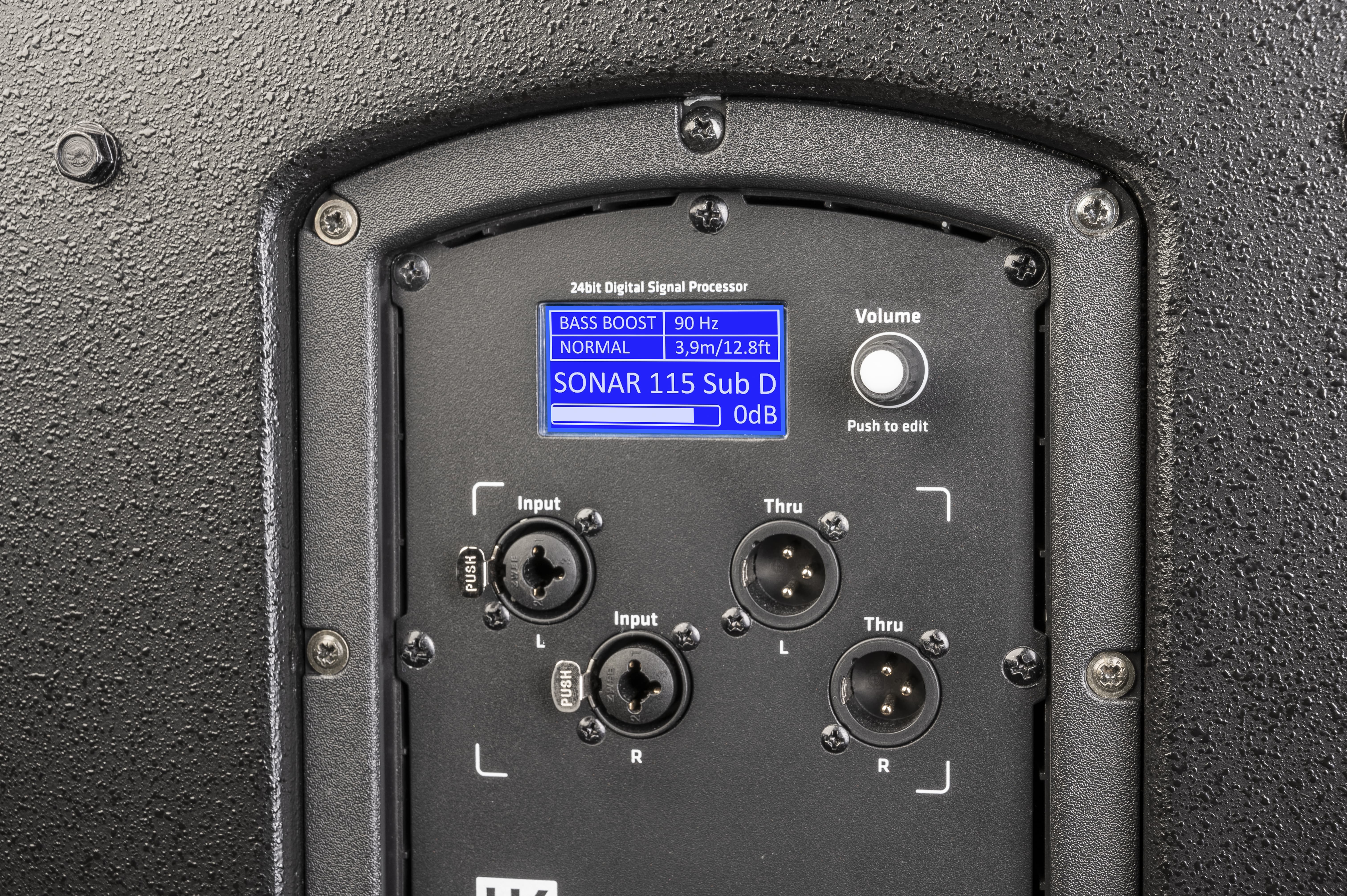

Connections
- Analog input: 2 x XLR/jack combo symm.
- Analog output: 2 x Thru XLR symm.
Electronical data
- Power amplifier: Class D
- Power amplifier output peak: 1500 W
- Power consumption: 0.8 A / 220-240 V AC 1.6 A / 100-120 V AC
- Speaker protection: Thermo-Protection, Overload-Protection, Subsonic Filter, Peak and RMS Limiter
- Display: 2.2" LCD
- DSP functions: Bass Boost, Polarity, X-Over, Delay, Front LED, Display Dim, Reset
- Filter presets: Cardioid Front, Cardioid Rear, SONAR
Mechanical data

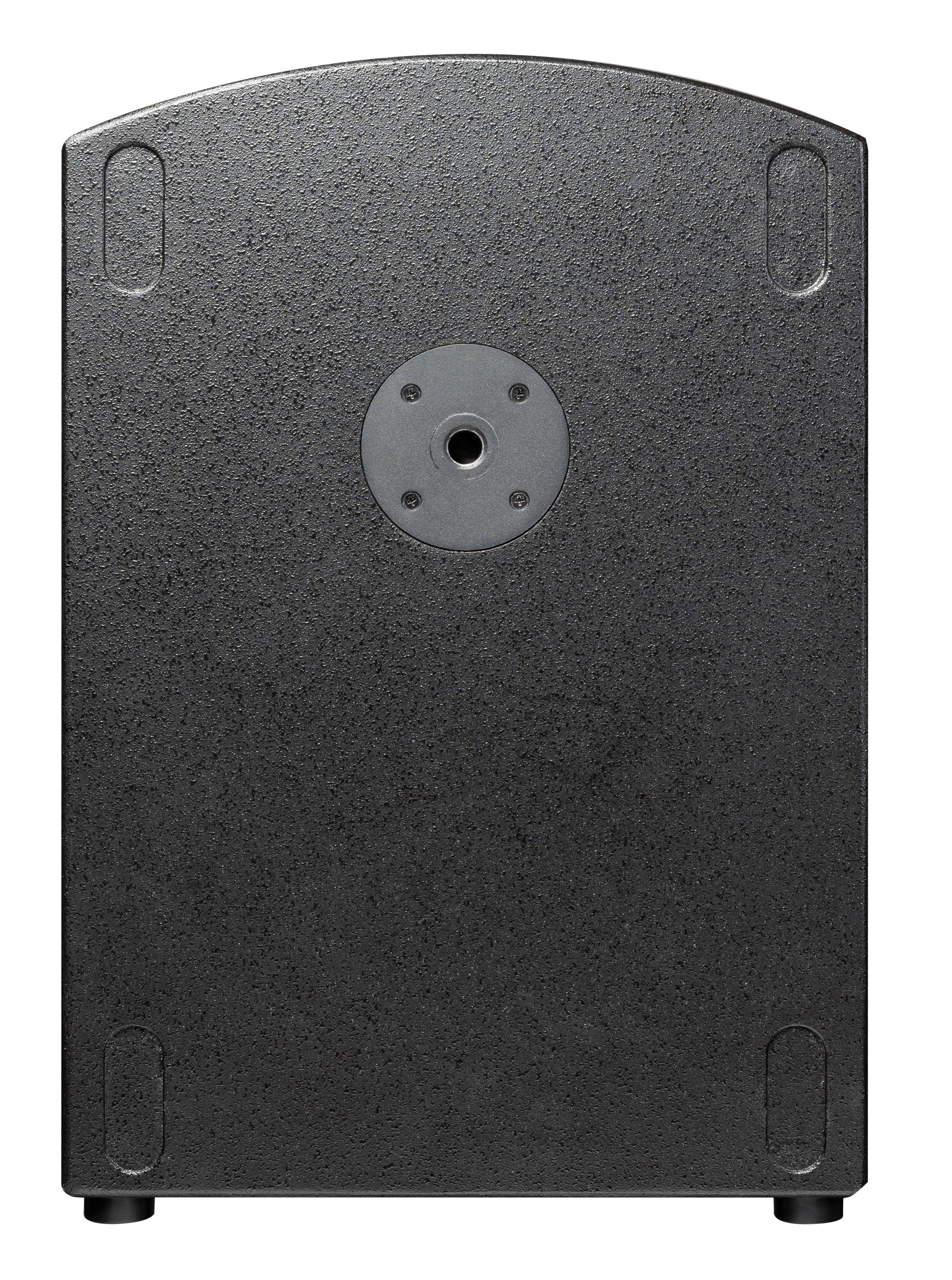

- Cabinet features/rigging: 1 x M20 pole mount, preparation for wheel assembly
- Carrying handles: 2 x MultiGrip
- Cabinet material: Holz
- Cabinet surface: acrylic enamel
- Color: Jet black (RAL 9005)
- Front grille: Steel front grille with anticorrosive coating and backed acoustic foam
- Dimensions (W x H x D), metric: 43 x 61.2 x 61.6 cm
- Dimensions (W x H x D), imperial: 16-15/16 x 24-3/32 x 24-1/4 inch
- Weight, metric: 28.4 kg
- Weight, imperial: 62.6 lbs
