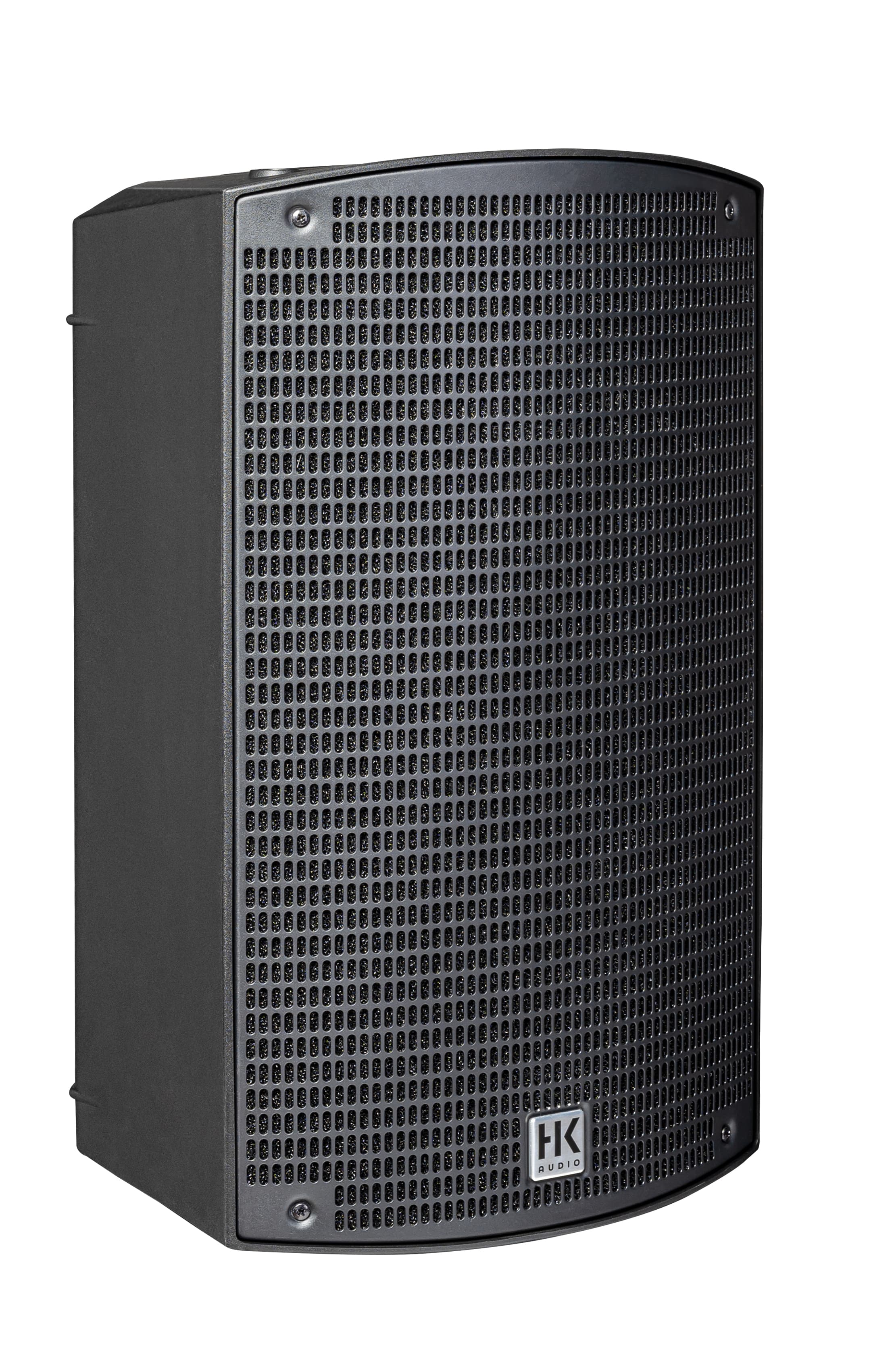

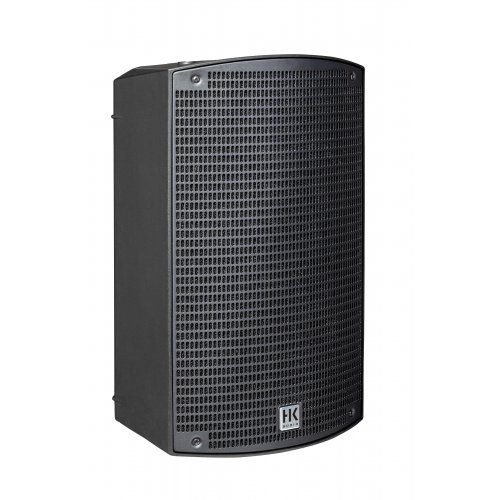

HK Audio SONAR 110 Xi 10in Powered Speaker

About: HK Audio SONAR 110 Xi 10in Powered Speaker

SONAR 110 Xi is a particularly compact active loudspeaker that shows its strengths as a full-range loudspeaker, as an unobtrusive stage monitor or as a satellite in combination with a subwoofer.

The versatile input section and app control allow for simple and versatile control and operation.

The SONAR 110 Xi is an extremely compact active speaker that comes into its own as a full-range speaker, as an inconspicuous stage monitor or as a satellite in combination with a subwoofer. Powerful components and meticulous HK Audio acoustic engineering guarantee a rich and powerful sound.

SONAR 110 Xi offers three input channels: two for microphone or line signals plus one AUX channel, which receives analogue signals as well as via Bluetooth 5.0. Music can be streamed in stereo to two SONAR Xi speakers via Bluetooth TWS (True Wireless Stereo). The volume and 3-band EQ for each channel can be adjusted intuitively using the rotary control and colour display. Thanks to the free SONAR REMOTE app (for iOS and Android), all functions can also be controlled remotely for added convenience.

Specifications:

• Cabinet principle: Bass reflex
• Max. SPL peak: 123 dB
• Max. SPL calculated: 126 dB
• Frequency range -6 dB: 64 Hz - 18 kHz
• Frequency range -10 dB: 59 Hz - 20 kHz
• Dispersion angle -6 dB (horizontal x vertical): 90° x 60°

Components

• Mid/high frequency: 1 x 10" cone speaker
• High frequency: 1 x 1" compression driver
• Horn: Constant directivity horn

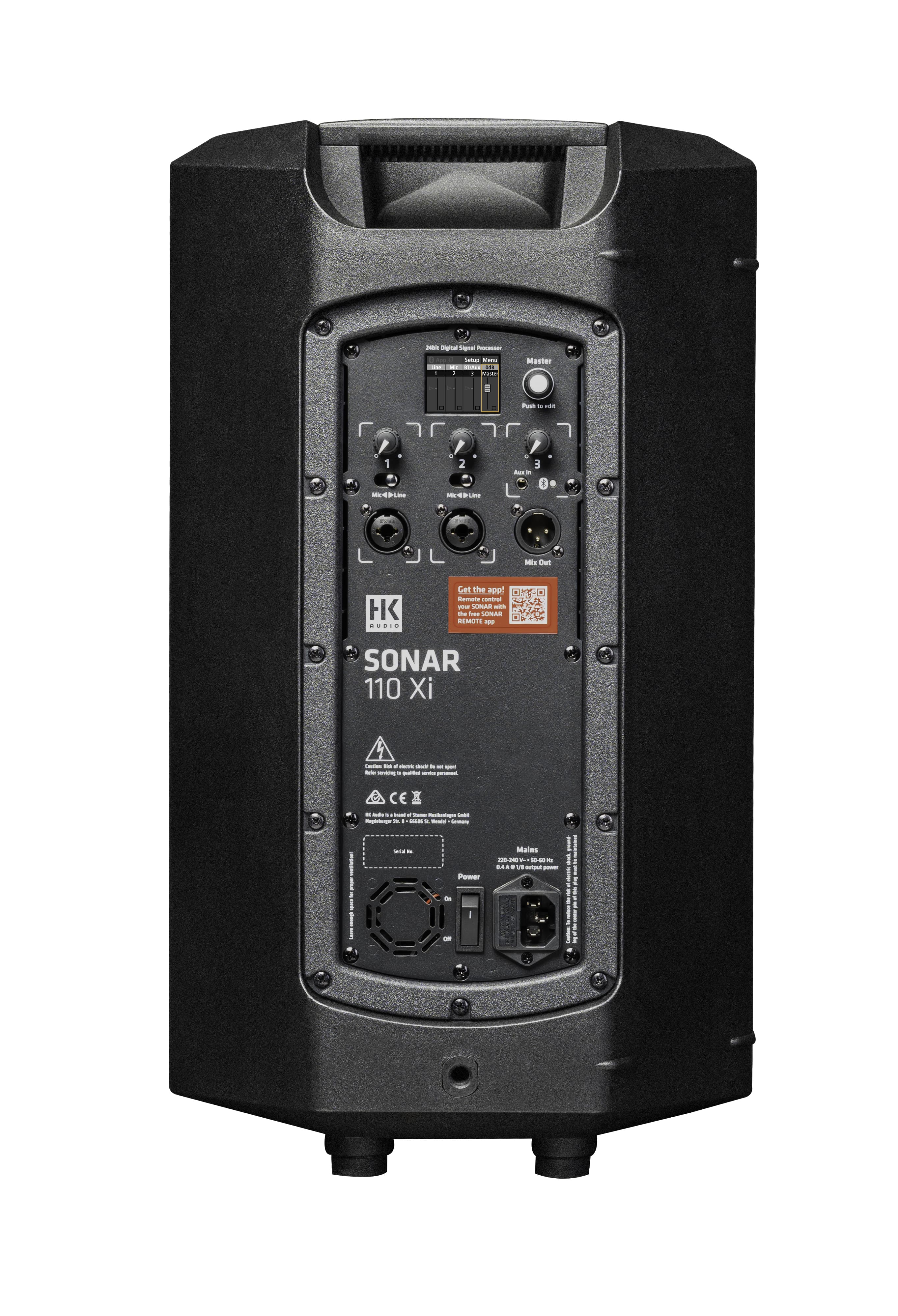

Connections

• Analog input: 2 x XLR/jack combo symm. (Mic/Line), 1 x 3.5 mm (1/8") stereo mini jack
• Mix output: 1 x Mix Out XLR symm.

Electronical data

• Power amplifier: Class AB + D
• Power amplifier output peak: 800 W
• Power consumption: 0.4 A / 220-240 V AC 0.8 A / 100-120 V AC
• Speaker protection: Thermo-Protection, Overload-Protection, Subsonic Filter, Peak and RMS Limiter
• Display: 1.83" color display
• DSP functions: Master Volume, Level Metering, 3-Band-EQ, Low-Cut-Filter, Front LED, Screensaver, BT Auto Pairing, Delay, Output Pre/Post Master
• Remote app: HK Audio SONAR REMOTE (iOS, Android)
• Filter presets: Live/DJ/Monitor
• Bluetooth: Yes (5.0), TWS

Mechanical data

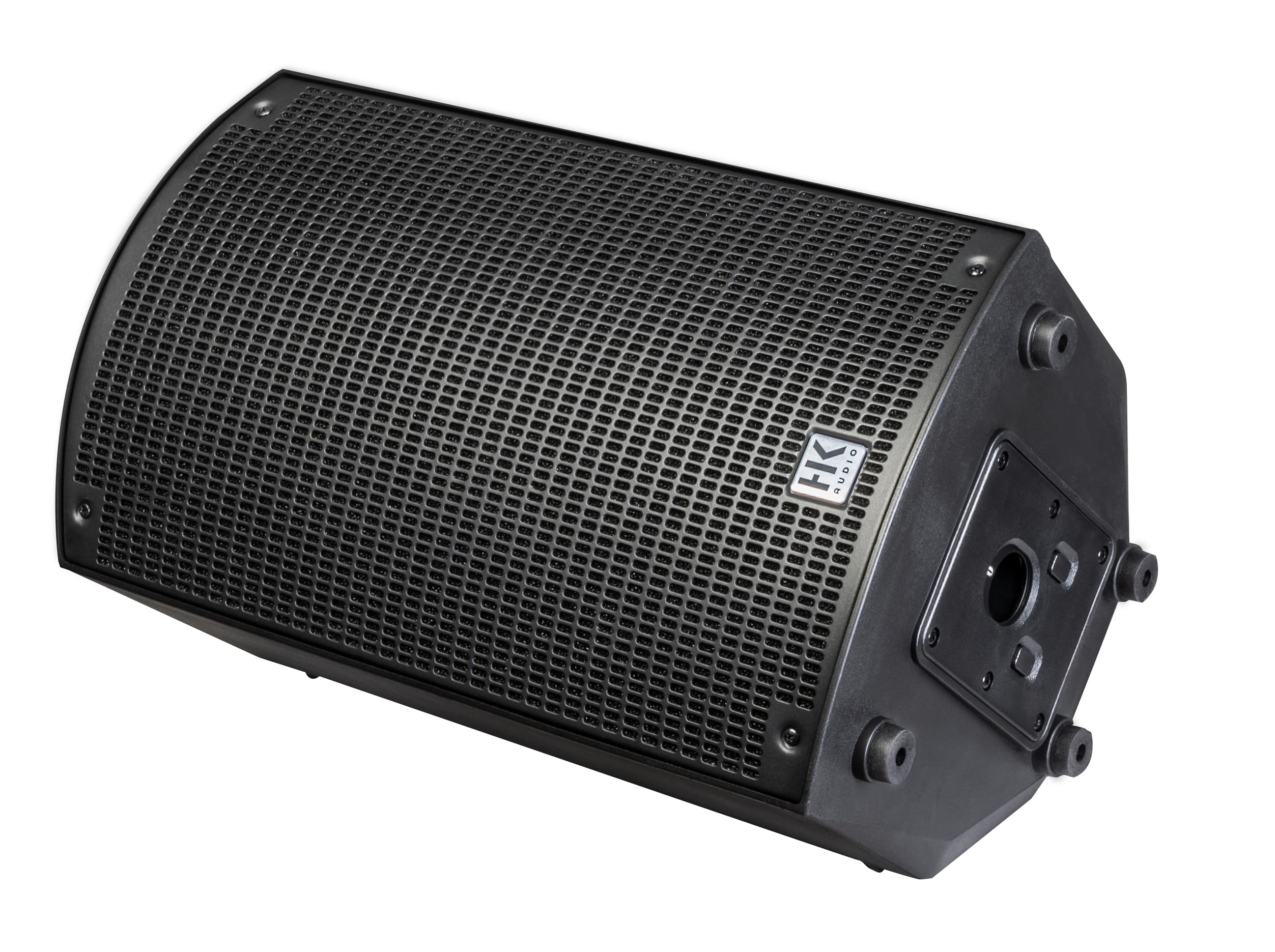

• Cabinet features/rigging: pole mount 35 mm, tiltable (0°/-7.5°), 3 x M10, monitor angle 35°

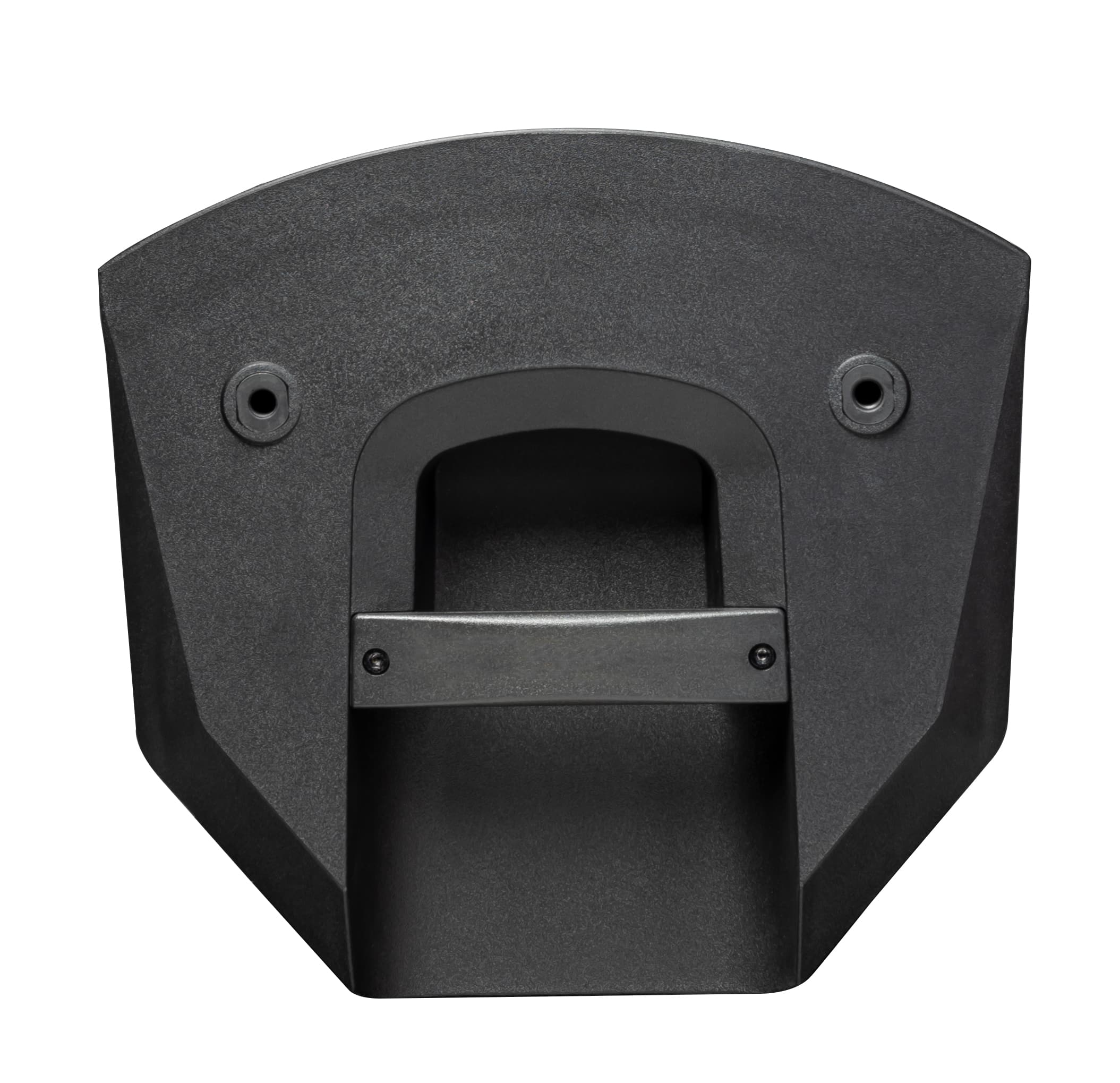

• Carrying handles: 1 x SingleGrip
• Cabinet material: plastic
• Color: Jet black (RAL 9005)
• Front grille: Steel front grille with anticorrosive coating and backed acoustic foam
• Dimensions (W x H x D), metric: 31 x 53.5 x 30 cm
• Dimensions (W x H x D), imperial: 12-7/32 x 21-1/16 x 11-13/16 inch
• Weight, metric: 11.5 kg
• Weight, imperial: 25.4 lbs
