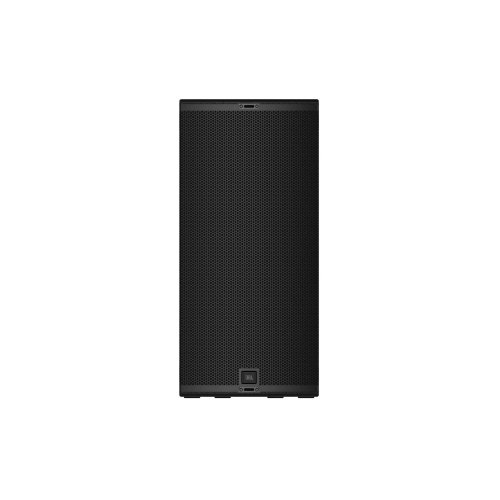

JBL SRX922 Dual 12in Powered Point-source Speaker

About: JBL SRX922 Dual 12in Powered Point-source Speaker

The SRX922 is a compact, acoustically three-way, dual 12-inch powered point-source loudspeaker engineered for applications requiring high output and precise directivity control from a point-source full-range enclosure. It is an ideal choice for high-output mains systems, side-fills, or as a high-performance point-source element within larger SRX900 deployments. The system delivers an exceptional output-to-weight ratio thanks to its innovative acoustic design, with dual LF woofers providing higher output than traditional 15-inch three-way designs in a significantly more compact enclosure. Multiple M10 QuickLink suspension points support fast, secure integration with a variety of dedicated accessories for touring and installed applications. Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimized performance anywhere in the world. A full-featured software suite provides comprehensive control and monitoring across Windows, macOS, and iPadOS platforms.

• Includes dual 12-inch LF woofers, a 6.5-inch horn-loaded MF driver, and a 1.5-inch annular-diaphragm compression driver
• Symmetrically-arranged dual LF section provides double the low-frequency headroom of traditional single-woofer designs
• Dipole configuration delivers enhanced vertical directivity control
• Horn-loaded MF section enables LF drivers to operate in their most efficient and controlled bandwidth
• Dual 90° × 60° Progressive Transition waveguides provide smooth, predictable coverage
• Four large, flared ports extend low-frequency response down to 50 Hz
• 80 Hz high-pass preset available for applications using SRX900 subwoofers
• Voicing and phase response carefully optimized to match SRX900 line-source products
• Integrated amplification delivers plug-and-play operation

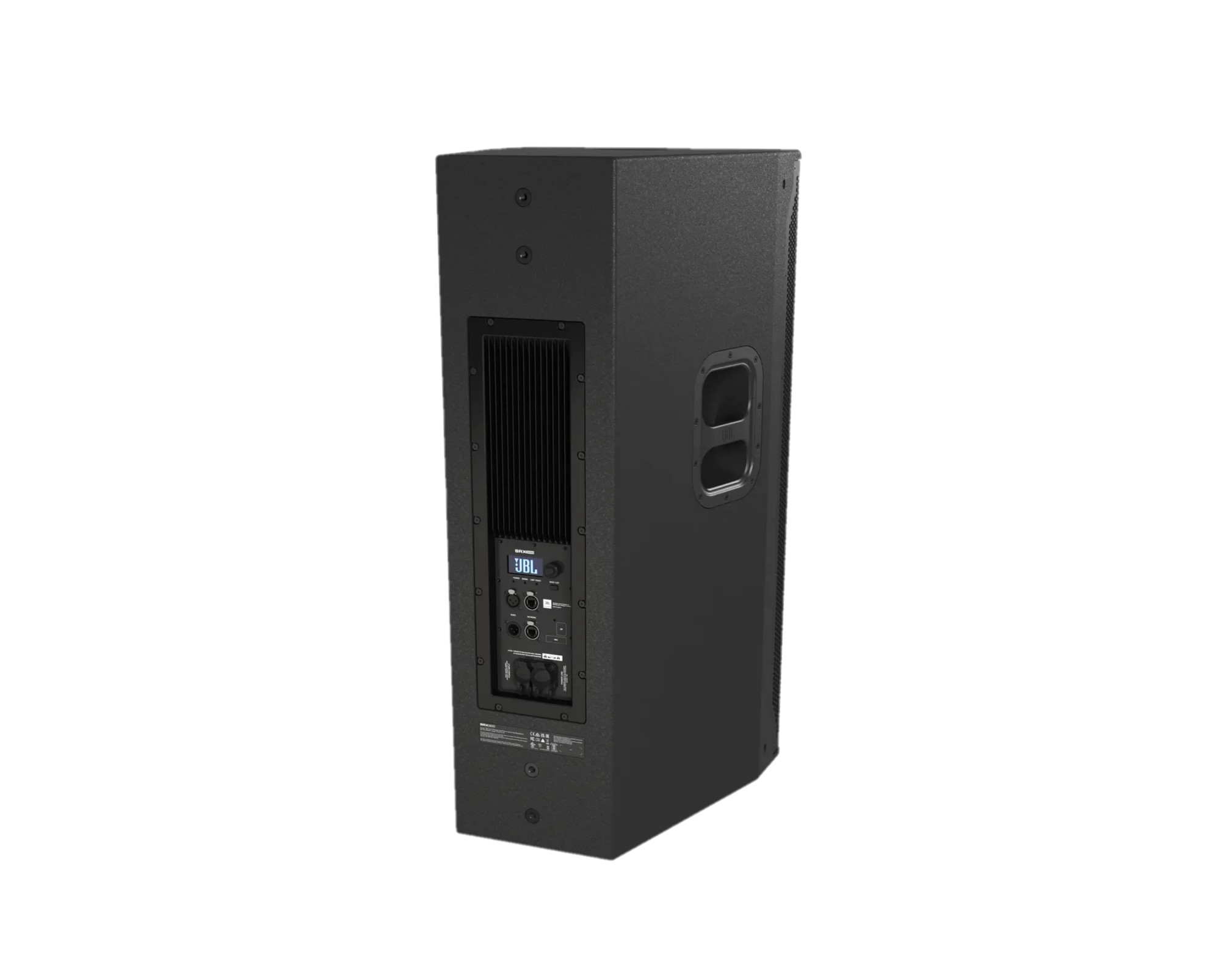

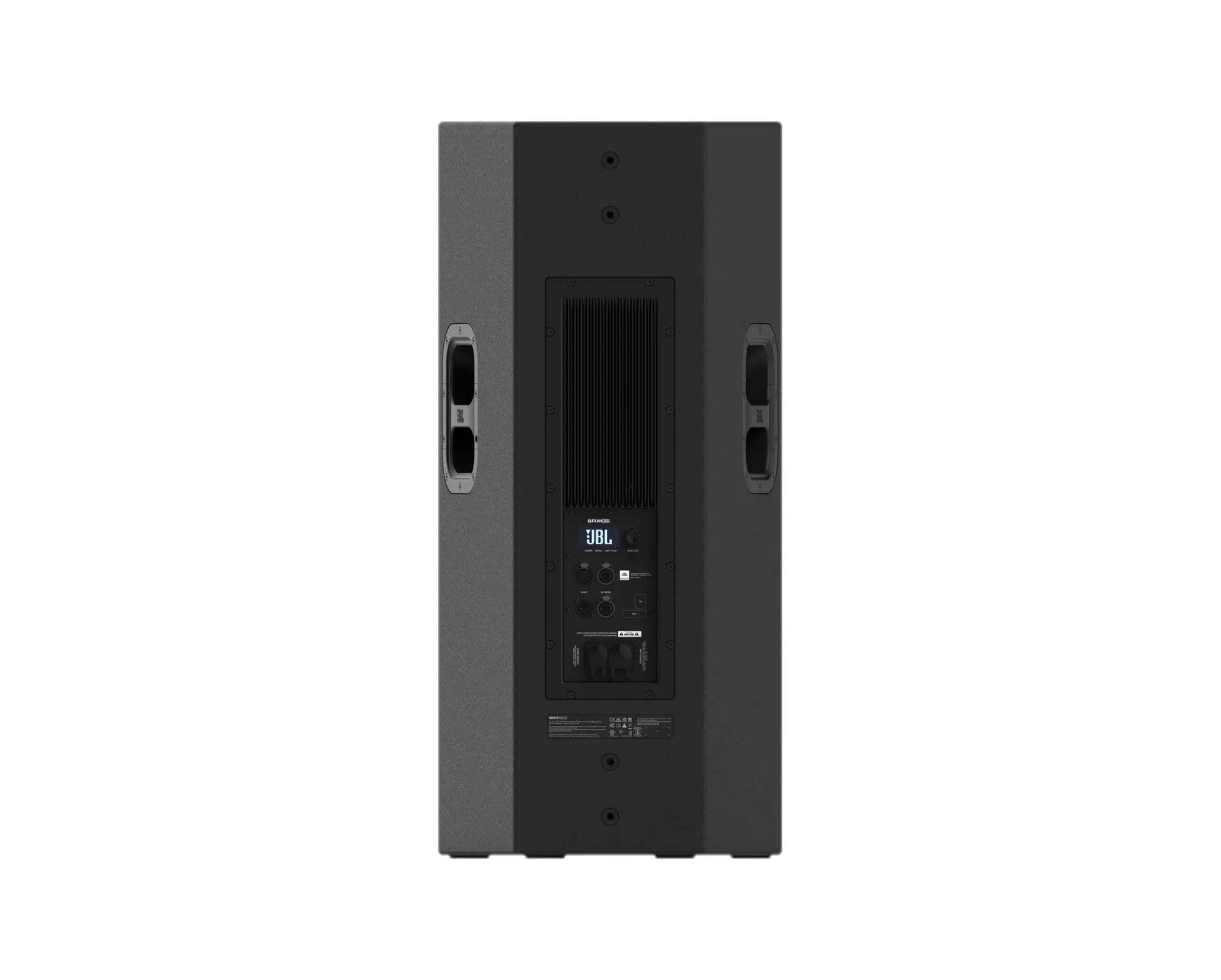

• Rear LCD enables fast configuration
• DSP includes 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools
• Eight M10 Quick-Link attachment points are provided for suspension using standard M10 eye bolts
• Constructed from outdoor-grade Baltic birch plywood for excellent durability

ACOUSTIC DESIGN

The SRX922 is an acoustically three-way, bi-amplified powered point-source loudspeaker featuring dual 12-inch LF woofers, a 6-inch horn-loaded MF driver, and a 1.5-inch annular-diaphragm compression driver. The symmetrically arranged dual woofers provide double the low-frequency headroom of traditional single-woofer designs, while the dipole configuration, delivers significantly improved vertical beam width control. The horn-loaded MF section enables the LF drivers to operate in their most efficient and controlled bandwidth, improving overall system output and clarity. Dual 90° × 60° Progressive Transition waveguides provide smooth, predictable coverage, making the SRX922 ideal for applications requiring large-area coverage from a single point-source enclosure. Four large, flared ports extend low-frequency response down to 40 Hz, with an 80 Hz high-pass preset available when pairing with SRX900 subwoofers. Voicing and phase response have been carefully optimized to match SRX900 line-source products for effortless acoustic integration across mixed systems.

POWERED SOLUTION

Integrated amplification delivers plug-and-play operation, while the rear LCD enables fast configuration. The DSP offers 24 user-adjustable filters, 2,000 ms delay, and essential loudspeaker management tools.

VERSATILE AND CONFIGURABLE

The SRX922 offers exceptional versatility when used with its comprehensive set of dedicated accessories. Eight M10 QuickLink attachment points support suspension using standard M10 eye bolts. The SRX922 AF Array Frame enables simple, predictable angle adjustment, while truss mounting is available using the RC500 rotating clamp. Professional transport solutions include a front-face dolly and cover for single-box movement and a vertical transporter for moving stacks of two enclosures. For outdoor applications, the SRX900 RC2 rain cover provides protection from moisture while maintaining access to essential controls and connections.

Specifications

• Frequency Range (-10dB) - 40 Hz-17.5 kHz
• Coverage Pattern - 90° x 60°
• Maximum SPL - 138 dB
• System Type - Point-source, acoustically three-way, bi-amplified, powered
• Amplifier Design - Class-D
• Continuous Power Rating - 1100 Watts | LF: 550 Watts | MHF: 550 Watts
• LF Driver - (2) JBL 2273G, 12 in diameter, dual 3.0 in diameter voice coil, ferrite Differential Drive
• MF Driver - (1) JBL 196H-1, 6.0 in diameter, 1.5 in diameter voice coil, ferrite
• HF Driver - (1) JBL 2408H-1, 1 in exit neodymium compression driver with 1.5 in voice coil
• Suspension - (8) JBL QuickLink M10 points
• Enclosure - Exterior grade birch plywood, DuraFlexTM finish, two integral handholds, two integral recessed handles
• Dimensions (HxWxD) - 37.2 x 17.3 x 19.9 inch (944 x 440 x 505 mm)
• Net Weight (each) - 100.3 lbs (45.5 kg)
