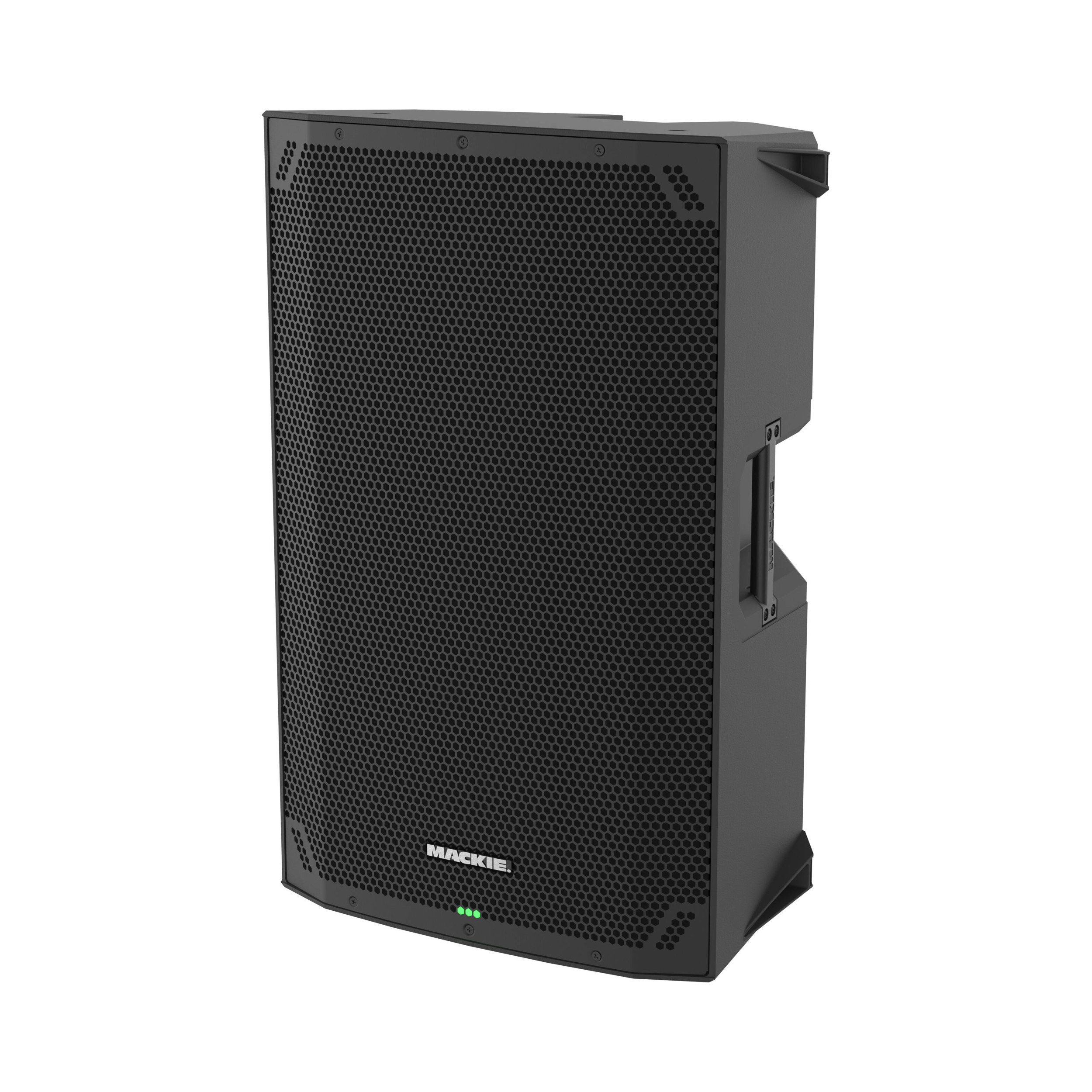

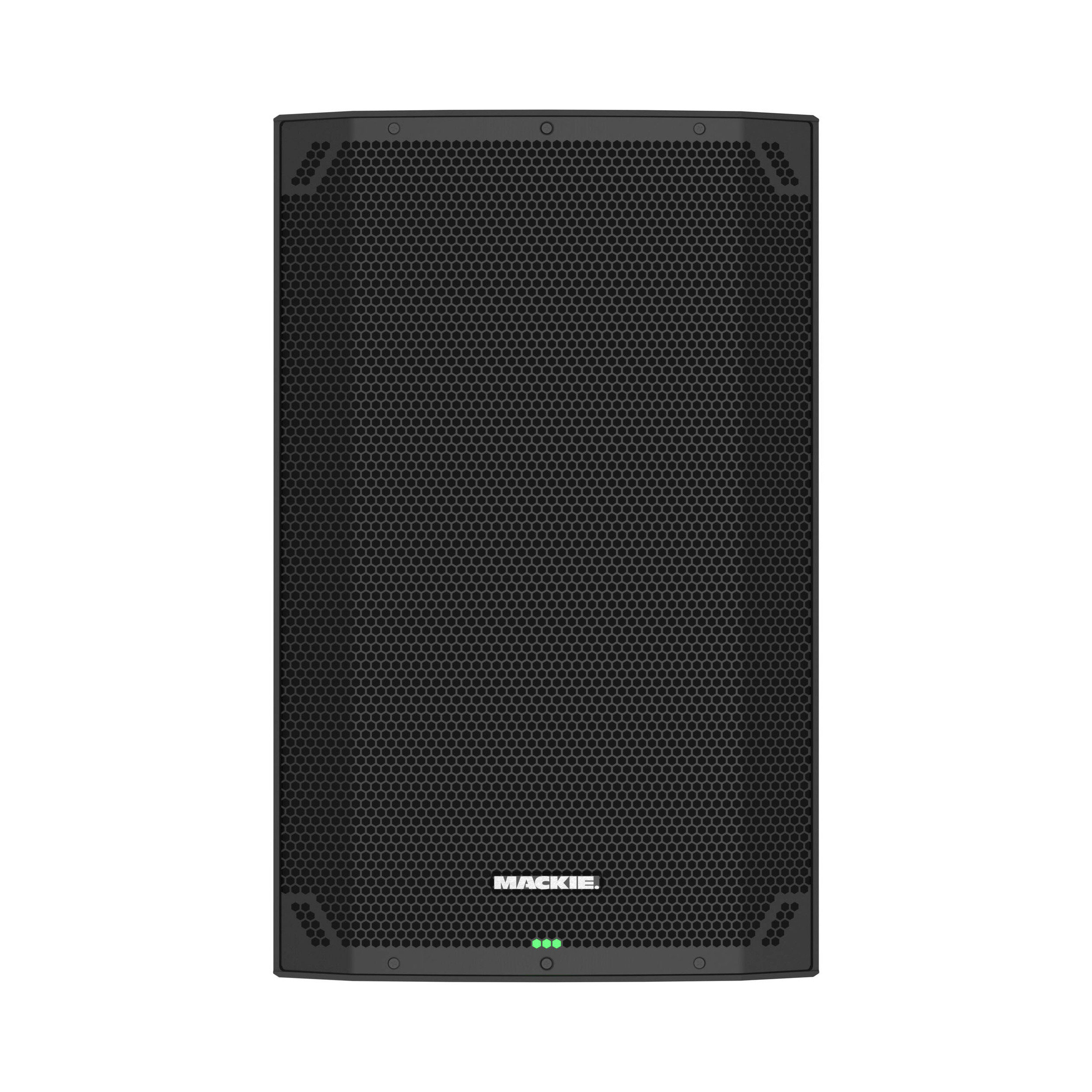

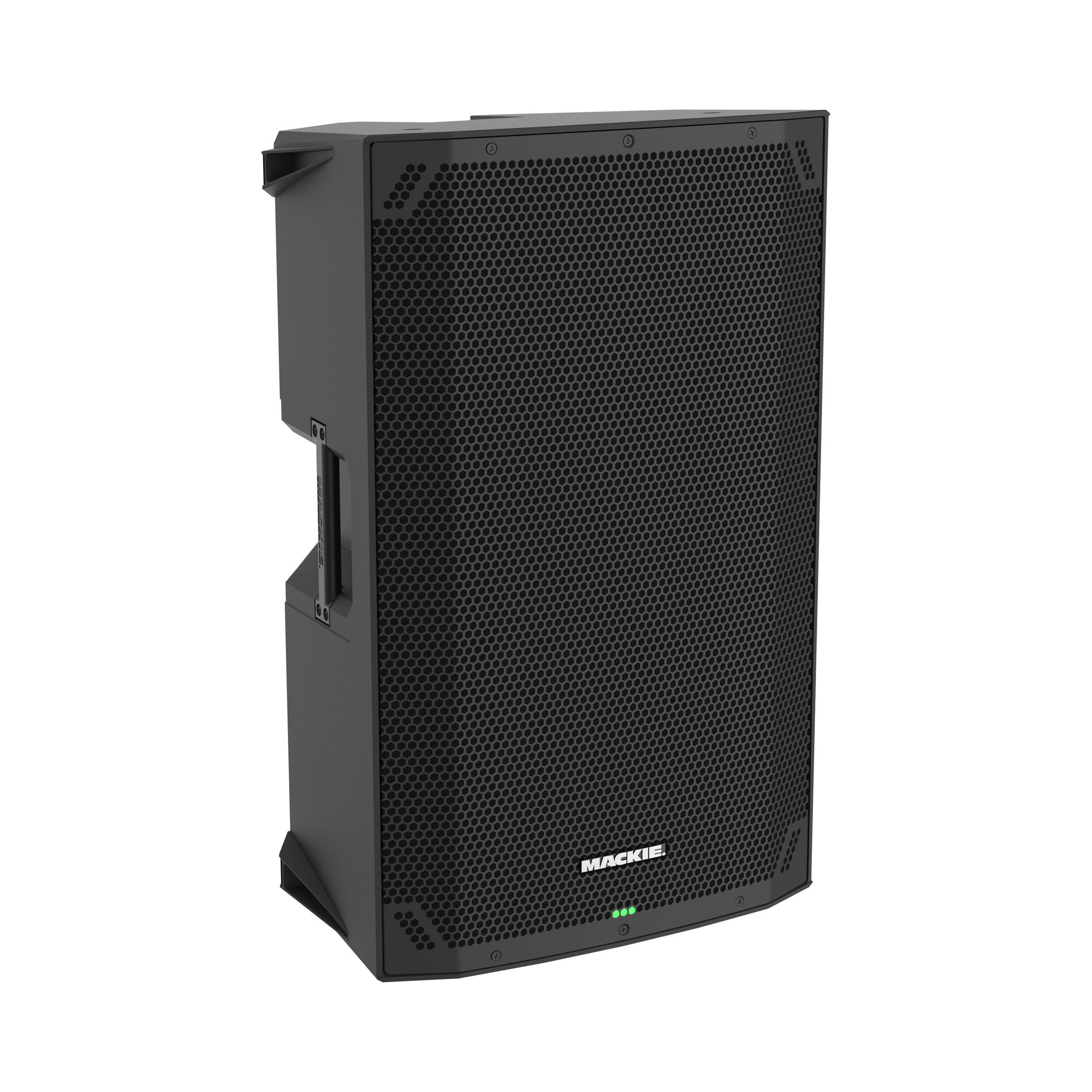

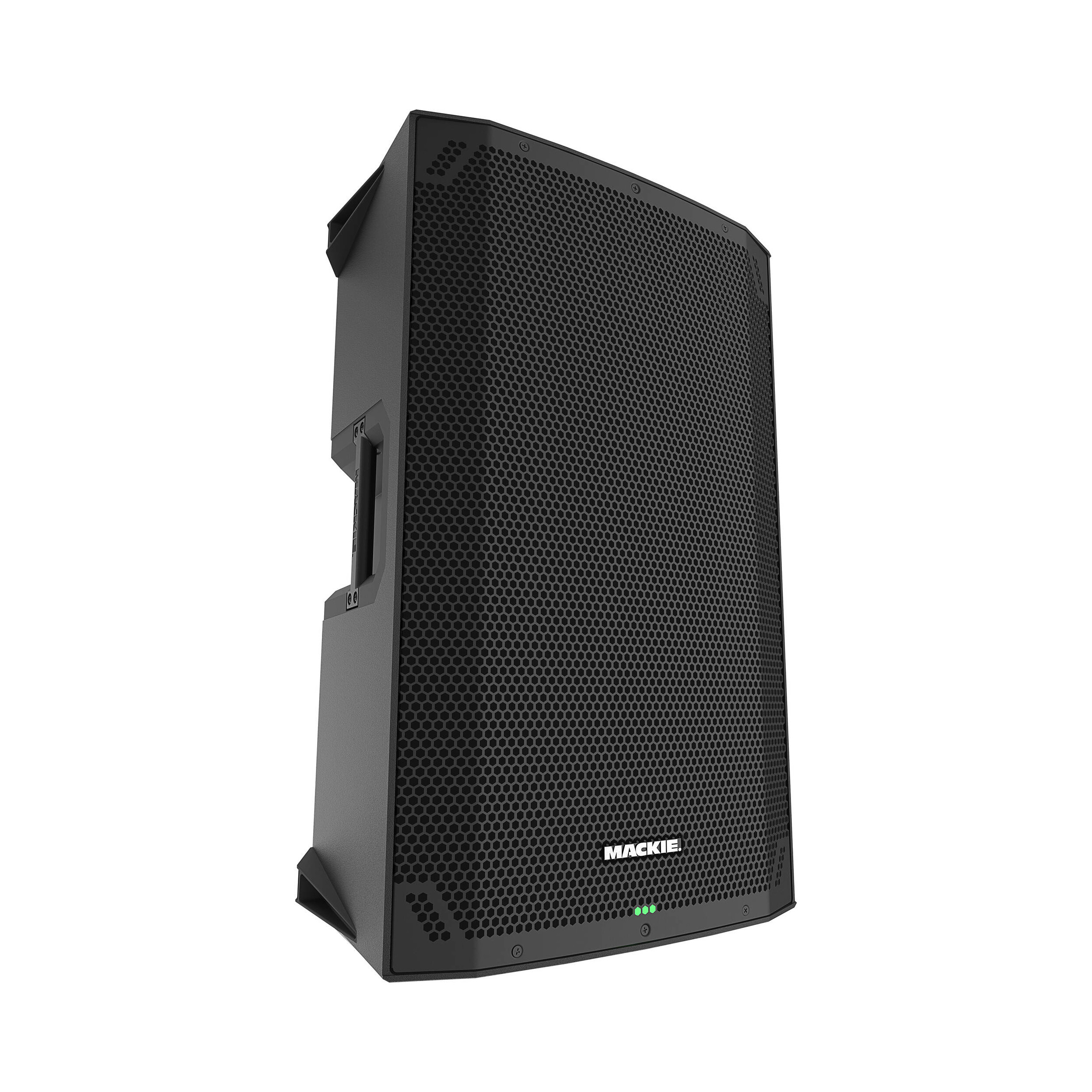

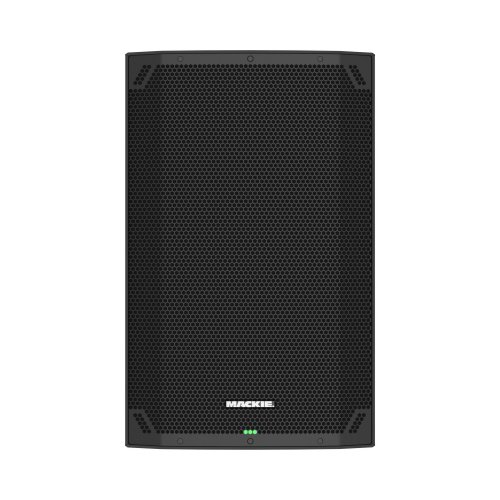

Mackie Thump15v4 15in Powered Loudspeaker w/ SoundCheck DSP & Bluetooth

About: Mackie Thump15v4 15in Powered Loudspeaker w/ SoundCheck DSP & Bluetooth

Mackie pulled from decades of experience at the top of the audio industry to create Thumpv4 loudspeakers and subwoofers, pushing Thump Series to a new level of professional excellence. Whether you‘re a musician taking the stage or a DJ packing the dance floor, make an impact with the Thump15v4 professional loudspeaker featuring SoundCheck DSP.

• Loudest. Lowest. Clearest.
  • 1400W of class-D amplification
  • 1” custom compression driver
  • 15" low frequency driver
  • Loudest volume with 130 dB maximum SPL
  • Lowest bass with 34 Hz low frequency response
• SoundCheck DSP Voicing Modes
  • Sound check is as easy as pressing a button with user-selectable voicing modes
    • Flat Mode: Neutral speaker with pure sound
    • DJ Mode: DJ speaker for music playback
    • Live Mode: PA speaker for speech, karaoke, live shows and events
    • Wedge Mode: Stage monitor for performers
• SoundCheck DSP Instant Setup Features
  • Feedback Eliminator magically prevents ear-piercing microphone feedback with the push of a button
  • Music Ducking tastefully dims music when you speak into the mic, so you never have to bring the vibe to a halt
  • Outdoor mode automatically compensates for being outside, preventing the typical loss of high end
• Built-in Mixer With Mic Input
  • Dual XLR/TRS combo input jacks on both channels
  • Mic/line switch on channel 1
  • 1/8” input jack on channel 2
  • XLR mix output (includes Bluetooth)
  • Front LED on/off
• Bluetooth Streaming and Linking
  • Bluetooth streaming from your smartphone or tablet
  • Bluetooth linking so you can stream to two speakers in stereo, zone or dual mono
  • Control every setting wirelessly and tweak the EQ with Thump Connect 2 app
  • Bluetooth works simultaneously with analog inputs, and passes to XLR mix output

Loudest. Lowest. Clearest.

Mackie Thump15v4 professional powered loudspeakers are the loudest, lowest and clearest everyday gigging solution for any live sound user of any experience level, combining 130 dB maximum SPL, 34 Hz low frequency response and SoundCheck DSP digital signal processing.

SoundCheck DSP Voicing Modes

• Flat Mode: Neutral, Pure Sound
  • You work hard to shape your sound. If you're a guitarist, you might create a signature tone using a perfectly curated pedalboard. If you're a live sound professional, you know how to build your mix using tools like EQ and compression. Flat mode keeps Thump15v4 transparent, projecting your sound in its purest form.
• DJ Mode: Music Playback
  • Maybe you're a DJ, and you need enough "low end" in your speaker to get people moving their "low ends" on the dance floor. Maybe you just need a speaker to stream music at parties or events. For music playback that really thumps, use Thump15v4 in DJ mode. Connect your DJ gear or stream with Bluetooth. (Or both at the same time!)
• Live Mode: Live Music and Events
  • Mackie rules live sound. Thump15v4 takes that reputation into a new generation with enhanced sound quality, more volume and modern voicing that makes your vocals pop with midrange clarity. Used in Live mode, Thump15v4 delivers flawless sound for vocal performances, speeches and even karaoke.

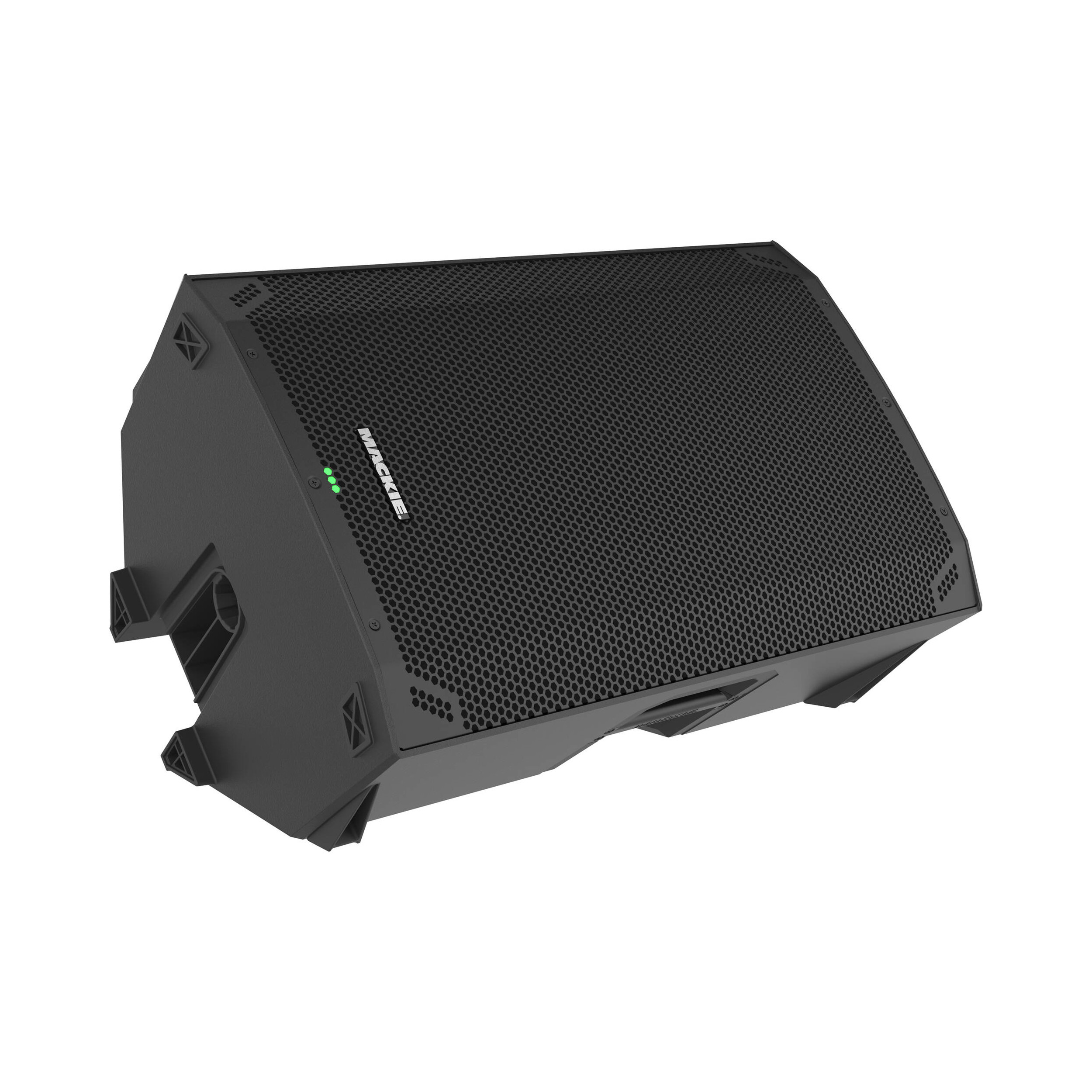

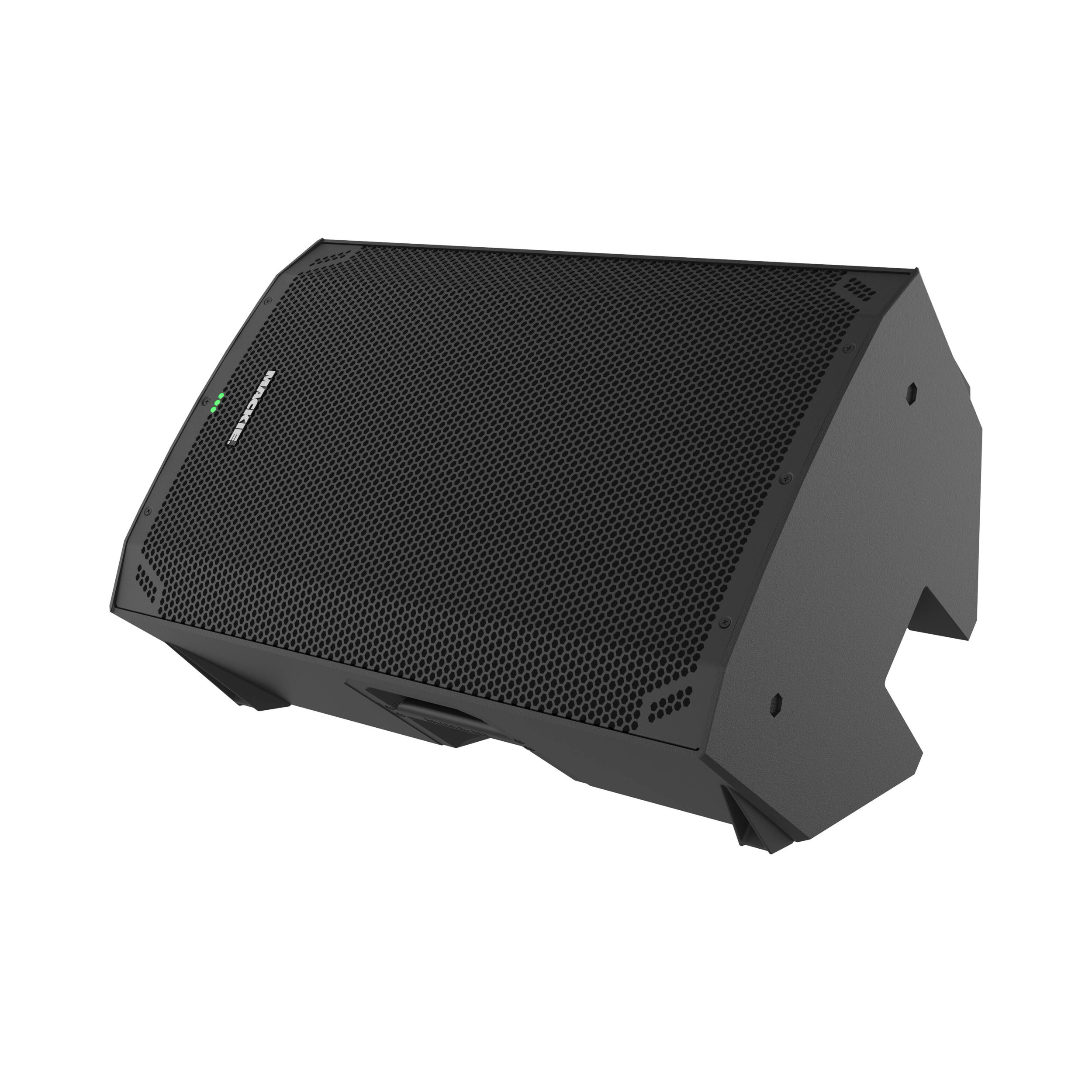

• Wedge Mode: Stage Monitor
  • Thump15v4 makes the perfect stage monitor or wedge monitor. Just flip the speaker on its side and switch to Wedge mode. You'll hear yourself clearly on stage, giving you that extra boost of confidence you need when you're belting it out for the crowd. (Putting your foot up on the monitor won't improve your sound, but Wedge mode will.)

​​SoundCheck DSP Instant Setup

• Feedback Eliminator
  • Remember in those old movies when a principal is giving a speech to the students using a microphone, and there‘s an ear-piercing squeal? Sorry to tell you, but that is now a thing of the past. With Feedback Eliminator, all your performances are feedback free, without you having to know a thing about audio.
• Music Ducking
  • You’re DJing. The music is flowing. People are moving on the dance floor. But, oh no: You have to make an announcement. Don’t want to bring the mood to a screeching halt? Just turn on Music Ducking. The music will automatically dim (not stop) when you‘re speaking into the mic, then return to full volume.
• Outdoor Mode
  • Speakers sound different outdoors. Music that once sounded full and punchy might become muffled and dull. There are scientific reasons for this difference, involving resonance and reflections. But you don’t need to worry about that. Just use Outdoor mode when you take Thump15v4 outside.

Bluetooth Streaming and App

Stream songs from your phone or tablet with Bluetooth. Link two Thump15v4 speakers wirelessly for stereo, zone or dual mono playback without cables. Control every setting on the speaker from across the room with the intuitive Thump Connect 2 app, so you‘re never caught out of reach. Bluetooth works simultaneously with analog inputs and passes to XLR mix output.

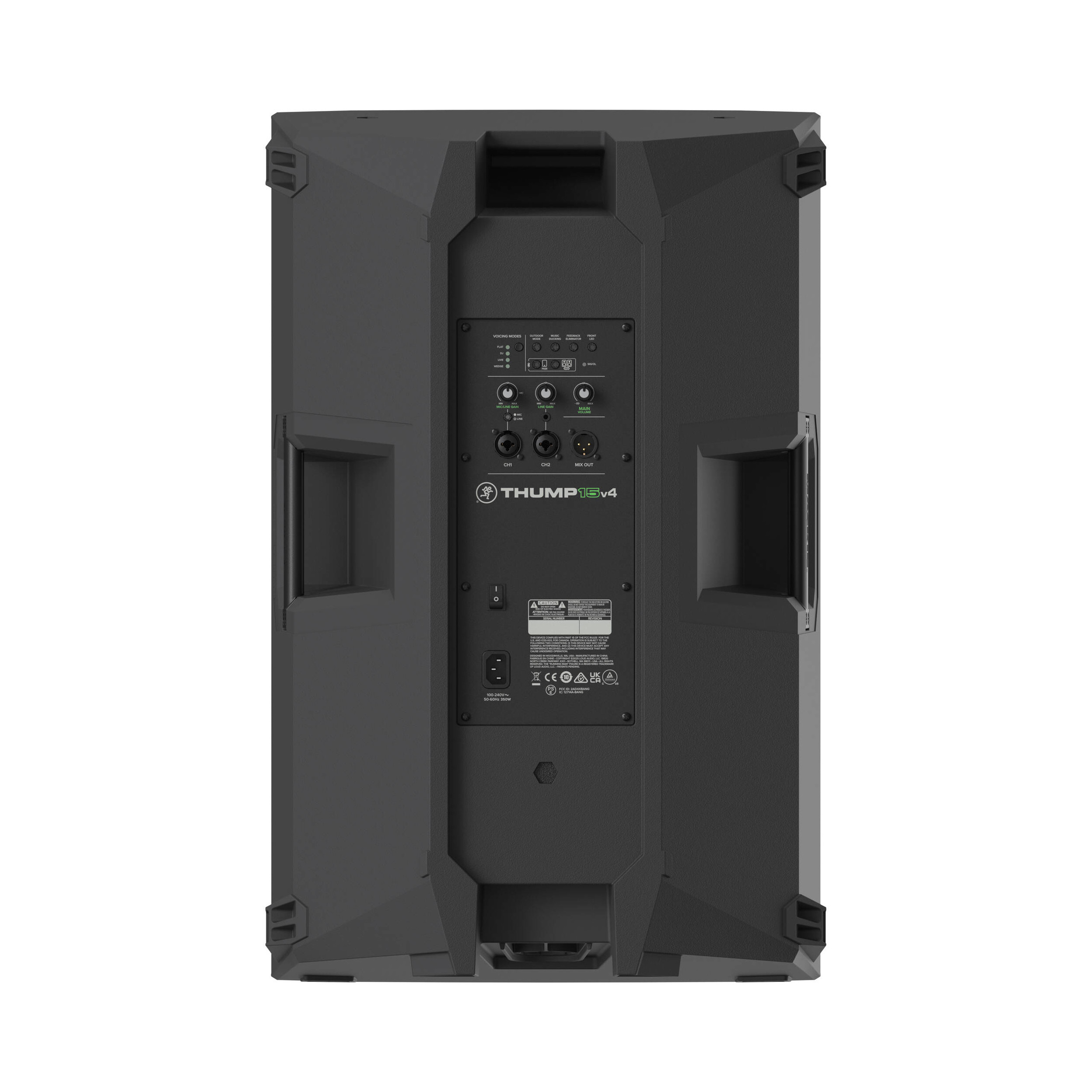

Connect to Anything With Built-in Mixer

Connect Thump15v4 to anything: microphones, DJ controllers, aux playback devices, keyboards, guitar pedalboards and more, using the combo inputs on the built-in mixer. Adjust the input gain and overall volume for the perfect mix. The convenient XLR output is great for chaining the signal to another speaker.

Specifications

• Acoustic Performance
  • Frequency Response (–10 dB): 34 Hz – 20 kHz
  • Frequency Response (–3 dB): 41 Hz – 20 kHz
  • Horizontal Coverage (–12 dB): 140˚
  • Vertical Coverage (–12 dB): 60˚
  • Maximum SPL Peak: 130 dB
  • Monitor Angle: 40˚
• Transducers
  • Low Frequency: 15 in / 381 mm woofer with ferrite
  • High Frequency: 1.0 in / 25 mm high-temperature polymeric compression driver
• Power Amplifiers
  • System Power Amplification
    • Rated Power: 1400 watts peak
  • Low Frequency Power Amplifier
    • Rated Power: 1200 watts peak
    • Rated THD: <1%
    • Cooling: Convection
    • Design: Class D
  • High Frequency Power Amplifier
    • Rated Power: 200 watts peak
    • Rated THD: <1%
    • Cooling: Convection
    • Design: Class D
• Input / Output
  • Input Type: 2x Female XLR – 1/4" Balanced TRS combo jack, 1/8" TRS, and Bluetooth
  • Mic/Line Impedance: 10 k Balanced
  • 1/8˝ Line Impedance: 10 k Balanced
  • Mix Out: Male XLR Balanced
  • Mix Out Impedance: 150 Balanced
• Electronic Crossover
  • Crossover Frequency: 1.8 kHz
• Bluetooth Information
  • Bluetooth Protocol: 5.0
  • Bluetooth Function: Audio streaming and user interface control
• Line Input Power
  • Detachable line cord: 100–240V~, 50–60 Hz, 350W
  • AC Connector: 3-pin IEC 250 VAC, 10 A male
  • Power Supply Type: Switchmode Universal mains regulated power supply with PFC integrated
• System Processing
  • Voicing Mode: (Four voicing modes) Flat, DJ, Live, Wedge
• Safety Features
  • Transducer Protection: Peak and RMS limiting
  • Environmental Protection: Power supply and amplifier thermal protection
  • Feedback Eliminator: On / Off
  • Display LEDs: Voicing Mode, Outdoor Mode, Music Ducking, Feedback Eliminator, Front LED, Bluetooth Status, Link Status, Signal/Overload

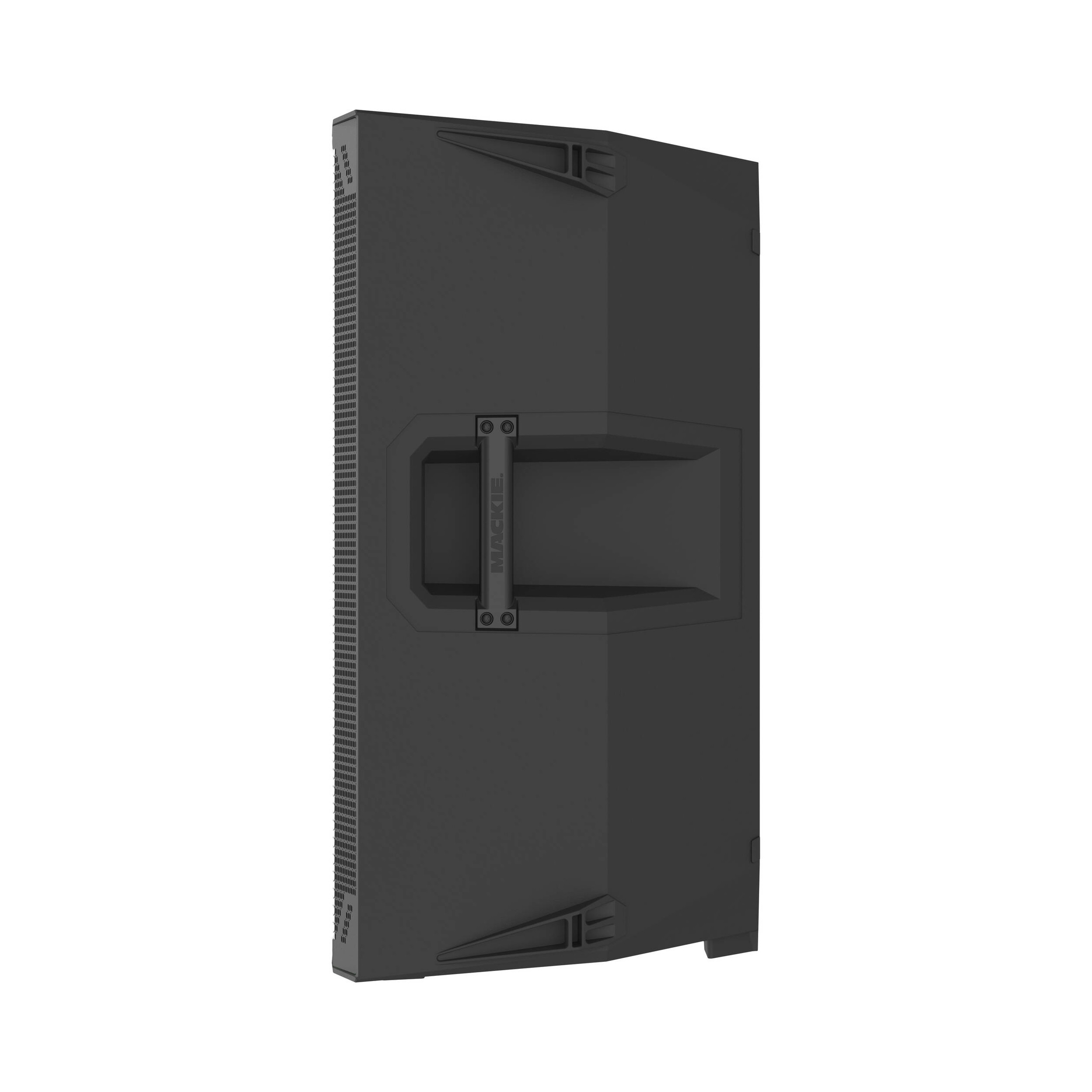

• Physical
  • Premium metal handles
  • Rugged, modern construction
  • 3x M10 fly points for suspended installation
  • Dimensions (HxWxD): 27.4 x 17.3 x 14 in (696 x 439 x 356mm)
  • Weight: 32.6 lbs (14.8kg)
