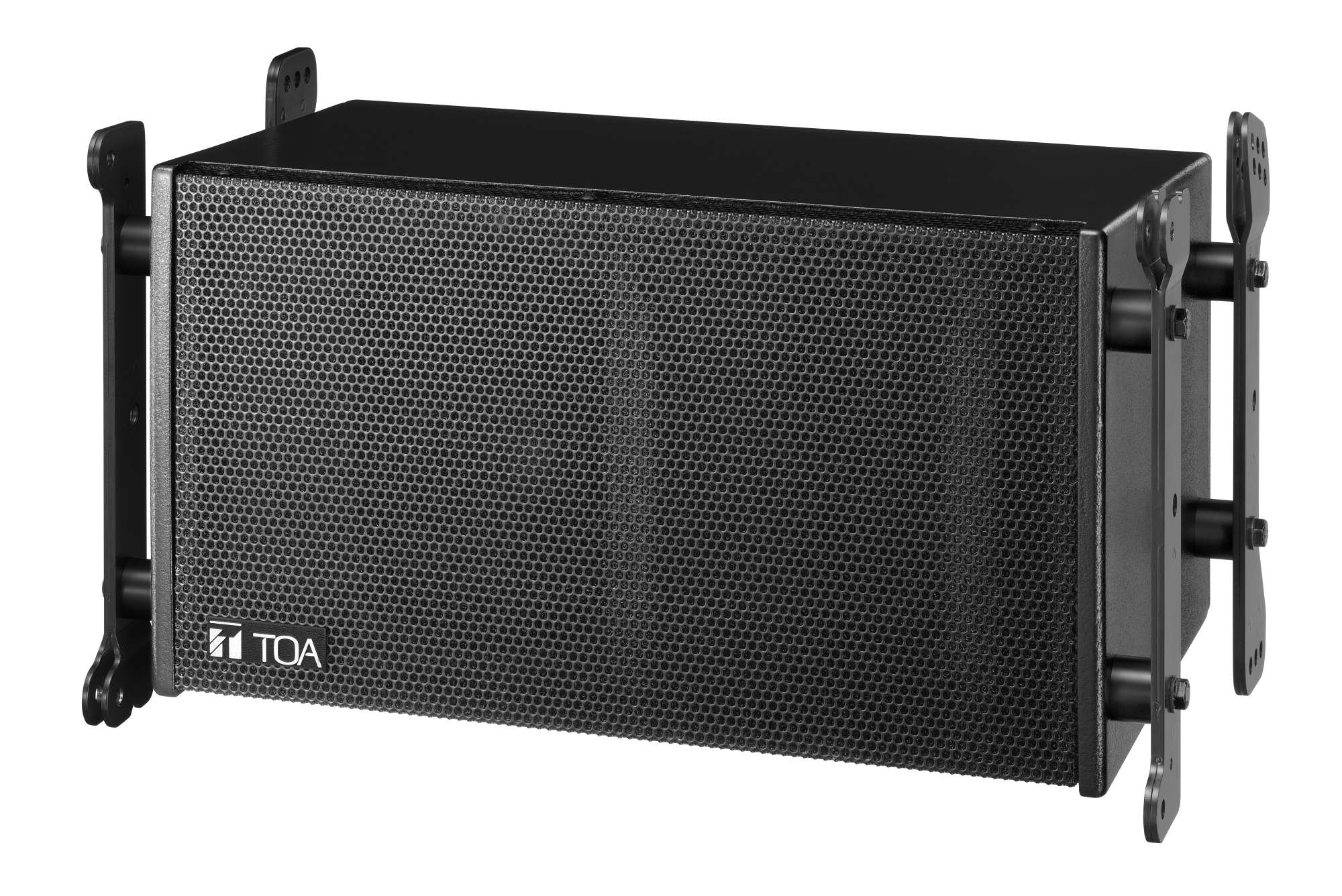

TOA Canada SR-C8 2-Way Line Array Speaker, Long Distance (Weatherproof)

About: TOA Canada SR-C8 2-Way Line Array Speaker, Long Distance (Weatherproof)

The SR-C8LWP is a 2-way line array speaker featuring wave front control technology which creates a sound field with high sound clarity and uniform sound pressure. Recommended digital speaker processor is the DP-SP3. It can be converted into the bi-amplifier drive system by changing the internal connection.

• Sync-Drive wave guide technology
• Uniform, high frequency sound field with excellent sound clarity and minimal interference
• Phase wave-front control technology for a high-frequency sound range that is attenuation free and high fidelity
• Adjustable sound coverage by connecting a number of speakers and combinig speakers with different dispersion angles
• Feedback resistant - reflection-free operation
• Single or bi-amp mode
• Drivers can be quickly replaced from the rear of the speaker enclosure
• IPX4 Weatherproof

Specifications

• Enclosure - Bass-reflex type
• Power Handling
  • Continuous program: 360 W (single-amp mode)
  • Low: 360 W, High: 180 W (bi-amp mode)
• Rated Impedance
  • 16 Ω (single-amp mode)
  • Low: 16 Ω, High: 16 Ω (bi-amp mode)
• Sensitivity
  • 98 dB (1 W, 1 m) (single-amp mode)
  • Low: 95 dB (1 W, 1 m), High: 110 dB (1 W, 1 m) (bi-amp mode)
• Frequency Response - 65 Hz - 20 kHz (when recommended parameters are applied by the optional DP-SP3)
• Crossover Frequency - 1.6 kHz (when recommended parameters are applied by the optional DP-SP3)
• Directivity Angle - Horizontal: 110°, Vertical: 5°
• Speaker Component
  • Low frequency: 20 cm (8) cone-type
  • High frequency: Wave front control horn 110° (horizontal) x 5° (vertical)
  • + compression driver x 2
• Connected Cable - Direct cable withdrawal from internal speaker: Φ8.6 mm (Φ0.34)
• Water Protection - IPX4
• Finish
  • Enclosure: Plywood, black, urethane paint
  • Front grille: Punched steel plate, black, paint
• Dimensions - 526.6 (W) x 293 (H) x 296 (D) mm (20.73" x 11.54" x 11.65")
• Weight - 17 kg (37.48 lb)
• Included Accessories - 4x M8 connection bolt
