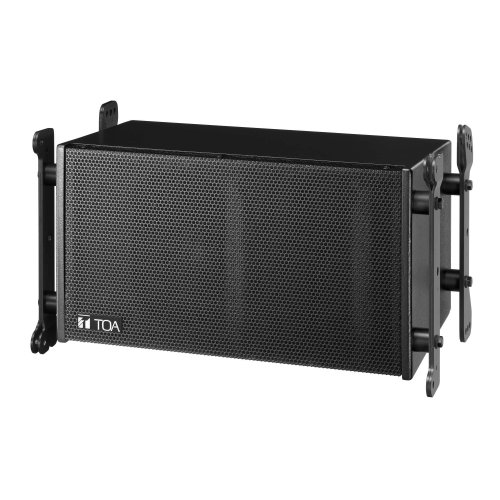

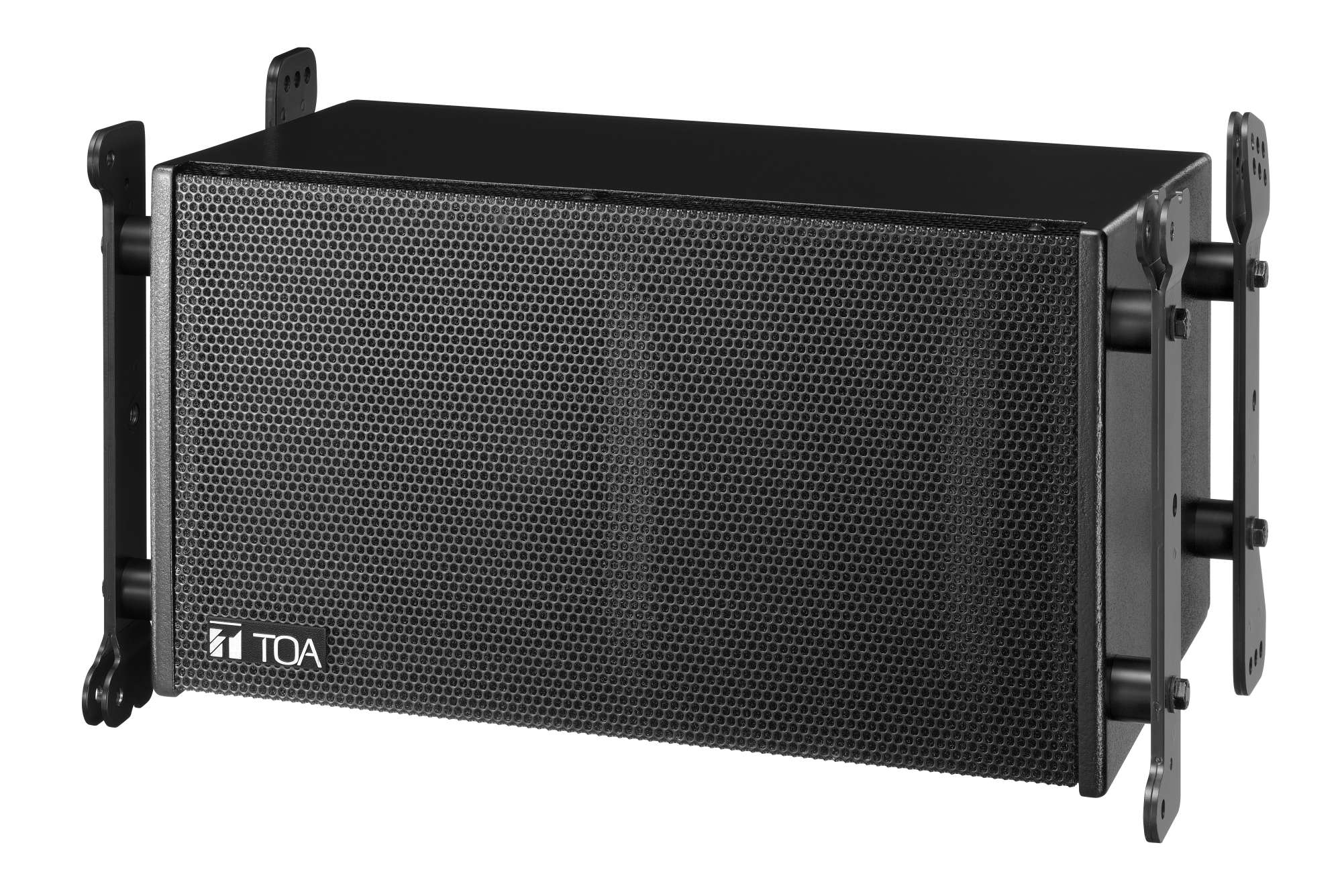

TOA Canada SR-C8 2-Way Line Array Speaker, Long Distance
Model: SR-C8L
About: TOA Canada SR-C8 2-Way Line Array Speaker, Long Distance
The SR-C8L is a 2-way line array speaker featuring wave front control technology which creates a sound field with high sound clarity and uniform sound pressure. Recommended digital speaker processor is the DP-SP3. It can be converted into the bi-amplifier drive system by changing the internal connection.
- Sync-Drive wave guide technology
- Uniform, high frequency sound field with excellent sound clarity and minimal interference
- Phase wave-front control technology for a high-frequency sound range that is attenuation free and high fidelity
- Adjustable sound coverage by connecting a number of speakers and combinig speakers with different dispersion angles
- Feedback resistant - reflection-free operation
- Single or bi-amp mode
- Drivers can be quickly replaced from the rear of the speaker enclosure
Specifications
- Enclosure - Bass-reflex type
- Power Handling
- Continuous program: 360 W (single-amp mode)
- Low: 360 W, High: 180 W (bi-amp mode)
- Rated Impedance
- 16 Ω (single-amp mode)
- Low: 16 Ω, High: 16 Ω (bi-amp mode)
- Sensitivity
- 98 dB (1 W, 1 m) (single-amp mode)
- Low: 95 dB (1 W, 1 m), High: 110 dB (1 W, 1 m) (bi-amp mode)
- Frequency Response - 65 Hz - 20 kHz (when recommended parameters are applied by the optional DP-SP3)
- Crossover Frequency - 1.6 kHz (when recommended parameters are applied by the optional DP-SP3)
- Directivity Angle - Horizontal: 110°, Vertical: 5°
- Speaker Component
- Low frequency: 20 cm (8) cone-type
- High frequency: Wave front control horn 110° (horizontal) x 5° (vertical)
- + compression driver x 2
- Input Connector
- M4 screw terminal, distance between barriers: 10.0 mm (0.39")
- 2x Neutrik NL4MPXX
- Finish
- Enclosure: Plywood, black, urethane paint
- Front grille: Punched steel plate, black, paint
- Dimensions - 526.6 (W) x 293 (H) x 296 (D) mm (20.73" x 11.54" x 11.65")
- Weight - 17 kg (37.48 lb)
- Included Accessories - 4x M8 connection bolt
