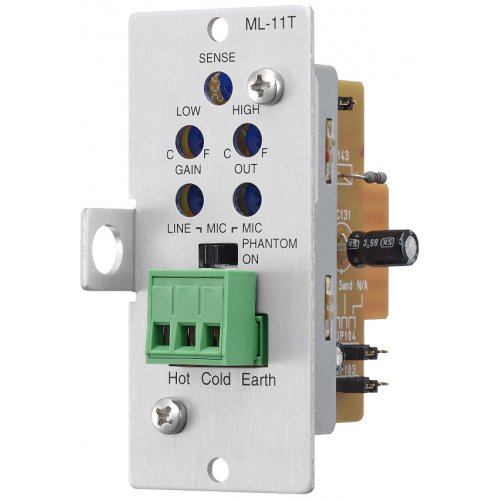

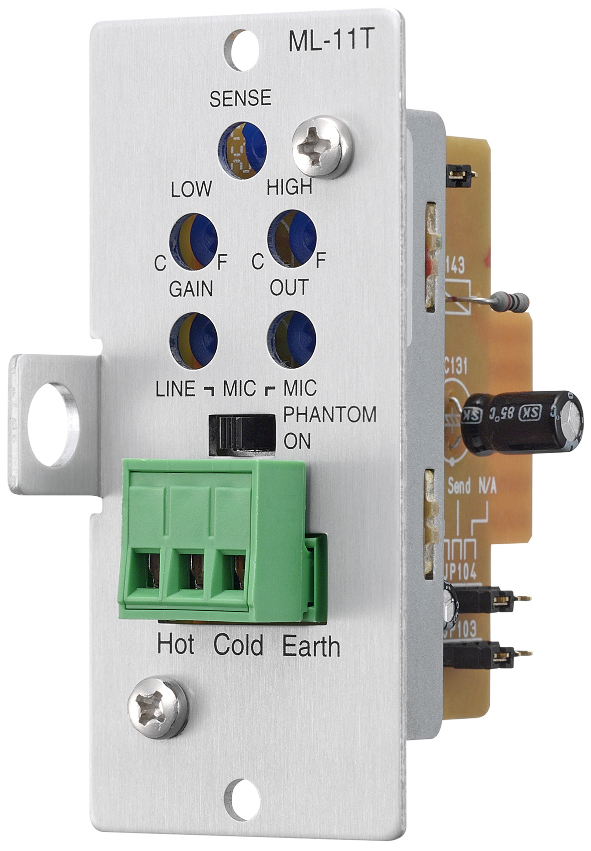

TOA ML-11T Mic/Line Input for 900 Series Amps
Model: ML-11T
About: TOA ML-11T Mic/Line Input for 900 Series Amps
The ML-11T is a microphone/line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a balanced microphone/line input with removable terminal block connector, phantom power supply function, and gain and tone controls.
- Power Source 24 V DC (supplied from the main frame)
- Current Consumption 25 mA
- Input Sensitivity -60/-20 dB* (changeable)
- Input Impedance 10 kΩ, unbalanced
- Frequency Response 20 Hz - 20 kHz ±1.0 dB
- Distortion 0.05 % (1 kHz)
- Gain 32 - 52 dB
- Phantom Power +22 V DC (active or disable selectable)
- Connector Removable terminal block (3P)
- Dimensions 35 (W) × 78 (H) × 91.5 (D) mm (1.38 × 3.07" × 3.6")"
- Weight Max. 49 g (0.11 lb)
- Accessory Removable terminal block (3P) …1, Module mounting screw …2
