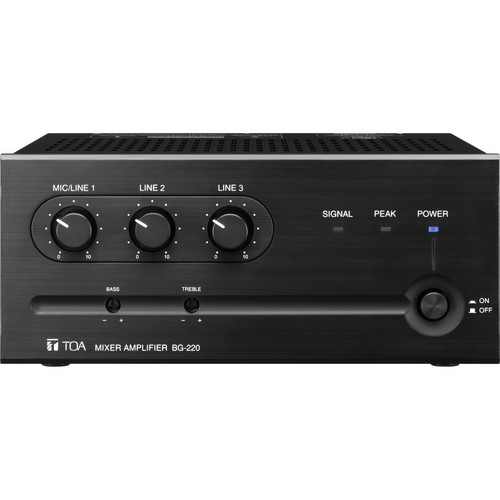

TOA Canada BG-220 CU 20W Mixer/Amplifier

Model: BG-220 CU

TOA Canada BG-220 CU 20W Mixer/Amplifier
TOA Canada BG-220 CU 20W Mixer/Amplifier
  • Free Shipping!
  •  In Stock - Ship or Pick-up
  • Not yet reviewed

About: TOA Canada BG-220 CU 20W Mixer/Amplifier

THE TOA BG-200 SERIES MIXER/AMPLIFIERS are ideal solutions for installations in restaurants, retail stores, lounges, classrooms and meeting rooms. Incorporating TOA's no-compromise technology, the new BG-200 Series are designed to provide the high performance and audio quality with wide frequency response, low noise and distortion and stable output regulation.

The BG-200 Series Mixer/Amplifiers is comprised of two models: BG-220 (20W) and BG-235 (35W). Both models offer a simple and cost-effective solution for adding powered zones to an existing system as well as powering speakers in applications that require a line input from a mix or playback source. Using the perfected amplifier technology and bullet-proof construction that has made TOA an industry standard, the BG-200 Series Mixer/Amplifier is designed to make sound projects affordable, reliable and easy to install.

The BG-200 Series Amplifiers are UL/cUL approved, competitively priced and is backed by TOA's 5 year warranty.


  • Massive Power supply for high-quality, reliable sound.
  • All inputs and outputs on removable Euro-block connections for easier installation
  • BG-235 (35W, 15% higher power than previous model)
  • 3 Inputs:
    • Mic/Line 1 w/ Balanced phoenix input and Manual Mute Trigger
    • Line 2 w/ Phoenix & RCA summing connector
    • Line 3 w/ Phoenix & RCA summing connector
  • Input 1 selectable between Mic/Line input level.
  • MOH/Zone2 balanced line output assignable via rear-panel dip switches. Selects any or all three input channels-no muting. Can be used for Music on Hold or 2nd Zone
  • Mute receive assignable for channels 2 & 3 on rear-panel dip switches.
  • Mute can be activated via "VOX" or "Contact In" signal.
  • Mute Sensitivity and MOH/Zone 2 are both level adjustable.
  • Power outputs available at 4 Ohm, 25V & 70V for more system flexibility.
  • Unbalanced Line Output can be used for an extra zone or for recording.
  • Dedicated Bass & Treble controls (recessed on front panel) allow independent adjustment for main output.
  • Thermal Overload Protection circuit with rear panel reset breaker.
  • Input Signal present, Peak & Power On indicators on front panel.
  • Optional Rack-mount kits for single unit (MB-25B-BK), or dual (MB-25B-J)
  • Supplied security caps (YA-920 x 3) for volume knob to prevent unauthorized adjustment.
  • UL/cUL Listed
  • Five Year Warranty

Reviews: TOA Canada BG-220 CU 20W Mixer/Amplifier

There are currently no product reviews.

Warranty: TOA Canada BG-220 CU 20W Mixer/Amplifier Warranty:

30 Days

Manufacturer's Warranty:

Audio - 5 Years

With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty

Intercom - 5 Years

All Batteries have a 1 year warranty


All parts have a 90-day warranty. All Batteries have a 1 year warranty.
