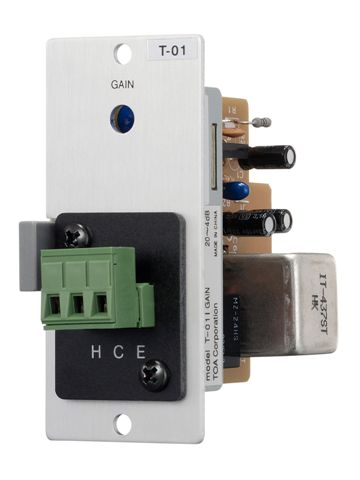

TOA Canada T-01S T Line Output Module

Model: T-01S T

TOA Canada T-01S T Line Output Module
  • Free Shipping on orders over $199
  • Usually Ships in 2-3 Days
  • Not yet reviewed




About: TOA Canada T-01S T Line Output Module

The T-01S is a line output module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced line output with removable terminal block connector, and gain control.

Specification

  • Power Source 24 V DC (supplied from the main frame)
  • Current Consumption 35 mA
  • Output Level Adjustable -22 to -6 dB* (at 600 Ω terminated, input: -20 dB*)
  • Output Impedance 600 Ω, balanced transformer-isolated
  • Frequency Response 20 Hz - 20 kHz ±2.5 dB
  • Distortion 0.1 % or less (1 kHz, output: 0 dB*)
  • Noise Level -90 dB* (20 Hz - 20 kHz BPF)
  • Gain 4 - 20 dB
  • Connector Removable terminal block (3P)
  • Dimensions 35 (W) × 78 (H) × 88 (D) mm (1.38 × 3.07" × 3.46")"
  • Weight Max. 95 g (0.21 lb)


AVShop.ca is a Canadian authorized TOA Canada retailer.

Reviews: TOA Canada T-01S T Line Output Module

There are currently no product reviews.


Warranty: TOA Canada T-01S T Line Output Module

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Audio - 5 Years

With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty

Intercom - 5 Years

All Batteries have a 1 year warranty

Parts

All parts have a 90-day warranty. All Batteries have a 1 year warranty.
