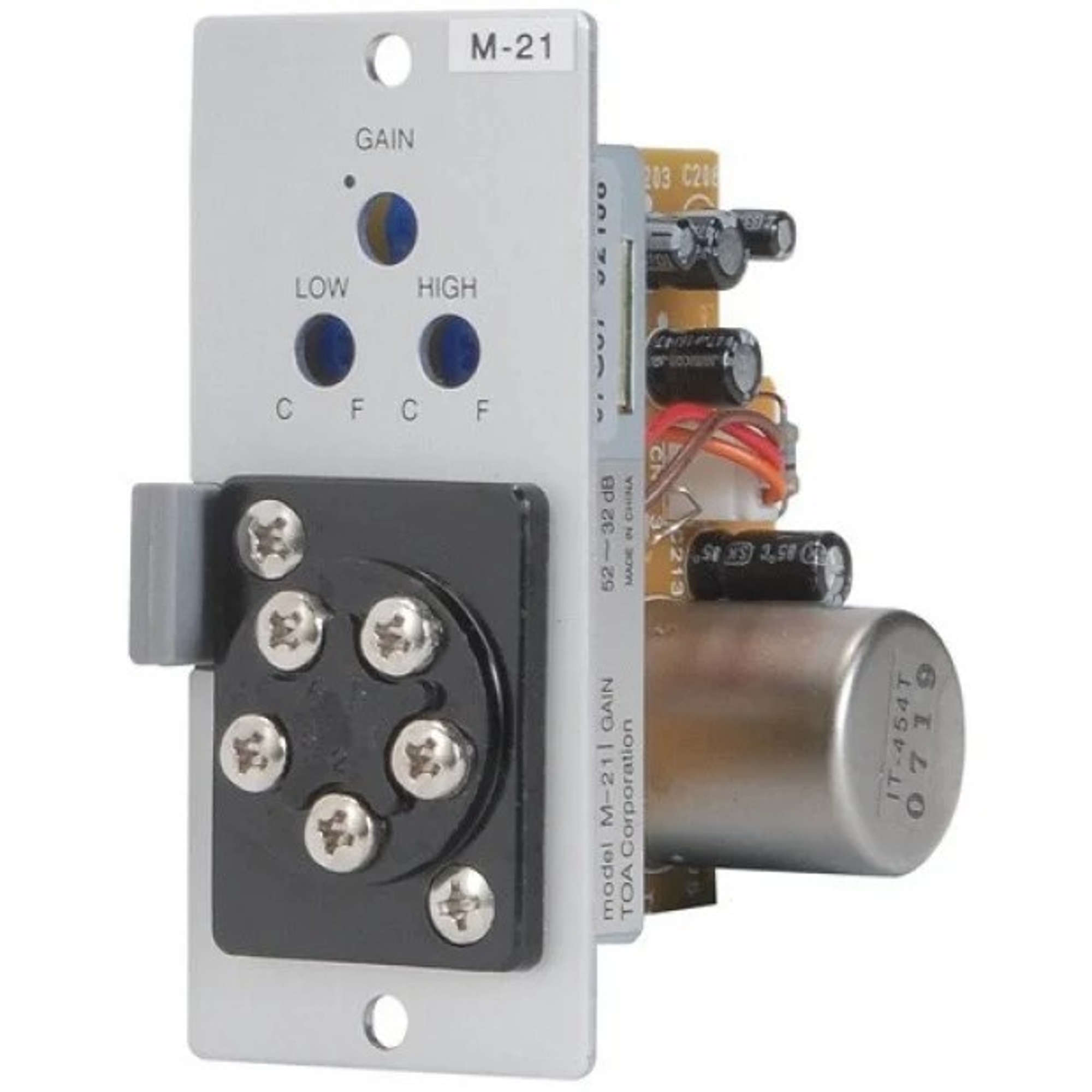

TOA M-21S Mic Preamplifier Module
Model: M-21S
About: TOA M-21S Mic Preamplifier Module
The M-21S is a microphone input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced microphone input with screw terminals, remote volume control function, phantom power supply function, and gain and tone controls.
- For balanced, low impedance microphone
- High and low cut filters for tone control
- Phantom power for condenser-type microphones
- Allows remote control of input signal using an external 10k ohm linear-taper potentiometer
- Connector: removable terminal block
Specifications:
- Power Supply 24 V DC (supplied from the main frame)
- Current Consumption 30 mA
- Input Sensitivity -60 dB* (rated output: -20 dB*), adjustable: -72 to -52 dB*
- Input Impedance 600 Ω, balanced transformer-isolated
- Frequency Response 25 Hz - 20 kHz ±1.5 dB
- Distortion 0.05 % or less (1 kHz, output: 0 dB*)
- Noise Level -86 dB* (20 Hz - 20 kHz BPF), input equivalent noise: -126 dB*
- Gain 32 - 52 dB
- Tone Control 100 Hz: 0 to -10 dB, 10 kHz: 0 to -10 dB
- Phantom Power +22 V DC (active or disable selectable)
- Remote Control Range 0 to -55 dB
- Connector 5 screw terminals
- Dimensions 35 (W) x 78 (H) x 88 (D) mm (1.38" x 3.07" x 3.46")
- Weight Max. 90 g (0.2 lb)
