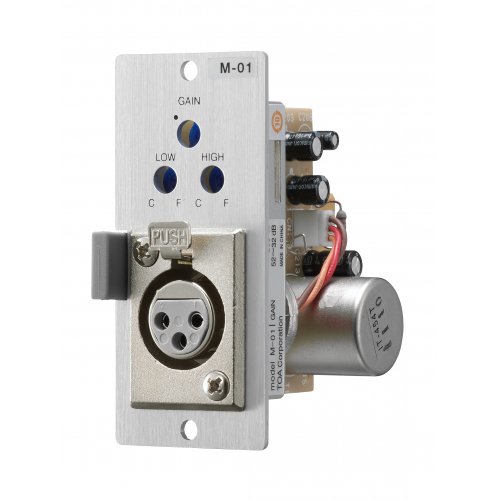

TOA M-01F Microphone Input for 900 Series Amps
Model: M-01F
About: TOA M-01F Microphone Input for 900 Series Amps

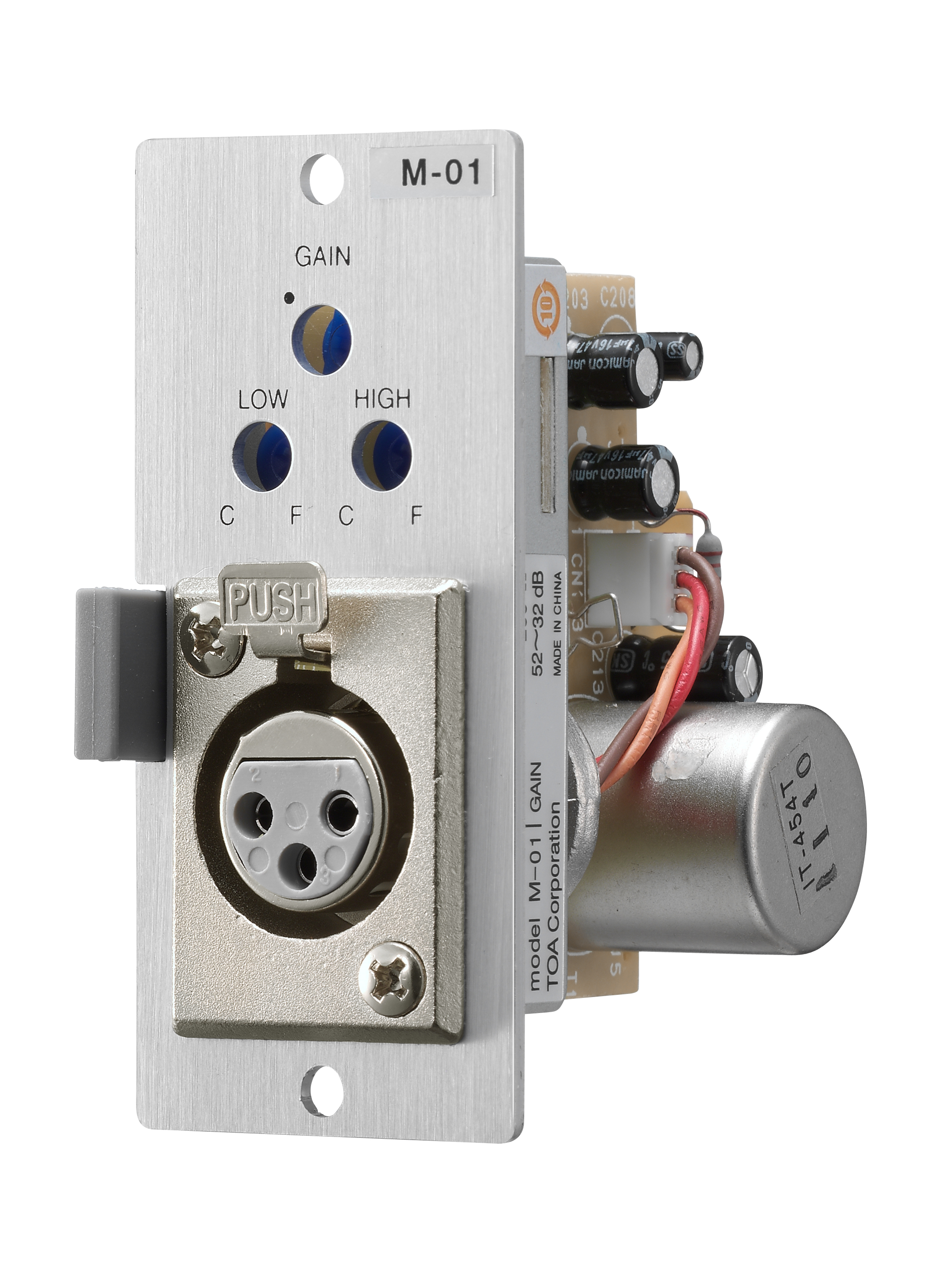

The M-01F is a microphone input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced microphone input with female XLR type connector, phantom power supply function, and gain and tone controls.
- Power Source: 24 V DC (supplied from the main frame)
- Current Consumption: 9 mA
- Input Sensitivity: -60 dB* (balanced transformer-isolated)
- Input Impedance: 600 Ω, balanced
- Frequency Response: 25 Hz - 20 kHz ±2.0 dB
- Distortion: 0.05 % or less (1 kHz, output: 0 dB*)
- Noise Level: -86 dB* (20 Hz - 20 kHz BPF), input equivalent noise: -126 dB*
- Gain: 32 - 52 dB
- Phantom Power: +22 V DC (active or disable selectable)
- Tone Control: 100 Hz: 0 to -10 dB, 10 kHz: 0 to -10 dB
- Connector: Female XLR connector (XLR-3-31 equivalent)
- Dimensions: 35 (W) × 78 (H) × 88 (D) mm (1.38 × 3.07" × 3.46")"
- Weight: Max. 110 g (0.24 lb)
