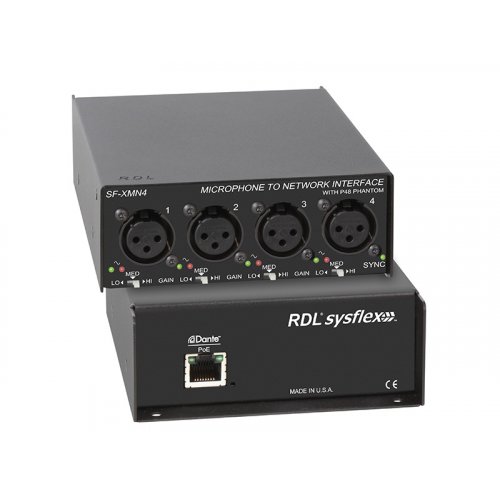

RDL SF-XMN4 Microphone to Dante Interface

Model: RDL SF-XMN4

RDL SF-XMN4 Microphone to Dante Interface
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed



About: RDL SF-XMN4 Microphone to Dante Interface

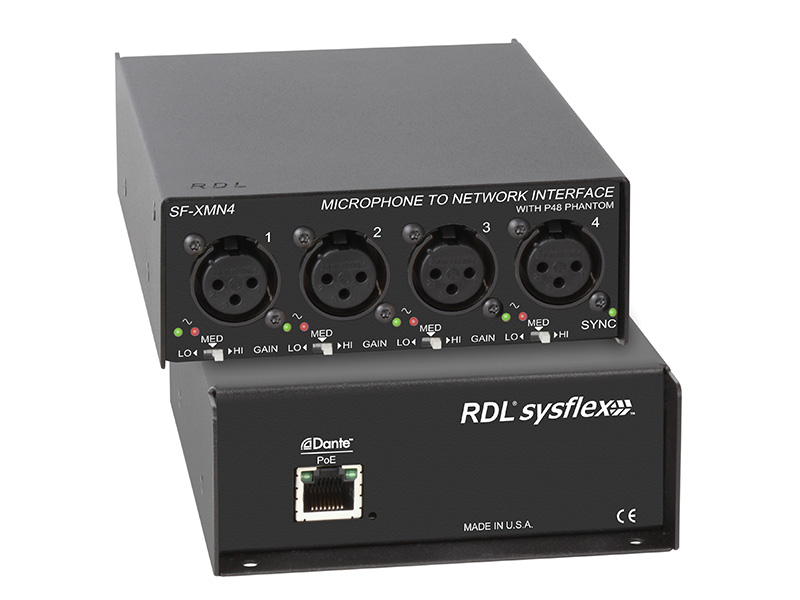

The SF-XMN4 is an interface that converts four XLR microphone inputs to Dante network audio channels. Special software is not required to configure the SF-XMN4. Each XLR input is equipped with a switch to set the gain for dynamic or condenser microphones. A dual-LED VU meter displays the level for each input to facilitate selection of the ideal gain range. P48 phantom voltage is supplied to each microphone input. The SF-XMN4 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance.

The SF-XMN4 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.

The SF-XMN4 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX® product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX® products adds enormous flexibility in the design and installation of professional A/V systems.

Features:

  • Dante Network Interface for Four Audio Mic Inputs
  • Each XLR Input Provides Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
  • 48 V Mic Phantom (P48) on each input
  • Four XLR Front-Panel Inputs
  • Converts Four Standard XLR Mic Audio Sources to Dante Network Channels
  • Special Software Not Required for Module Setup
  • High Resolution 24 Bit Analog to Digital Conversion
  • LED Indicator for Valid Power and Network Sync
  • Operation from PoE Power (Class 0, IEEE 802.3af)
  • Equipped for SysFlex® Rack Mounting or Surface Mounting

UPC: 813721019813

Reviews: RDL SF-XMN4 Microphone to Dante Interface

There are currently no product reviews.


Warranty: RDL SF-XMN4 Microphone to Dante Interface

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Radio Design Labs, Inc., also referred to as RDL®, warrants to the Purchaser that products manufactured by RDL are free from defects in material and workmanship. This warranty applies to the period of three years from the date of shipment, except for component parts or products purchased from other sources and supplied by RDL. Such component parts or products bear only the warranty of the manufacturer thereof in effect at the time of shipment to the Purchaser.

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
