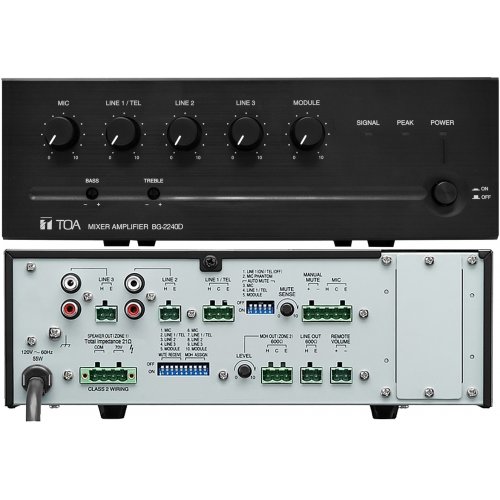

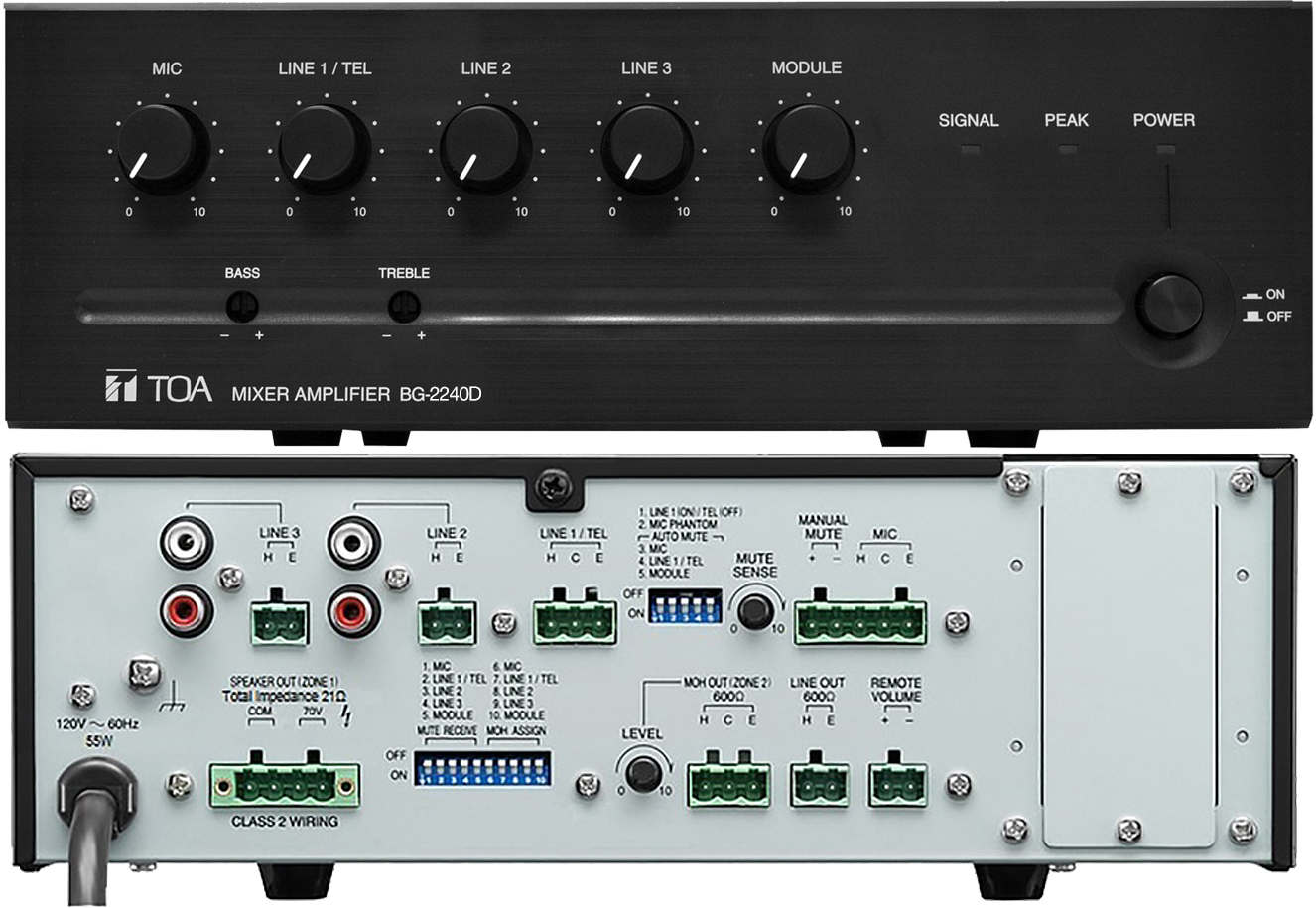

TOA BG-2240D-AM Mixer/Amplifier
Model: BG-2240D-AM
About: TOA BG-2240D-AM Mixer/Amplifier
The BG-2240D is a 240W 5-input mixer amplifier for background music (BGM) and general announcements. It is suited for use in bars, retail stores, and banquet rooms. It is equipped with the MOH OUT that permits 2-*channel broadcast when used in conjunction with the optional booster amplifier BA-235 (35W) or BA-260 (60W). This is a Class D 240W @70V amplifier.
Specifications:
| Power Source | 120 V AC, 60 Hz |
| Rated Output | 240 W |
| Power Consumption | 300 W (rated output), 55 W (based on cULus standards) |
| Frequency Response | 50 Hz – 20k Hz |
| Total Harmonic Distortion | 0.8% or less, at 1 kHz, 1/3 rated output, LPF 20KHz |
| Input | Mic: –60dB*, 600Ω, electronically balanced, removable terminal block Line 1: –10 dB*/TEL: –20 dB* Line 1/TEL: selectable, 10kΩ, electronically balanced, removable terminal block Line 2, 3: –10 dB*, 10 kΩ, unbalanced, removable terminal block or RCA jack Module |
| Output | Speaker: 70 V (21Ω) balanced, removable terminal block MOH: 0 dB*, 600 Ω, balanced, removable terminal block Line: 0 dB*, 600 Ω, unbalanced, removable terminal block |
| Output Regulation | 2 dB or less, no load to full load (1k Hz) |
| Phantom Power | On/Off switch for Mic,+24V DC |
| S/N Ratio | Mic: 60 dB or more, Line 1/TEL, Line 2, 3, Module: 73 dB or more (A-weighted, Tone Controls: Centered) |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10k Hz |
| Muting | Manual mute/Automatic mute |
| Control | Mic gain control, Line 1/TEL gain control, Line 2 gain control, Line 3 gain control, Module: gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Remote volume control, Mute sense control, Line 1/TEL selector switch, Phantom power switch (Mic), Auto mute switch (Mic, Line 1/TEL, Module), Mute receive switch (Mic, Line 1/TEL, Line 2, 3, Module), MOH assign switch (Mic, Line 1/TEL, Line 2, 3, Module), Power ON/OFF switch |
| Indicator | Power LED, Signal level LED, Peak LED |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 35% to 80% RH (no condensation) |
| Finish | Panel: ABS resin, black Case: Steel plate, black, paint |
| Dimensions | 264 (W) × 94.3 (H) × 267.3 (D) mm (10.39" × 3.71" × 10.52") |
| Weight | 3.5 kg (7.72 lb) |
| Accessory | Volume control cover: YA-920 × 5, Removable terminal plug (2 pins) × 4, Removable terminal plug (3 pins) × 2, Removable terminal plug (4 pins) × 1, Removable terminal plug (5 pins) × 1 |
| Option | Rack mounting brackets: MB-1000 |
Reviews: TOA BG-2240D-AM Mixer/Amplifier
Warranty: TOA BG-2240D-AM Mixer/Amplifier
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Audio - 5 Years
With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty
Intercom - 5 Years
All Batteries have a 1 year warranty
Parts
All parts have a 90-day warranty. All Batteries have a 1 year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and TOA Canada do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
