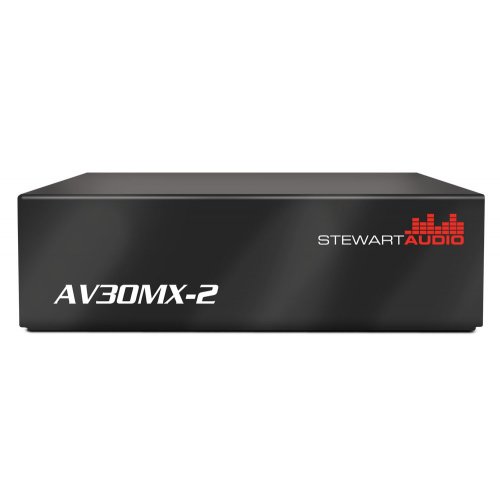

Stewart Audio AV30MX-2 2 Channel 30W Stereo Mixer Amplifier

About: Stewart Audio AV30MX-2 2 Channel 30W Stereo Mixer Amplifier

The sub compact AV30MX-2 is built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. Low cost, lightweight and convection cooling make this Class D mixer amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the AV30MX-2 allows amplification to be located in places off limits to normal mixer amplifiers without compromising sound or power. Like all Stewart products, the AV30MX-2 is designed for sonic accuracy, high efficiency and extended duty cycles. Our Signal Sense Power Technology™ (SSPT ™) ensures the amplifier is only powered when there is a signal present, saving energy and extending product life.

2 channel stereo mixer amplifier in a subcompact, 1/4 rack form factor. This amplifier is plenum rated for above-ceiling applications and uses our Signal Sense Technology for Energy Star compliance.

• Music and fire alarm muting
• Clean full-range dynamic power
• Signal Detect trigger for sleep & wake up
• Multiple mounting options
• External inline power supply

Specifications

• ​4 Ohm Stereo Power - 30W
• 8 Ohm Stereo Power 30W
• Frequency Response (+0, -3 dB, 1W) - 30 Hz-20 kHz
• Power Bandwidth (+3dB, -3dB) - 30 Hz-30 kHz
• THD+N - <.1% @ Full Power
• Signal-to-Noise Ratio - >100dB
• External Mute - contact closure
• Slew Rate - 30V/microsecond
• Input Sensitivity - .5V (-6 dBV)
• Standard Voltage Gain - 28X (26.5dB)
• Input Impedance (Unabalanced) - 10k Ohms
• Standby, Idle Current Draw, 1/8 Power Draw - 0.005/0.01/0.15 Amps
• Class - D
• Input Connectors - 3.5mm Stereo, Dual RCA
• Output Connectors - Euro Block
• Power Supply - External in-line 48VDC (Included)
• Cooling - Convection-Cooling (No Fans)
• Controls - 2 Independent Level Controls
• LED Indicators - Power, Signal Present & Clip
• Construction - Aluminum Chassis
• Dimensions (height, width, depth) - 1.25″H x 4.35″W x 3.2″D
• Weight - <.37 lbs (0.16kg)
