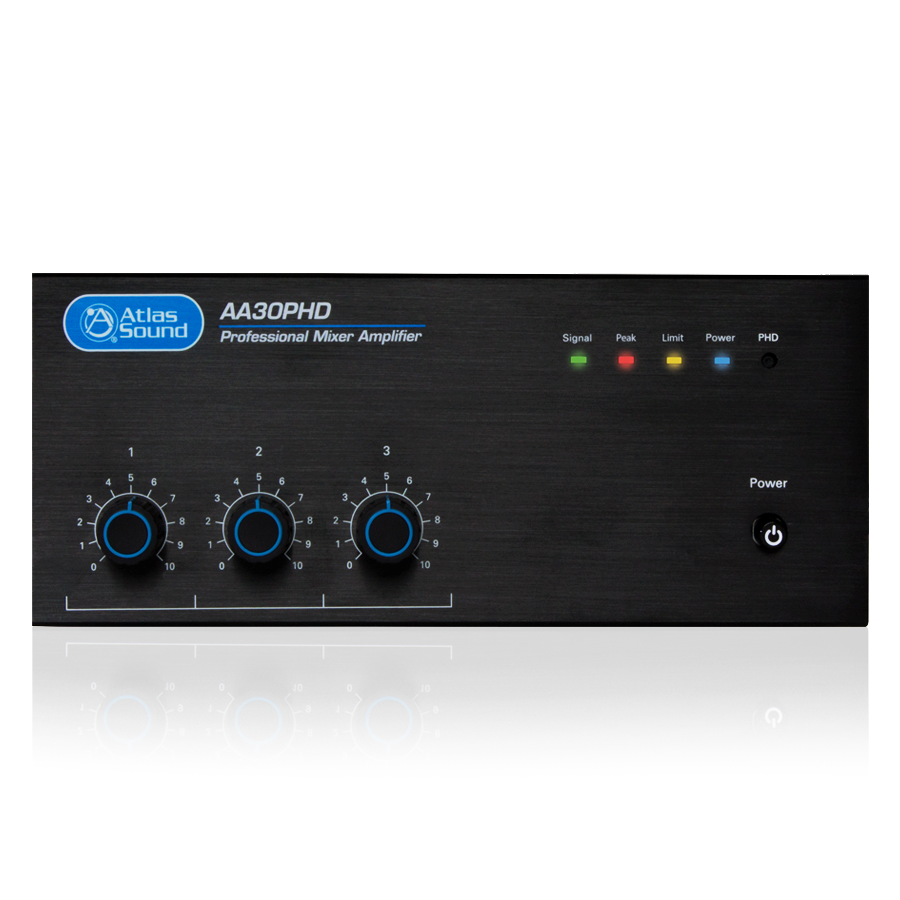

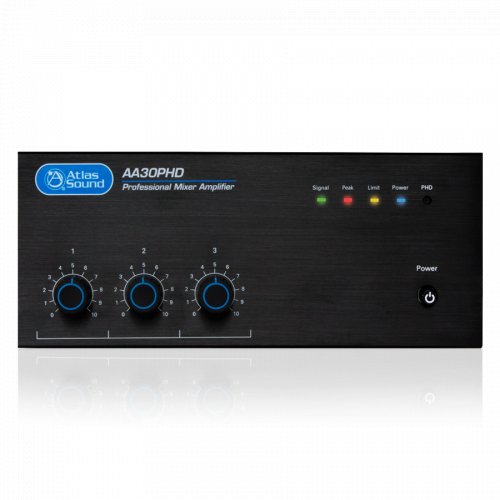

AtlasIED AA30PHD 3-Input 30W Amplififer (70V/8ohm)
Model: AA30PHD
About: AtlasIED AA30PHD 3-Input 30W Amplififer (70V/8ohm)
FEATURES
- 30W into 25V/70.7V and 4Ω Loads

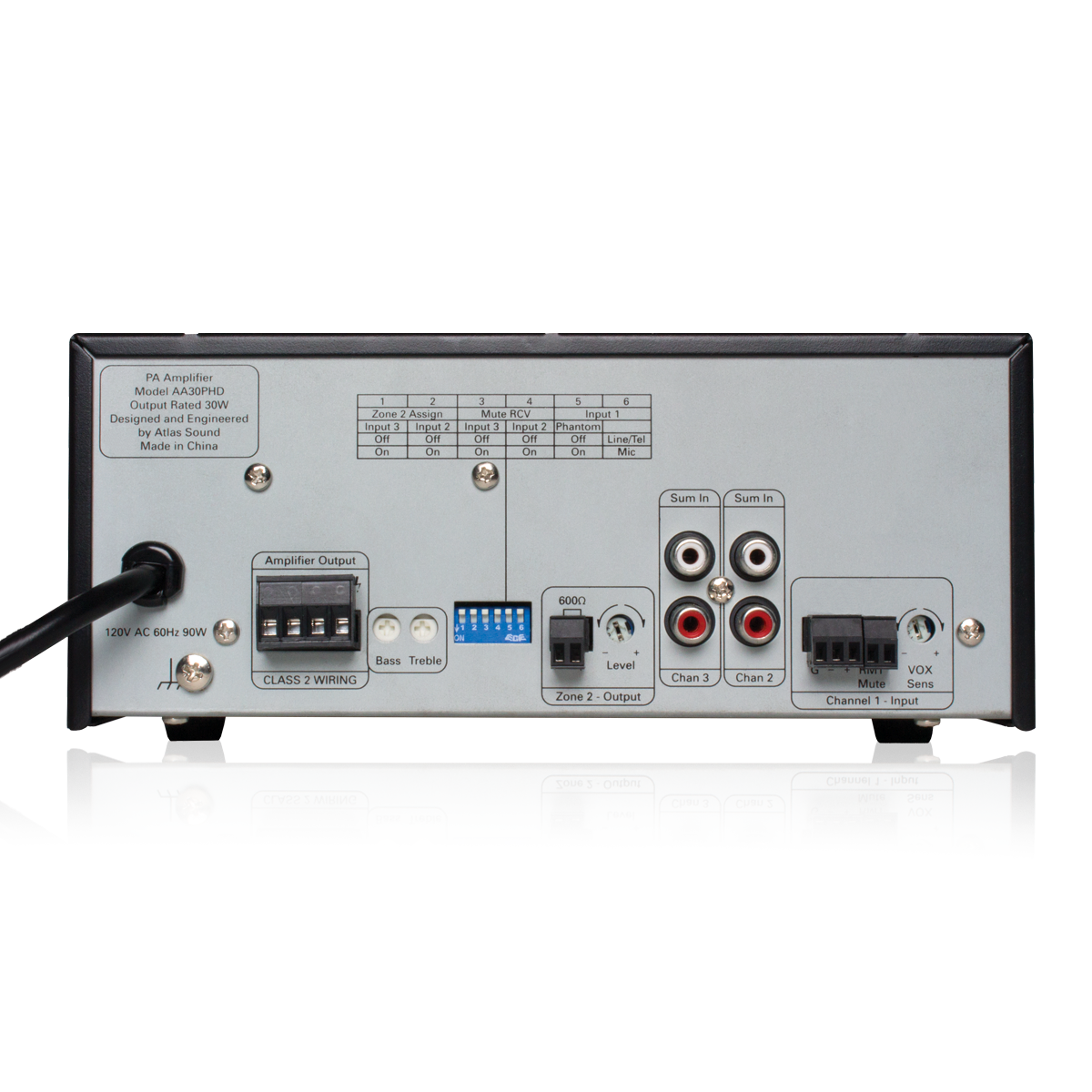

- Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
- Contact Closure Mute Terminals
- Variable Mute Sensitivity Control for Input 1
- Two Unbalanced, Summing Line Level Inputs
- Balanced Mic/Line/Tel Input w/ Phantom Power
- Automated Diagnostic System Test (Push Here Diagnostic)
SPECIFICATIONS
- FREQUENCY RESPONSE 50Hz - 15kHz
- POWER OUTPUT Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 30W RMS
- HEIGHT 3.66" (93mm)
- WIDTH 8.27" (210mm)
- DEPTH 10.87" (276mm)
- WEIGHT 9lb
- SHIPPING WEIGHT 11lb
- VOLTAGE COMPATIBILITY 110V - 120V
UPC: 612079190836
Reviews: AtlasIED AA30PHD 3-Input 30W Amplififer (70V/8ohm)
There are currently no product reviews.
Warranty: AtlasIED AA30PHD 3-Input 30W Amplififer (70V/8ohm)
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Passive Loudspeaker Products
| 5-Years | |
| Line Array and Line Column Loudspeakers | 5-Years |
| Loudspeaker Hardware | 5-Years |
| Passive Attenuators & Volume Controls | 5-Years |
| Classroom Security & Sound Reinforcement Systems | 1-Year |
| Classroom Security & Sound Reinforcement Accessory Microphones | 90-Days |
| Amplifiers, Mixer/Amplifiers & TSD Series Amplifiers | 3-Years |
| BlueBridge® Digital Signal Processors | 3-Years |
| BlueBridge® DSP Wall Controllers | 1-Year |
| Sound Masking Electronics | 3-Years |
| MTX Home and Pro Loudspeakers | 1-Year |
| Electronic Accessories, PSUs & Telephony Products | 90-Days |
| Metal Rack & Cabinet Products | 5-Years |
| Active Rack Accessories | 1-Year |
| AC Power Conditioners, Sequencers, & Distribution Units | 1-Year |
| Interconnects & Accessories | 5-Years |
| Microphone Stands (Except Musician Series) | 2-Years |
| Musician Series Microphone Stands | 1-Year |
| Microphone Stand Accessories | 90-Days |
| Replacement Parts | 1-Year |
| VoIP Loudspeakers | 1-Year |
| VoIP Devices | 1-Year |
| Fuses, Lamps, Batteries | No Warranty |
| 5400 Series Controllers, Communication Stations, & Amplifiers (GLOBALCOM®) | 3-Years |
| 1500 Series PoE Compact Power Amplifiers | 3-Years |
| ACS Series Controllers, Communication Stations, & Accessories (GLOBALCOM®) | 3-Years |
| Titan DSP Mainframes & Accessories | 3-Years |
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and AtlasIED do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
