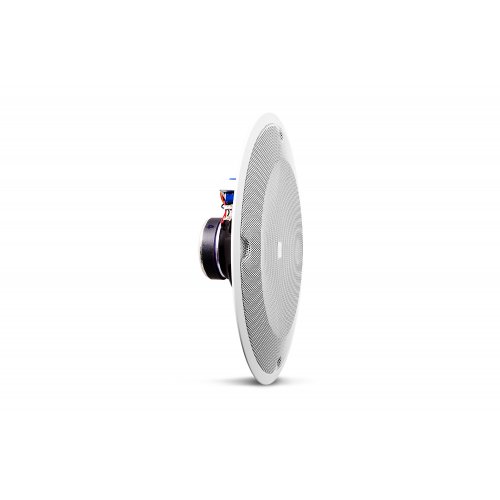

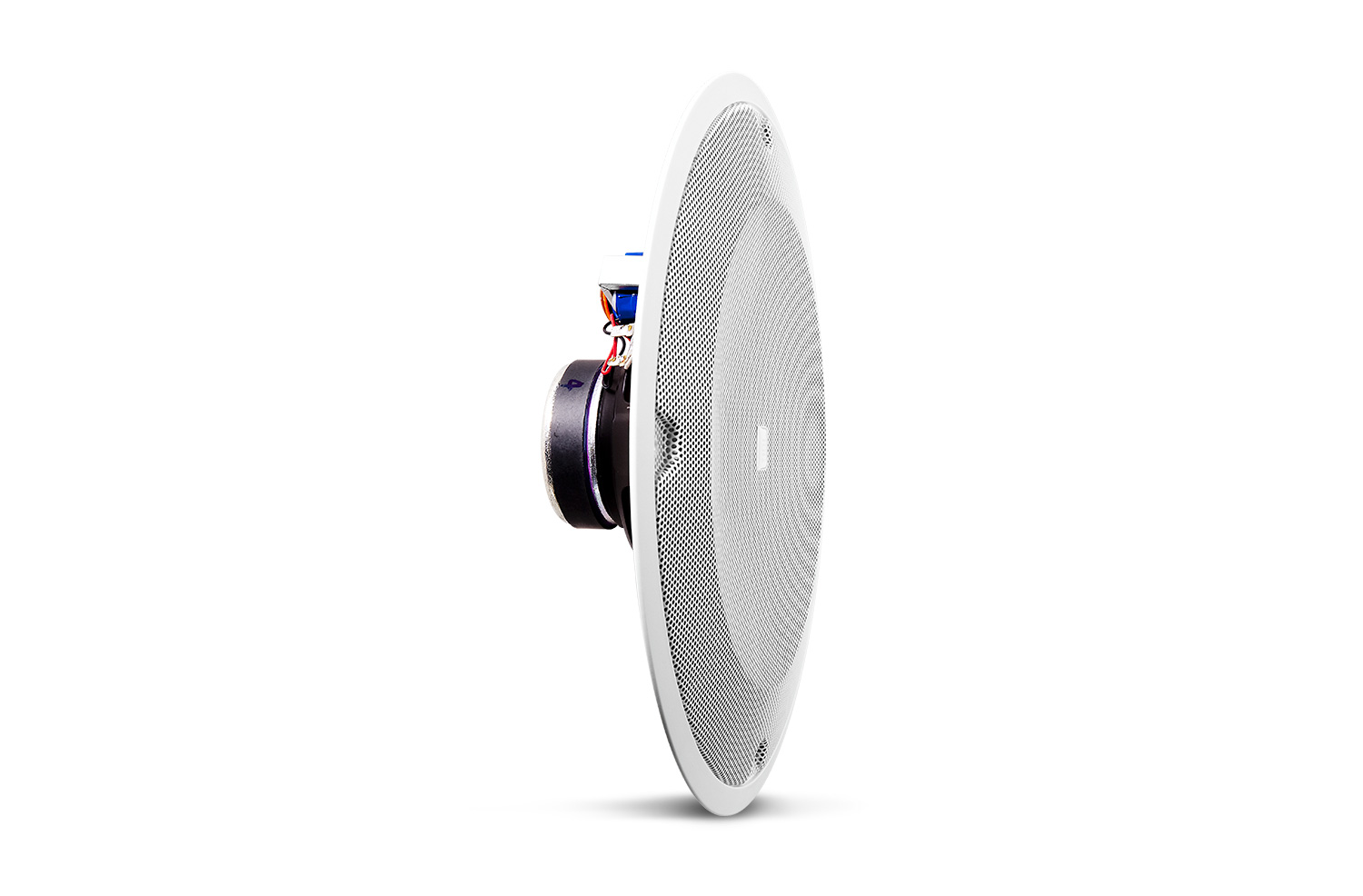

The 8138 8" ceiling speaker is designed for use with a pre-install in- ceiling backcan, resulting in high- fidelity performance at a cost- effective price point. The 8138 is ideal for a wide variety of commercial sound applications from restaurant and retail to professional offices and reception areas.

The built-in 6 Watt transformer allows use on 70V or 100V distributed speaker lines. High sensitivity of 97 dB delivers maximum sound levels using minimal amplifier power, allowing the use of smaller power amplifiers compared to when using lower sensitivity drivers.

The driver features a 25 mm (1 in) voicecoil with Kapton coil former for reliability. The treated cloth surround provides deeper bass response compared with typical paper-roll surrounds, for fuller sound quality.

The 8138 fits the MTC-81BB8 backcan and MTC-81TB8 tile bridge, or can be used with most in-ceiling backcan/tile bridge systems designed with four mounting points on a 286 mm (111⁄4 in) diameter mounting circle.

With its contemporary grill design, the 8138 provides a stylish upscale look that fits into many decórs. The 8138 brings style and performance to basic commercial sound systems.

Features

• Stylish, contemporary appearance enhances any decór
• Clear sound from an 8 inch dual- cone full-range driver
• Very high sensitivity of 97 dB for maximum sound levels using minimum amplifier power
• 6W transformer for use on 70V/100V distributed speaker lines
• Installs to in-ceiling backboxes having 4 mounting points on an 11-1⁄4" (286 mm) diameter mounting circle
• For use with MTC-81BB8 backcan and MTC-81TB8 tile bridge

Specifications

• Drivers -  200 mm (8 in) Full-Range, Dual-cone
• Frequency Range (-10dB) -   95 Hz – 18 kHz
• Sensitivity -  97 dB (2k - 8k Hz)
• Coverage Angle -  90° conical
• Driver Power Capacity
  • 40W (160W peak), 2 hrs
  • 25W (100W peak), 100 hrs
• Transformer Taps -  6W, 3W, 1.5W, (0.75W at 70V only)
  • Color Codes
    • Black = Common
    • Orange = 6W at 70V
    • Brown = 3W at 70V; 6W at 100V
    • Blue = 1.5W at 70V; 3W at 100V
    • White = 0.75W at 70V; 1.5W at 100V
• Input Connectors -  Bare wires
• Magnet -  0.62 lb (283 g)
• Maximum SPL (1m) -  105 dB (top 70V/100V tap)
• Color -  White
• Baffle/Rim -  Plastic
• Plenum Usage -  Yes, with accessory backcan
• Backcan -  Formed steel (accessory)
• Safety Agency -  Transformer is UL registered per UL1876
• Installation -  Full assembly consists of 8138 speaker plus MTC-81BB8 backbox andMTC-81TB8 tile bridge. Four screw holes at industry standard 286 mm (11.25 in) mounting circle.
• Optional Accessories -  MTC-81BB8 backcan, MTC-81TB8 tile bridge
• ​Included Accessories -  Integral grille, 4 pcs M4 x 40 mm tapping screws
• Ceiling Cutout Size (Diameter)
  • 11.75 inch (300 mm) with tile bridge and backbox.
  • 9 inch (228 mm) diameter as stand alone.
• Mounting points -  4 points on 11.25 in (286 mm) diameter mounting circle
• Dimensions (Diameter x Depth) -  12.9 x 3.3 inch (327 x 84 mm)
  • Depth from back of baffle. Overall depth is 3.9 inch (99 mm)
• Weight -  3.09 lb (1.4kg)
