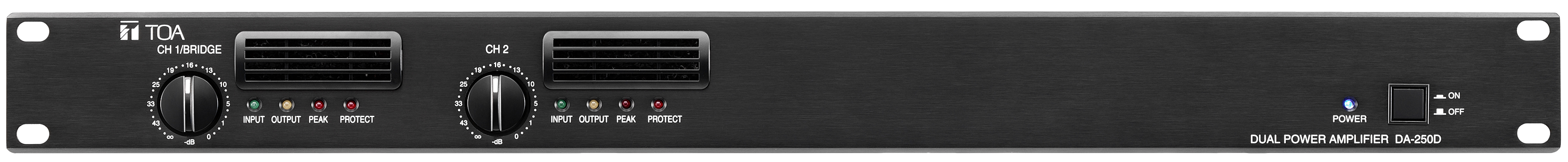

TOA DA-250DH 2-Channel 70V Amplifier
Model: DA-250DH
About: TOA DA-250DH 2-Channel 70V Amplifier
The DA-250DH is a 2-Channel Digital Power Amplifier designed for 70 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 250 W × 2 channels (19.6 Ω output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-251H Output Transformer (optional). It can be mounted in an EIA Standard equipment rack (1 unit size).
- Power Source 120 V AC, 50/60 Hz
- Amplification System Class D
- Power Consumption 120 W (based on UL/CSA standards)
- 580 W (rated output 70 V line, 19.6 Ω × 2)
- Input 2 circuits, +4 dB* (1.23 V) (input level control in maximum position),
- 10 kΩ, electronically-balanced, removable terminal block (3 pins),
- XLR-3-31 type connector
- CH 1 mode ON/OFF switch (ON: PARALLEL, OFF: STEREO)
- Rated Output 2 channels: 250 W × 2 (70 V line, 19.6 Ω)
- 1 channel (BRIDGE): 500 W × 1 (140 V line, 39.2 Ω)
- M4 screw terminal, distance between barriers: 8.8 mm (0.35")
- Frequency Response 20 - 20,000 Hz (±1 dB): HPF OFF/50 - 20,000 Hz (-3 dB, +1 dB): HPF ON
- (selectable with the inner jumper)
- Total Harmonic Distortion 0.1% (1 kHz), 0.3% (20 - 20,000Hz): HPF OFF
- 0.1% (1 kHz), 0.3% (100 - 20,000 Hz): HPF ON
- Protection Circuit Protection against excessive current flow due to overload,
- short circuit, unusual DC voltage output,
- temperature rise at power amp. heat sink (100℃ or more (212゜F)),
- temperature rise inside the unit (80℃ or more (176゜F))
- S/N Ratio 100 dB (A-weighted)
- Crosstalk 70 dB (A-weighted)
- LED Indicator Power (blue) × 1, Input (green) × 2, Output (yellow) × 2, Peak (red) × 2,
- Protect (red) × 2
- Cooling Forced air cooling
- Operating Temperature -10℃ to +40℃ (14゜F to 104゜F)
- Operating Humidity 90% RH or less (no condensation)
- Finish Panel: Aluminum, black, alumite Case: Plated steel sheet
- Dimensions 482 (W) × 44 (H) × 401.8 (D) mm (18.98" × 1.73" × 15.82")
- Weight 5 kg (11.02 lb)
- Accessory Power cord (2 m (6.56 ft)) …1, Removable terminal plug (3 pins) …2,
- Tamper-proof cap …2
- Option Matching transformer: MT-251H
Reviews: TOA DA-250DH 2-Channel 70V Amplifier
Warranty: TOA DA-250DH 2-Channel 70V Amplifier
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Audio - 5 Years
With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty
Intercom - 5 Years
All Batteries have a 1 year warranty
Parts
All parts have a 90-day warranty. All Batteries have a 1 year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and TOA Canada do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
