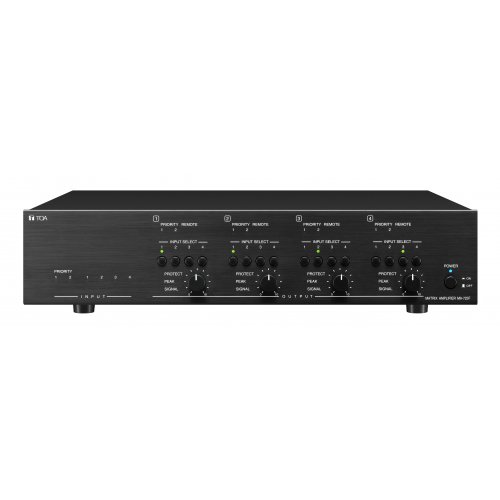

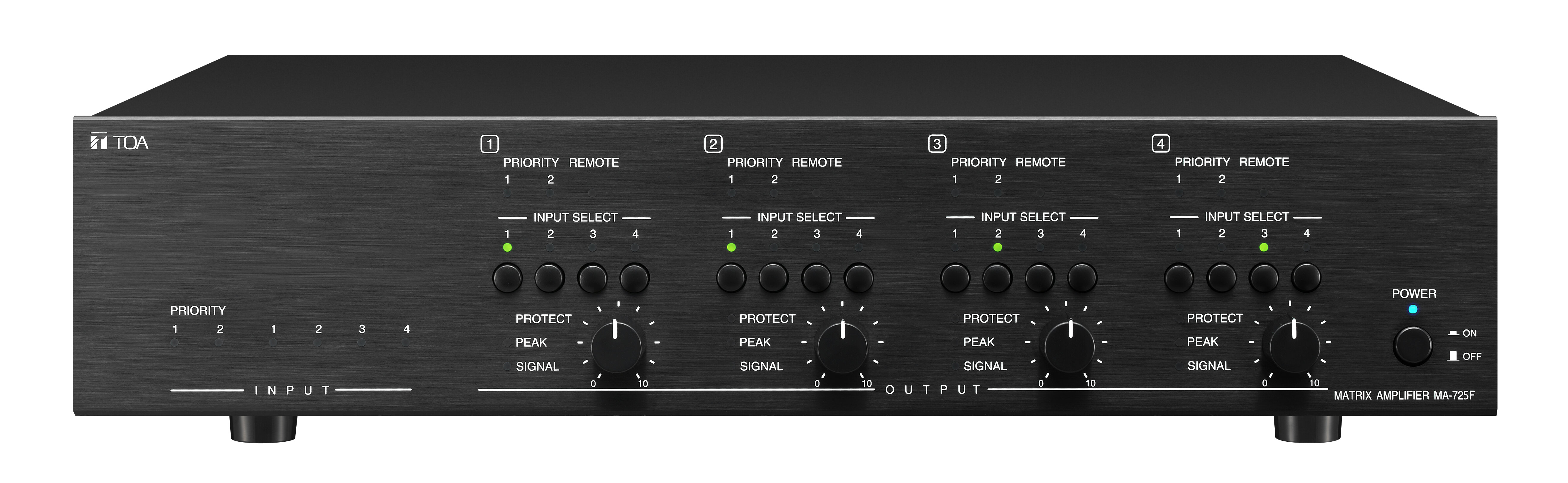

TOA Canada MM-700F 6x4 Matrix Mixer with DSP

About: TOA Canada MM-700F 6x4 Matrix Mixer with DSP

The MM-700F is a 6-input matrix mixer: 4 of its inputs are configured for BGM or other line-level sources, while two balanced inputs are designated for priority sources, such as paging mics or message players. A totally digital product sporting 24Bit/48kHz digital sound quality, its simple user-interface belies its advanced inner workings. The only controls any user needs to access are the front panel source select buttons and four output level (zone) controls. All other controls are placed on the rear panel to prevent unauthorized tampering. An optional wall control (WP-700-AM) can be connected via a single shield CAT5 cable to each of the four output channels, allowing access to volume and source select.

Key Features

• 4 stereo line and 2 priority MIC/LINE inputs with matrix routing to 4 line outputs
• 2 priority inputs with different priority level for paging or other audio source to override stereo line inputs
• Each priority input has input gain level, mute sensitivity and mute hold time adjustments
• 4 BGM/Audio source selection on each output
• Independent DSP preset selection per each channel and 50Hz HPF for speaker protections
• DSP preset selections include general EQs, TOA speaker EQs and X-over settings to be used with subwoofers
• WP-700 zone source/volume control available
• Up to 4 wall mount remote control, WP-700 can be connected to control the line input selection and output volume
• Browser-based Smart Control
• 100-240V universal power supply

The new TOA MM-700F Matrix Mixer is developed from years of experience providing mixers for the retail industry (with a client list that’s a virtual “who’s who” of retail) and with the cooperation of some of its top players, the MM-700F is designed to address the demand for a simpler and more cost-effective, mid-level background music and paging systems needing simple control with multiple zones.  Just as advanced as some of its high-priced kin, but without the complicated setup or programming required by many other solutions.

The digital mixer section also features a menu of 26 TOA speaker EQ presets (selectable by dip-switch), factory-loaded, to optimize the sound of our most popular PA and audio speakers. It also provides settings to allow bi-amping with subwoofers and offers many popular audio playback EQ curves. TOA will also offer a powered Matrix Mixer Amplifier version (MA-725F) as an all-in-one solution providing built-in amplification.

The MM-700F matrix pre-amplifier performs matrix controls from 4 LINE plus 2 MIC/LINE level inputs to 4 output channels. Each output channel features 64 DSP preset selections for general equalizations, crossover for sub-woofers, or a variety of TOA speakers' EQ settings. 2 MIC/LINE inputs have 1st and 2nd priority levels which can override assigned output channels automatically or manually. If connected with optional WP-700-AM wall remotes via shielded CAT-5 cable, audio source selection and volume controls can be done remotely. All assignments and setups can be done by dip switches on its rear panel without a laptop or a PC. This unit fits a wide range of applications that require multi-zone paging and/or background music distribution at restaurants, retail stores, factories, and many other venus.

The WP-700-AM is a remote control switch/volume panel that is designed for the MM-700F-AM mixer, which can remote select input source and adjust volume levels when connected via a shielded Ethernet cable to the MM-700F mixer. It can also be mounted in a 1-gang electrical box (American type).

The browser Control feature allows password protected control of source, volume control and options from a browser on your PC (Internet Explorer, Google Chrome, Firefox, etc.).  Smartphones (iOS or Android devices) using a browser function are also supported.

Specifications

• Power Source -  100 - 240V AC, 50/60Hz
• Power Consumption -  9 W or less (standby)
• Frequency Response -  20Hz - 20 kHz (-3 dB / + 1 dB)
• Total Harmonic Distortion -  0.5% or less, at 1kHz, rated output
• Certifications -  cULus 60065, EN60065, EN55032, EN55020, FCC part15 class A
• Input
  • Priority 1-2: Mic -60 dB/Line -10 dB selectable, 2.2 kΩ, electronically-balanced, removable terminal block
  • Line In 1-4: -10 dB, 10 kΩ, unbalanced, 2 RCA jacks (Stereo summing)
• Output
  • Line Out 1-4: 0 dB*, 600 Ω, unbalanced, removable terminal block
  • MOH: 0 dB*, 600 Ω, transformer balanced, removable terminal block
• DSP Preset -  16 presets in 4 banks at each output channel, selectable
• S/N Ratio -  Mic: 60 dB* or more, Line: 75 dB* or more (A-weighted)
• Muting -  Manual mute / Automatic mute
• Mute Hold Time -  50ms - 10 seconds, adjustable
• Priority Level -  PRIORITY 1 > PRIORITY 2 > LINE 1-4
• Control
  • Power: ON/OFF switch, Power remote terminal
  • Priority 1-2: MIC/LINE selector switch, Gain control, Assign switch, Auto mute switch, Mute sense control, Manual mute terminal, Mute hold time control, Priority mix switch
  • Line In 1-4: Gain control, Assign restriction switch
  • Output 1-4: LINE In 1-4 selector switch, Output gain control, DSP bank selector switch, DSP preset selector switch
  • Remote 1-4: Remote control connector (RJ-45), Remote link switch
• Indicators
  • Power: 1 Power LED
  • Priority 1-2: 1 Signal LED, 1 Peak LED
  • Line In 1-4: 1 Signal LED, 1 Peak LED
  • Output: 2 Activated PRIORITY LED, 1 Connected REMOTE LED, 4 Selected LINE LED, 1 Signal LED, 1 Peak LED
• Operating Temperature -  0 to 40 °C degree (32 to 104 °F)
• Operating Humidity -  35% to 80% RH (no condensation)
• Finish -  Panel: Aluminum, hair line, black; Case: Steel plate, black, paint
• Dimension -  420 (W) x 107.6 (H) x 350 (D) mm  (16.54" x 4.24" x 13.78")
• Weight -  5.7 kg (12.3 lbs)
• Accessories -  Power cord (2m (5.65ft)) x1, Removable terminal plug (5 pins x 2, 3 pins x 1, 2 pins x 4); Rack mounting bracket x 2, Bracket mounting screws x 4, User manual x 1
• Option -  Remote Control Panel : WP-700-AM
