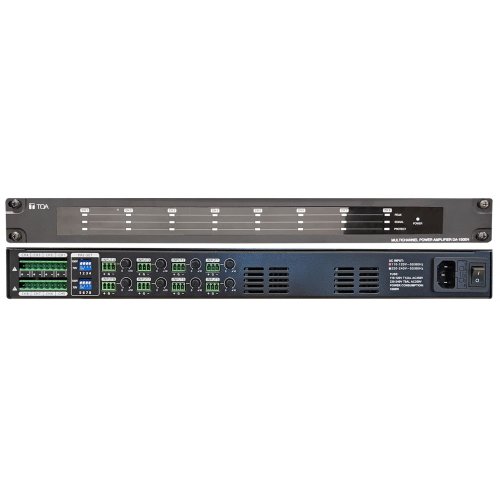

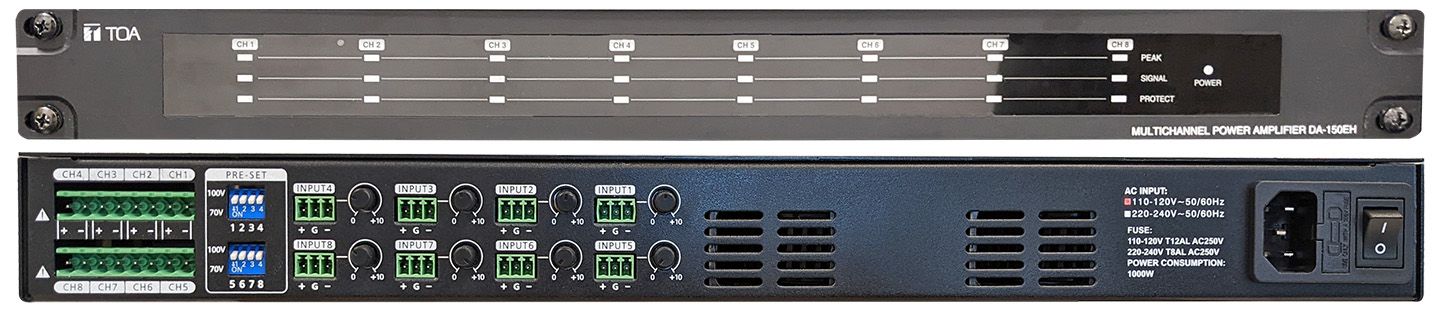

TOA Canada DA-150EH Multichannel Power Amplifier

About: TOA Canada DA-150EH Multichannel Power Amplifier

TOA's DA-150EH-AM Multichannel Power Amplifier features high power handling capabilities and commercial-grade durability. It has a rated output of 150 W x 8 channels (100/70V line output). It covers larger scale sound system applications where background/foreground music distributions and/or voice announcements are required in multi-zone. It can be mounted in an EIA standard equipment rack. This lightweight and compact amplifier, offers 8 channel Class D power with 150W per channel.

• 8-Channel Class-D amplifier.
• 150W per channel.
• Separate volume control for each channel.
• Low power consumption and light weight.
• Electronically-balanced inputs.
• Input terminals employ removable terminal blocks to achieve quick and easy connections.
• Equipped with the LED indicators that show the input status, etc.
• Built-in protection circuitry disconnects the power amplifier's output from the load when a short circuit, overload, or unusual temperature rise occurs.

Specifications:

• Power Source -  110-120 V AC, 50/60 Hz
• Amplification System -  Digital class D
• Power Consumption -  1000 W
• Input
  • 8 circuits, 0 dBV (1 V) (input level control in maximum position)
  • 20 kΩ, electronically-balanced, removable terminal block (3 pins)
• Rated Output
  • 8 channels: 150 W x 8 (66.7 Ω (100 V)/33 Ω (70 V))
  • 100/70 V DIP switch x 8, removable terminal block (2 pins)
• Frequency Response -  50 - 20,000 Hz (±3 dB)
• Total Harmonic Distortion -  < 0.1%
• S/N Ratio -  > 95 dB (A-weighted)
• Crosstalk -  > 70 dB (A-weighted)
• Protection Circuit
  • Short circuit,
  • open circuit,
  • thermal,
  • excessive input,
  • ultrasonic and RF
• Indicators
  • Signal (green) x 8
  • Peak (red) x 8
  • Protect (red) x 8
  • Power (green) x 1
• Cooling -  Forced air cooling
• Operating Temperature -  0°C to +40°C (32 °F to 104 °F)
• Finish
  • Panel: aluminum, black, alumite
  • Case: plated steel sheet
• Dimensions -  483 (W) x 44 (H) x 360 (D) mm (19" x 1.7" x 14.2")
• Weight -  7.3 kg (16.09 lbs)
• Accessory
  • Power cord (2 m) ...1,
  • Removable terminal plug (3 pins) ...8,
  • Removable terminal plug (2 pins) ...8
