TOA Canada WP-700-AM Remote Control Panel
Model: WP-700-AM
About: TOA Canada WP-700-AM Remote Control Panel

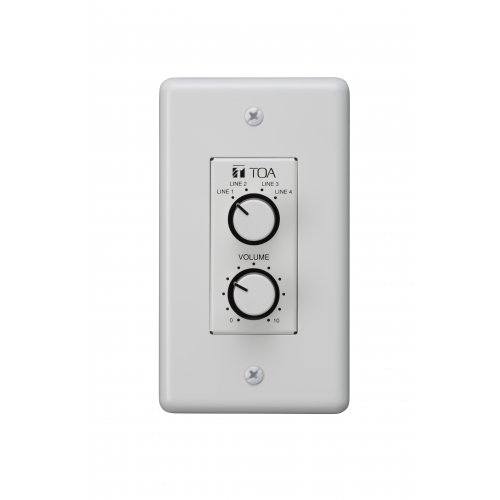

The WP-700-AM is a wall remote control panel, designed to remotely control MA-725F (or MM-700F) matrix mixer amplifiers.
Key Features
- Select input source and adjust volume level of connected output.
- Up to 4 units can be connected to one MA-725F/MM-700F unit. (1 WP-700 per each output channel).
- Single CAT5/5e/6 STP cable is required for each connection. (Max. 300 feet).
- It can be mounted in a 1-gang standard electrical box.
Specifications
- Applicable Cable - CAT5/5e6 STP cable
- Control Operation - Input select switch x 1, Volume control knob x 1
- Terminal - RJ-45 connector
- Operation Temperature - -10 °C to 40 °C (14 °F to 104 °F)
- Finish - Surface treated steel plate, white paint (RAL 9016)
- Dimension - 72 (W) x 128 (H) x 56.6 (D) mm (2.83" x 5.04" x 2.23")
- Weight - 210 g (0.463 lb)
Reviews: TOA Canada WP-700-AM Remote Control Panel
Warranty: TOA Canada WP-700-AM Remote Control Panel
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Audio - 5 Years
With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty
Intercom - 5 Years
All Batteries have a 1 year warranty
Parts
All parts have a 90-day warranty. All Batteries have a 1 year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and TOA Canada do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
