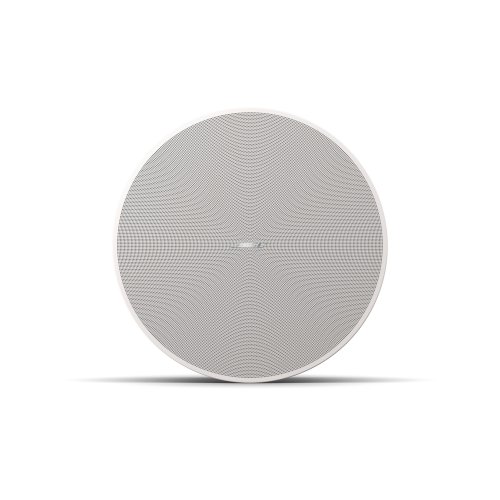

Bose DM8C-SUB DesignMax 180W In-Ceiling Subwoofer (Each)

About: Bose DM8C-SUB DesignMax 180W In-Ceiling Subwoofer (Each)

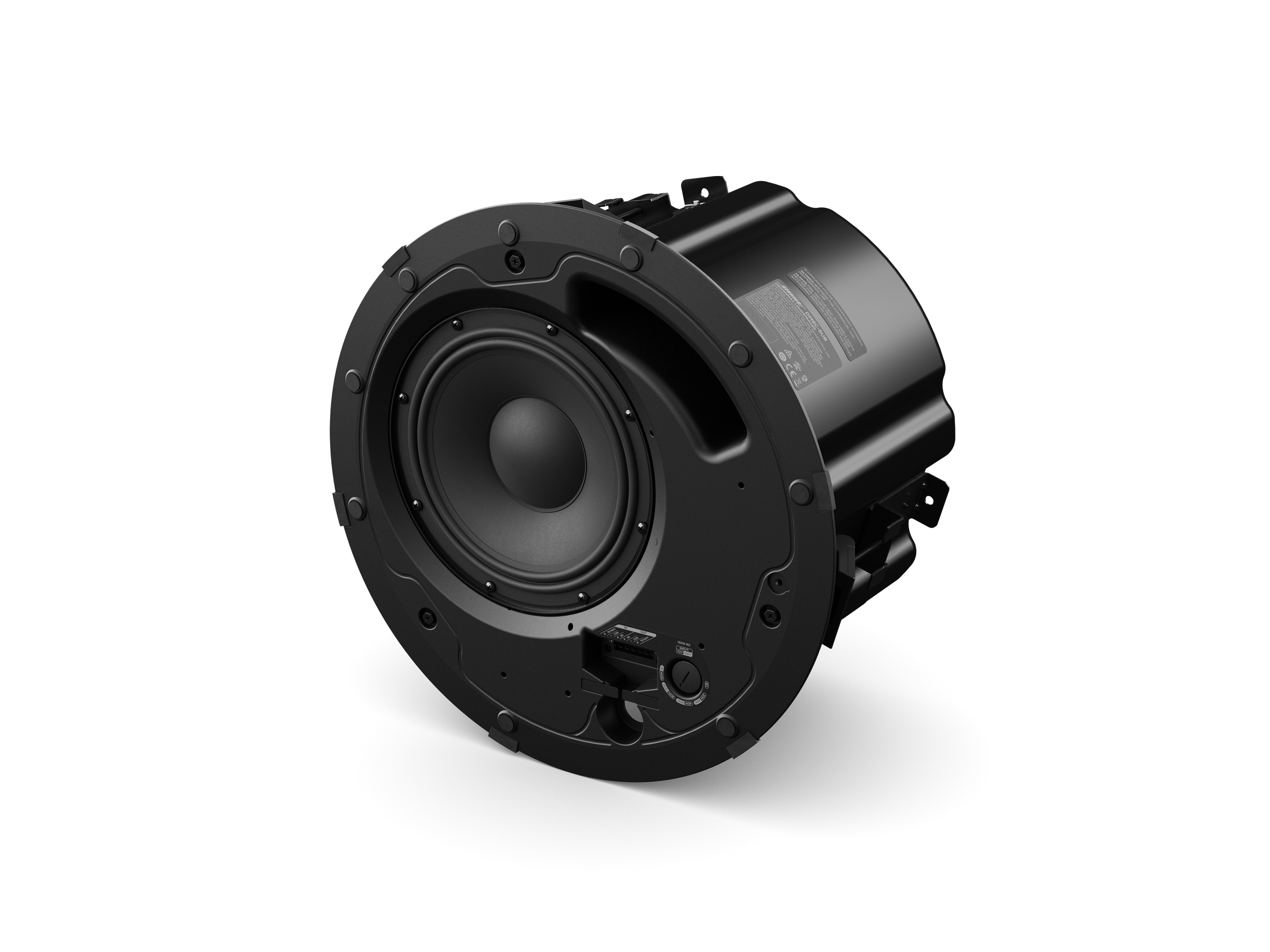

Delivering rich low-end performance, the 180-watt Bose Professional DesignMax DM8C-SUB subwoofer brings instantly impressive bass to any commercial sound installation. The in-ceiling DM8C-SUB has an 8-inch woofer, 38 Hz – 155 Hz frequency range, and is installed easily via QuickHold mounting arms. DesginMax subwoofers complement and enhance any DesignMax installation.

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver rich bass performance with custom Bose Professional drivers; for optimal performance use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • NOTE: DesignMax in-ceiling loudspeakers are only sold in white. An optional black grille is available to purchase separately

Specifications

• PERFORMANCE
  • Frequency Range (-10 dB): 38 Hz – 115 Hz
  • Coverage, Horizontal: Omnidirectional below 200 Hz
  • Coverage, Vertical: Omnidirectional below 200 Hz
  • Calculated Maximum SPL @ 1 m: 112 dB
  • Nominal Impedance: 8 Ω (transformer bypass)
  • Power Handling, long-term continuous: 180 W
  • Power Handling, Peak: 720 W
  • Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m): 89 dB
  • Transformer Taps, 100V: 40, 80, 150 W, bypass
  • Transformer Taps, 70V: 20 W, 40 W, 80 W, 150 W, bypass
• TRANSDUCERS
  • Driver Protection: Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter
  • Crossover: 80 Hz – 200 Hz via active crossover in DSP

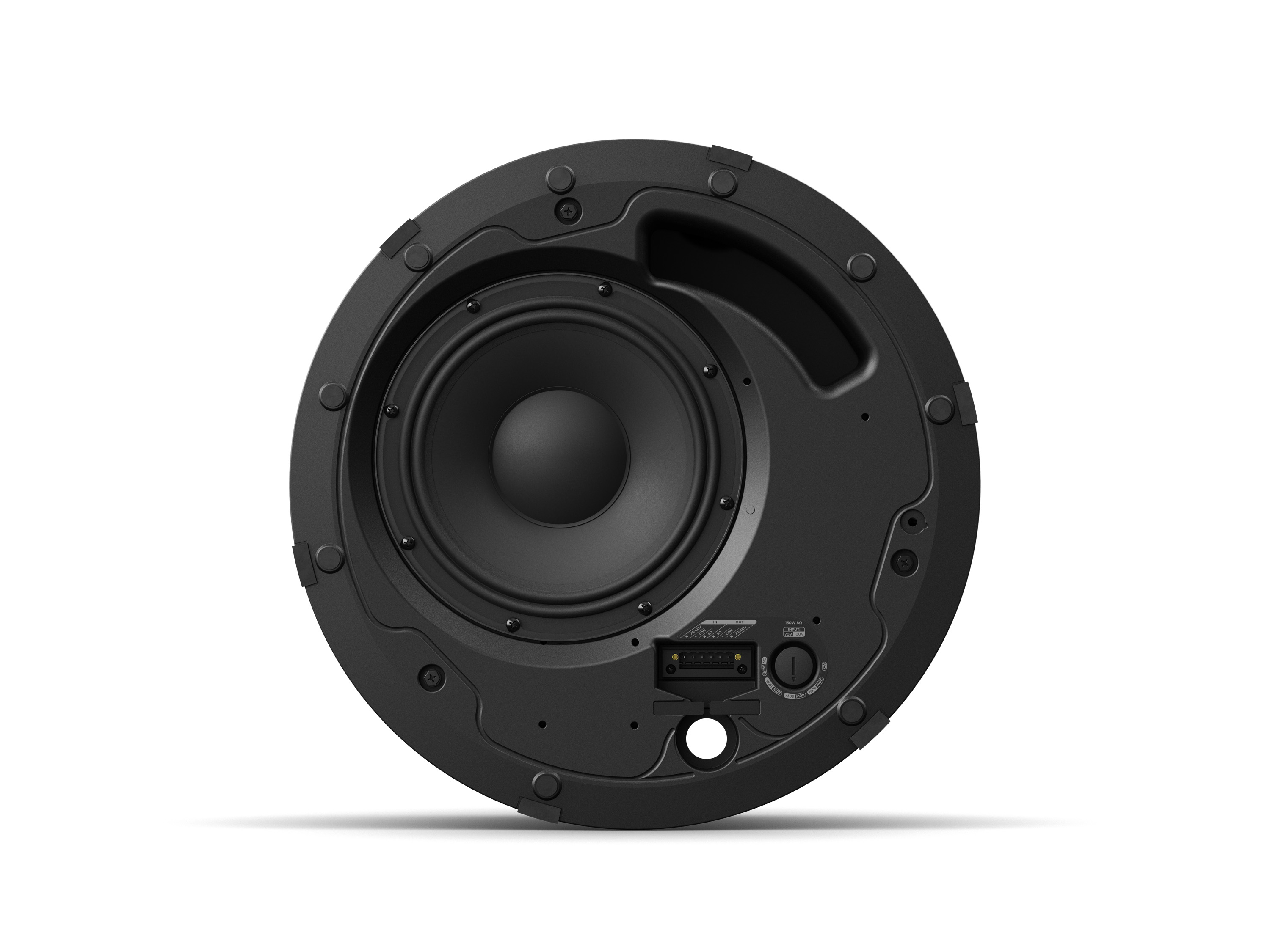

  • Low-Frequency: 1 x 8 in (203 mm) woofer
• COMPLIANCE PHYSICAL
  • Safety Agency Ratings: UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant
  • Colors: White, paintable

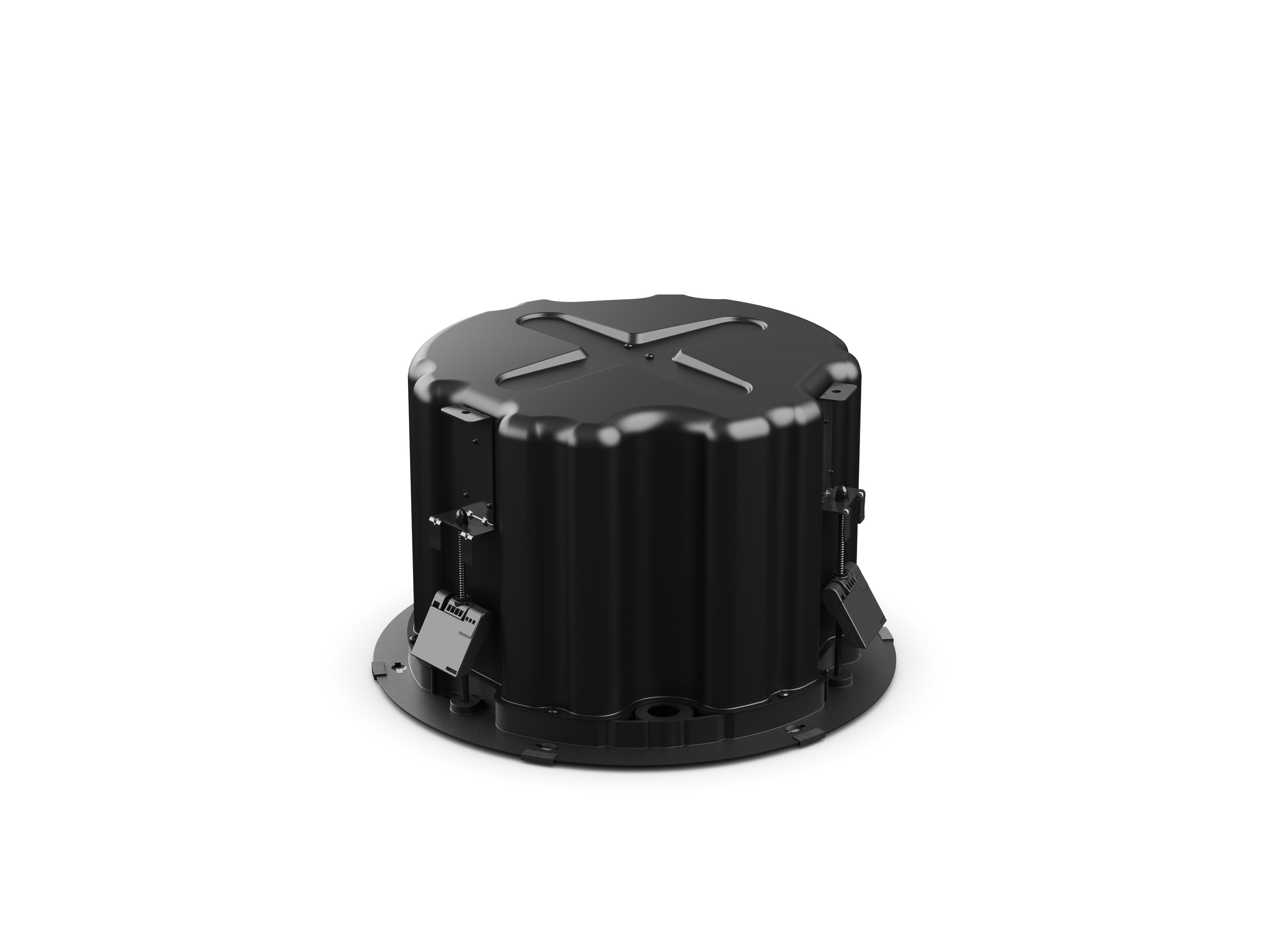

  • Enclosure Material: Engineered-plastics front baffle with integrated steel-formed backcan
  • Environmental: Indoor only

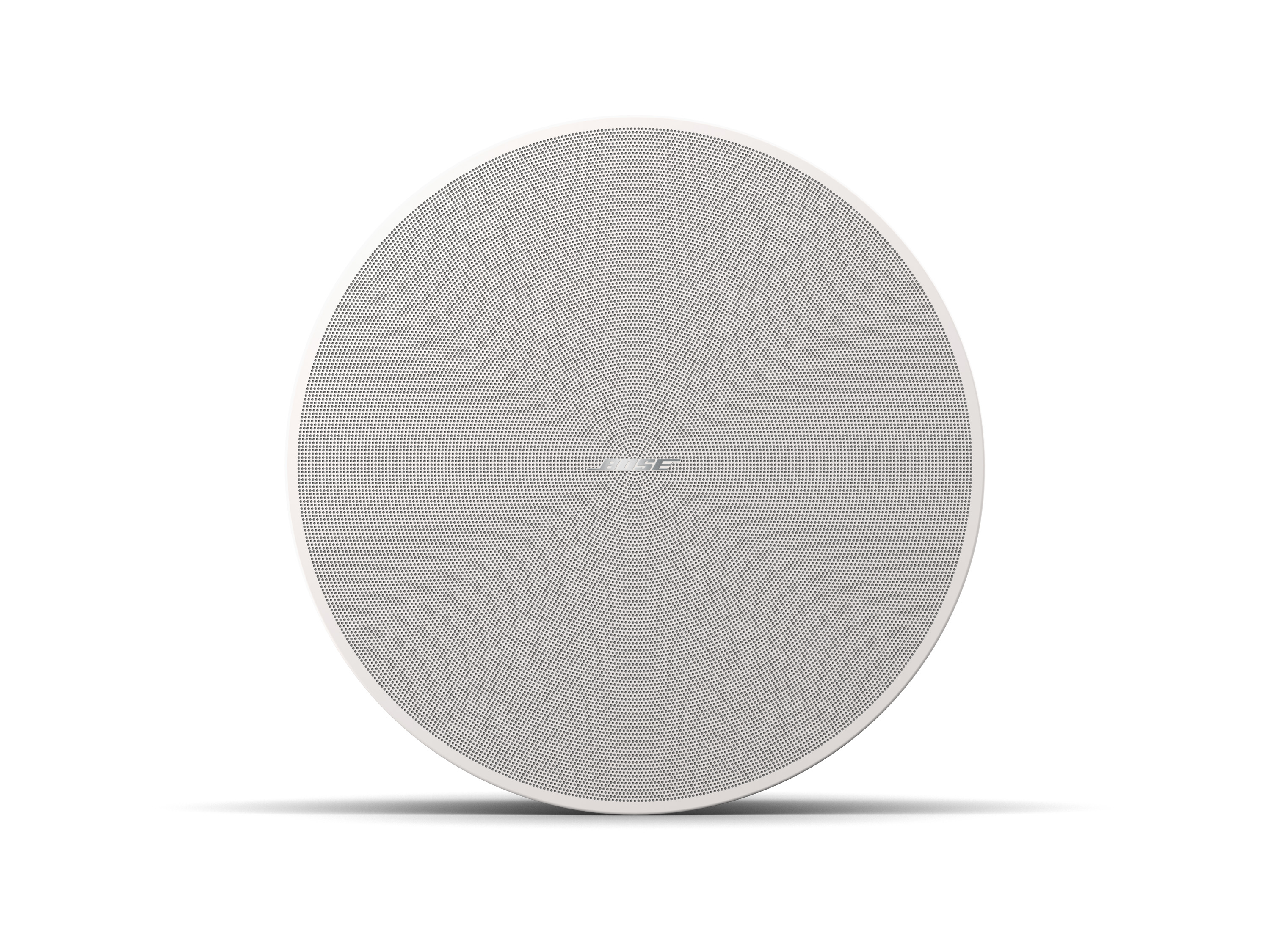

  • Grille: Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
  • Ceiling Cutout: 13.8 in (349 mm)
  • Logo: Rotatable, removable
  • Connectors -  Euroblock 6-pin connector with loop-through, front-baffle mounted.
    • Accepts 18 AWG (0.8 mm) to 14 AWG (2.5 mm) size wire
  • Suspension/Mounting

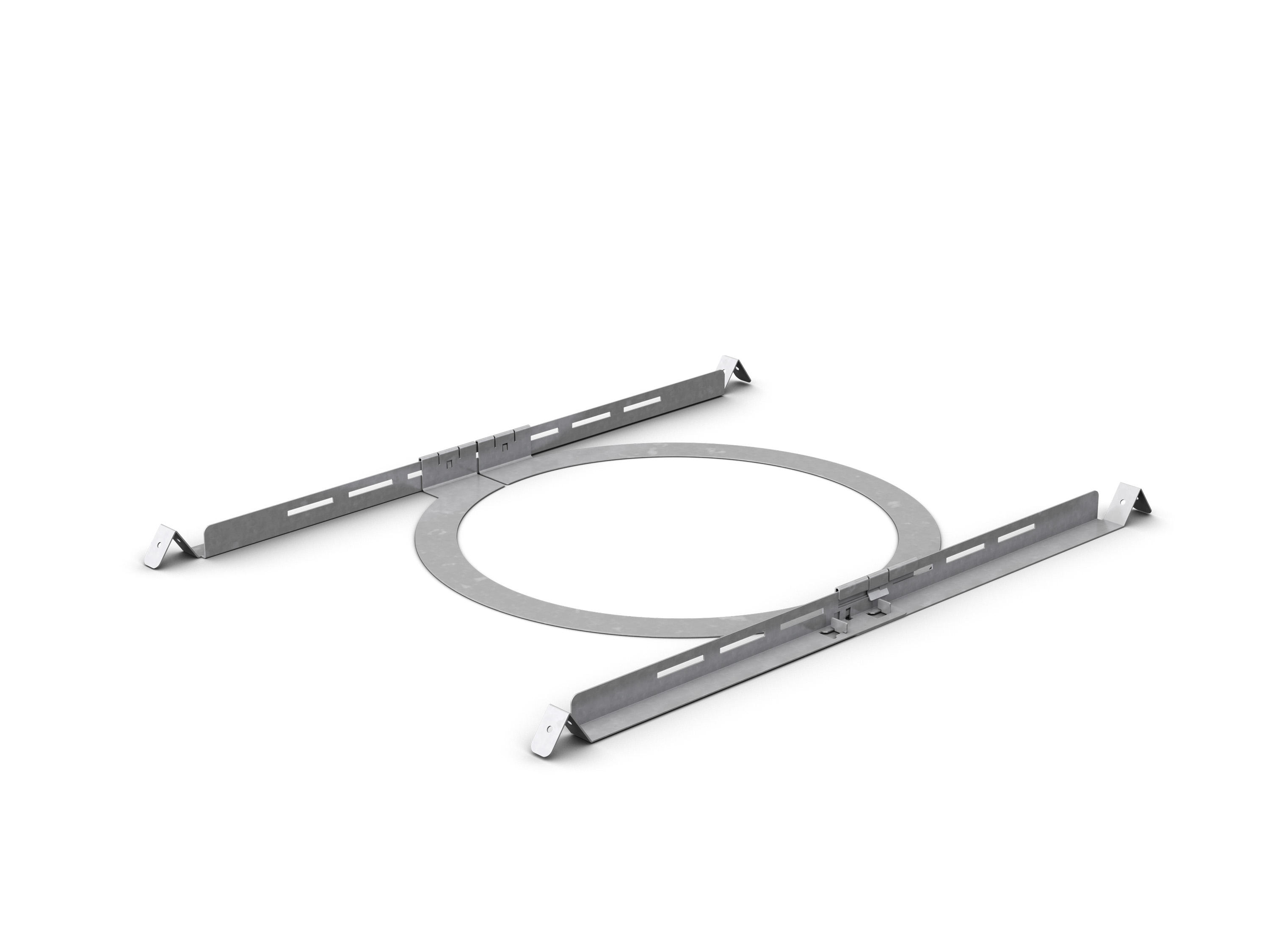

    • (3) QuickHold spring-loaded mounting arms
    • (3) safety cable attachment points
  • Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (HxWxD)
    • Loudspeaker Diameter x Depth: 16.1 x 10.0 in (409 x 255 mm)
    • Backcan Diameter x Depth: 13.4 x 9.5 in (340 x 240 mm)
  • Weight (each)
    • Loudspeaker w/ grille: 21.9 lb (9.9 kg)
    • Tile bridge: 2.2 lb (1.0 kg)

What's in the Box

• 1x DesignMax DM8C-SUB Subwoofer
• 1x White Grille

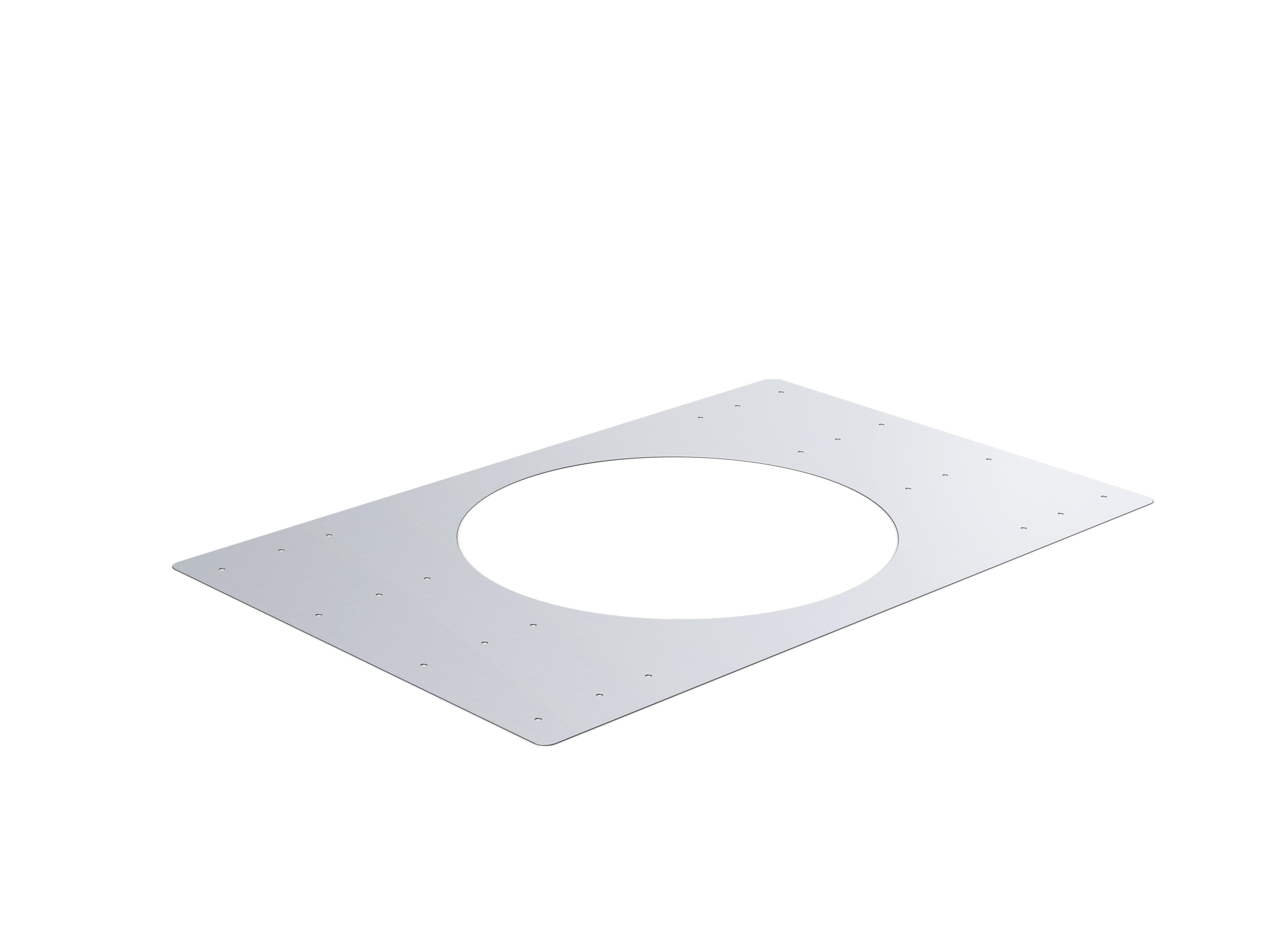

• 1x Tile Bridges
• 1x Cutout Template
• 1x Installation Guide
