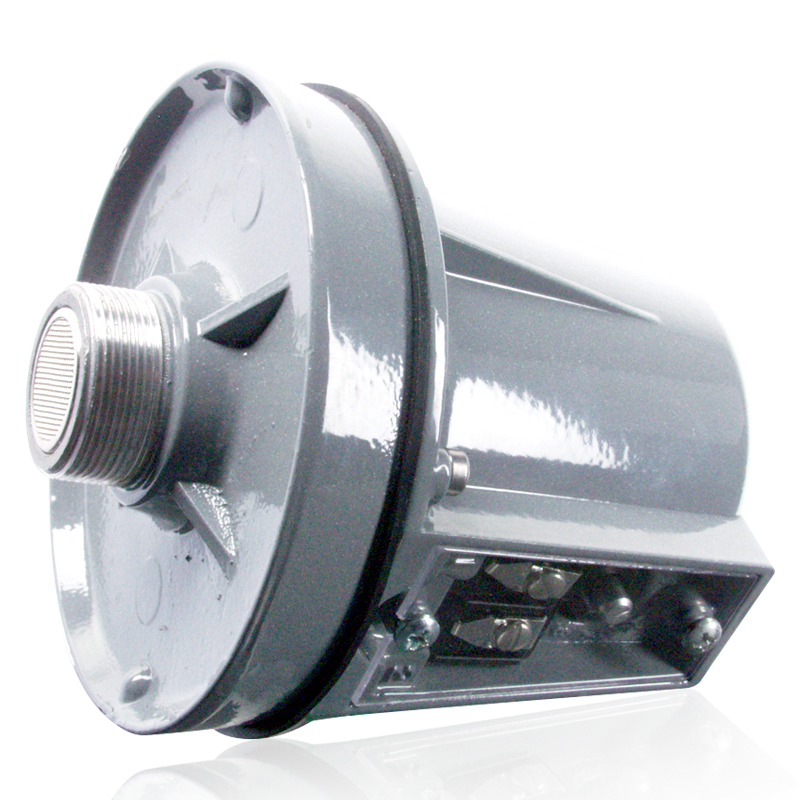

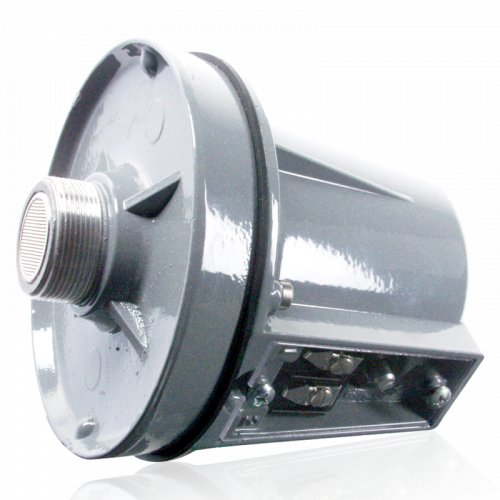

AtlasIED PD-30T Compression Driver
Model: PD-30T
About: AtlasIED PD-30T Compression Driver
The PD-30T is a fully environment-resistant compression driver for indoor or outdoor applications recommended for use in expansive and/or high-ambient sound-level areas. The unit has a power rating of 30 watts, a 1.5" voice coil and a plane wave frequency response of 300Hz - 3.9kHz.
Transformer-equipped Model PD-30T incorporates the exclusive AtlasIED Vari-Tap® Control/Connect Center with a screwdriver selectable ohms/watts switch. The integral 70V line matching transformer is varnish impregnated for maximum environment resistance and life expectancy. It also includes a protective terminal cover with built-in strain relief to assure secure cable connection.
The PD-30T is terminated in standard 1 3/8"-18" thread male couplings for use with screw-on horns.
Features
- 30-Watt Power Rating
- Environment-Resistant Construction for Indoor/Outdoor Use
- Extended Frequency Response Range for Optimum Intelligibility
- Outstanding Sound Reproduction and Power-Handling For Signaling, Music and Public Address Systems
- BX-1A Conduit Adapter Compatible
- Frequency Response 300Hz - 3.9kHz
- Sensitivity 113.6 (avg) 300 - 3,900 Hz
- Depth 4 1/2" (11.43 cm)
- Shipping Weight 4.00 lbs (1.81 kgs)
- Warranty Period 60 months from date of purchas
UPC: 612079117116
