Clear-Com PS-702 2-Channel 2-Amp Power Supply

Model: PS-702

Clear-Com PS-702 2-Channel 2-Amp Power Supply
Clear-Com PS-702 2-Channel 2-Amp Power Supply
Clear-Com PS-702 2-Channel 2-Amp Power Supply
  • Free Shipping!
  •  Available - Approx 5 Day Lead Time
  • Not yet reviewed



About: Clear-Com PS-702 2-Channel 2-Amp Power Supply

The PS-702 can deliver 1.2 amps at 30 volts DC to two channels. This is sufficient to power up to 40 beltpacks, 10 speaker stations, or 12 headset stations even under the most demanding conditions. Either channel is capable of supplying up to 1.2 amps. The full current capacity may be divided between the two channels.

Clear-Com’s advanced fail-safe design can sense the dierence between a short and an overload. Should a problem occur, each channel’s DC overload/fault LED identies the power supply’s response to the problem: solid means an overload is sensed, but still powered; blinking means power has been temporarily cut o to protect the power supply. If both channels are operating and one channel has a fault, the other channel will continue to operate normally. Power is restored to the shorted or overloaded channel in a little as .5 seconds. With our exclusive Intelligent Fault/Overload Sensing (IFOS), the PS-702 will dynamically increase this time period before attempting another reset until the fault or overload is corrected. This function signicantly extends component life. And there is no need to disconnect stations for the power supply to reset.

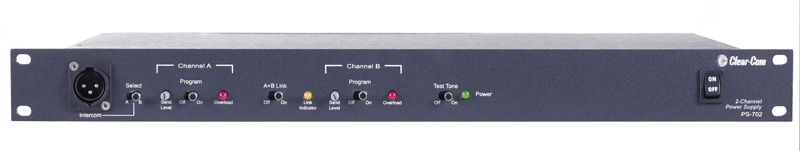

The unit also oers a convenient front panel in tercom line jack, switchable to either channel. This can be quite handy for t rouble-shooting or simply a time saver when quick access to e ther i intercom line is needed. A 440Hz tone is available on either or both channels and is indispensable for system diagnostics and set-up. Simply ip a switch, set a level, and go.

Like all current Clear-Com Party-Line power supplies, two or more units can be connected in parallel for increased system capacity or backup redundancy. Multiple units will automatically synchronize their response to power faults and overloads. The PS-702 can also operate as a singlechannel unit by using the front-panel A+B link switch.

Features:

  • Provides up to 2 amps in only 1RU •
  • Supports up to 40 beltpacks, 10 speaker stations or 12 headset stations
  • Exclusive IFOS Intelligent Fault/ Overload Sensing for system reset
  • Front panel intercom line jack selectable for either channel
  • A+B Link switch for single channel operation
  • Balanced program input with global and individual channel controls
  • Universal power supply accepts 100-240 VAC
  • Overload/fault indicator for each channel
  • Built-in test tone generator for set up and diagnostics
  • Switchable terminations for each channel
  • Works in parallel with other power supplies and main stations
  • UL Listed and CE certified

Reviews: Clear-Com PS-702 2-Channel 2-Amp Power Supply

There are currently no product reviews.


Warranty: Clear-Com PS-702 2-Channel 2-Amp Power Supply

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

All Clear-Com brand systems and products, including wired and wireless belt packs, have a Limited Warranty of two years, with the following exceptions:

  1. Clear-Com headsets, handsets, microphones, UHF wireless IFB products, and the following DX and PRO products: AC850 Charger, BAT850 Battery, BAT41 and BAT850 batteries, HS12, headsets, remote antenna cables, SP10 Speaker, XLR Adapters and HS20-2 headsets have a Limited Warranty of one year.
  2. Cables, accessories, components and consumable items including the BP850 battery sled, Beltpack antennas, Beltpack configuration cable, HS4-2 Earpiece, RMK850 Mounting Kit, RAK850 Remote Kit, Beltpack pouch, DX headset extension cable, HS4-3 Earpiece, HSI6000, RMK200, Splitter/Combiner, WS200 Battery Sled, Foam inserts in travel case, CAT-5 cable, base antenna have a Limited Warranty of 90 days.
  3. Any Clear-Com product that has been classified as obsolete at the time of sale has a Limited Warranty of 90 days from sale and will be replaced with the same product or a sales credit will be issued, at the sole discretion of Clear-Com.
  4. Clear-Com PRO 850 series wireless base station and Beltpacks have a Limited Warranty of three years.
  5. Clear-Com UHF WBS Analog wireless intercom systems have a Limited Warranty of three years.
  6. All software products, including Concert (Client and Server), ECS, EHX, Production Maestro Pro and Logic Maestro are warranted for one year and shall substantially conform to published specifications. The media on which the Software is furnished is warranted to be free of defects in material and workmanship (under normal use) for a period of one year.

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
