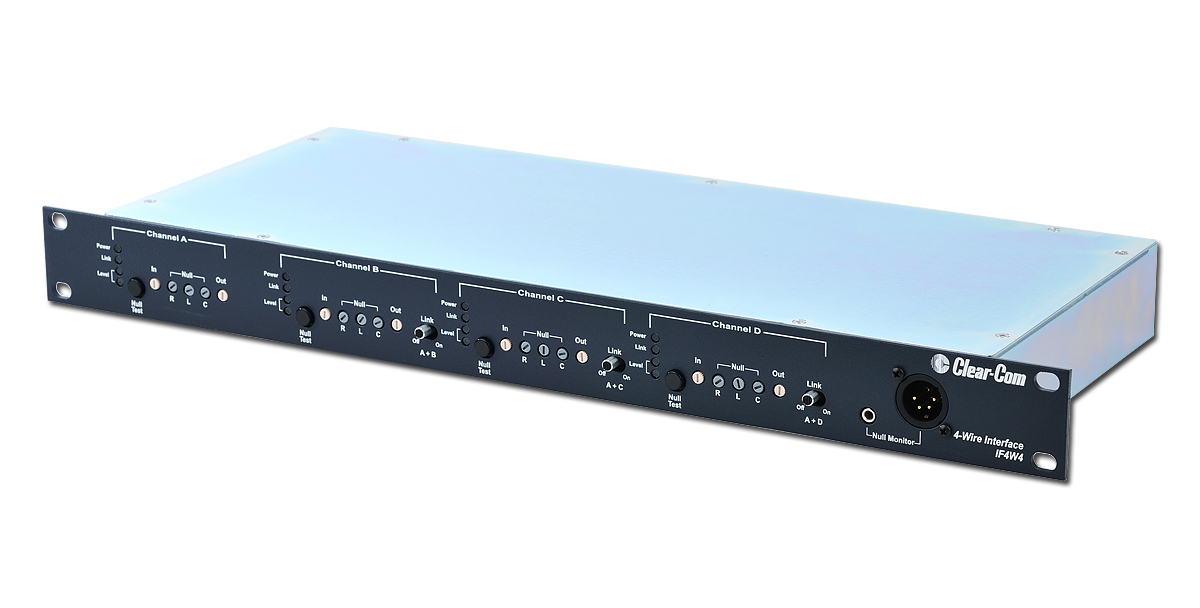

Clear-Com IF4W4 4-Channel 3- or 4-Wire Camera Interface

Model: IF4W4

Clear-Com IF4W4 4-Channel 3- or 4-Wire Camera Interface
Clear-Com IF4W4 4-Channel 3- or 4-Wire Camera Interface
Clear-Com IF4W4 4-Channel 3- or 4-Wire Camera Interface
  • Free Shipping!
  •  In Stock - Shipping Only
  • Not yet reviewed

About: Clear-Com IF4W4 4-Channel 3- or 4-Wire Camera Interface

Four channel interface connects Clear-Com to TV cameras, two-way radios, satellite links, and other communications devices through either their headset jacks or 4-wire circuits. IF4W4 has selective partyline capability. Features individual transmit, receive, and null controls, as well as transmit level indicators. Switchable mic or line-level output for compatibility. The built-in test jack and test tone provide quick nulling.

The IF4W4 accepts balanced or unbalanced 4-wire input and is transformer isolated. It is powered by the Clear-Com intercom line, using standard two-conductor shielded mic cable.

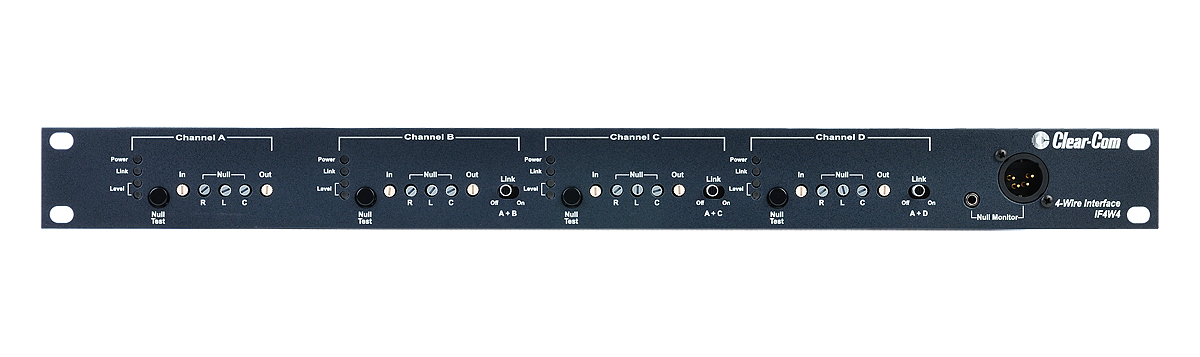

Front Panel Capabilities
Front-panel controls allow the user to adjust the operating parameters for each interface module, optimizing the interface between the 4-wire device and the party line. Capabilities include: adjusting the transmit and receive levels between the intercom system and the 4-wire line; optimizing the hybrid null balance; switching the transmit level between mic and line level; and emulating either a carbon or a dynamic microphone. A two-color LED transmit-level indicator gives a visual indication of send levels to the transmit lines.

A front-panel test jack is connected to a built-in oscillator. Using the null control and an earphone with a 1/8" plug or 4-pin headset, the user can quickly null the send/receive hybrid. Set-up switches allow the user to assign the interfaced devices to separate intercom channels, or to assign any or all to a single party line.

Each interface module has its own set of transformer-isolated connectors. The terminal block provides a pair of connections for both transmit and receive signals, with a 600-ohm load across the receive line. An XLR-3M connector provides the link between the interface and the Clear-Com intercom line.


  • Interfaces TV cameras, 2-way radios, fiber-opticcircuits, and other devices to Clear-Com party-line intercom
  • Each interface has individual transmit, receive, andnull controls
  • Transmit output switchable between mic and linelevel, with transmit-level indicator
  • Built-in test jack and oscillator enable quicknulling of the transmit/receive hybrid
  • Selective party-line capability
  • Accepts balanced or unbalanced 4-wire input
  • Terminal block and XLR connectors provided for eachinterface
  • Powered by the Clear-Com line

Reviews: Clear-Com IF4W4 4-Channel 3- or 4-Wire Camera Interface

There are currently no product reviews.

Warranty: Clear-Com IF4W4 4-Channel 3- or 4-Wire Camera Interface Warranty:

30 Days

Manufacturer's Warranty:

All Clear-Com brand systems and products, including wired and wireless belt packs, have a Limited Warranty of two years, with the following exceptions:

  1. Clear-Com headsets, handsets, microphones, UHF wireless IFB products, and the following DX and PRO products: AC850 Charger, BAT850 Battery, BAT41 and BAT850 batteries, HS12, headsets, remote antenna cables, SP10 Speaker, XLR Adapters and HS20-2 headsets have a Limited Warranty of one year.
  2. Cables, accessories, components and consumable items including the BP850 battery sled, Beltpack antennas, Beltpack configuration cable, HS4-2 Earpiece, RMK850 Mounting Kit, RAK850 Remote Kit, Beltpack pouch, DX headset extension cable, HS4-3 Earpiece, HSI6000, RMK200, Splitter/Combiner, WS200 Battery Sled, Foam inserts in travel case, CAT-5 cable, base antenna have a Limited Warranty of 90 days.
  3. Any Clear-Com product that has been classified as obsolete at the time of sale has a Limited Warranty of 90 days from sale and will be replaced with the same product or a sales credit will be issued, at the sole discretion of Clear-Com.
  4. Clear-Com PRO 850 series wireless base station and Beltpacks have a Limited Warranty of three years.
  5. Clear-Com UHF WBS Analog wireless intercom systems have a Limited Warranty of three years.
  6. All software products, including Concert (Client and Server), ECS, EHX, Production Maestro Pro and Logic Maestro are warranted for one year and shall substantially conform to published specifications. The media on which the Software is furnished is warranted to be free of defects in material and workmanship (under normal use) for a period of one year.
