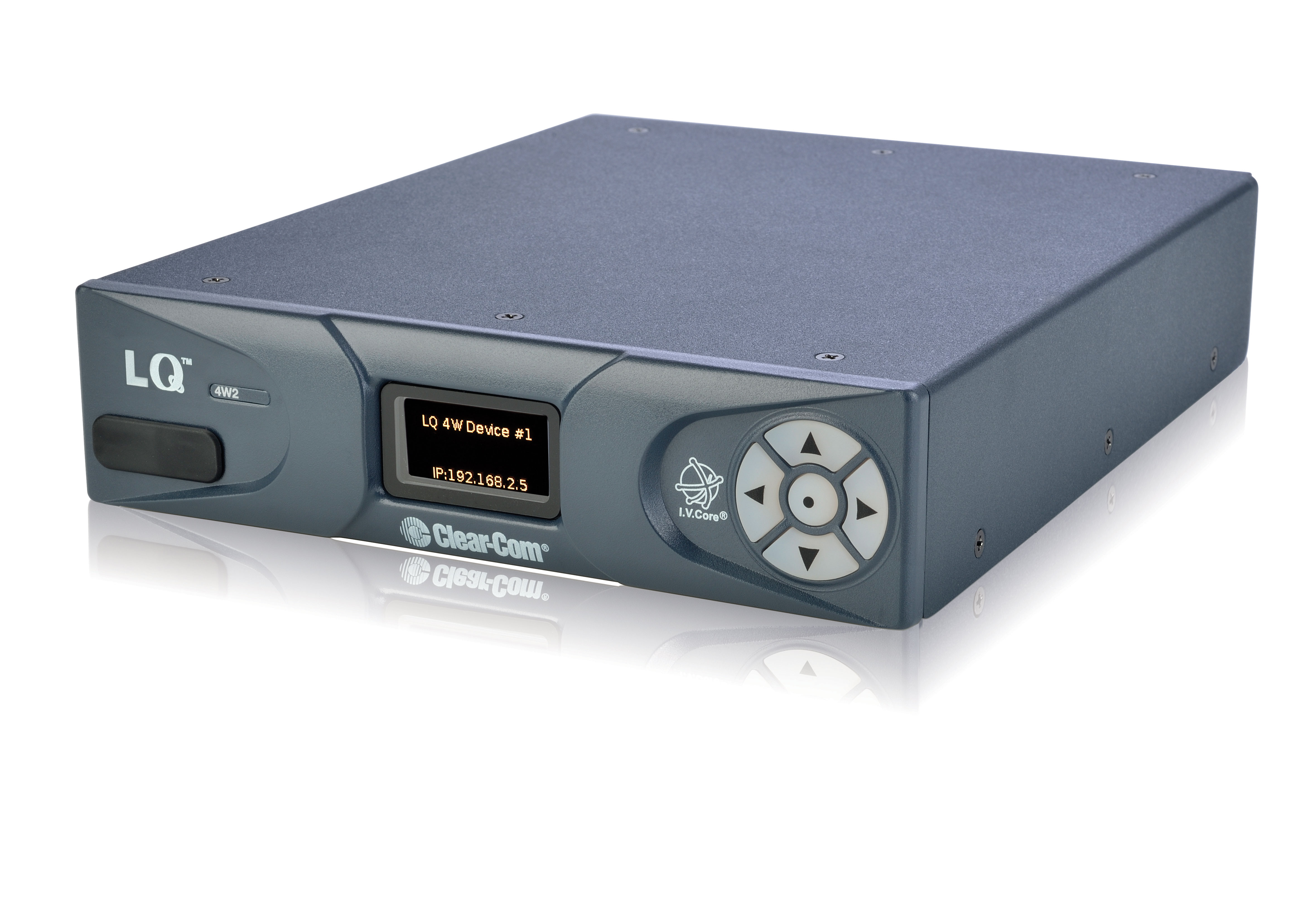

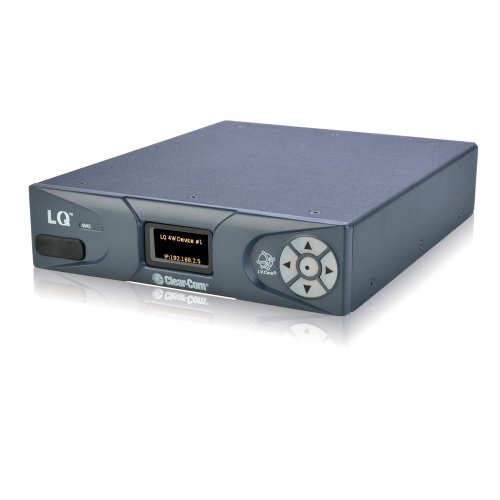

Clear-Com LQ-4W2 2-Channel / 4-Wire Partyline IP Interface

Model: LQ-4W2

Clear-Com LQ-4W2 2-Channel / 4-Wire Partyline IP Interface
Clear-Com LQ-4W2 2-Channel / 4-Wire Partyline IP Interface
  • Free Shipping!
  •  In Stock - Shipping Only
  • Not yet reviewed




About: Clear-Com LQ-4W2 2-Channel / 4-Wire Partyline IP Interface

The LQ-4W2 is a compact box that enable connection of 4-wire audio devices over LAN, WAN or Internet IP infrastructures. LQ Series devices can also connect to Eclipse HX frames via the IVC-32-HX interface card over LAN, WAN and Internet. The LQ-4W2 can interconnect with devices, such as analog ports of any matrix intercom systems, analog telephone circuits, two-way radio gateways and audio consoles.

Features Include:

  • Connectivity
    • Transport audio and call signaling over LAN, WAN and Internet networks
    • Wide range of bitrate settings
  • Linking
    • Up to 6 units can link together (both 4-wire and partyline)
    • Multiple groups of six in any network
  • Power Options
    • Power-over-Ethernet (PoE)
    • External wall DC adapter
  • Audio
    • Low-latency OPUS CODEC
    • 12 KHz frequency response
    • Point-to-point and group audio routing
  • 2 Port 4-Wire Device
    • Professional etherCon connectors
  • Core Configurator Manager (CCM) Software
    • Browser-based configuration for PC, MAC and Tablet
    • Web server inside each device (no additional software needed)

Videos: Clear-Com LQ-4W2 2-Channel / 4-Wire Partyline IP Interface

Reviews: Clear-Com LQ-4W2 2-Channel / 4-Wire Partyline IP Interface

There are currently no product reviews.


Warranty: Clear-Com LQ-4W2 2-Channel / 4-Wire Partyline IP Interface

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

All Clear-Com brand systems and products, including wired and wireless belt packs, have a Limited Warranty of two years, with the following exceptions:

  1. Clear-Com headsets, handsets, microphones, UHF wireless IFB products, and the following DX and PRO products: AC850 Charger, BAT850 Battery, BAT41 and BAT850 batteries, HS12, headsets, remote antenna cables, SP10 Speaker, XLR Adapters and HS20-2 headsets have a Limited Warranty of one year.
  2. Cables, accessories, components and consumable items including the BP850 battery sled, Beltpack antennas, Beltpack configuration cable, HS4-2 Earpiece, RMK850 Mounting Kit, RAK850 Remote Kit, Beltpack pouch, DX headset extension cable, HS4-3 Earpiece, HSI6000, RMK200, Splitter/Combiner, WS200 Battery Sled, Foam inserts in travel case, CAT-5 cable, base antenna have a Limited Warranty of 90 days.
  3. Any Clear-Com product that has been classified as obsolete at the time of sale has a Limited Warranty of 90 days from sale and will be replaced with the same product or a sales credit will be issued, at the sole discretion of Clear-Com.
  4. Clear-Com PRO 850 series wireless base station and Beltpacks have a Limited Warranty of three years.
  5. Clear-Com UHF WBS Analog wireless intercom systems have a Limited Warranty of three years.
  6. All software products, including Concert (Client and Server), ECS, EHX, Production Maestro Pro and Logic Maestro are warranted for one year and shall substantially conform to published specifications. The media on which the Software is furnished is warranted to be free of defects in material and workmanship (under normal use) for a period of one year.
