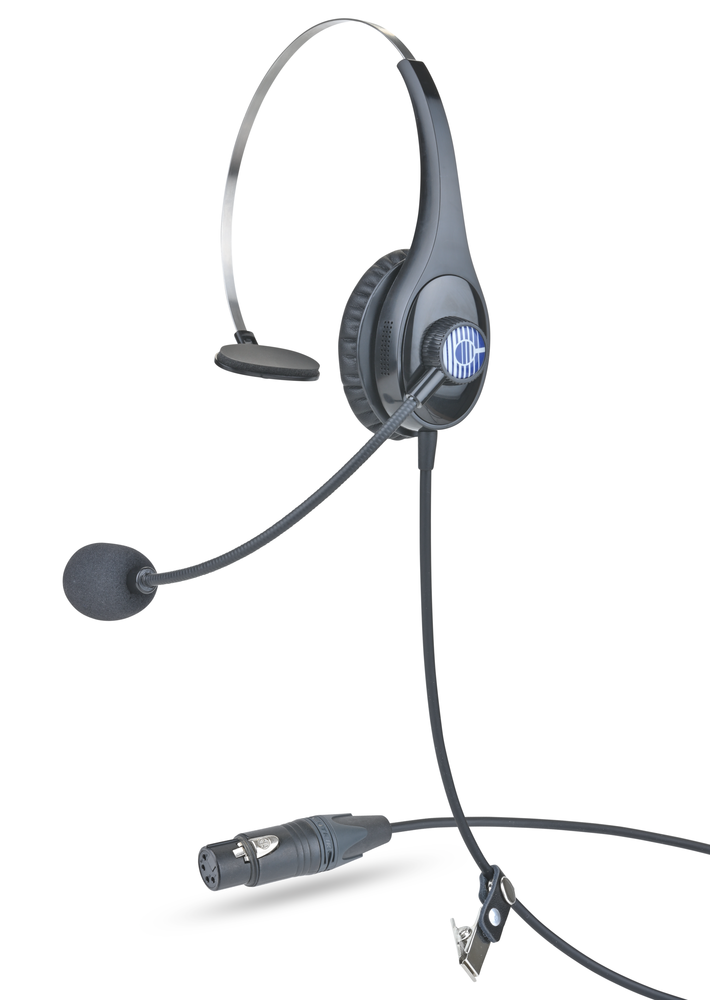

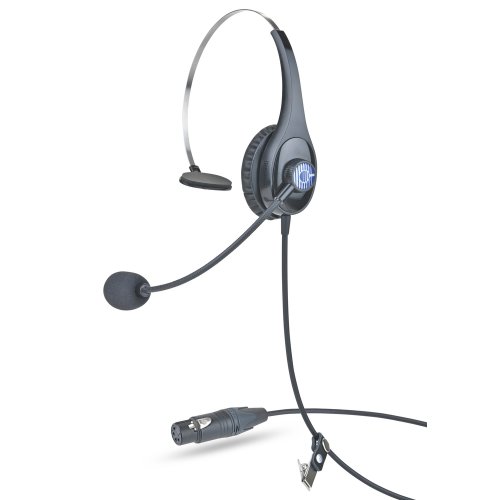

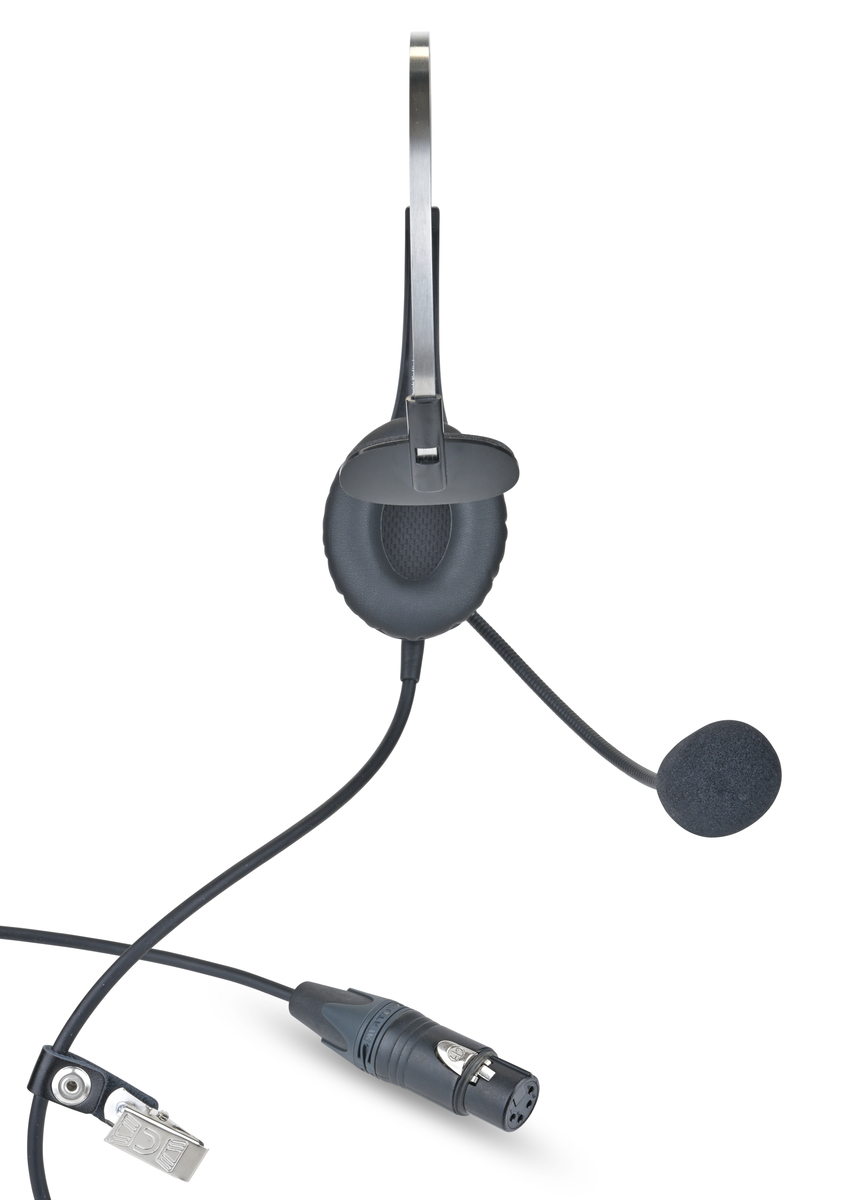

Clear-Com CC-28 Single-Sided Headset (4-Pin XLR)
Model: CC-28-X4
About: Clear-Com CC-28 Single-Sided Headset (4-Pin XLR)
Single closed back, lightweight headset
- Over-the-head design
- Flexible gooseneck microphone positioning
- Leatherette earpad
- Dynamic microphone
- 100Hz to 14kHz earphone frequency response
- Boom Rotation ON/OFF switch for quick microphone muting
- Fully serviceable
Technical Specifications
Headphone
- Type: Closed-back
- Driver: 27mm diameter
- Frequency response: 100Hz- 14kHz
- Sensitivity: 114dB ±3dB SPL@ 1kHz
- Impedance: 320 Ω ±20%; at 1kHz typical
- Input Power: 100mW
Microphone
- Element: Dynamic
- Polar Pattern: Cardioid
- Frequency Response: 200Hz-10kHz
- Sensitivity: -61±3dB at 0dB =1V/1Pa, at 1kHz
- Impedance: 200Ω ±20%; at 1kHz typical
Connector
- XLR 4-pin female (Neutrik) Clear-Com wiring
- Cabling: Screened and separately shielded microphone wires, cable not coiled
- Cable length: 5ft (1.5m)
Environmental
- Temperature: -10 ±3°C (14° to 37°F) to 55 ±5°C
- (131° to 41°F) for 48 hours
- Humidity: 40 ±5°C (104° to 41°F) to 90-95°C
- (194° to 203°F) relative humidity for 48 hours
Dimensions
- Dimensions Packaging: 6.3 x 8 x 2.4in (WxHxD)
- (160 x 205 x 60mm)
Weight
- 3.1oz (88g) without connector
- 3.5oz (99.2g)
Reviews: Clear-Com CC-28 Single-Sided Headset (4-Pin XLR)
Warranty: Clear-Com CC-28 Single-Sided Headset (4-Pin XLR)
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All Clear-Com brand systems and products, including wired and wireless belt packs, have a Limited Warranty of two years, with the following exceptions:
- Clear-Com headsets, handsets, microphones, UHF wireless IFB products, and the following DX and PRO products: AC850 Charger, BAT850 Battery, BAT41 and BAT850 batteries, HS12, headsets, remote antenna cables, SP10 Speaker, XLR Adapters and HS20-2 headsets have a Limited Warranty of one year.
- Cables, accessories, components and consumable items including the BP850 battery sled, Beltpack antennas, Beltpack configuration cable, HS4-2 Earpiece, RMK850 Mounting Kit, RAK850 Remote Kit, Beltpack pouch, DX headset extension cable, HS4-3 Earpiece, HSI6000, RMK200, Splitter/Combiner, WS200 Battery Sled, Foam inserts in travel case, CAT-5 cable, base antenna have a Limited Warranty of 90 days.
- Any Clear-Com product that has been classified as obsolete at the time of sale has a Limited Warranty of 90 days from sale and will be replaced with the same product or a sales credit will be issued, at the sole discretion of Clear-Com.
- Clear-Com PRO 850 series wireless base station and Beltpacks have a Limited Warranty of three years.
- Clear-Com UHF WBS Analog wireless intercom systems have a Limited Warranty of three years.
- All software products, including Concert (Client and Server), ECS, EHX, Production Maestro Pro and Logic Maestro are warranted for one year and shall substantially conform to published specifications. The media on which the Software is furnished is warranted to be free of defects in material and workmanship (under normal use) for a period of one year.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
