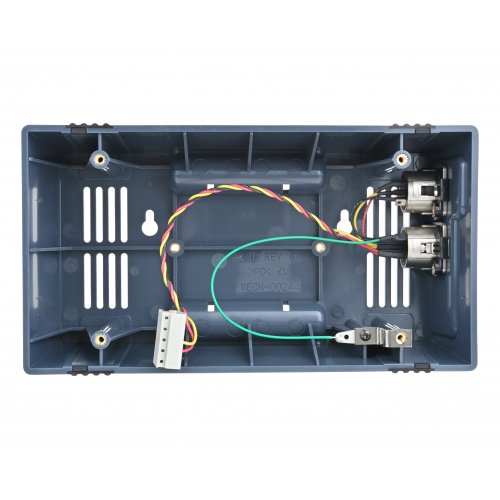

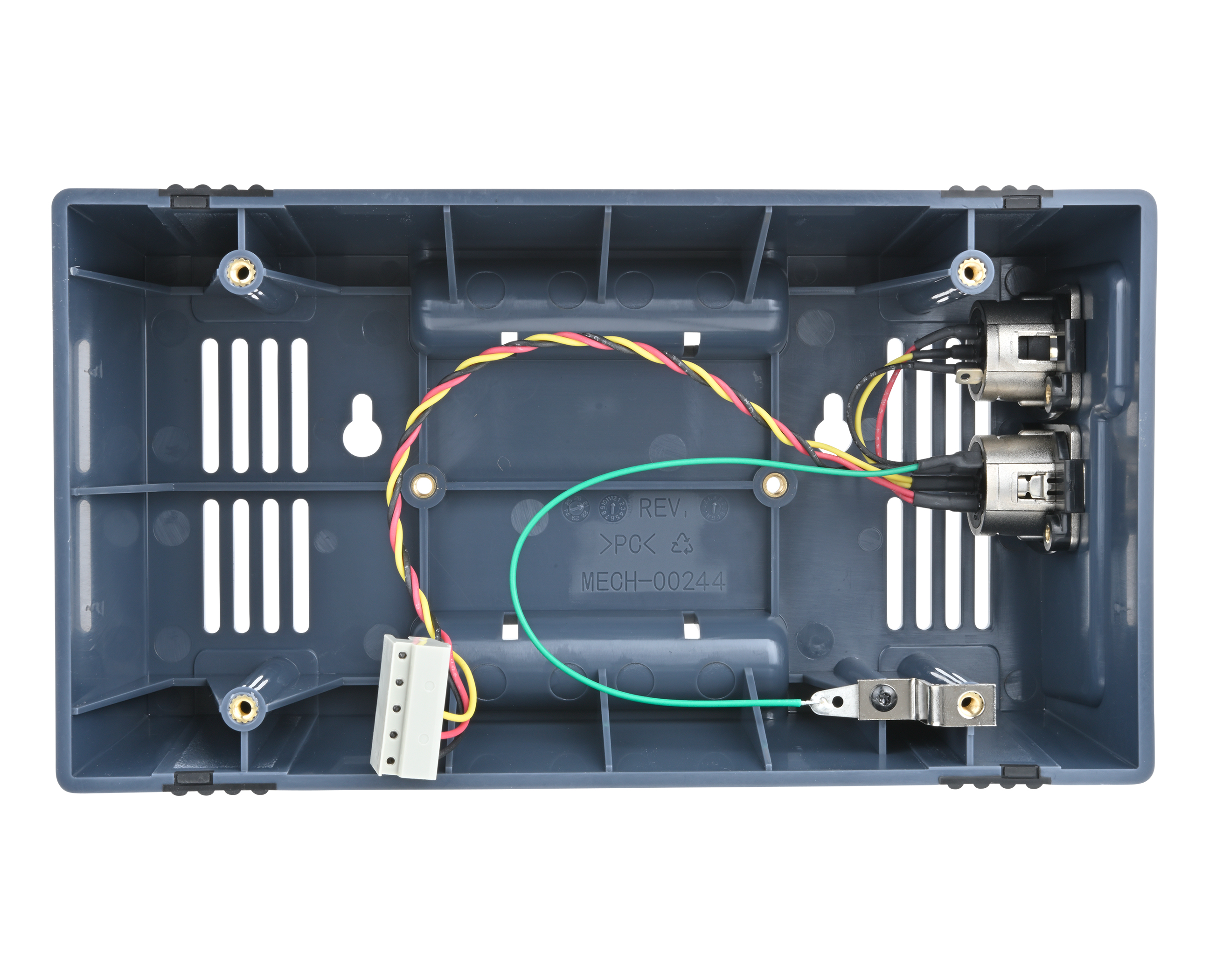

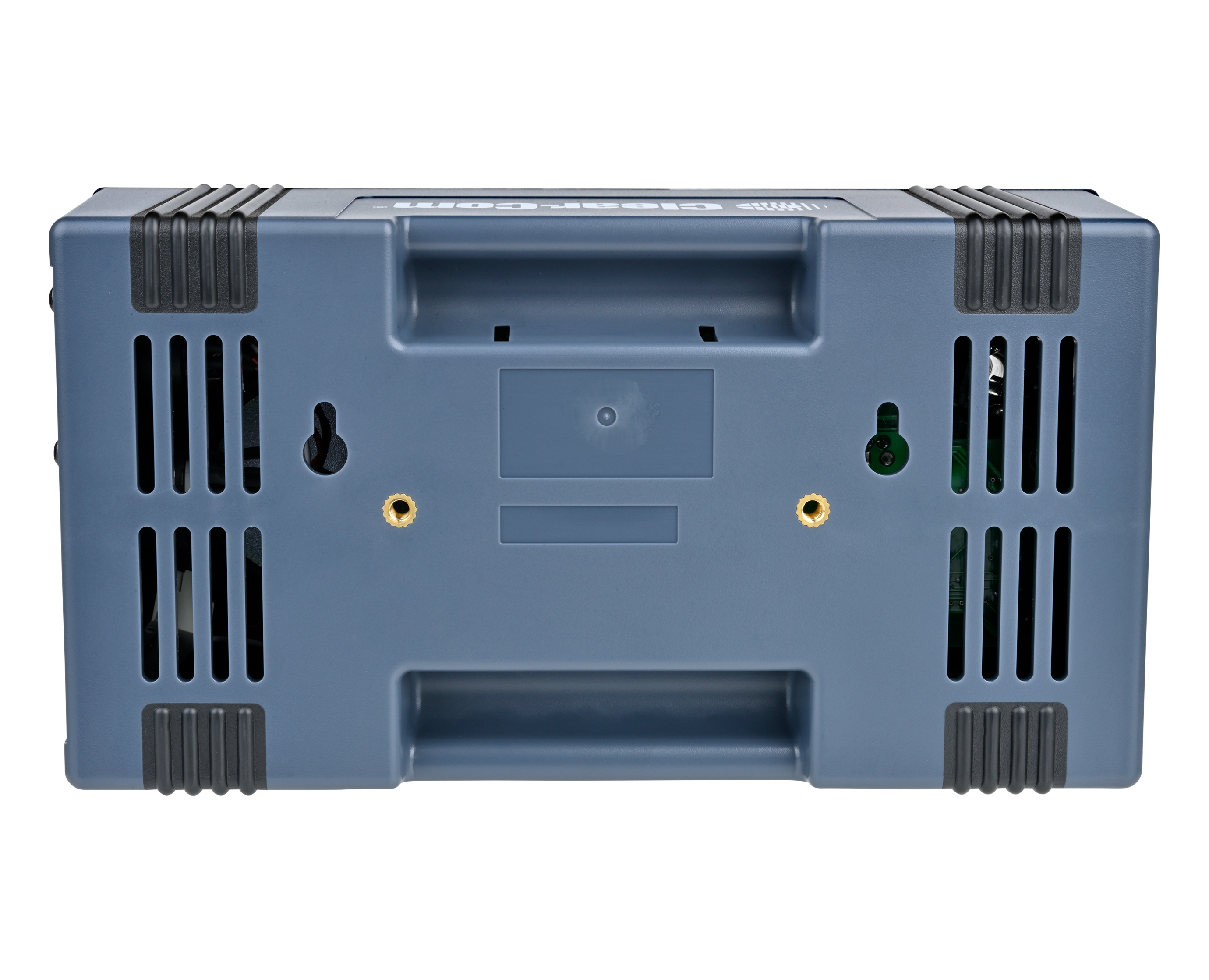

Clear-Com U-BOX-X6 6-Pin XLR Dual Channel Surface Box

Model: U-BOX-X6

Clear-Com U-BOX-X6 6-Pin XLR Dual Channel Surface Box
Clear-Com U-BOX-X6 6-Pin XLR Dual Channel Surface Box
Clear-Com U-BOX-X6 6-Pin XLR Dual Channel Surface Box
Clear-Com U-BOX-X6 6-Pin XLR Dual Channel Surface Box
  • Free Shipping!
  •  Available - Approx 5 Day Lead Time
  • Not yet reviewed

More models to choose from:

3-Pin XLR$479.00
6-Pin XLR$638.00


About: Clear-Com U-BOX-X6 6-Pin XLR Dual Channel Surface Box

The U-Box is a highly versatile, robust enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a desktop, shelf or wall mount unit for portable or permanent installation.

  • Enclosure for KB speaker station
  • Permanently installed or portable
  • Integrated handles
  • Vertical or angled KB installation
  • Desktop or wall mount
  • VESA 75 mounting option
  • Rugged enclosure
  • Available wired for single or dual-channel partyline and 4-wire

Technical Specifications

Connectors

  • U-Box-X3 XLR Partyline: 3-pin XLR-M/F
  • U-Box-X6 XLR Partyline: “Switchcraft-style”* 6-pin XLR-M/F
  • U-Box-RJ45 Four-Wire: etherCON RJ45
  • Input Power Connector: DC 2.1mm Co-axial

Environmental

  • 32° - 158°F (0 - 70°C)

Mounting

  • U-Box Keyholes Center-to-Center: 4.0in (101.6mm)
  • Keyhole Diameter: 0.318-0.159in (8.08-4.04mm)
  • VESA Sockets Center-to-Center: 2.95in (75mm)
  • VESA Thread Type: M4x10
  • Mounting Bracket Keyholes Center-to-Center: 5.9in (149.9mm)

Dimensions

  • U-Box: 4.5 x 8.2 x 2.8in (HxWxD) (113.79 x 208.79 x 70.23mm)
  • U-Box in Mounting Bracket: 5.4 x 8.3 x 6.1in (HxWxD) (136.19 x 209.55 x 154.37mm)

Weight

  • U-Box: 0.71lbs (0.32kg)
  • U-Box with Mounting Bracket: 0.90lbs (0.41kg)
  • U-Box with KB Speaker Station: 1.97lbs (0.89kg)

Reviews: Clear-Com U-BOX-X6 6-Pin XLR Dual Channel Surface Box

There are currently no product reviews.


Warranty: Clear-Com U-BOX-X6 6-Pin XLR Dual Channel Surface Box

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

All Clear-Com brand systems and products, including wired and wireless belt packs, have a Limited Warranty of two years, with the following exceptions:

  1. Clear-Com headsets, handsets, microphones, UHF wireless IFB products, and the following DX and PRO products: AC850 Charger, BAT850 Battery, BAT41 and BAT850 batteries, HS12, headsets, remote antenna cables, SP10 Speaker, XLR Adapters and HS20-2 headsets have a Limited Warranty of one year.
  2. Cables, accessories, components and consumable items including the BP850 battery sled, Beltpack antennas, Beltpack configuration cable, HS4-2 Earpiece, RMK850 Mounting Kit, RAK850 Remote Kit, Beltpack pouch, DX headset extension cable, HS4-3 Earpiece, HSI6000, RMK200, Splitter/Combiner, WS200 Battery Sled, Foam inserts in travel case, CAT-5 cable, base antenna have a Limited Warranty of 90 days.
  3. Any Clear-Com product that has been classified as obsolete at the time of sale has a Limited Warranty of 90 days from sale and will be replaced with the same product or a sales credit will be issued, at the sole discretion of Clear-Com.
  4. Clear-Com PRO 850 series wireless base station and Beltpacks have a Limited Warranty of three years.
  5. Clear-Com UHF WBS Analog wireless intercom systems have a Limited Warranty of three years.
  6. All software products, including Concert (Client and Server), ECS, EHX, Production Maestro Pro and Logic Maestro are warranted for one year and shall substantially conform to published specifications. The media on which the Software is furnished is warranted to be free of defects in material and workmanship (under normal use) for a period of one year.

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
