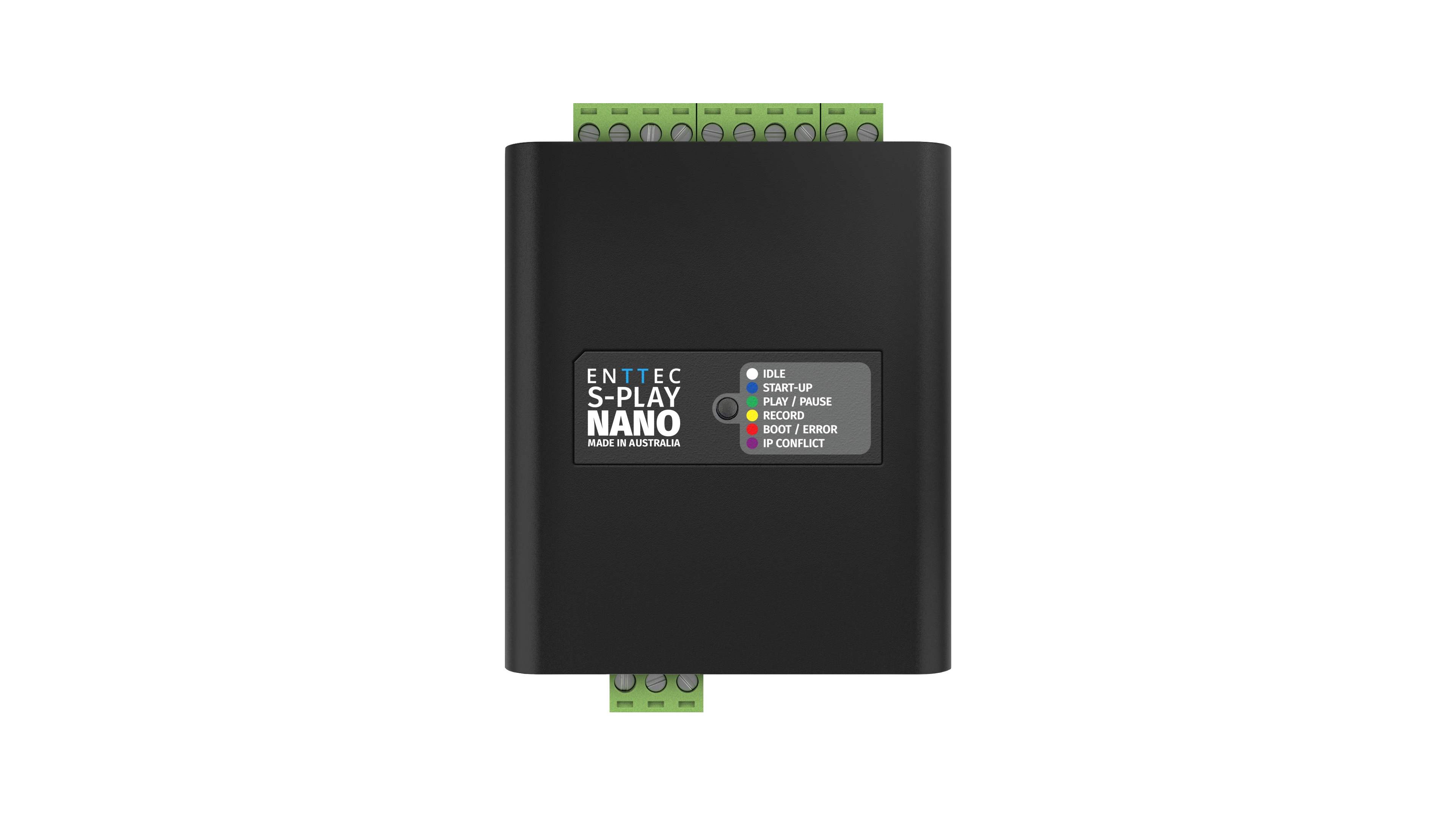

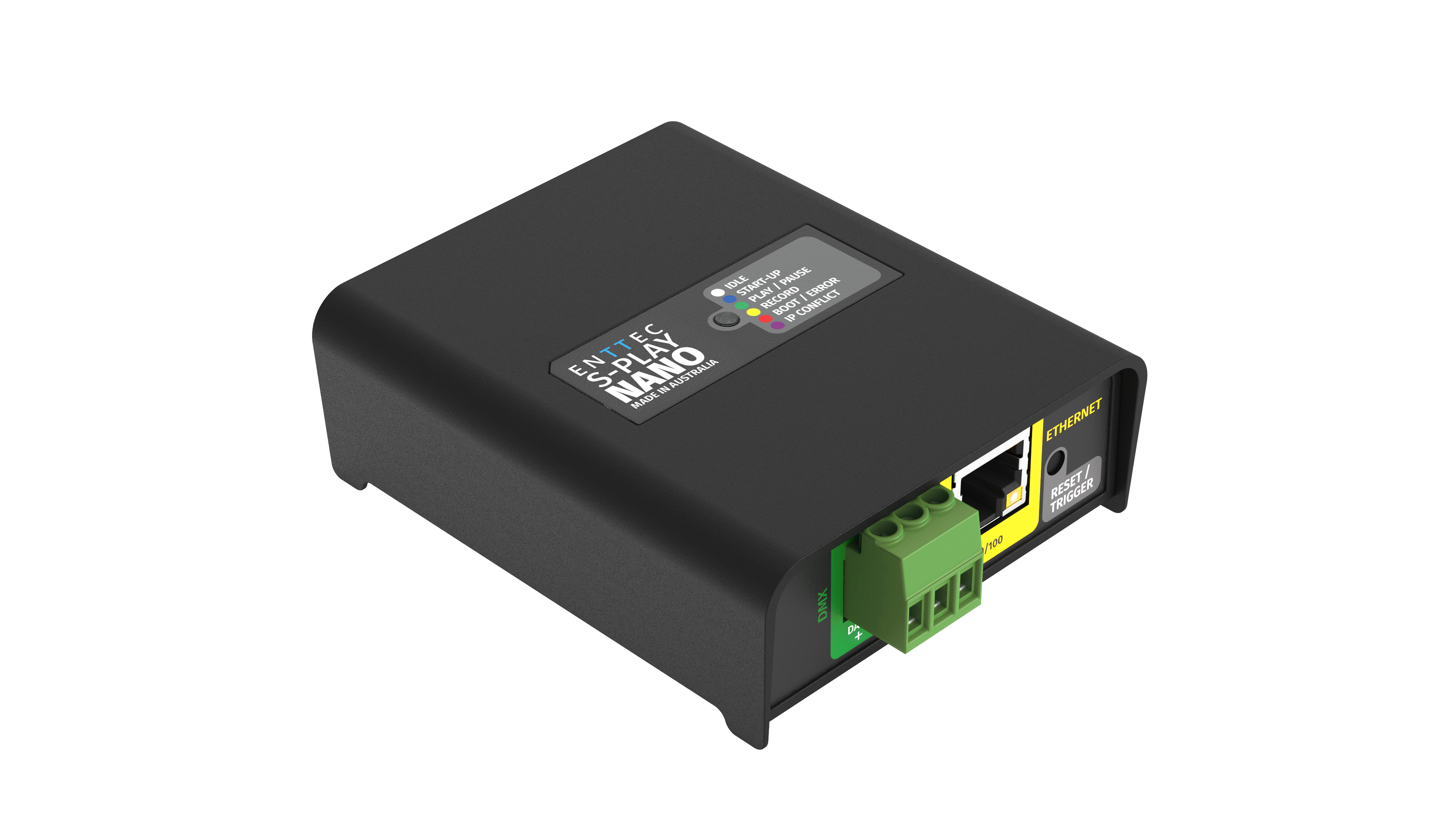

ENTTEC S-PLAY NANO DIN-Rail DMX Recorder & Smart Light Show Controller

About: ENTTEC S-PLAY NANO DIN-Rail DMX Recorder & Smart Light Show Controller

ENTTEC’s S-PLAY NANO is a robust and compact DMX show recorder and playback controller that streamlines your light show by seamlessly integrating external hardware, enabling you to achieve smart lighting control with ease.

S-PLAY NANO generates a maximum of 4 light Static/Dynamic/Effect Cues. Users can record 1 full DMX Universe (512 channels) manually for Static Cues, via live DMX port recording for Dynamic Cues, or use the built-in pixel effect generator alternatively creating gradient Effect Cues in minutes.

The S-PLAY NANO allows flexible integration of external devices into the installation, supporting Triggers or automating Events through contact closures, UDP, or OSC.

With a drag-and-drop interface within S-PLAY NANO’s timelines editor, users can intuitively design up to 4 Playlists using created Cues, Events, and Triggers as building blocks. Playlists can run simultaneously with configuration options for playback triggers, preferred loop times, priority, fade times, and master intensities, allowing precise customisation.

Maximize your S-PLAY NANO experience! Upgrade to S-PLAY MINI for enhanced features using the same hardware. Visit the ENTTEC website for more information.

Features

• Supports DMX port live recording and playback for 1 full DMX universe of 512 channels.
• Records cues from DMX sources with the added convenience of a DMX value monitor.
• Creates gradient Effect Cues using the in-built effect generator.
• Features user-friendly web interface providing easy configuration options for recording Cues and editing Events/Triggers.
• Allows users to create up to 4 Playlists, that comprising a maximum of 4 Cues, including Static, Dynamic, and Effect Cues.
• Sends up to 4 automated Events from options: Relays, UDP & OSC.
• Supports up to 8 Triggers from options: Digital Inputs, UDP, OSC and a Trigger button on the device.
• Offers upgradable firmware to S-PLAY MINI for enhanced capabilities.

Specification

• ​Hardware
  • Input voltage - 12V DC to 24V DC
  • Power input - 2-pin Phoenix screw terminal
  • Max power - draw 3W

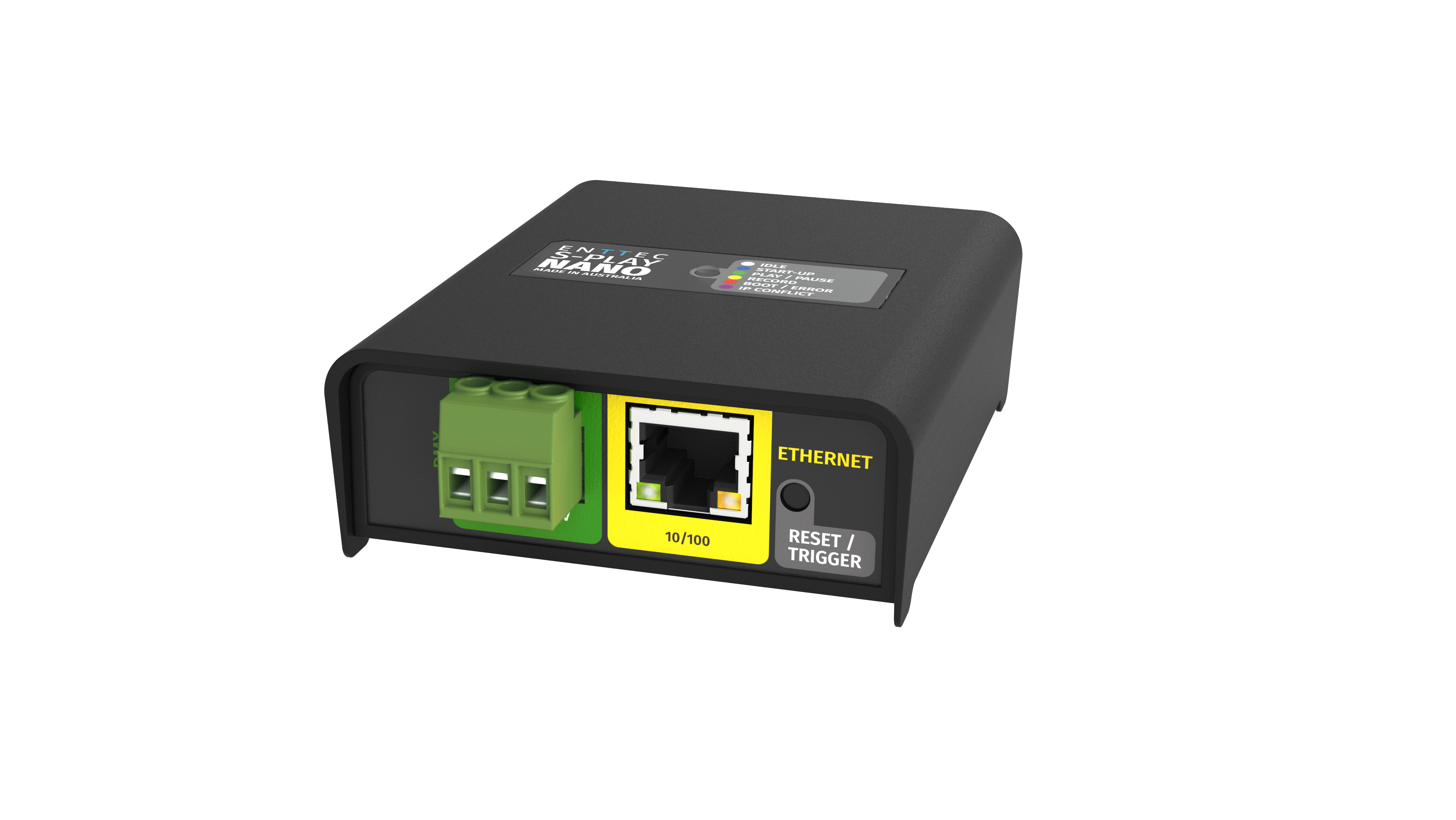

  • Ethernet port - RJ45
  • DMX port - Bi-directional 1 x 3-pin Phoenix screw terminal
  • Digital input - 4 digital inputs + 1 GND (5-pin Phoenix screw terminal)
  • Relay - 1 x relay (3-pin screw terminal)
  • Internal show storage capacity - 1GB
  • LED indicators - Forward-facing LED indicator + network link/activity (integrated into RJ45 port)
  • Factory reset - Web interface / reset button
  • Mounting - Surface & TS35 DIN rail mountable (clips & screws included)
  • IP rating - IP20
  • Environmental operating temperature - 0°C to 50°C / 32°F to 122°F
  • Environmental operating humidity - 0 to 95% (non-condensing)
  • Cooling method - Convection
  • Body material - ABS plastic
  • Unit dimensions - 100.5mm x 72.25mm x 34mm
  • Unit weight - 0.83kg / 0.18lbs
  • Compliance - RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
  • Warranty - 3-year return to base manufacturer warranty
• Software
  • DMX universe playback 1U (512 channels of USITT DMX512-A)
  • Max DMX refresh rate (FPS) 40
  • Max playlist count 4
  • Max cue track per playlist 1
  • Max Cues (including Static, Dynamic and Effect) 4
  • Max Triggers 8
  • Max Events 4
  • OSC API Yes

What's in the Box

• S-PLAY NANO
• Din Clip x 2pcs
• Screws x 4pcs
• ReadMe Card
