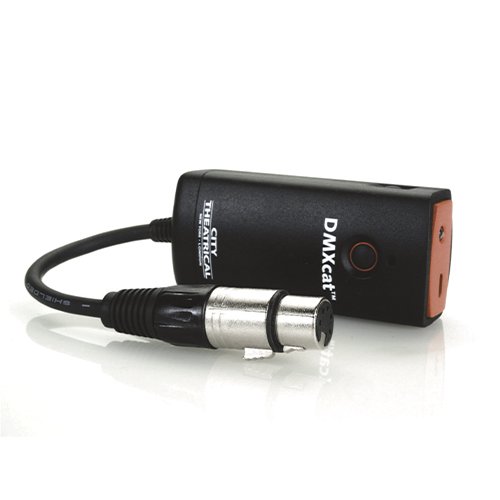

City Theatrical DMXcat Multi Function Test Tool

About: City Theatrical DMXcat Multi Function Test Tool

City Theatrical‘s DMXcat system is designed for use by the lighting professional who is involved with the planning, installation, operation, or maintenance of theatrical and studio lighting equipment. The system consists of a small hardware interface device and a suite of mobile applications. Together, they combine to bring DMX/RDM control plus several other functionalities to the user’s smartphone for use wherever and whenever they are needed. Developed with input from designers and technicians, the DMXcat is an indispensable tool for lighting users.

• Interface device is a compact battery powered device unit
• Bluetooth LE technology for communication with smartphone/ applications
• 5 pin XLRF connector/ cable assembly allows it to be connected to a point in a DMX data chain
• USB to Micro-USB cable and charger

DMXcat is available in seven languages: Spanish, French, German, Italian, Korean, Japanese, and English. DMXcat works with: Android, iPhone, and Amazon Fire.

DMXcat hardware is built into every Multiverse Transmitter. This means you can now access, configure, and control your Multiverse Transmitter with the free DMXcat app. DMXcat technology means that you no longer have to touch or even be close to your Multiverse Transmitter to make changes to it. Update your current DMXcat app or download it today to connect your Multiverse Transmitter.

Hardware

The DMXcat’s interface device is a compact battery powered unit which fits easily in a pocket or tool pouch or may be worn on a belt. It uses Bluetooth LE technology for communication with the smartphone/applications (up to 50’ range). Without the limitations of being physically connected, the user can move about the workspace as needed with his/her smartphone and run the various apps while still using the phone for on-the-job communication. The device’s 5 pin XLRF connector/cable asembly allows it to be connected to a point in a DMX data chain to allow testing and or control of the various DMX/RDM channel functions. It is charged using a standard USB to Micro-USB cable and charger.

Other features include a built-in LED flashlight, an audible alarm (for locating a misplaced unit), an LED Status indicator, and a removable belt clip.

Optional accessories include: XLR5M to RJ45 Adapter, XLR5M to XLR3F Adapter, XLR5M to XLR5M Turnaround, XLR5M to XLR3M Turnaround, Belt Pouch.

Software Applications

There are currently seven apps available or in development for use with the DMXcat system. Apps are available through Google Play (Android) or the Appstore (iPhone).

Apps Included with the Basic configuration include:

• DMX Controller: a single universe (512) DMX channel controller with two user interfaces.
• Fixture ControllerDMX: test app for multi-attribute fixtures with built in database of lighting fixtures.
• RDM Controller: App for bi-directional communication/control of RDM enabled devices.
• DMX Tester: Permits users to analyze and or adjust  settings for transmitting or receiving DMX.
• RF Spectrum Analyzer (Android only): For surveying and visualizing Wi-Fi networks.
• DIP switch calculator: This app simplifies the configuring of DIP switches used for setting DMX addresses.
• Light Meter (Android only): Useful for setting light levels for on-camera use.

Specifications

• Wireless Communication: Bluetooth LE
• Range: 50' (15m)
• Status LED indicator: Yes, multicolor
• Flashlight: White LED
• Charging port: Micro USB
• DMX Connectors: 5PXLRF
• Apps: 7- Android and 6- iOS
• Included: DMX Controller, Fixture Controller, DIP Switch Calculator, RDM Controller, DMX Tester
  • Android only: Light Meter, RF Spectrum Analyzer
• Construction: NEMA 1 ABS enclosure
• Compliance: CE, RoHS, FCC
• Physical:
• Weight: 0.3 lbs. (0.14 kg)
• Dimensions  (W x L x H): 1.63 x 3.75 x 0.94 inch (41.4 x 95.3 x 23.9 mm)
• System Requirements:
  • Bluetooth 4.0 or greater
  • Android 6.0 or greater
  • iOS 11 or greater (iPhone 6S and newer)
