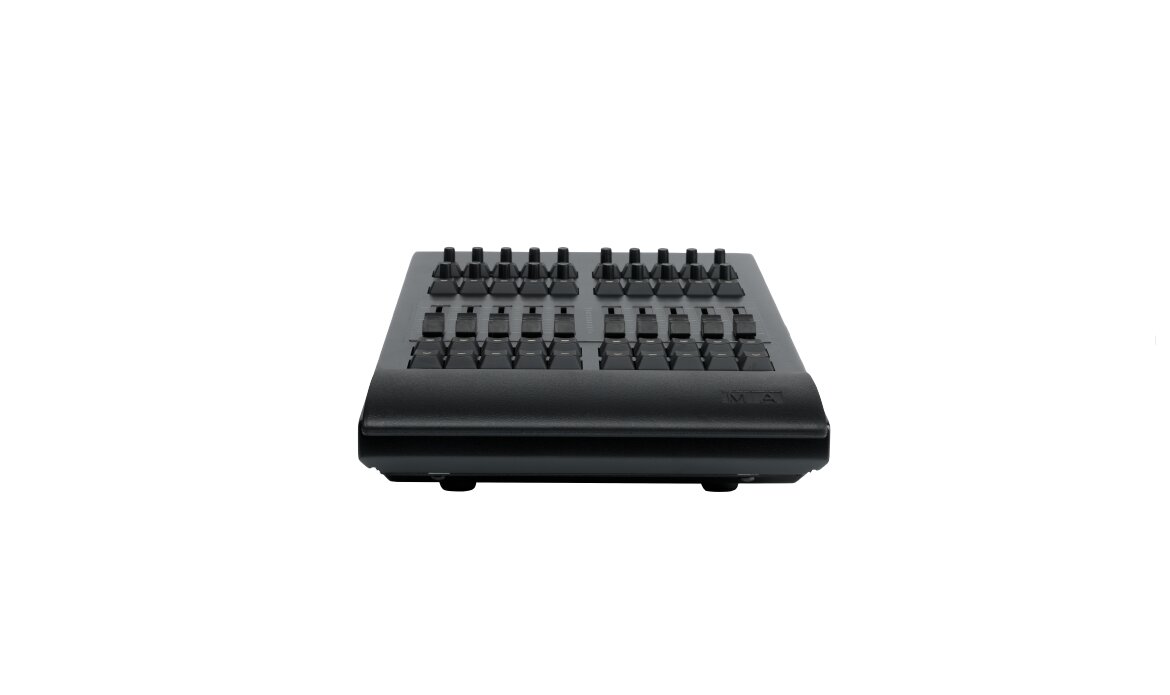

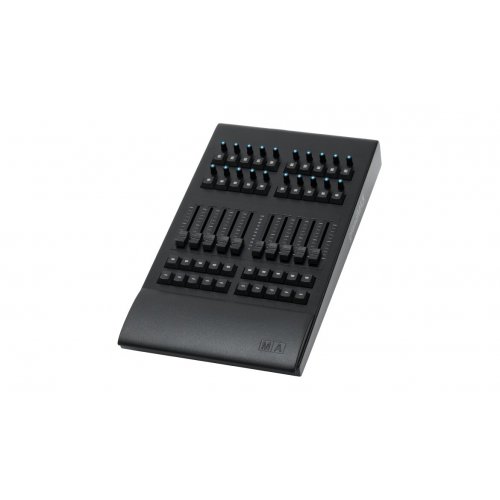

MA Lighting grandMA3 onPC fader wing

Model: MA4023575

MA Lighting grandMA3 onPC fader wing
MA Lighting grandMA3 onPC fader wing
MA Lighting grandMA3 onPC fader wing
MA Lighting grandMA3 onPC fader wing
Call for Price
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed
Call for details

About: MA Lighting grandMA3 onPC fader wing

We all love extra faders - ok, almost all of us love extra faders! If you need additional faders in your grandMA3 onPC system, the grandMA3 onPC fader wing is the perfect hardware playback extension for you.

With this onPC wing you get a total of 40 separate playbacks with 10 motorized faders and 20 rotary encoders. So you can expand the playbacks for your grandMA3 onPC command wing XT or your grandMA3 onPC command wing.

But maybe you need a simple playback device in a small TV studio, theater installation or house of worship? Just connect the grandMA3 onPC fader wing via USB directly to your computer running the grandMA3 onPC software. You get a small and compact playback station with two built-in DMX ports to control your show! Or you have a grandMA3 onPC rack-unit and use up to two grandMA3 onPC fader wings to control your playbacks.

No matter which combination you like - you can use 4 096 parameters directly!


  • onPC wing for real-time control of 4 096 parameters in combination with grandMA3 onPC
  • 2 DMX connectors
  • 1 USB connector
  • 20 rotary RGB backlit encoder
  • 10 motorized 60 mm faders
  • 40 separate playbacks
  • Individually backlit and dimmable silent (clickless) keys


  • Parameters -  4 096 (HTP/LTP)
  • Parameters Mode2 -  not applicable (no Mode2)
  • Operating voltage/ Supply voltage -  AC 100 - 240 V; 50/60 Hz
  • Power -  max. 50 VA
  • Operating Temperature -  0 °C up to 40 °C / 32 °F up to 104 °F
  • Dimensions -  240 x 427 x 102 mm / 10 x 17 x 4 in (width x depth x height)
  • Net weight -  5 kg / 11 lbs
  • Connectors
    • 1 x IEC-60320 C14 cord
    • 2 x DMX512-A Out (5pin XLR female)
    • 1 x USB 2.0 (type B)
    • 1 x LED desk light (4pin XLR female)

Supplied with

  • 1x Dust cover grandMA3 onPC fader wing
  • 1x MA cable USB 2.0, type A to type B, length 2.0m
  • 1x MA Magnetic plate for easy labeling of 10 faders for grandMA3
  • 1x MA Quick Manual for grandMA3 onPC fader wing

Reviews: MA Lighting grandMA3 onPC fader wing

There are currently no product reviews.

Warranty: MA Lighting grandMA3 onPC fader wing Warranty:

30 Days

Manufacturer's Warranty:

2 Years from date of purchase
